Iscar H606 FR D2.00-06-0.75-12 2in 6 Flute Indexable Face Mill 3106380

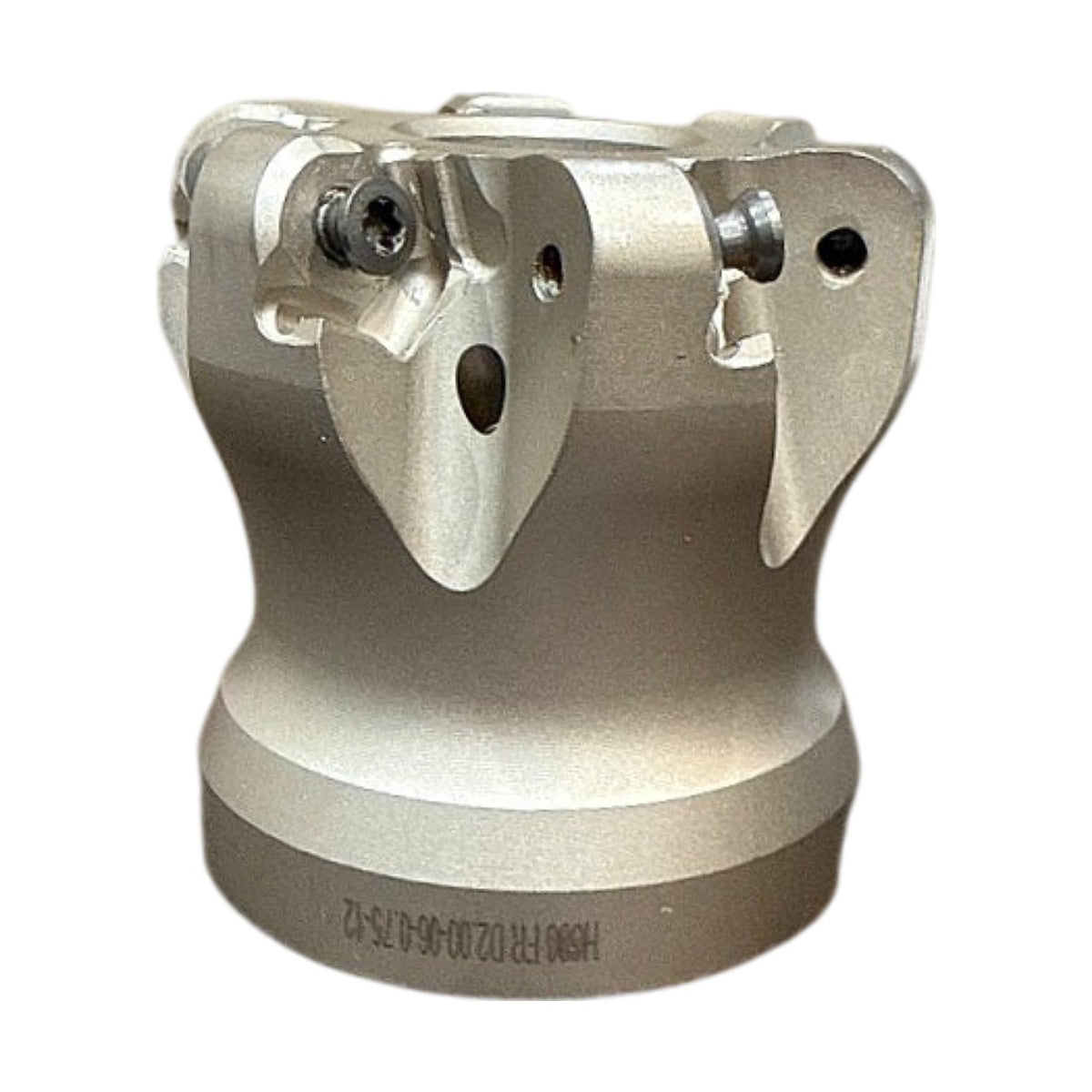

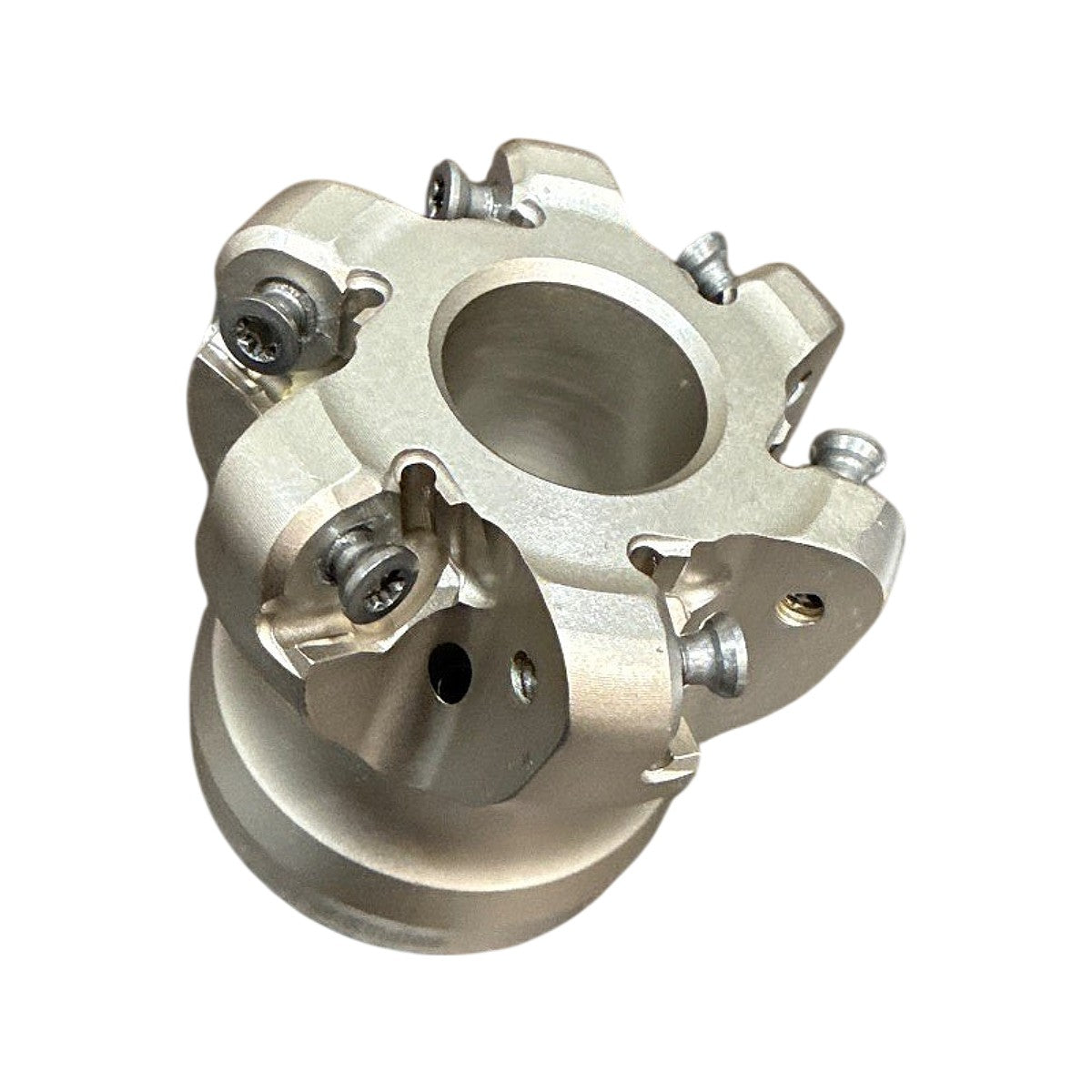

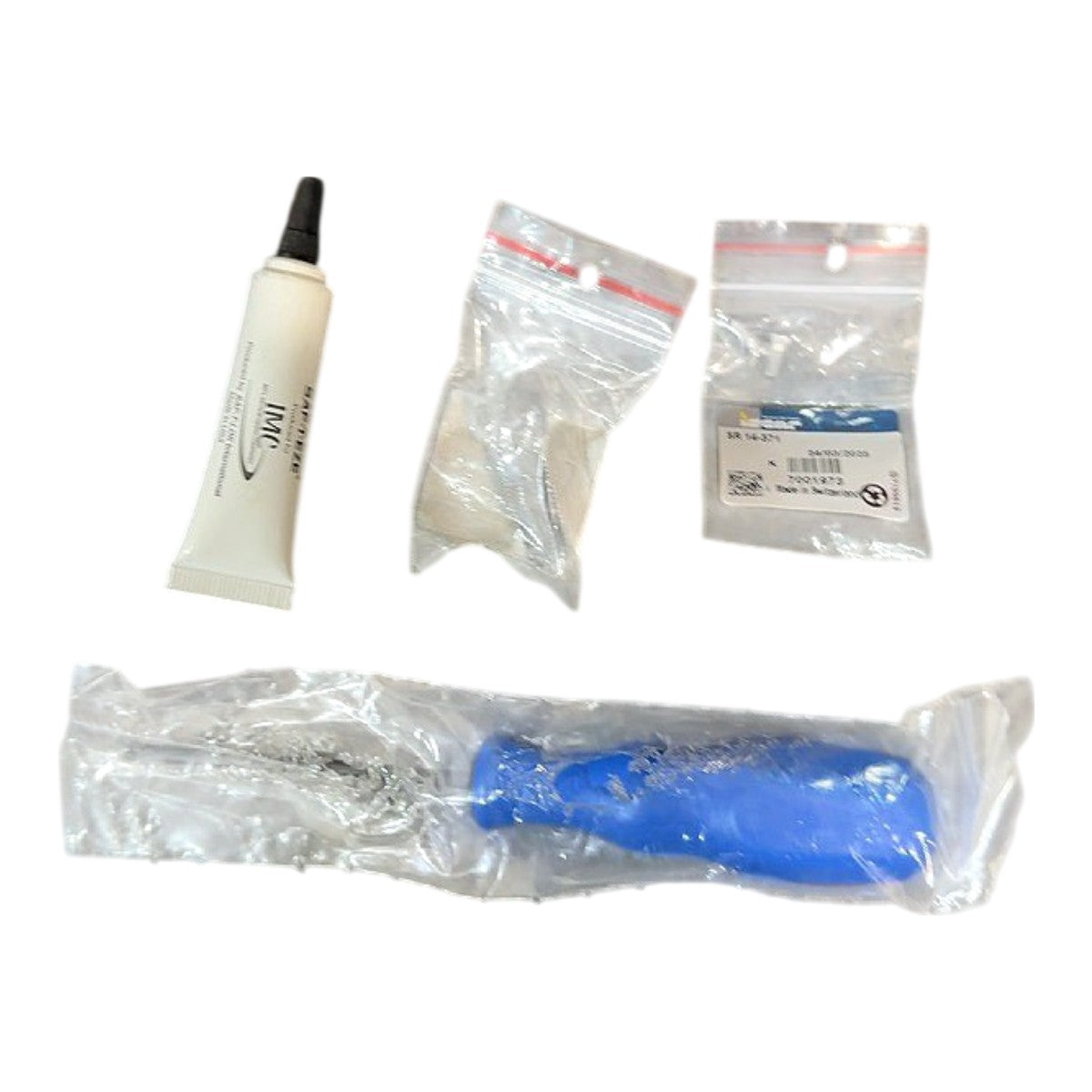

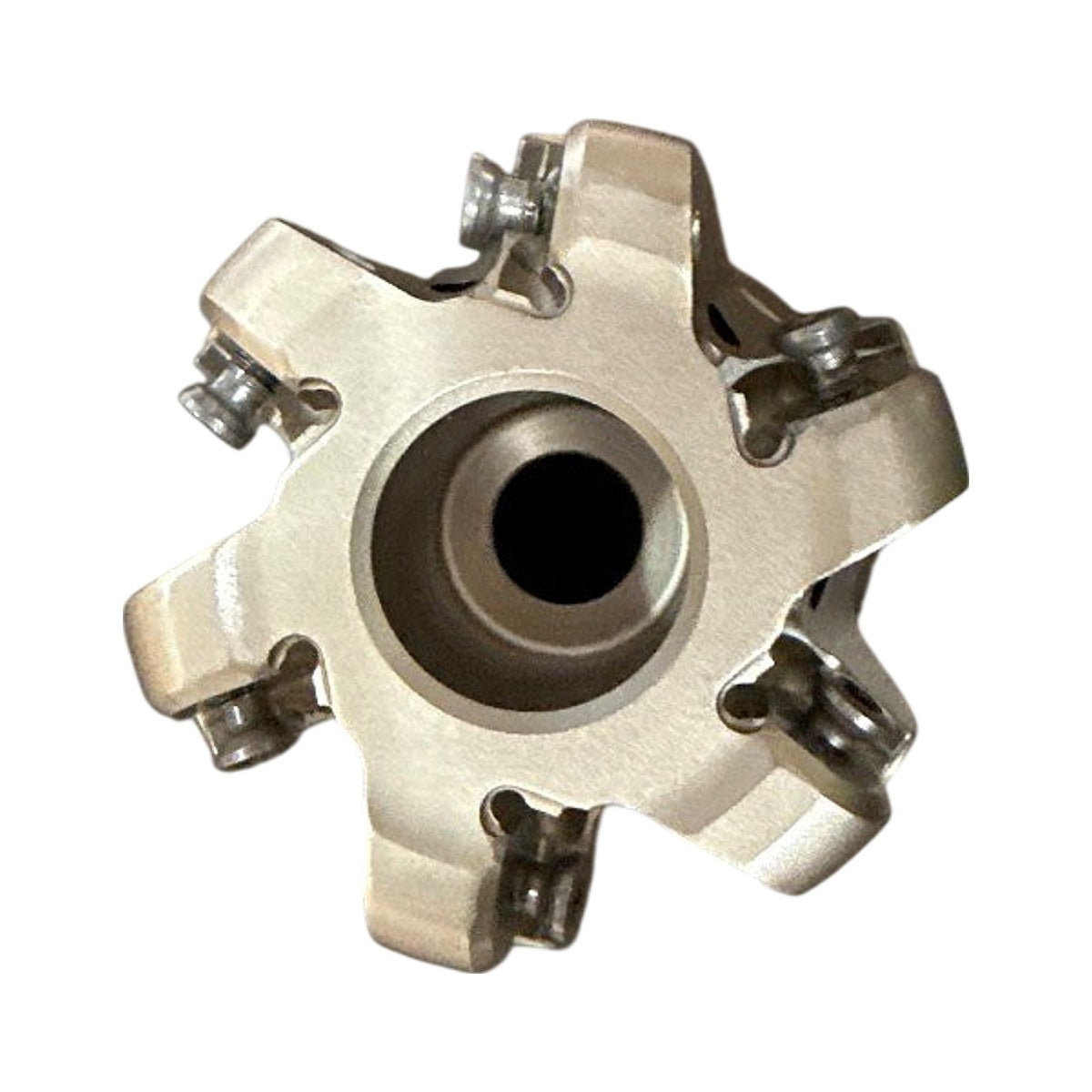

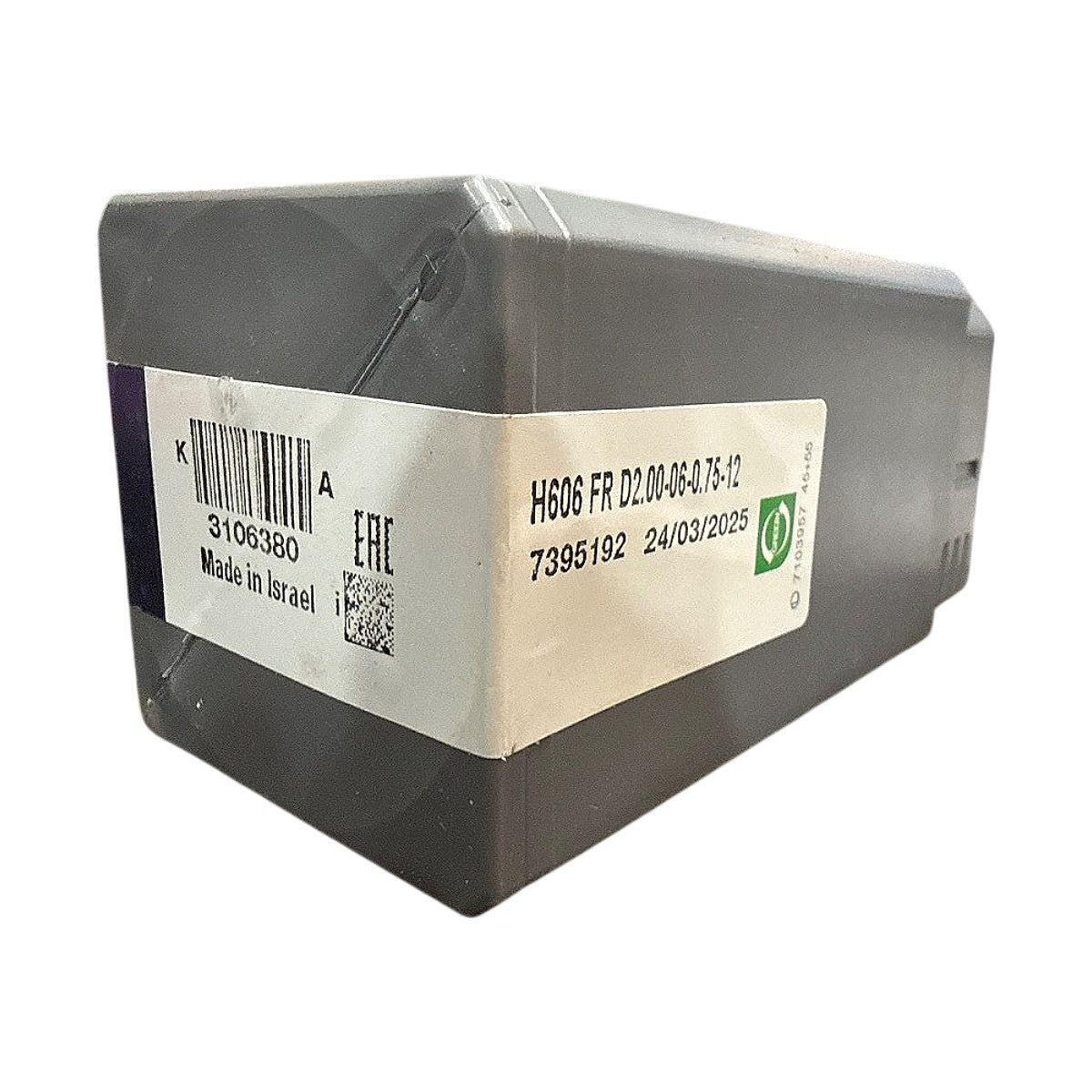

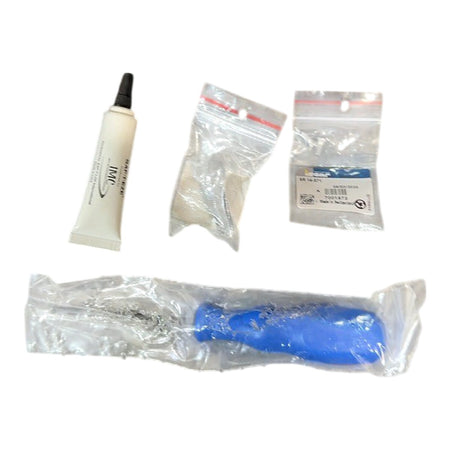

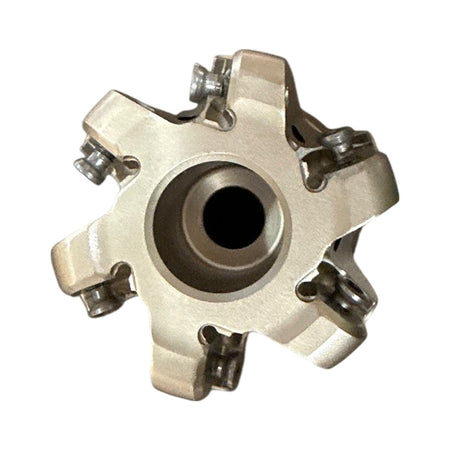

This new Iscar H606 FR D2.00-06-0.75-12 (Iscar item 3106380) is an inch-size indexable shell-type face mill from the HELIDO 606 line, with a 2.00 in cutting diameter, 6 insert pockets and a 0.75 in bore for arbor mounting. The part designation decodes as H606 series, FR face mill, D2.00 diameter, 06 teeth and 0.75 in bore. The body is secured to the arbor through a central bore with a counterbore, and each pocket is clamped with a Torx-drive screw. The box is marked Made in Israel, and the kit includes a Torx screwdriver with blue handle, a tube of anti-seize paste and a bag of spare screws marked SR 14-321, Made in Switzerland. The photos show the pockets without inserts installed, so inserts must be matched to the H606 series per Iscar's catalog.

Product Specifications
