Iscar HFPN 2010 IC808 2mm Carbide Grooving Insert (10 Pcs)

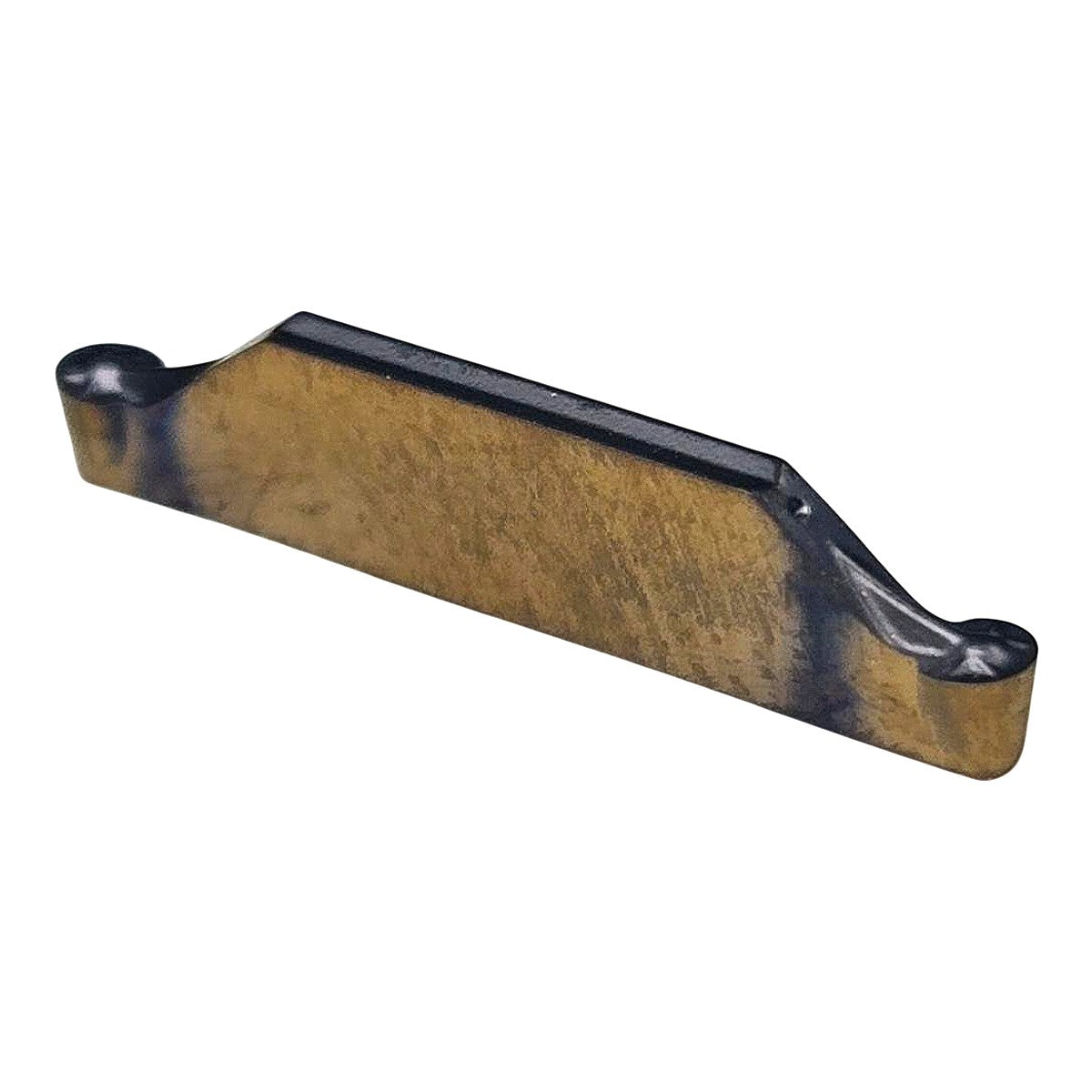

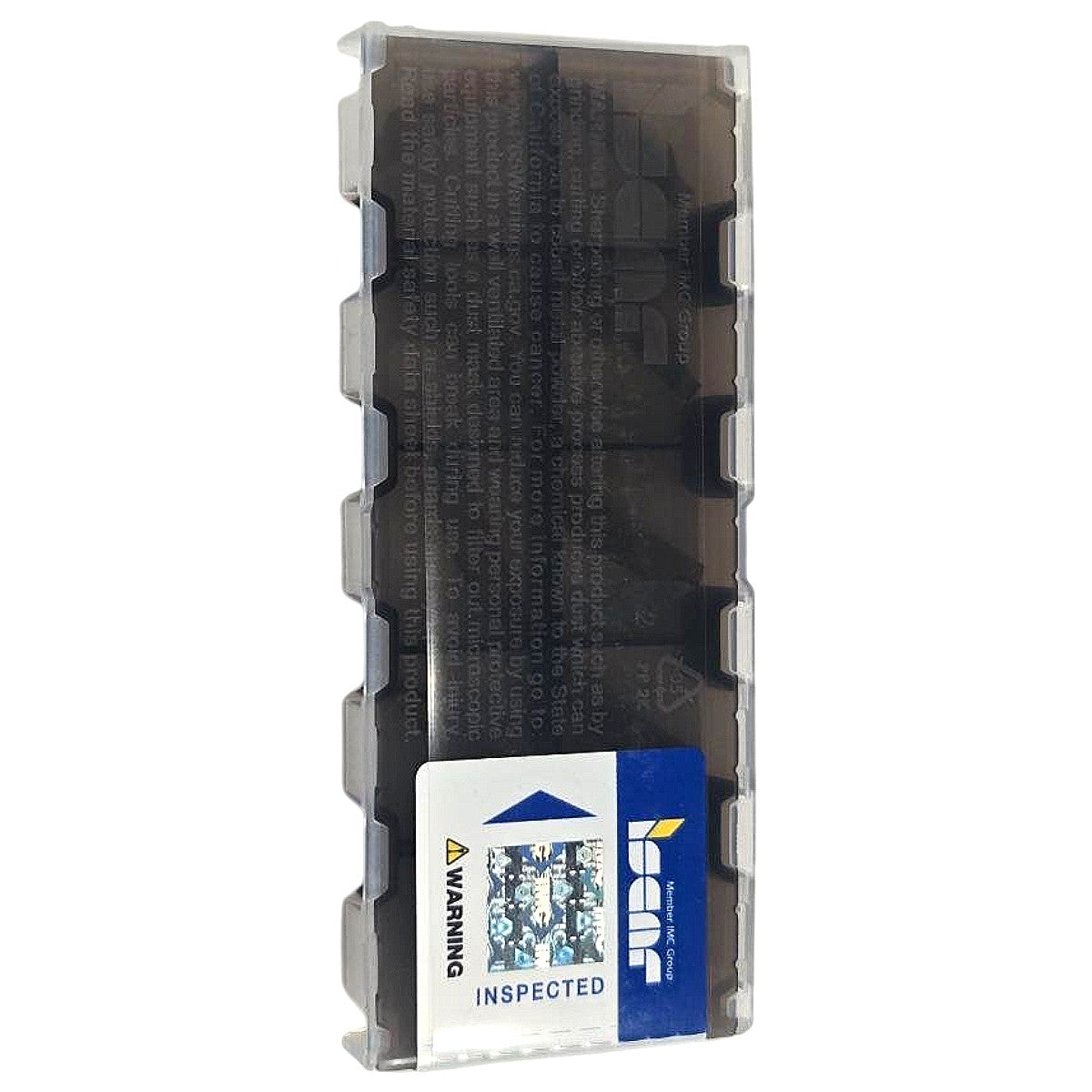

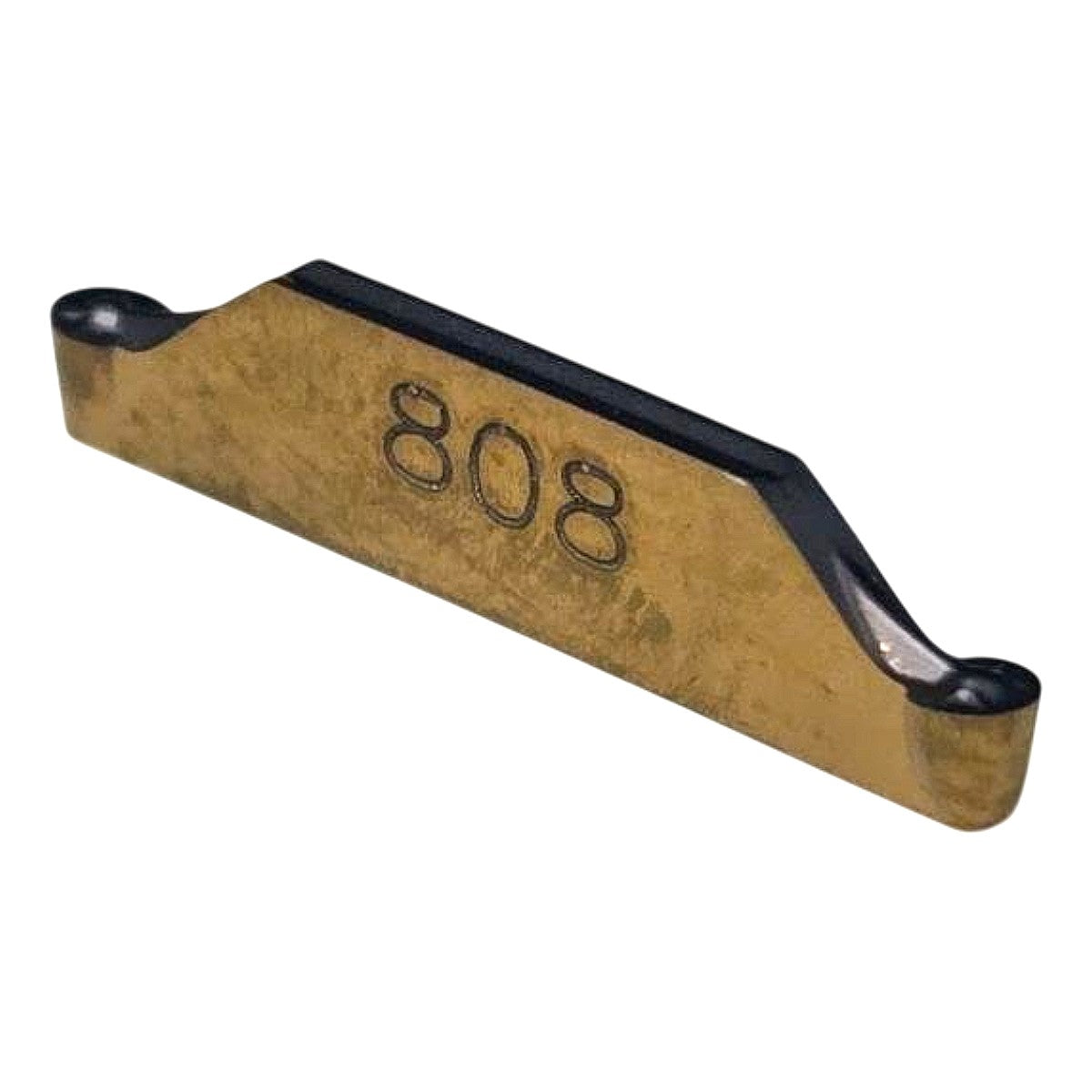

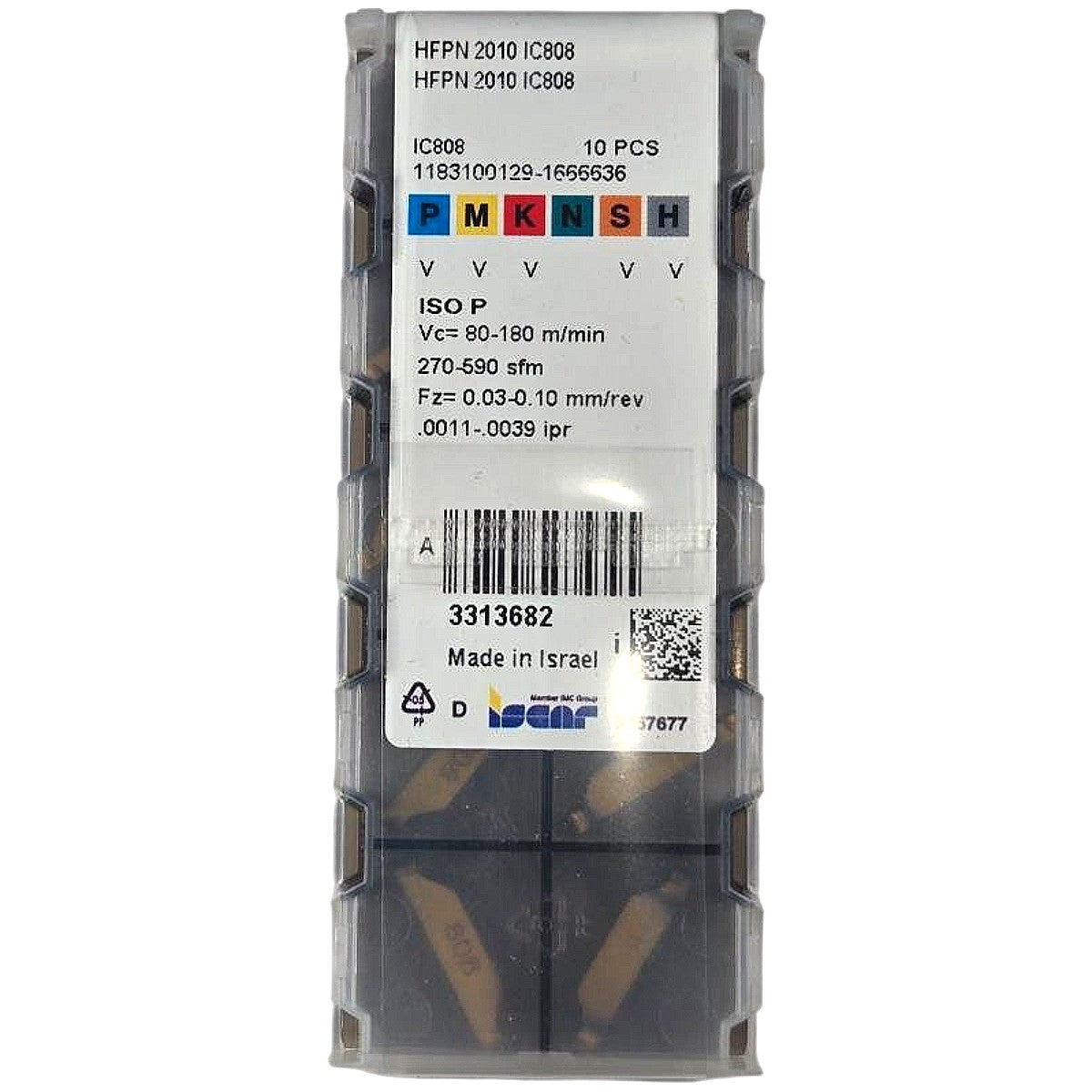

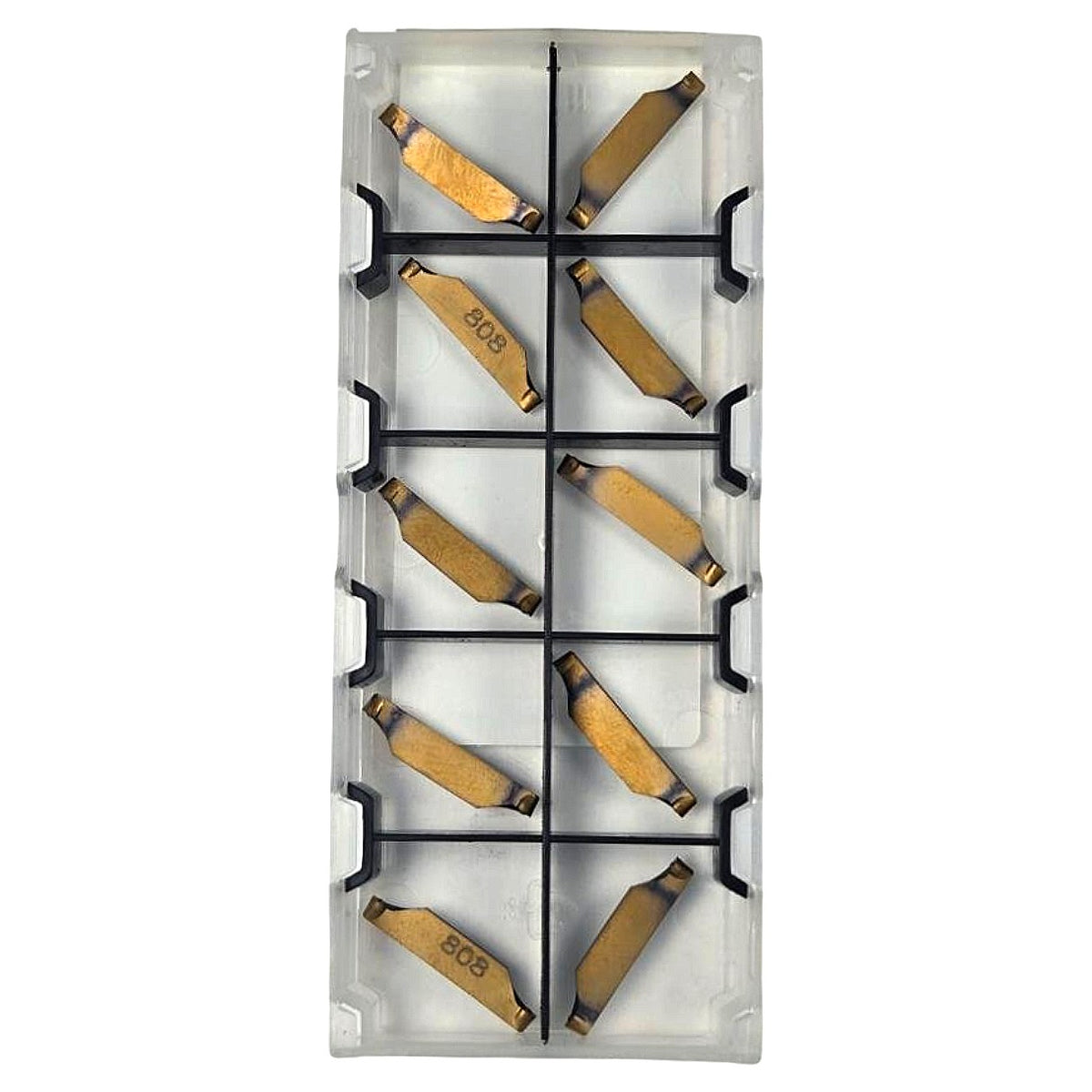

This listing is for a factory-sealed pack of 10 new Iscar HFPN 2010 IC808 carbide grooving inserts (Iscar catalog/item number 3313682) from the Heliface series, designed for face grooving operations on CNC lathes using compatible Heliface toolholders. The designation breaks down as follows: HFPN = Heliface Parting/grooving insert with neutral geometry; 20 = insert length class; 10 = 1.0 mm insert height/width reference; IC808 = Iscar's PVD-coated cemented carbide grade featuring a TiAlN-based (AlTiN/TiN) multilayer PVD coating over a fine-grain carbide substrate, optimized for steel, stainless steel, and heat-resistant alloys at moderate-to-high cutting speeds. The IC808 grade carries ISO P, M, K, N, S, and H application ratings (all confirmed "V" — very suitable) as shown on the package label, with recommended cutting speeds of Vc = 80–180 m/min (270–590 SFM) and feed rates of Fz = 0.03–0.10 mm/rev (0.0011–0.0039 IPR). The 2.00 mm cutting width enables precise narrow face grooving, and the insert's characteristic double-ended locking ears (round locating pins) secure it within Iscar Heliface toolholder slots. All 10 inserts are new, unused, and supplied in the original Iscar plastic insert tray with factory inspection seal intact.

Product Specifications
