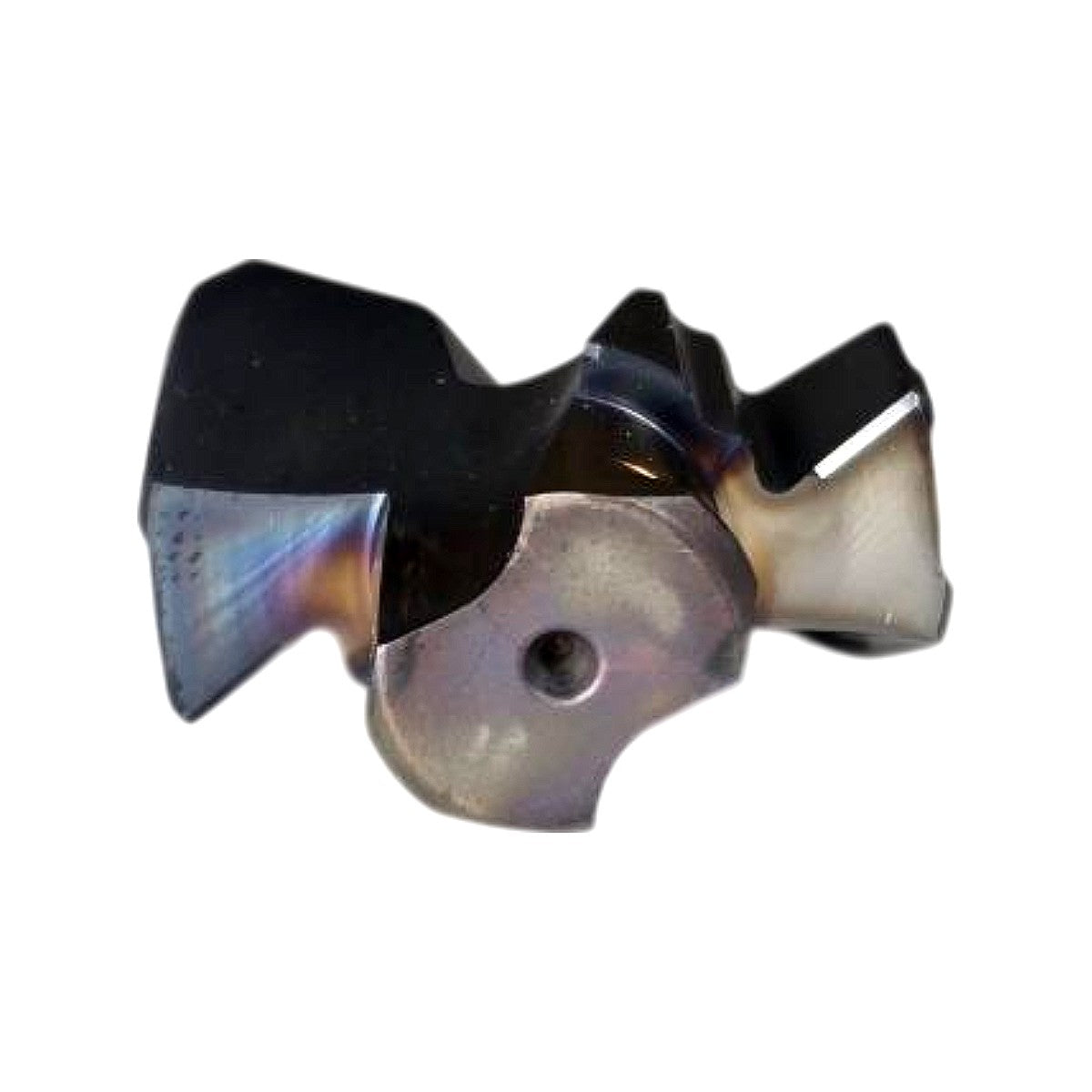

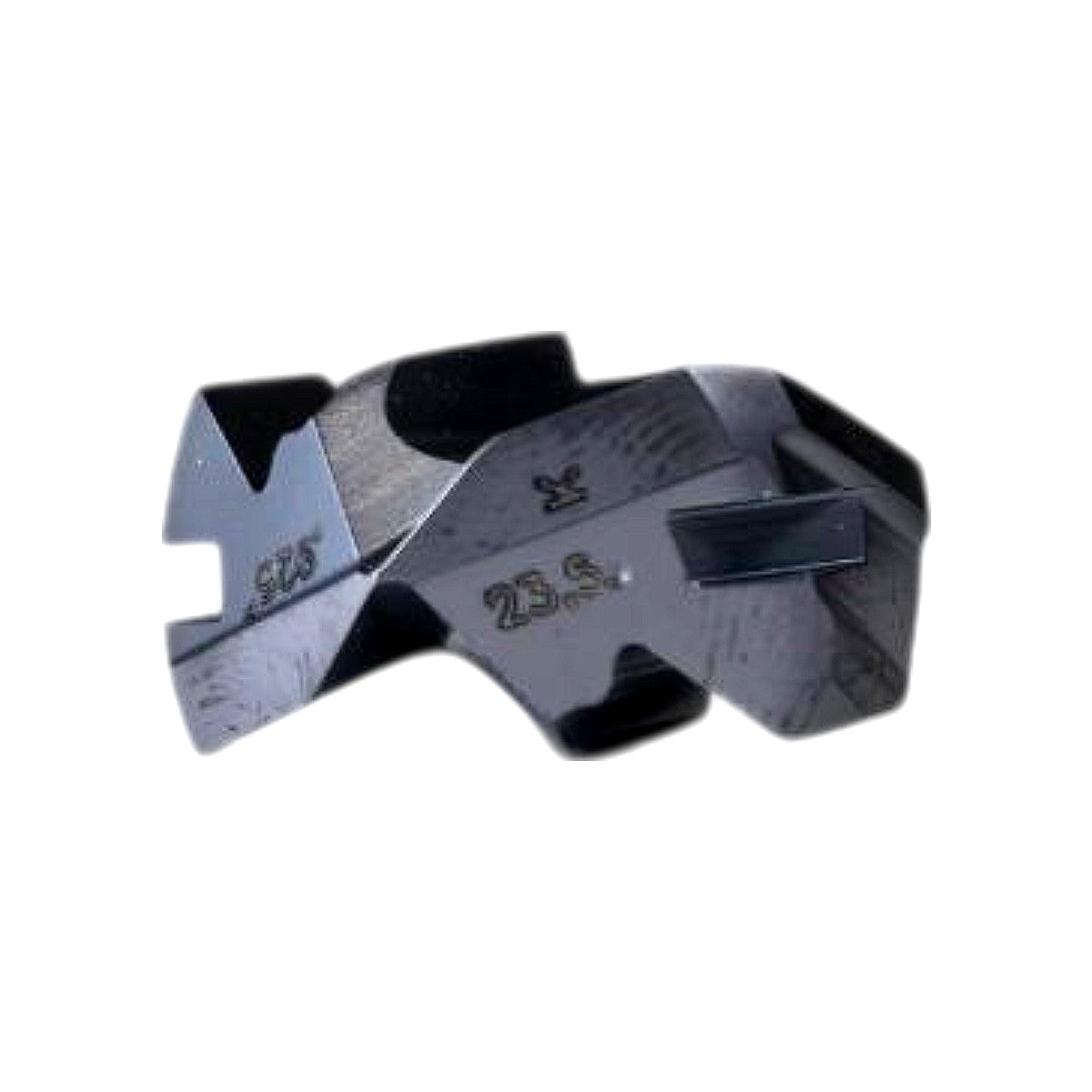

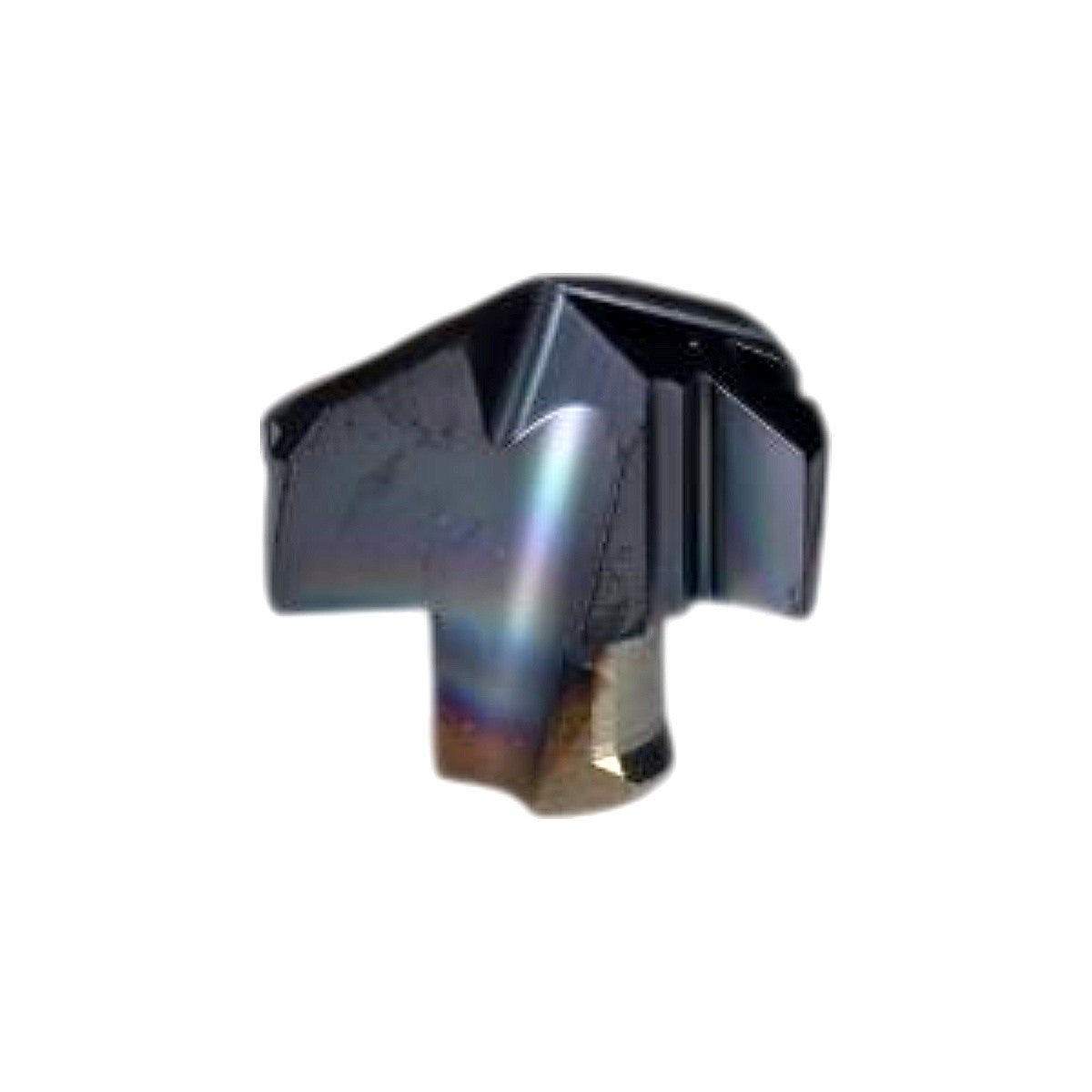

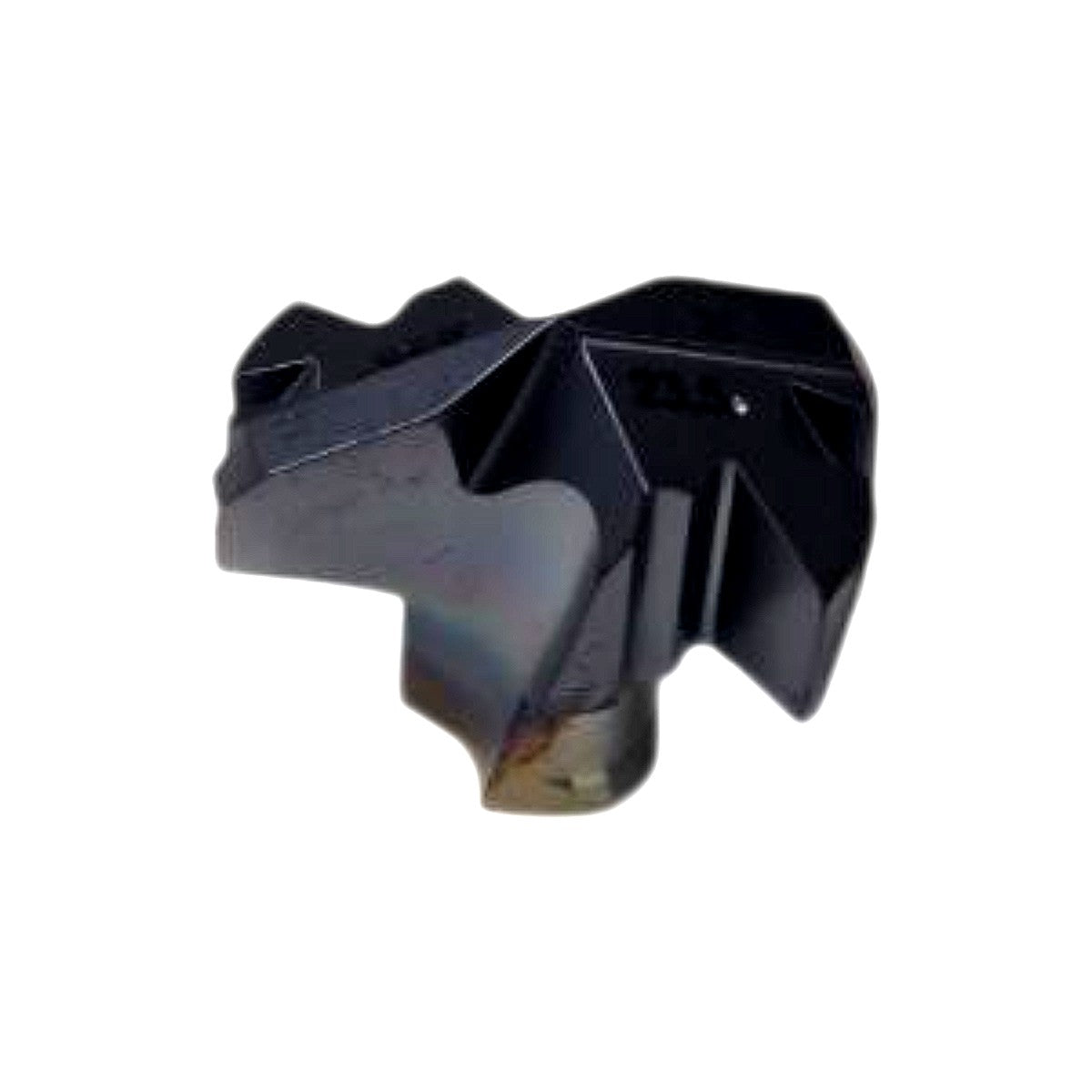

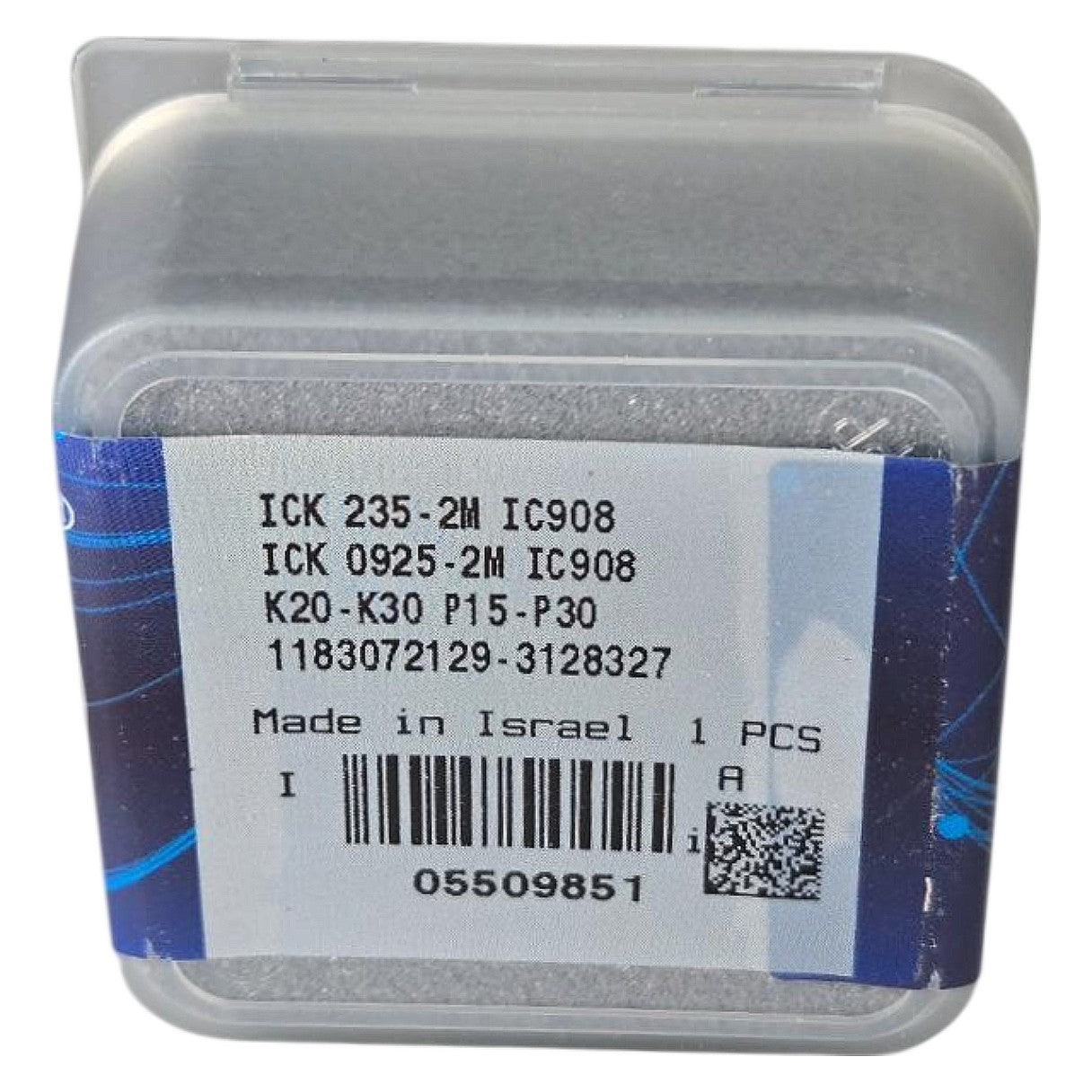

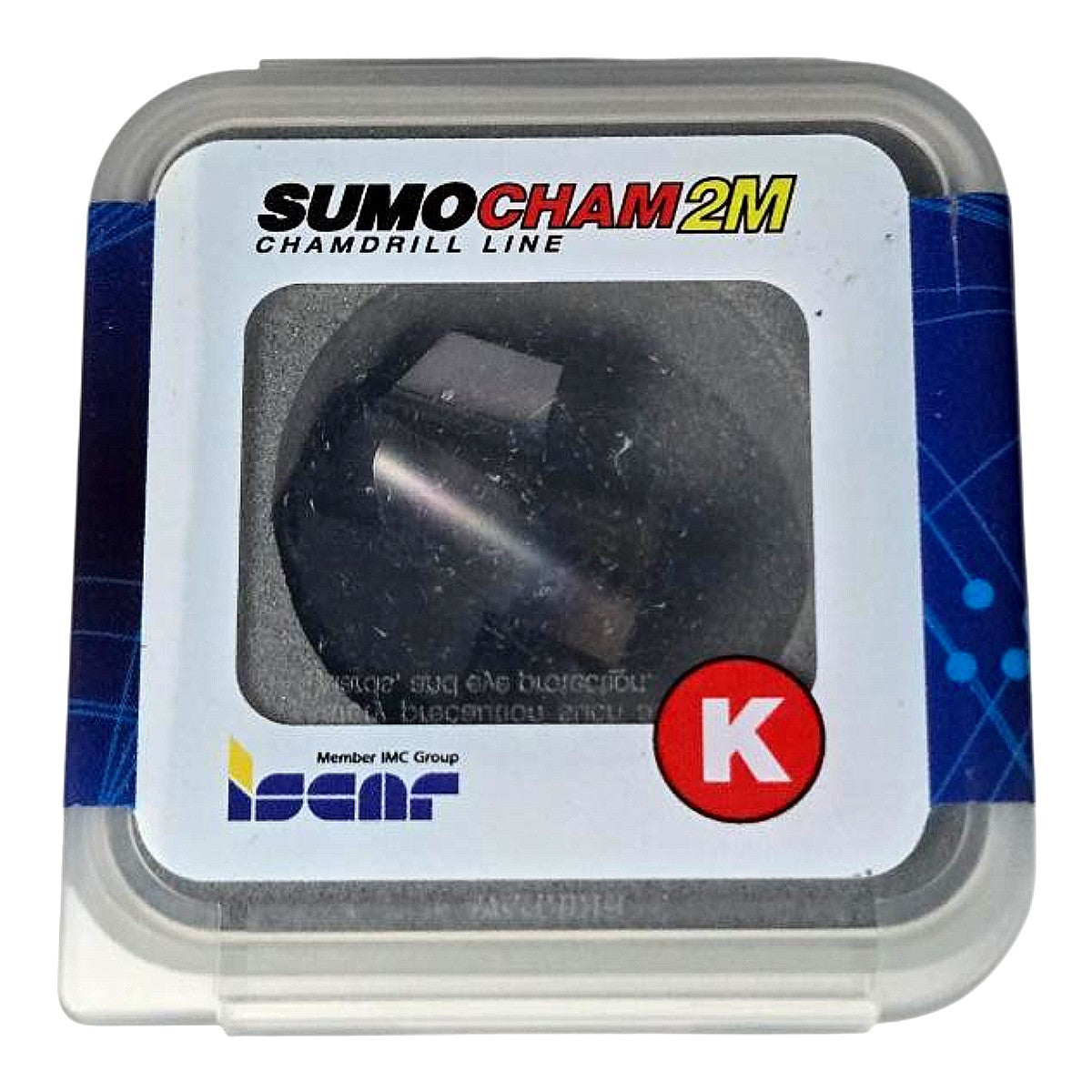

Iscar ICK 0925-2M IC908 0.9250in 23.5mm 140° SumoCham Replaceable Drill Tip
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Iscar ICK 0925-2M (also cataloged as ICK 235-2M) is a new, indexable replaceable drill tip from Iscar's SumoCham 2M ChamDrill line, designed for use with compatible SumoCham modular drill bodies accepting a Seat Size 23 head. The insert is manufactured from IC908 carbide grade — a PVD TiAlN-coated submicron carbide substrate rated for ISO application ranges K20–K30 and P15–P30, making it suitable for drilling cast iron, steel, and stainless steel at elevated cutting speeds. The drill tip features a 140° point angle and a 2M geometry optimized for general-purpose drilling with improved chip formation and stability in interrupted cuts. The nominal drill diameter is 0.9250 in / 23.50 mm, and the insert is secured via the SumoCham self-clamping bayonet-style locking mechanism without requiring additional screws. Iscar item number 5509851; made in Israel.
Product Specifications
| Brand | Iscar |
| MPN | ICK 0925-2M IC908 |
| Alternate MPN | ICK 235-2M IC908 |
| Iscar Item Number | 5509851 |
| Product Line | SumoCham 2M ChamDrill |
| Drill Diameter (Imperial) | 0.9250 in |
| Drill Diameter (Metric) | 23.50 mm |
| Point Angle | 140° |
| Seat Size | 23 |
| Carbide Grade | IC908 |
| Coating | TiAlN (PVD) |
| ISO Application Range | K20–K30, P15–P30 |
| Geometry | 2M (general-purpose) |
| Clamping Style | SumoCham bayonet self-clamping (screwless) |
| Condition | New |
| Country of Origin | Israel |
| Quantity | 1 pc |
