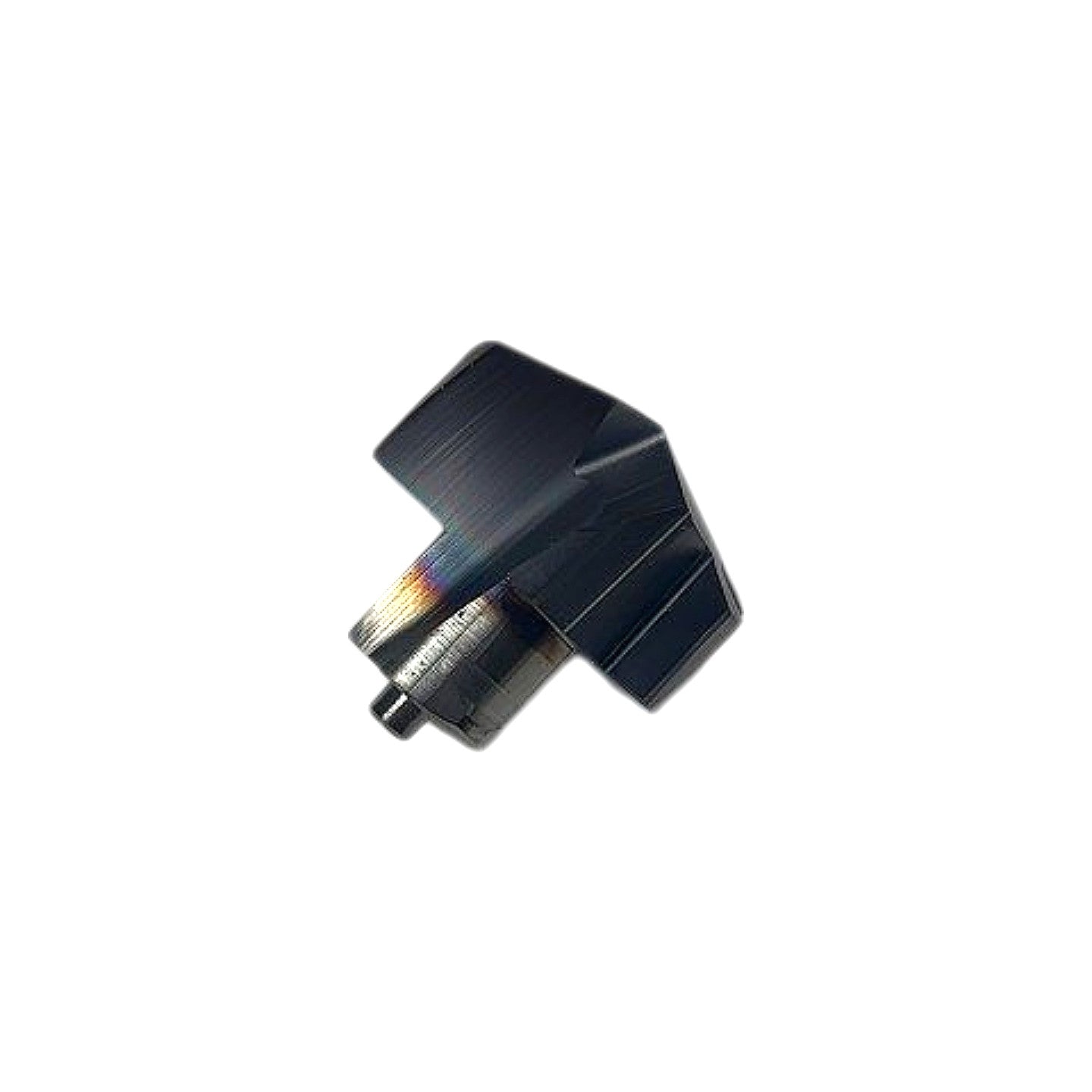

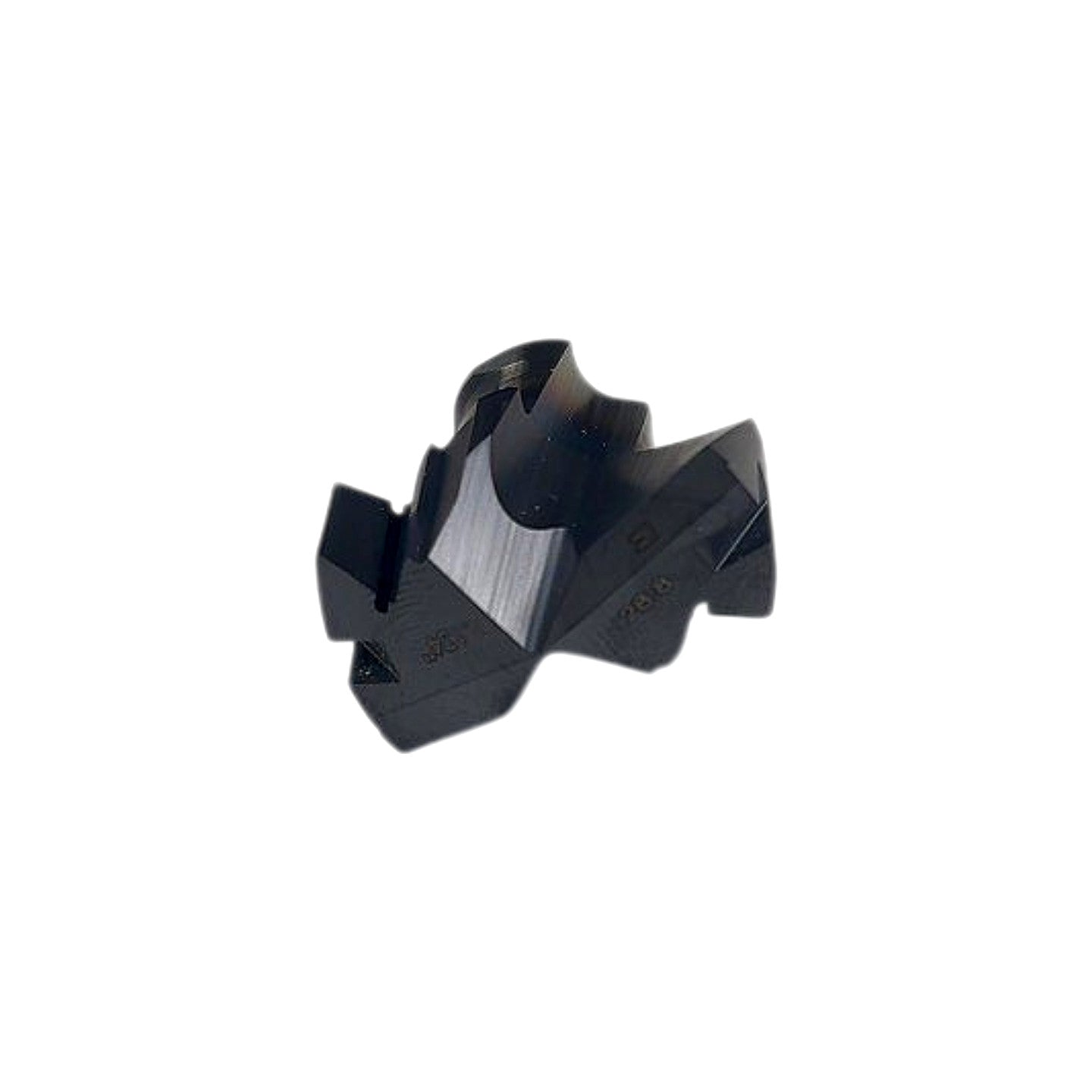

Iscar ICM 1134 IC908 SumoCham Chamdrill Indexable Drill Head

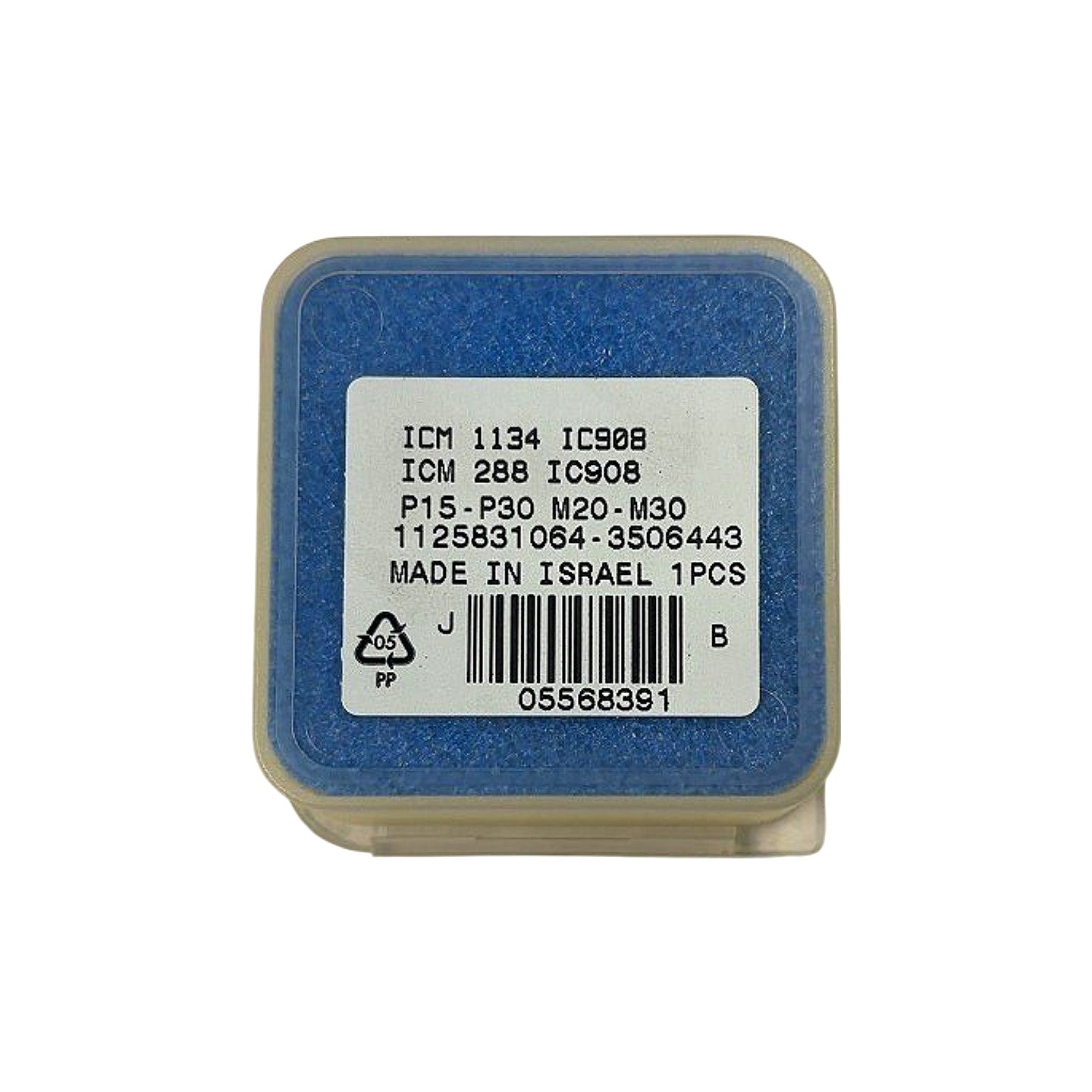

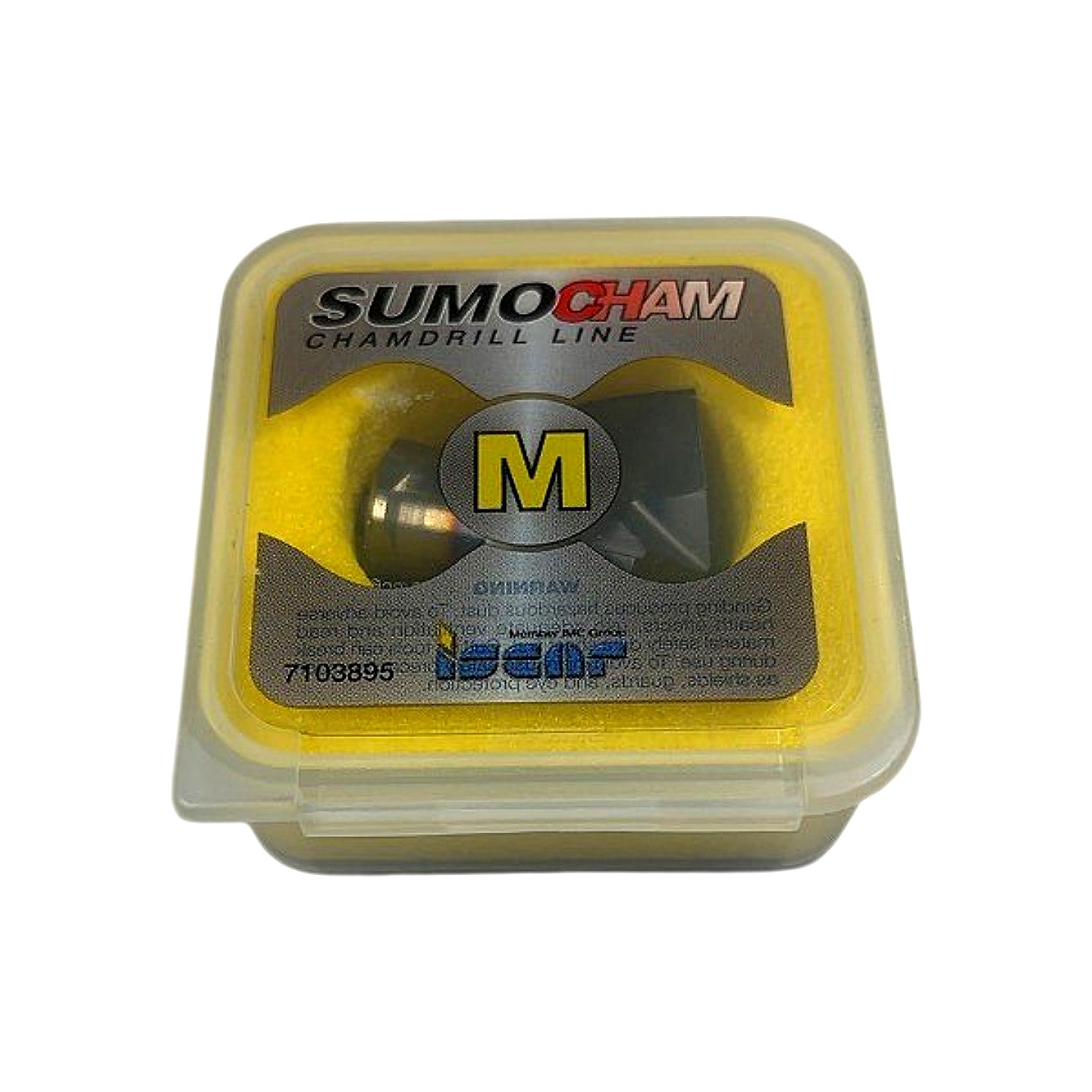

The Iscar ICM 1134 IC908 is a new indexable carbide drill head from the SumoCham Chamdrill line, designed for use in Iscar's SumoCham modular drilling system where the head screws onto a steel shank body. The ICM designation indicates an M-geometry (medium-duty) chipformer, the "1134" encodes the nominal diameter of 11.34 mm, and the IC908 grade is a PVD-coated submicron carbide specifically rated for ISO application ranges P15–P30 and M20–M30, making it suitable for drilling carbon steels, alloy steels, and stainless steels at high cutting speeds. IC908 features Iscar's TiAlN-family PVD coating, which delivers excellent hot hardness and wear resistance for steel and stainless applications. The head's self-centering geometry with peripheral cutting edges and a coolant-through center pin seat provides accurate hole entry and efficient chip evacuation. Iscar catalog part number 7103895 and barcode 05568391 are confirmed visible on the packaging label; the label also confirms 1 piece, Made in Israel.

Product Specifications
