Iscar ICP 268 IC908 SUMOCHAM Chamdrill Replaceable Drill Tip Insert
Regular price
$51.21
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

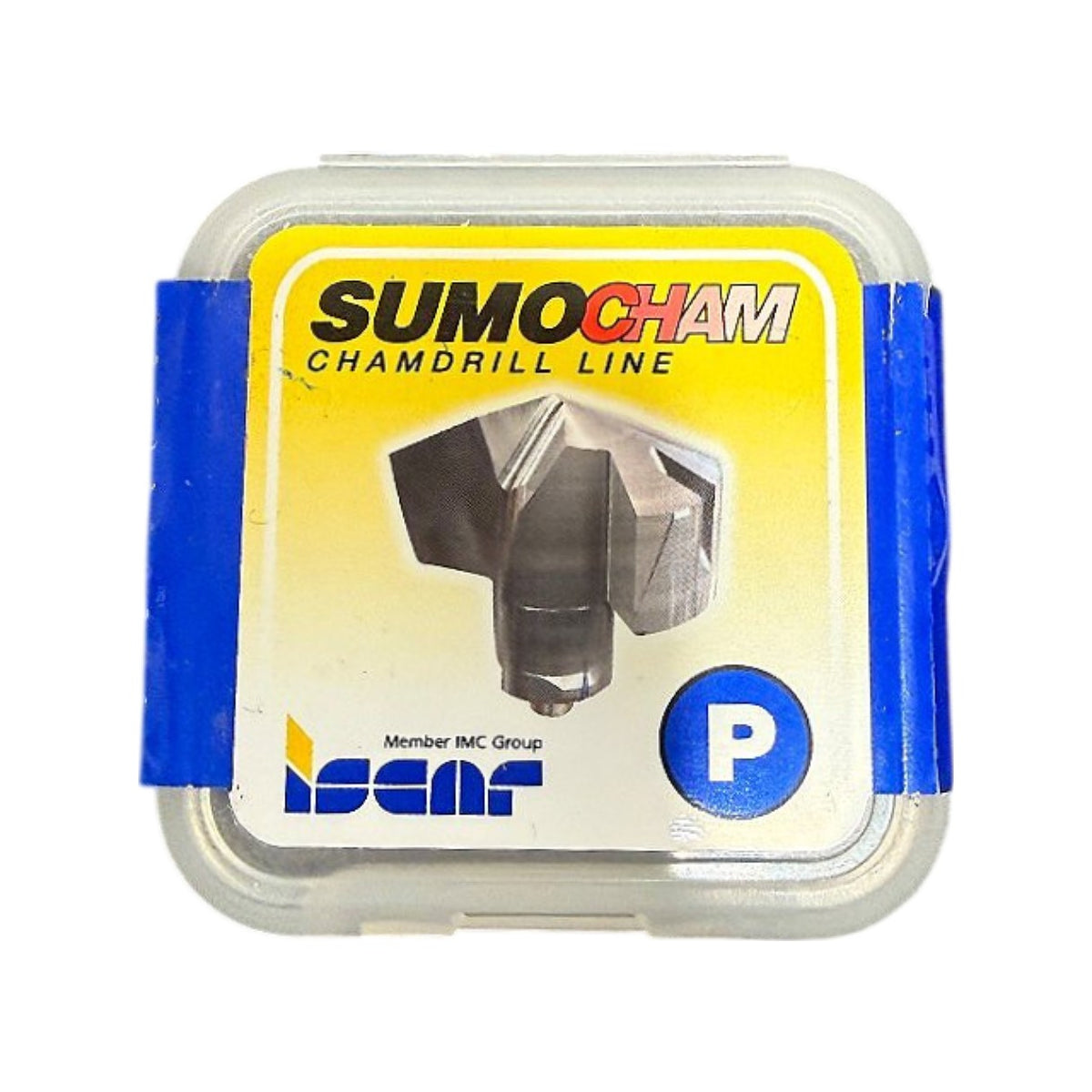

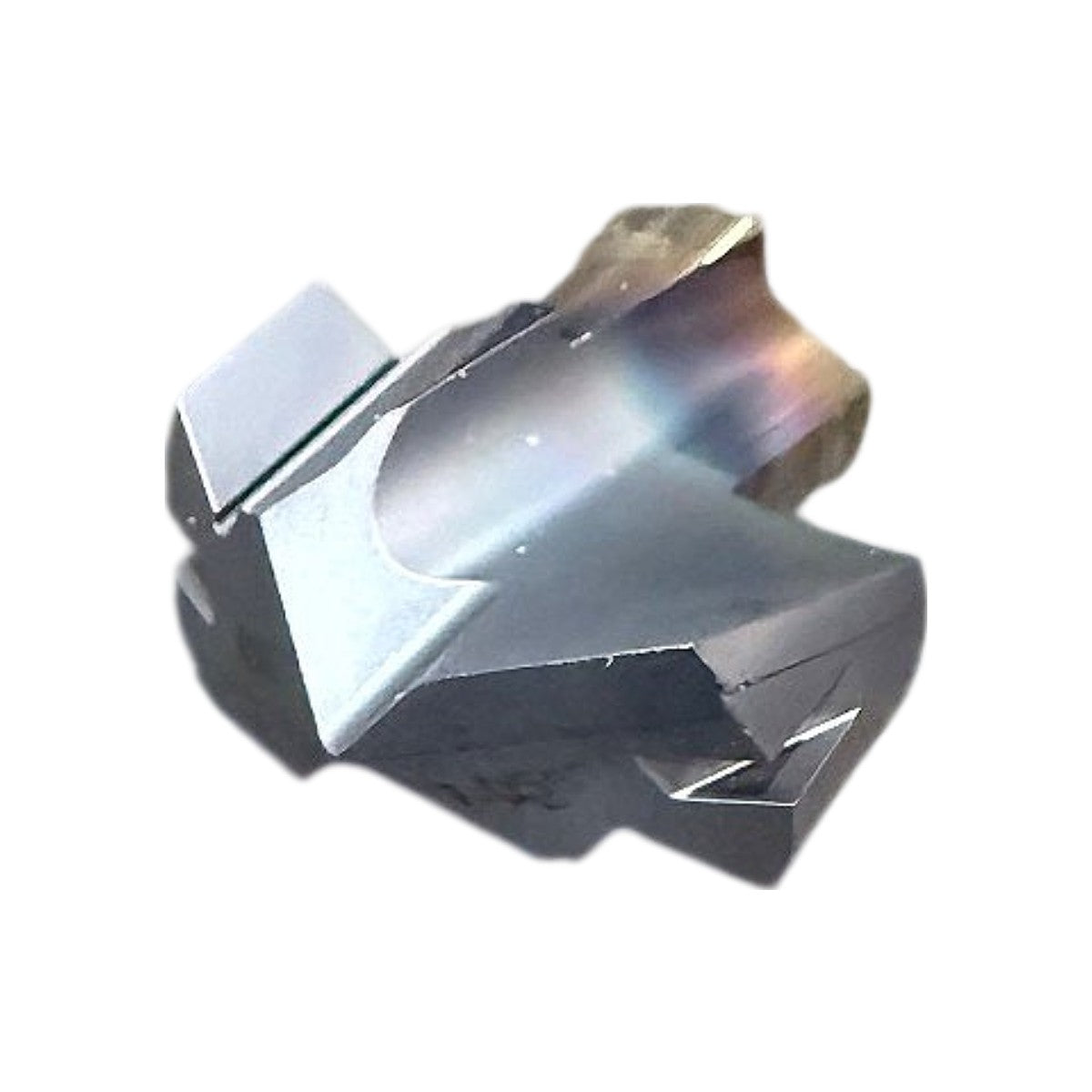

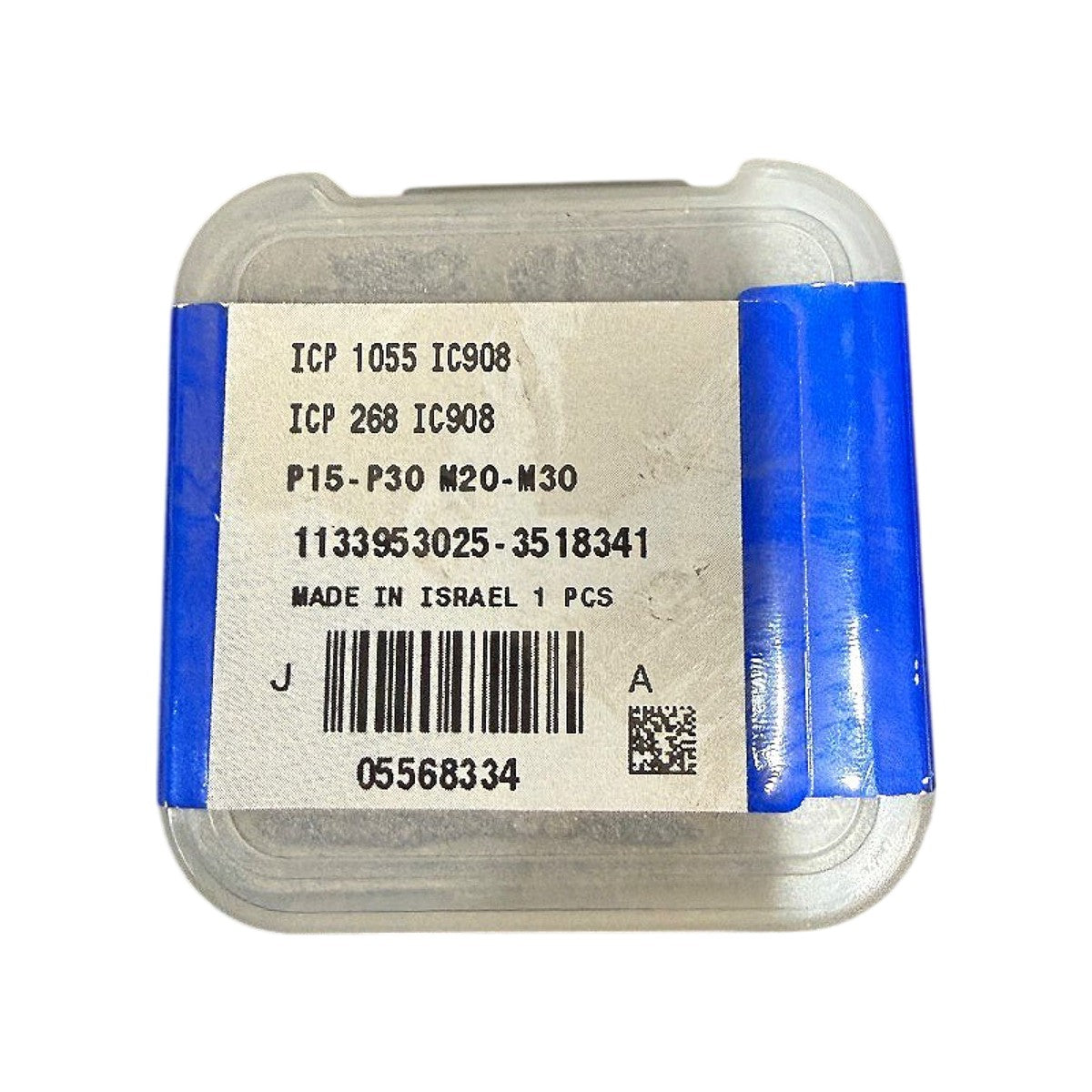

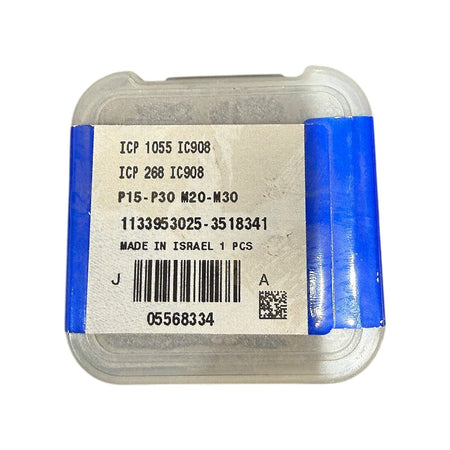

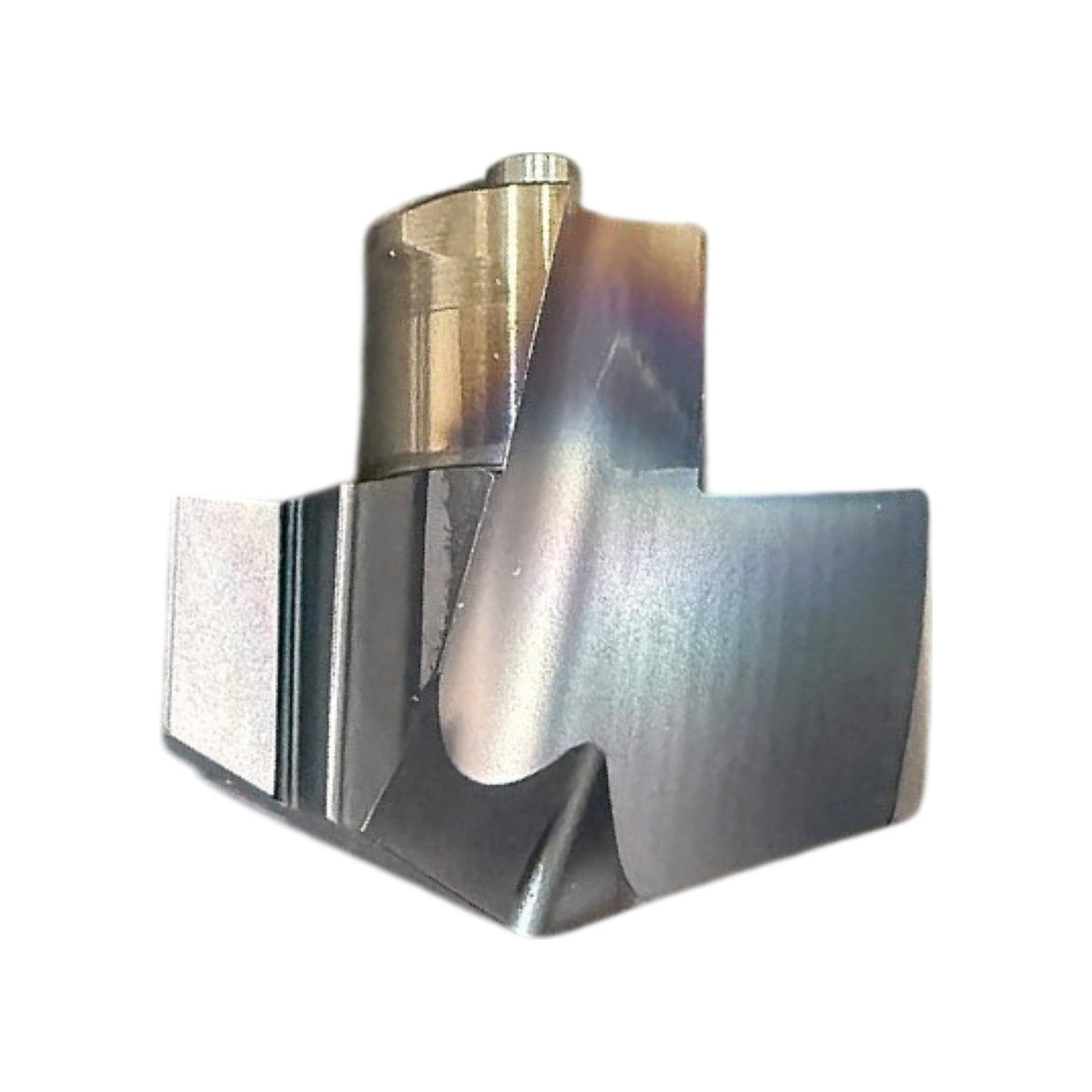

This new Iscar SUMOCHAM Chamdrill replaceable drill tip, ICP 268 in grade IC908, is item number 05568334 (also marked ICP 1055 IC908 and 1133953025-3518341 on the box label). The IC908 grade is an Iscar PVD-coated carbide grade, and the box label rates it for ISO P15-P30 steel and M20-M30 stainless steel. The SUMOCHAM line uses a replaceable self-centering drill tip with a clamping pin for installation in a matching Iscar Chamdrill holder body. It is supplied as a single piece in the original Iscar box, made in Israel.
Product Specifications
| Brand | Iscar |
| MPN | 05568334 |
| Series | SUMOCHAM Chamdrill Line |
| Insert Designation | ICP 268 |
| Alternate Designation | ICP 1055 |
| Grade | IC908 |
| Catalog Number | 1133953025-3518341 |
| Workpiece Materials | ISO P15-P30, M20-M30 |
| Application | Steel, Stainless Steel |
| Operation | Drilling |
| Substrate | Carbide |
| Coating | PVD Coated |
| Insert Type | Replaceable Drill Tip |
| Compatible System | Iscar Chamdrill Holder |
| Country of Origin | Israel |
| Quantity | 1 pc |
