Iscar MNC 490-245 A40-259-12-5D 49mm Dia 5xD Replaceable-Tip Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

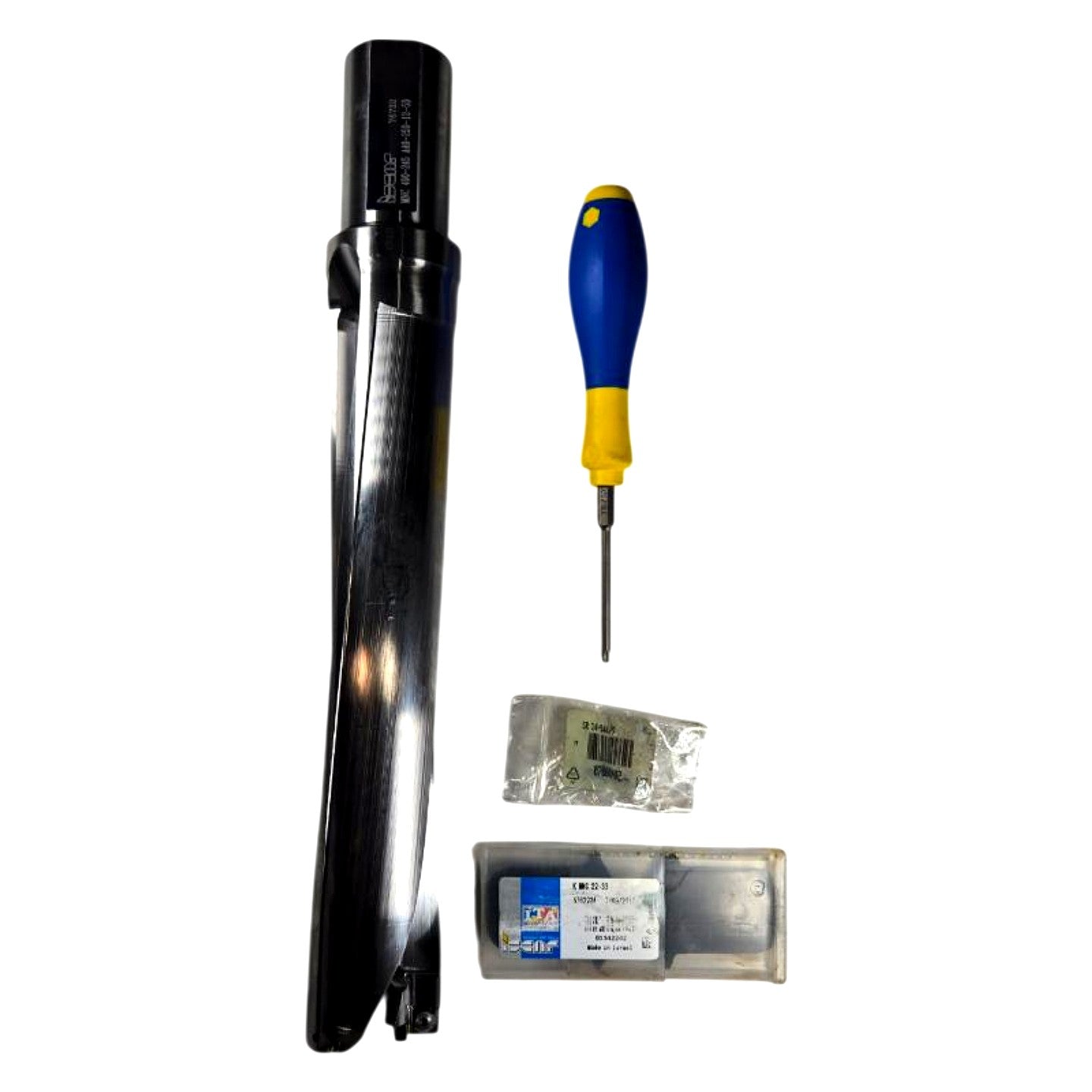

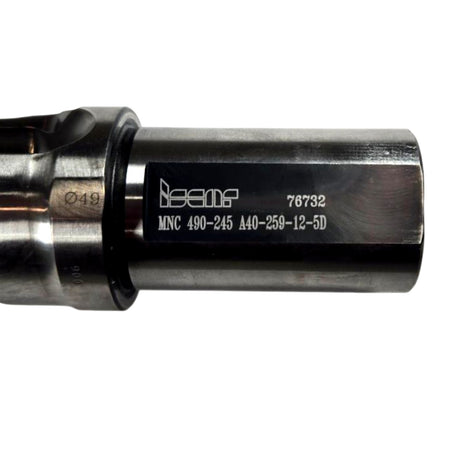

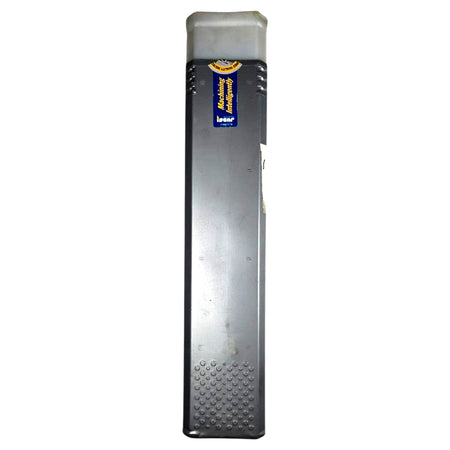

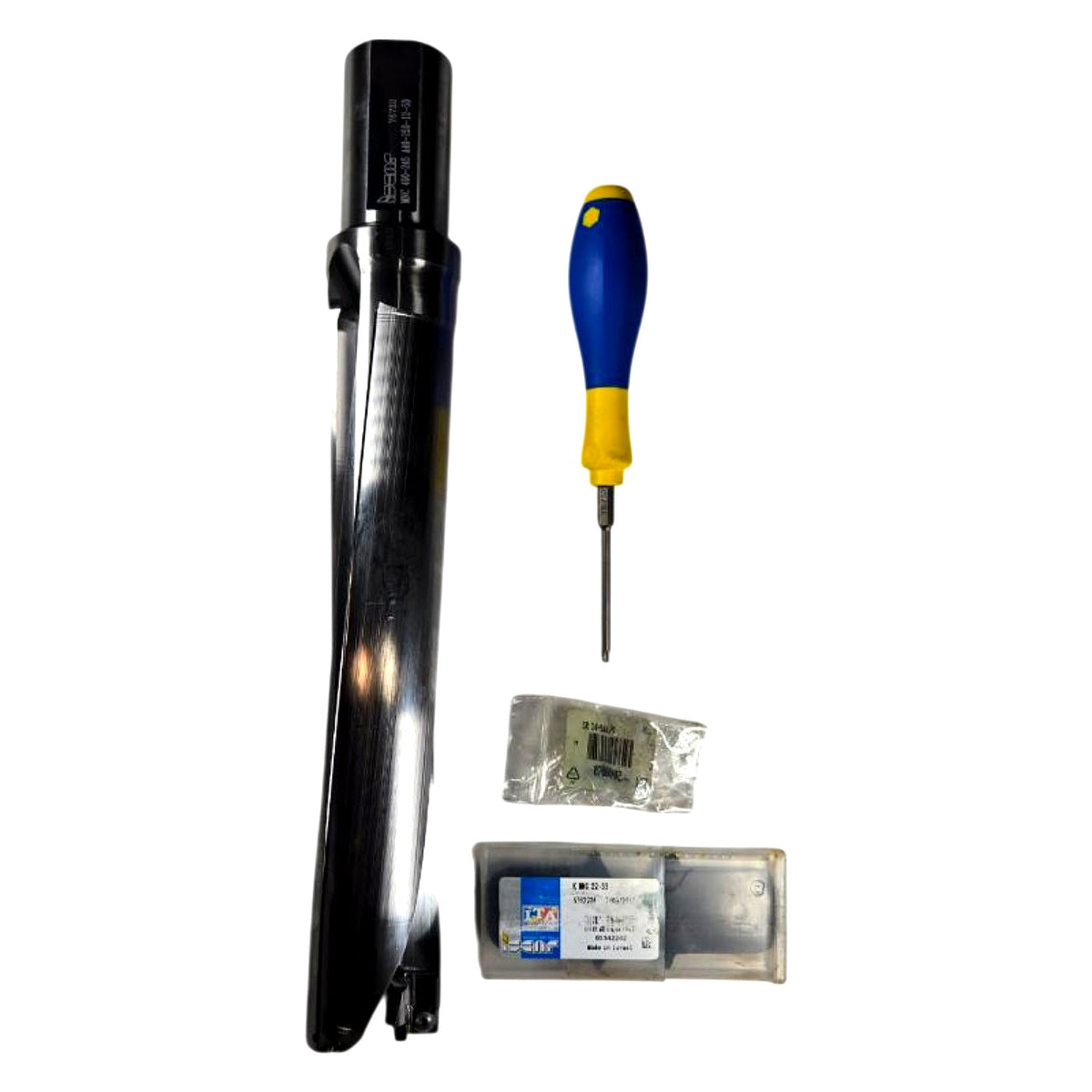

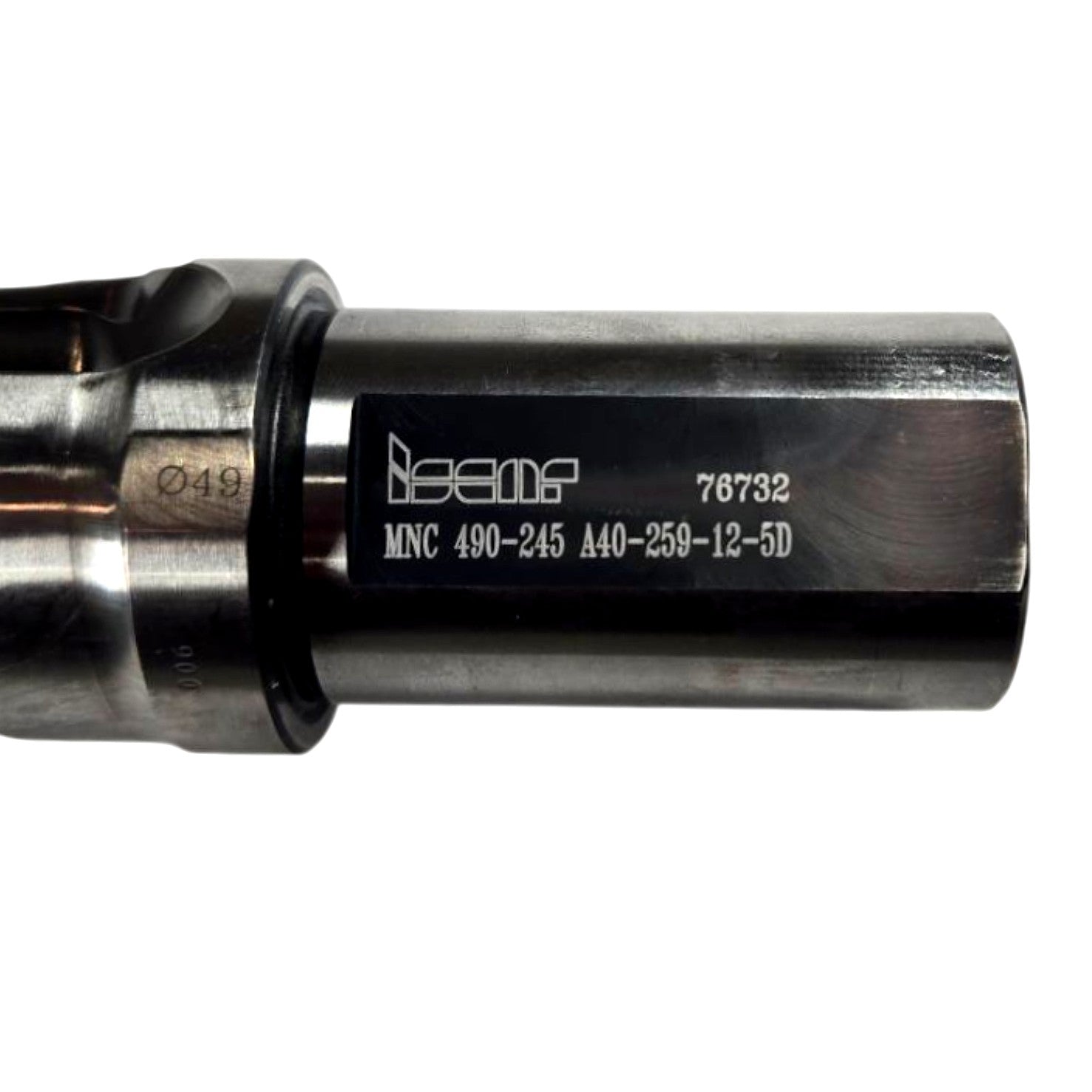

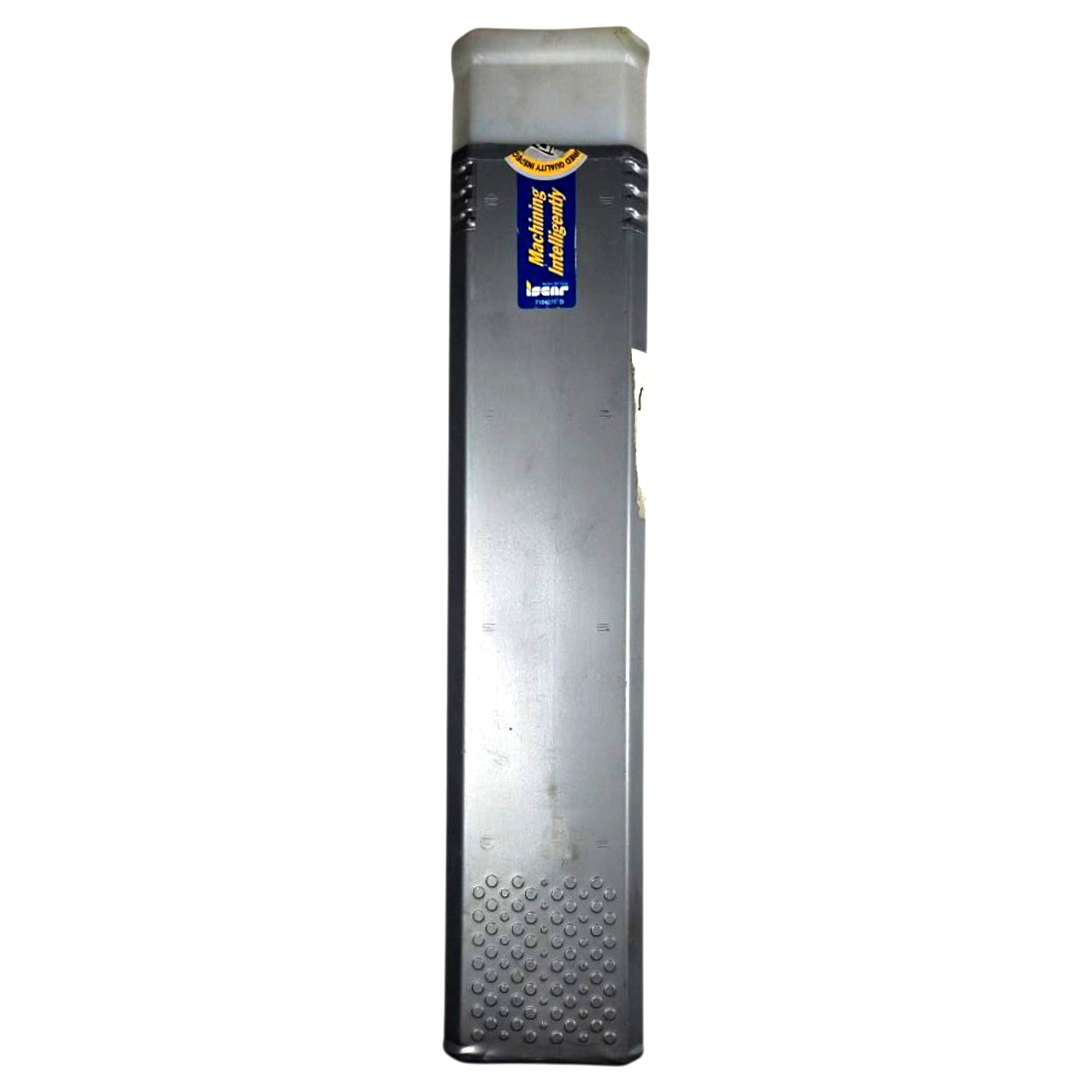

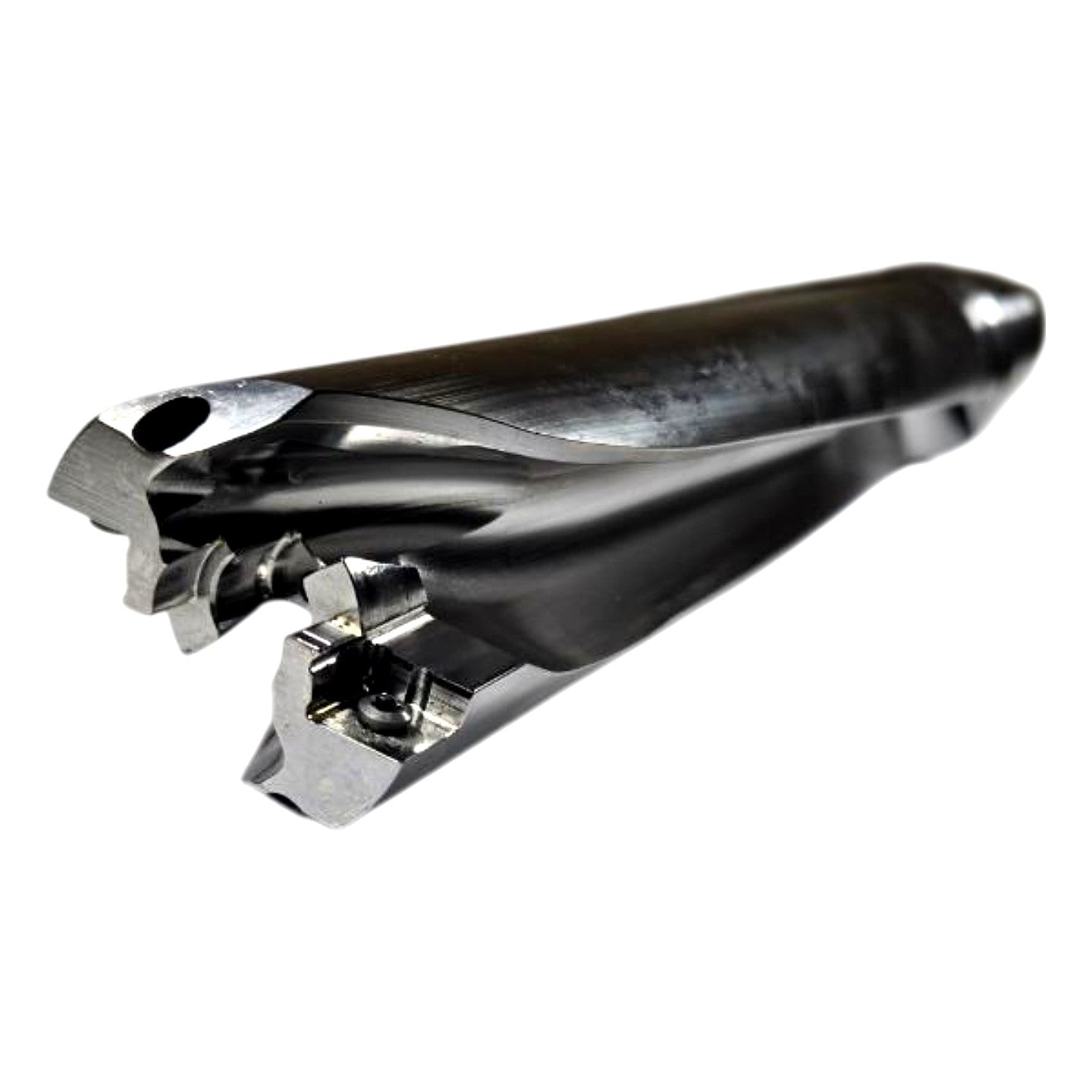

The Iscar MNC 490-245 A40-259-12-5D (catalog/item no. 3202884) is a new replaceable-tip drill body from Iscar's SUMOCHAM line, designed for indexable carbide tip drilling without regrinding. The drill body accommodates Ø49 mm cutting diameter tips (compatible with Iscar's IC908/IC908 or equivalent SUMOCHAM interchangeable heads) and provides a maximum drilling depth of 245 mm (5×D), with the "5D" suffix in the part number confirming the 5× diameter depth-of-cut capability. The shank is a 40 mm Weldon flat (A40) cylindrical shank as encoded in the part number, and the tool body features through-coolant capability with internal coolant channels for chip evacuation and thermal control during deep-hole drilling. The tool accepts SUMOCHAM replaceable drill heads covering a diameter range of 25.9–49 mm, making it suitable for a broad range of hole diameters in steel, cast iron, stainless, and non-ferrous materials on machining centers with 40-taper or equivalent spindles accepting a 40 mm shank. Supplied new in original Iscar packaging with insert screws and a torx key as shown in the product photos.
Product Specifications
| Brand | Iscar |
| MPN | MNC 490-245 A40-259-12-5D |
| Catalog / Item No. | 3202884 |
| Product Line | SUMOCHAM Replaceable-Tip Drill |
| Cutting Diameter | 49 mm (Ø49) |
| Tip Diameter Range (Compatible Heads) | 25.9–49 mm |
| Maximum Drilling Depth | 245 mm |
| Depth-to-Diameter Ratio | 5×D |
| Shank Type | Weldon Flat (A40) |
| Shank Diameter | 40 mm |
| Coolant | Through-coolant (internal channels) |
| Body Material | Alloy steel (TiN-coated body) |
| Condition | New |
| Compatible Insert System | Iscar SUMOCHAM interchangeable drill heads |
| Country of Origin | Israel |
