Iscar MT LNHT 1202 I24UN 908 24 TPI UN Carbide Thread Milling Insert (2 pcs)
Regular price
$57.95
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

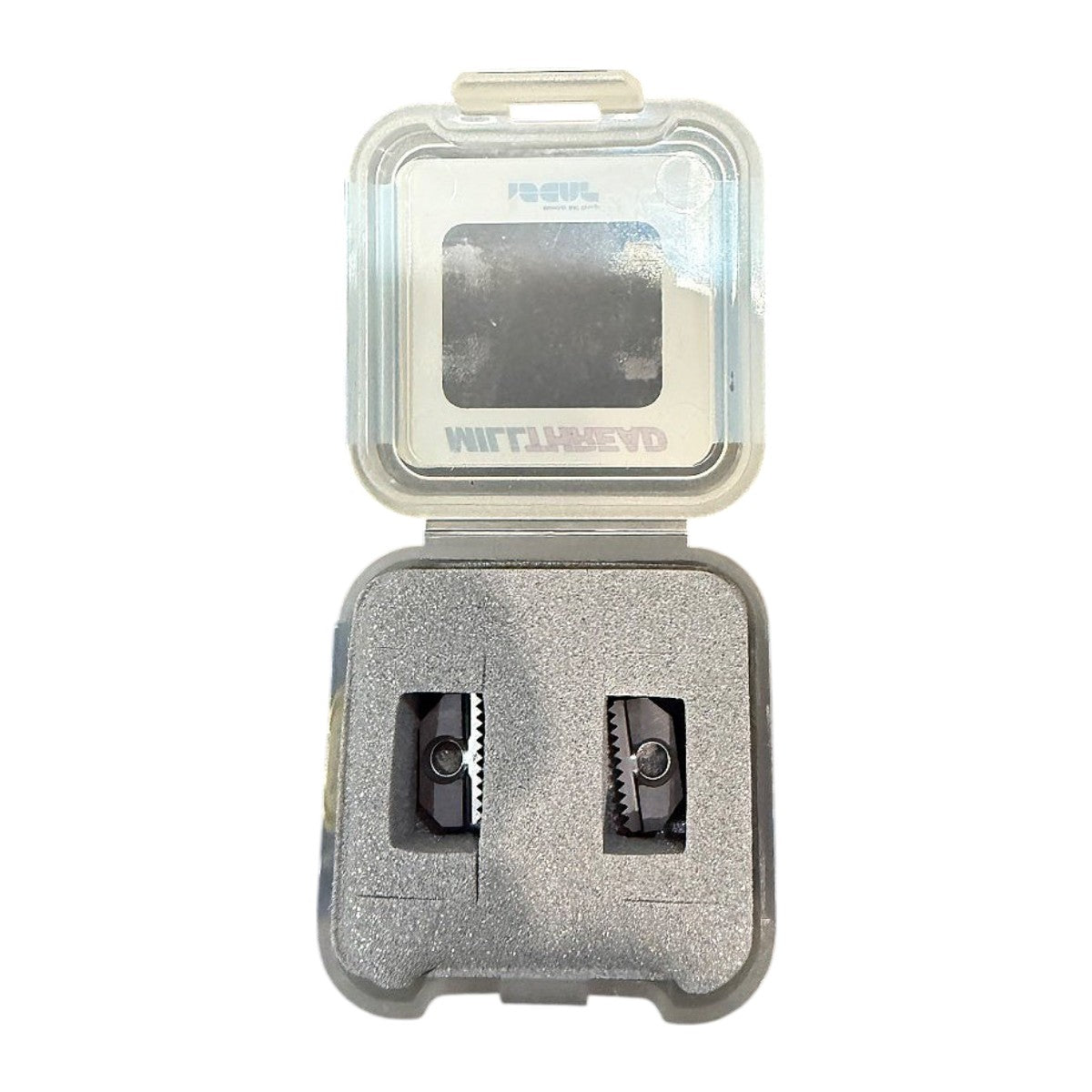

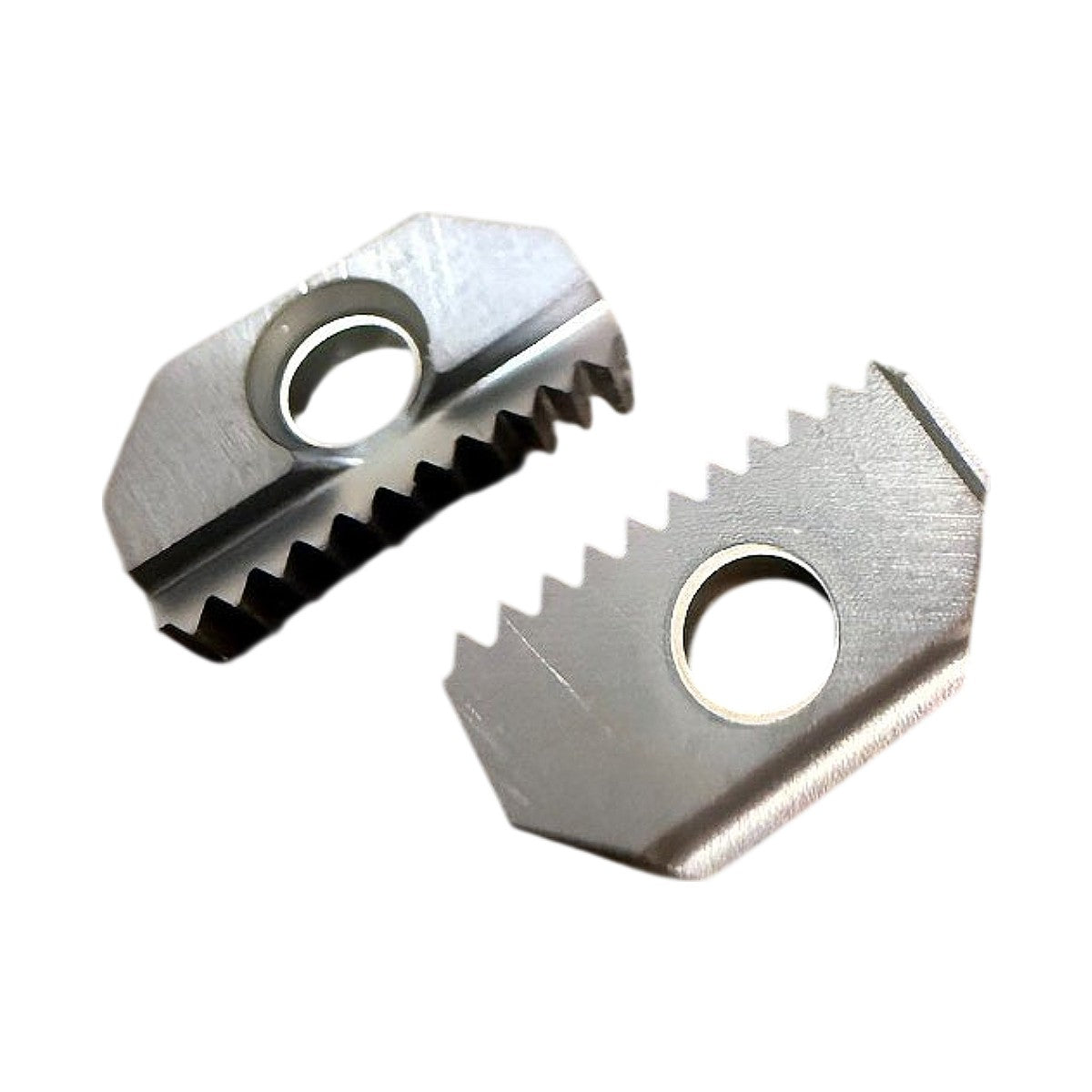

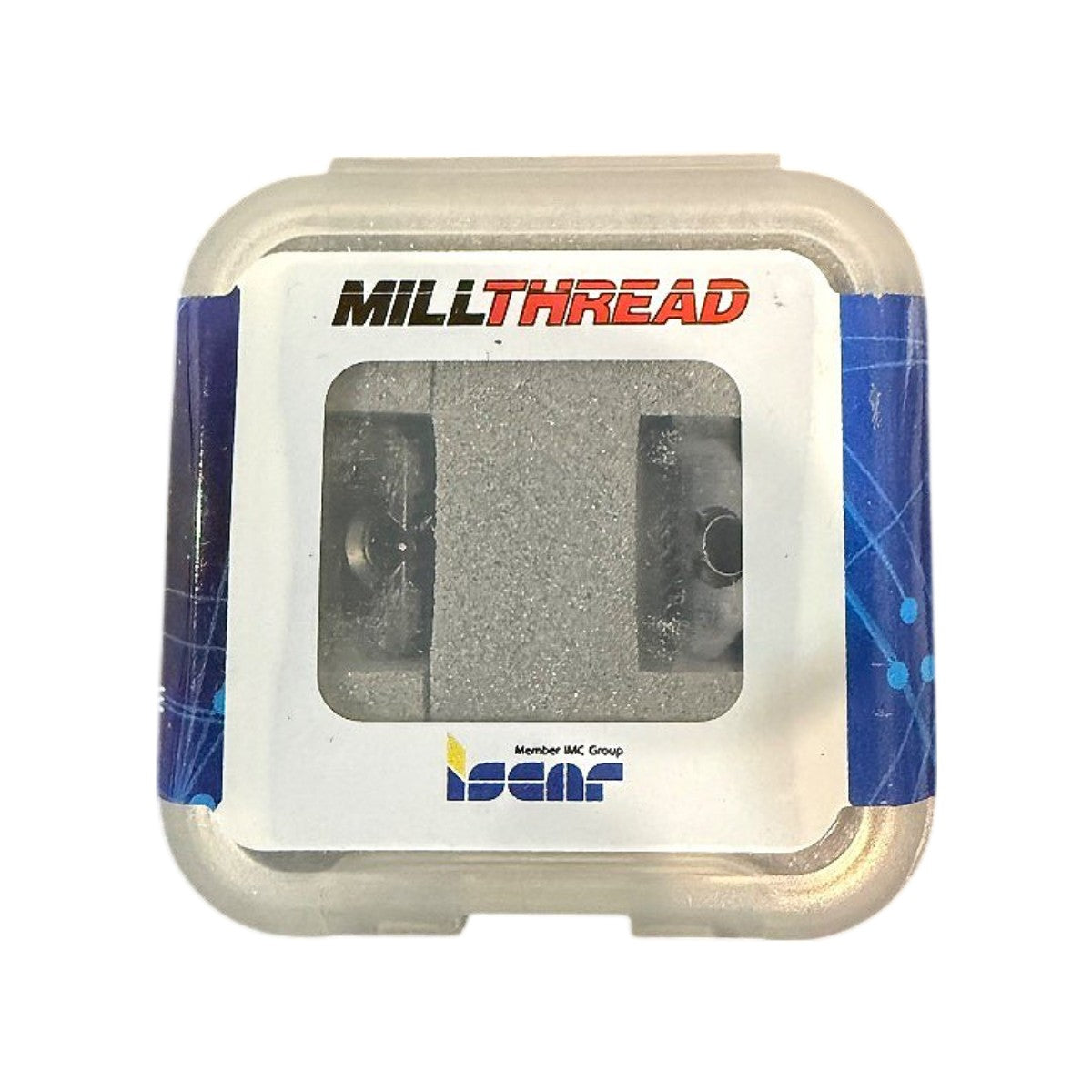

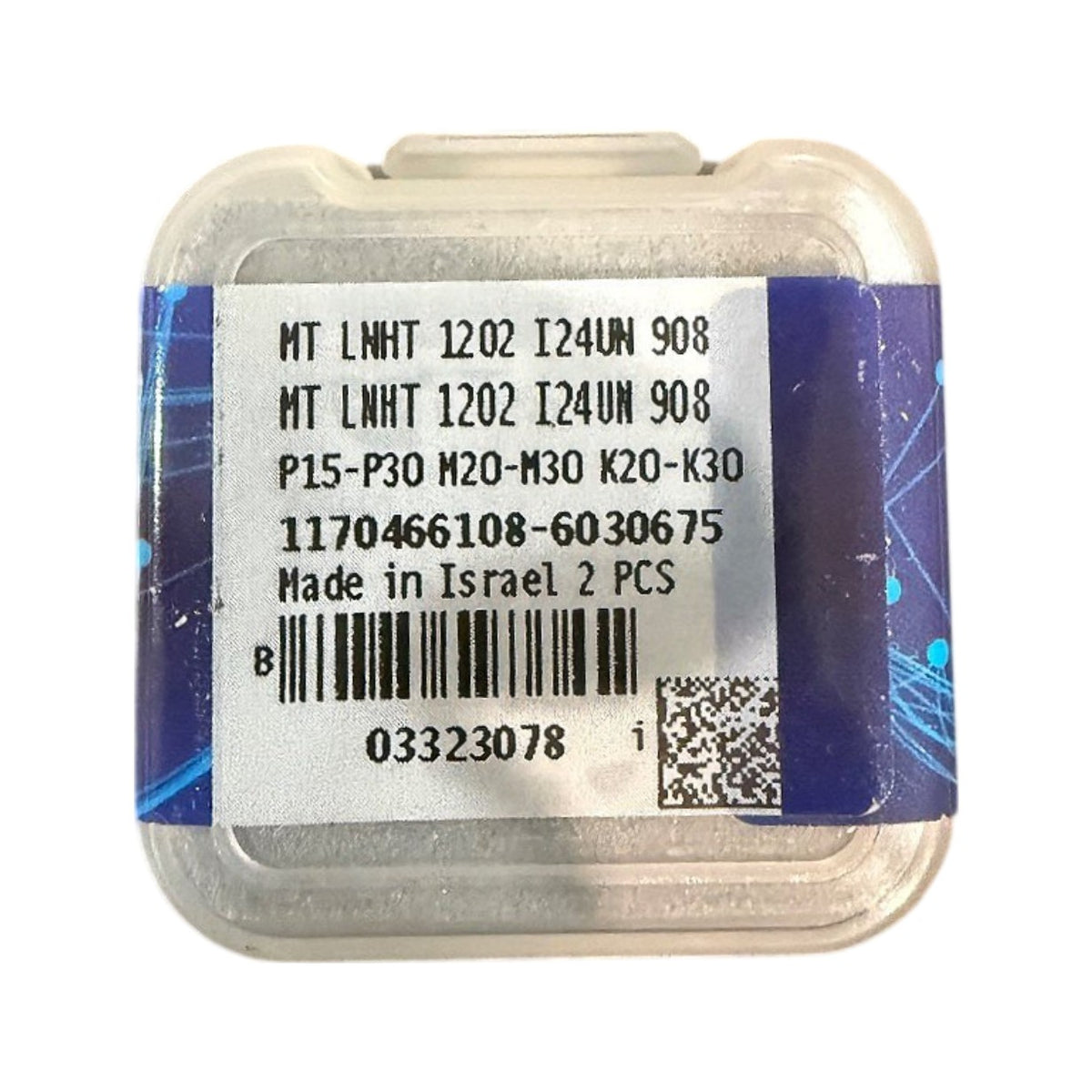

This Iscar MILLTHREAD MT LNHT 1202 I24UN 908 is a carbide thread milling insert for internal UN (Unified National) 60° threads at 24 threads per inch. It is supplied in grade IC908, a submicron carbide grade with a PVD coating, and the label lists application ranges of P15-P30 (steel), M20-M30 (stainless) and K20-K30 (cast iron). The insert has a single mounting hole and a multi-tooth profile, and is used on Iscar thread milling cutters of the MILLTHREAD system. It is a new item, made in Israel, and is sold as a pack of 2 pieces in the original Iscar case.
Product Specifications
| Brand | Iscar |
| Manufacturer Part Number | MT LNHT 1202 I24UN 908 |
| Series | MILLTHREAD |
| Catalog/Item Number | 1170466108-6030675 |
| EDP Number | 03323078 |
| Grade | IC908 |
| Material | Carbide |
| Coating | PVD |
| Insert Size | 1202 |
| Thread Type | Internal |
| Thread Profile | UN (Unified National), 60° |
| Threads Per Inch | 24 TPI |
| Operation | Thread Milling |
| Workpiece Material | P15-P30, M20-M30, K20-K30 |
| Number of Mounting Holes | 1 |
| Quantity Per Pack | 2 pcs |
| Country of Origin | Israel |
