Iscar MT LNHU 2104 11W 908 IC908 11 TPI Whitworth Thread Milling Insert (2 pcs)
Regular price
$51.21
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

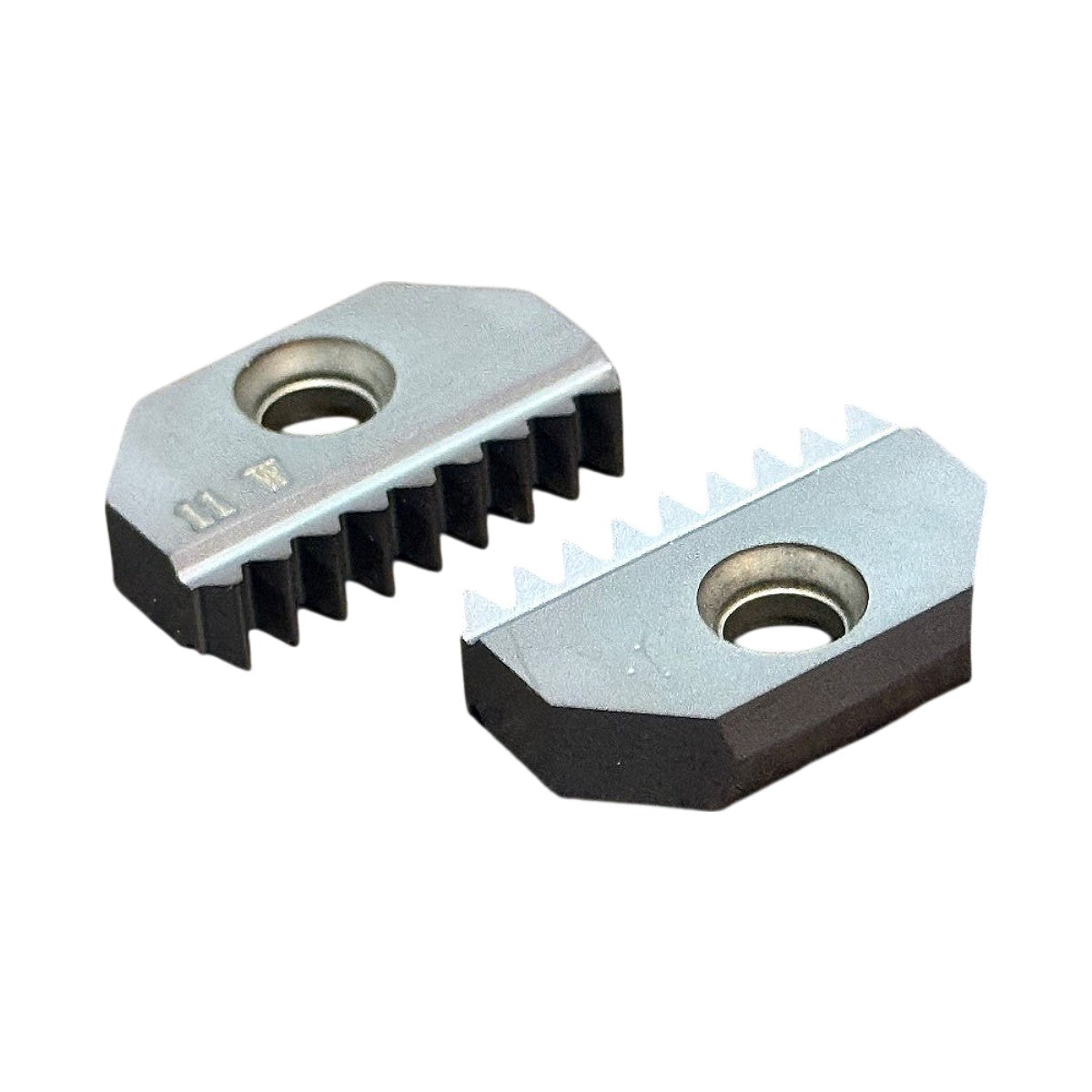

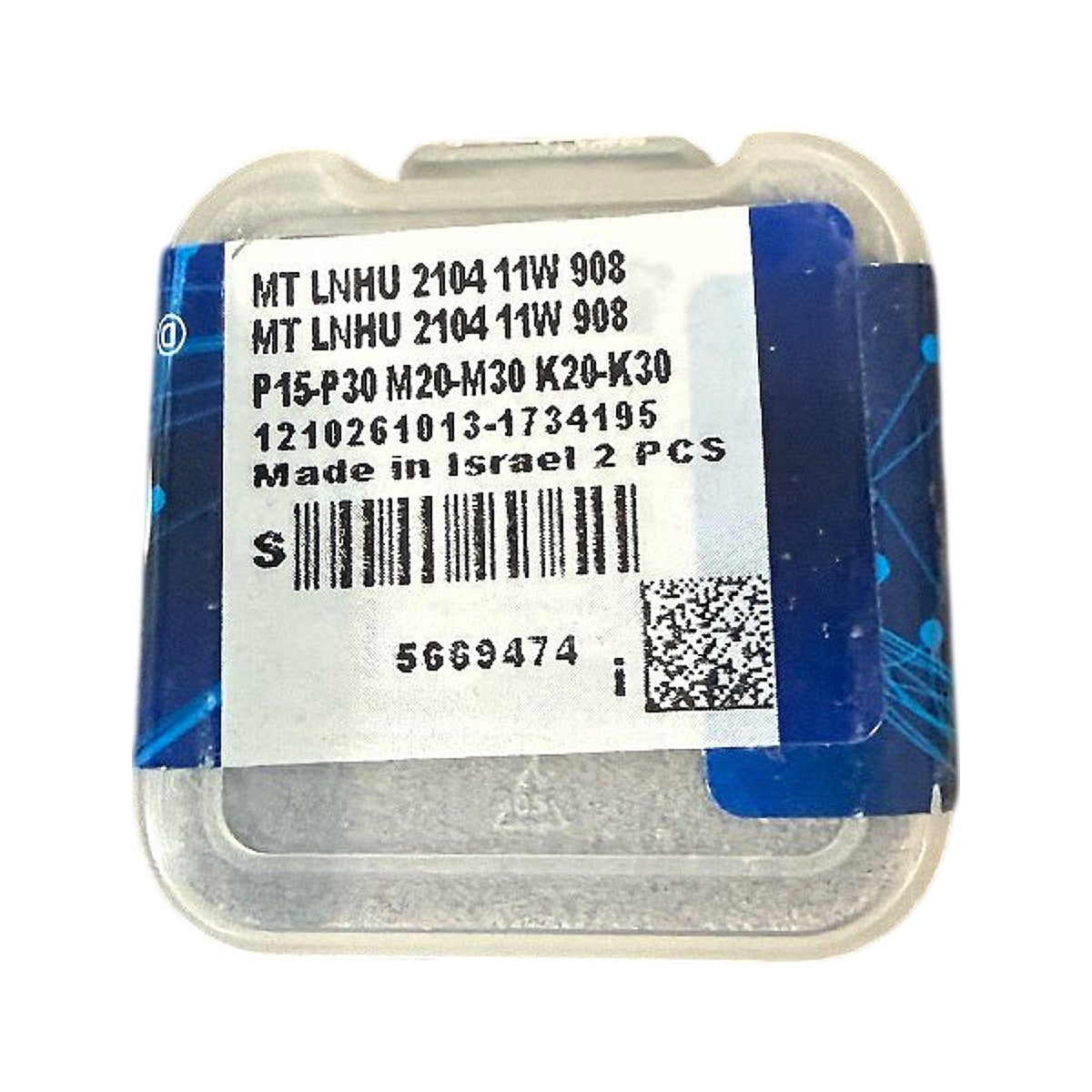

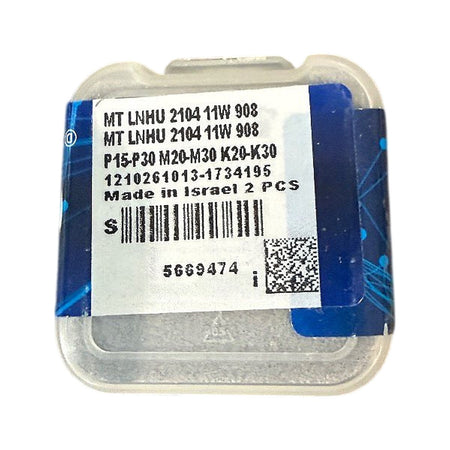

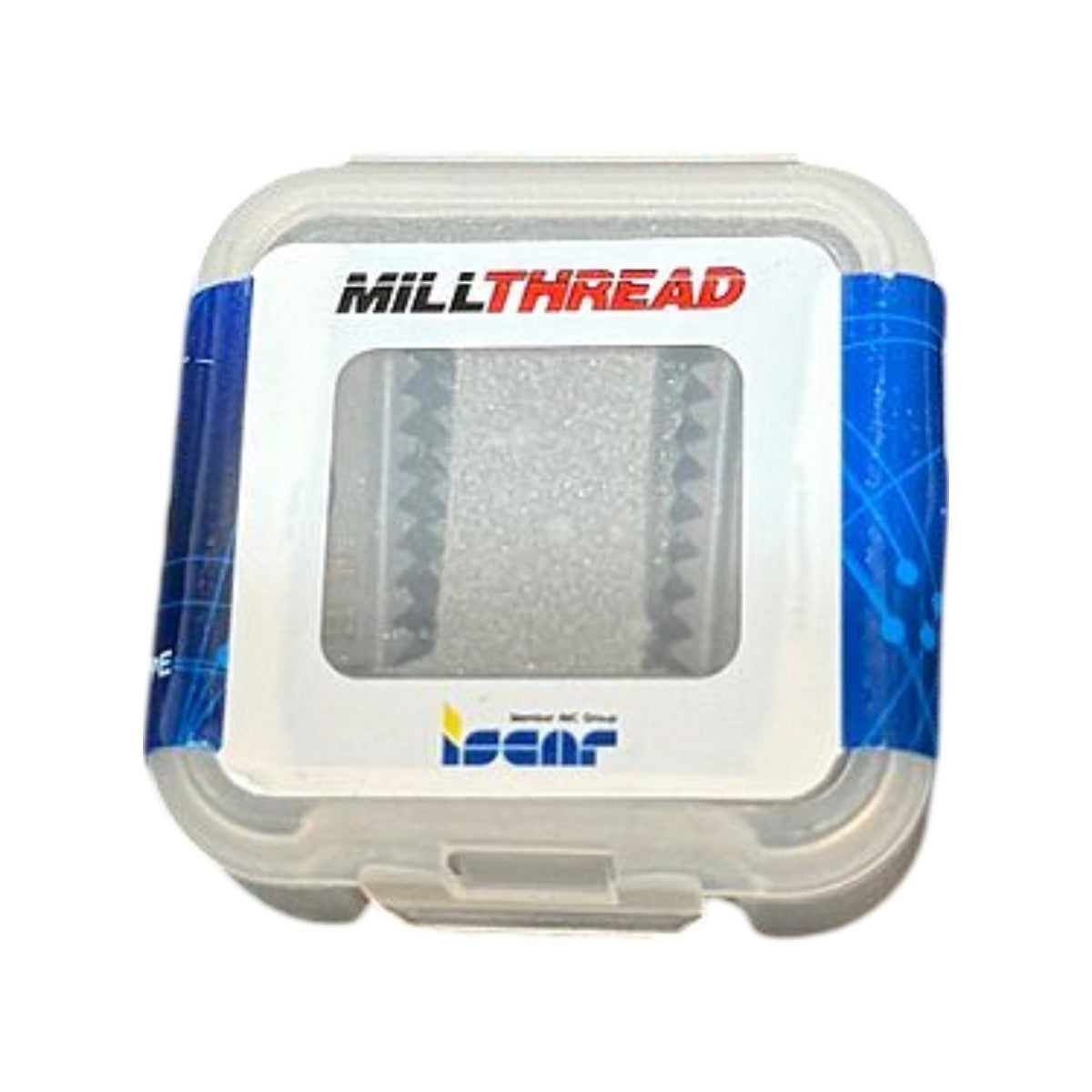

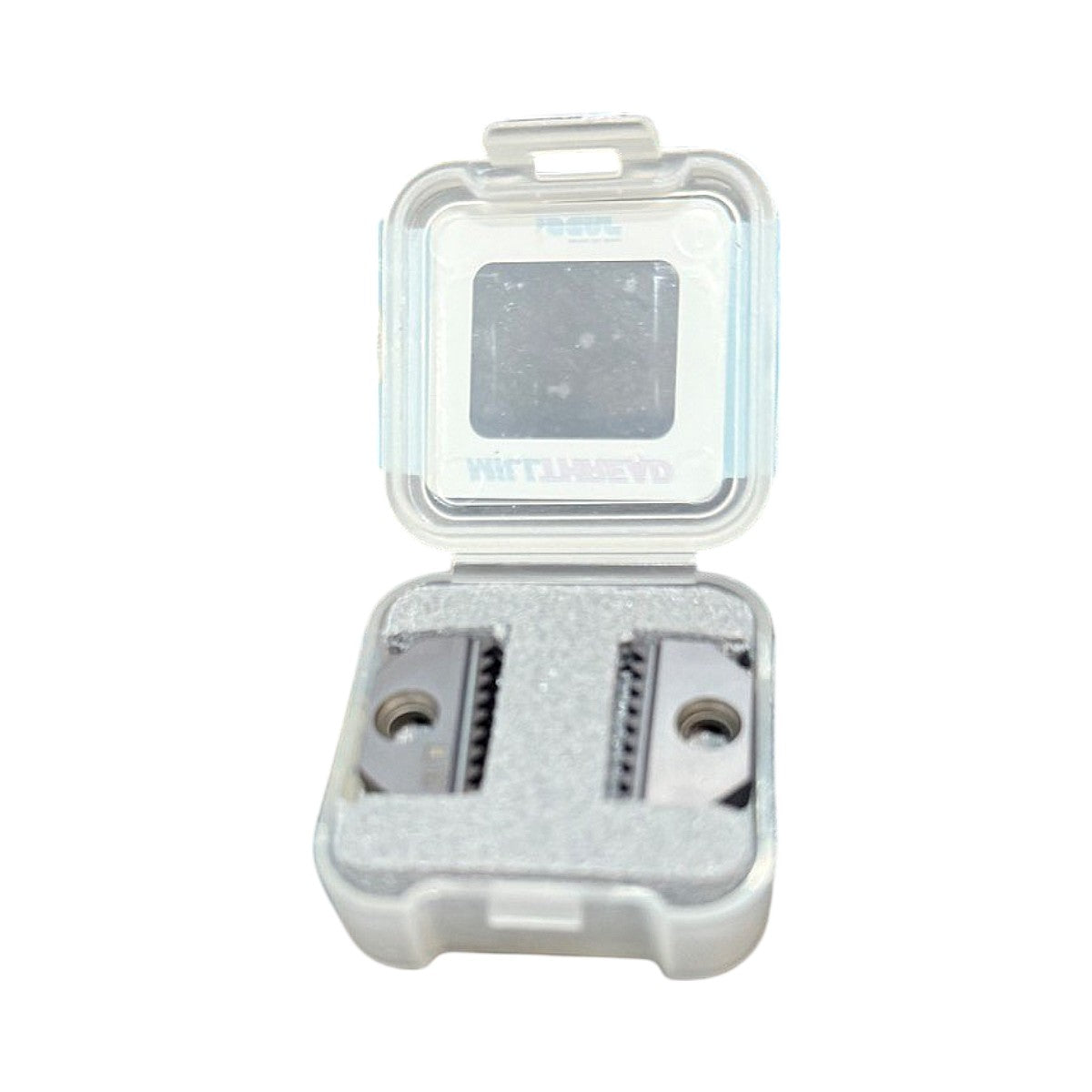

This is a new pack of two Iscar MILLTHREAD MT LNHU 2104 11W 908 multi-tooth thread milling inserts, catalog number 5669474, made in Israel. The 11W marking on the insert denotes 11 threads per inch in a Whitworth (55°) thread form, and the insert is supplied in grade IC908, a PVD-coated carbide grade. The pack label lists application ranges of P15-P30 (steel), M20-M30 (stainless steel) and K20-K30 (cast iron). The inserts are used on CNC machines for thread milling, with each insert clamped by a center screw hole in a compatible Iscar Millthread cutter body.
Product Specifications
| Brand | Iscar |
| Manufacturer Part Number | MT LNHU 2104 11W 908 |
| Catalog Number | 5669474 |
| Series | MILLTHREAD |
| Grade | IC908 |
| Material | Carbide |
| Coating | PVD |
| Threads Per Inch | 11 TPI |
| Thread Form | Whitworth 55° |
| Operation | Thread Milling |
| Insert Type | Multi-Tooth |
| ISO Application Range | P15-P30, M20-M30, K20-K30 |
| Workpiece Materials | Steel, Stainless Steel, Cast Iron |
| Quantity per Pack | 2 pcs |
| Country of Origin | Israel |
