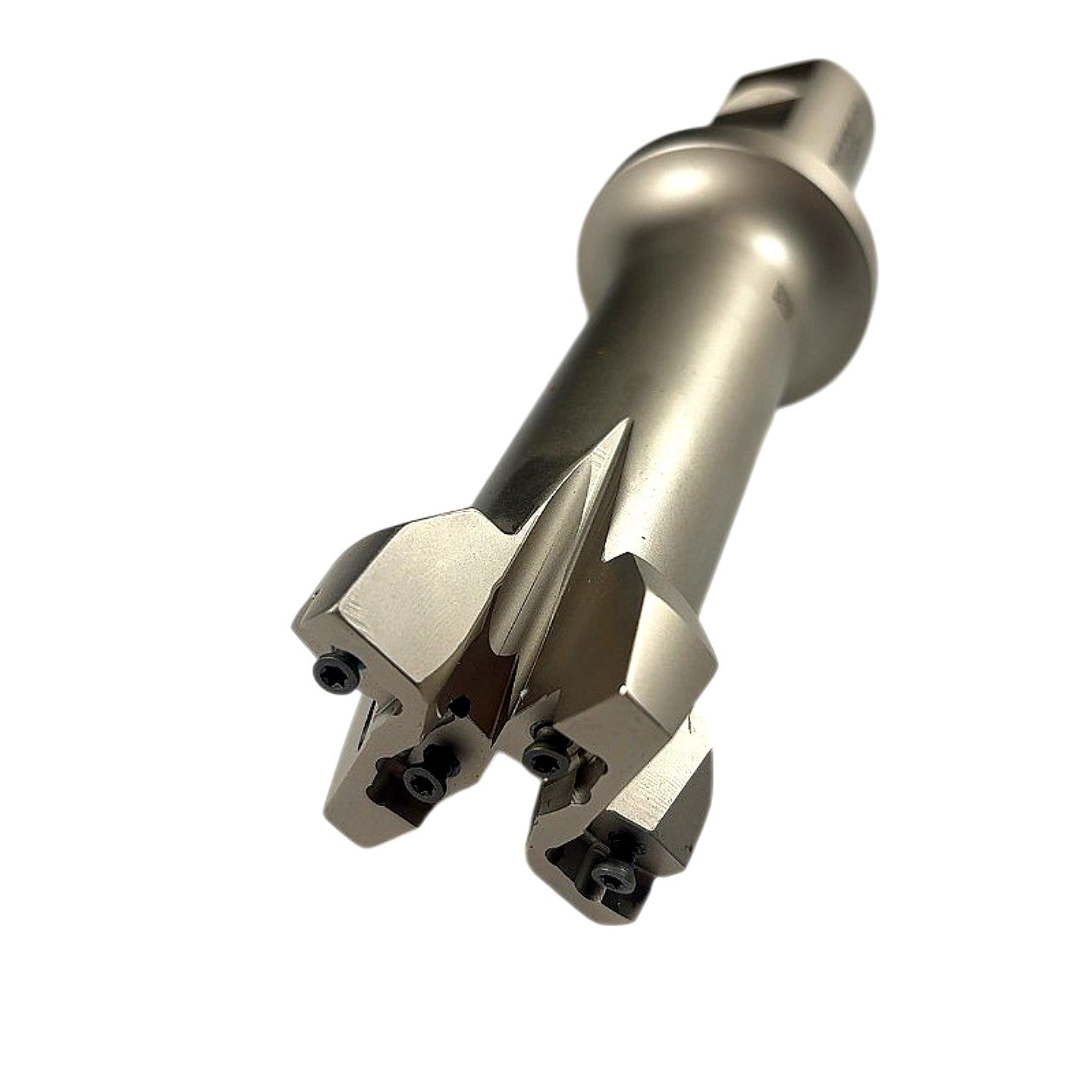

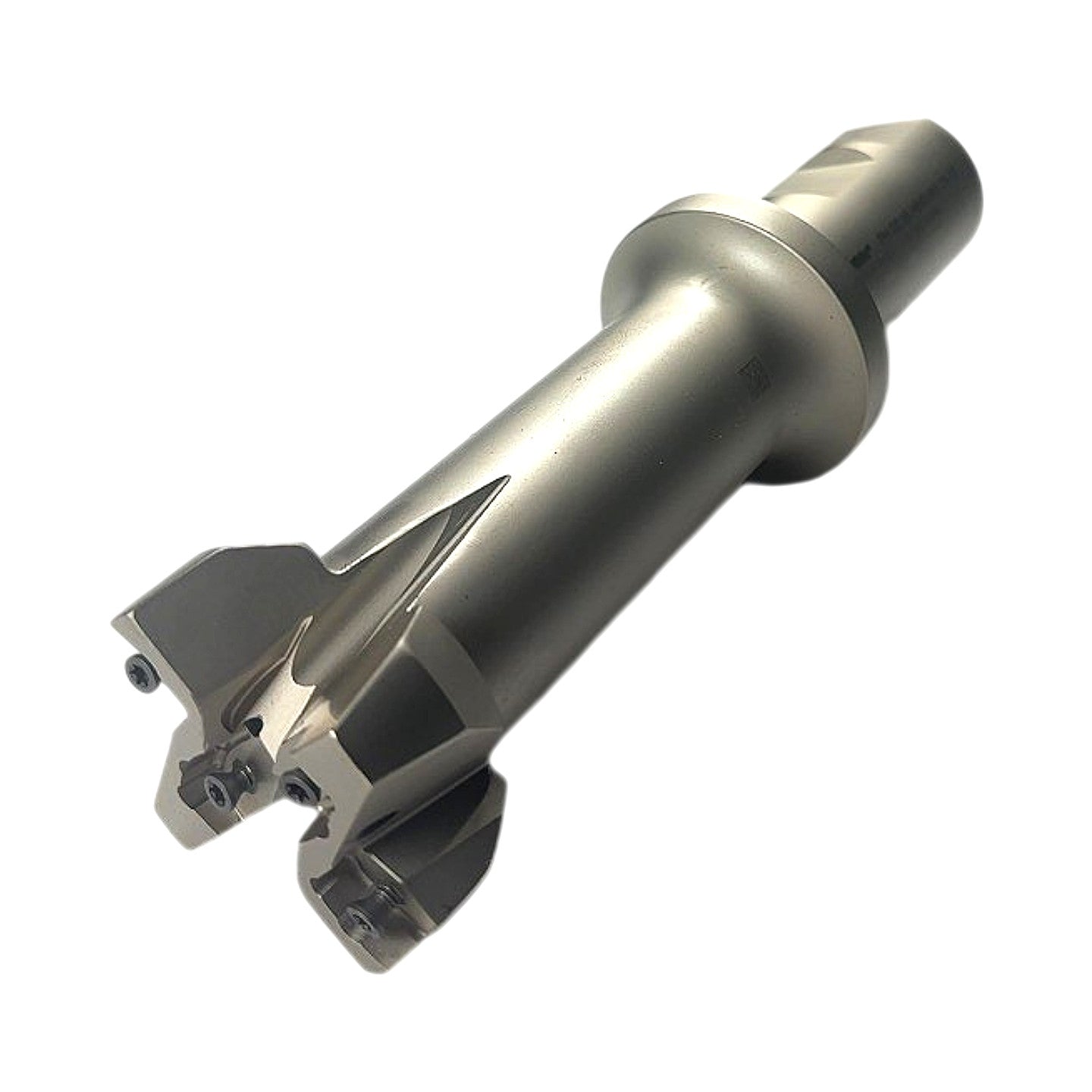

Iscar PH D2.00-H040-W1.25-13 2in 90° Indexable Shoulder End Mill

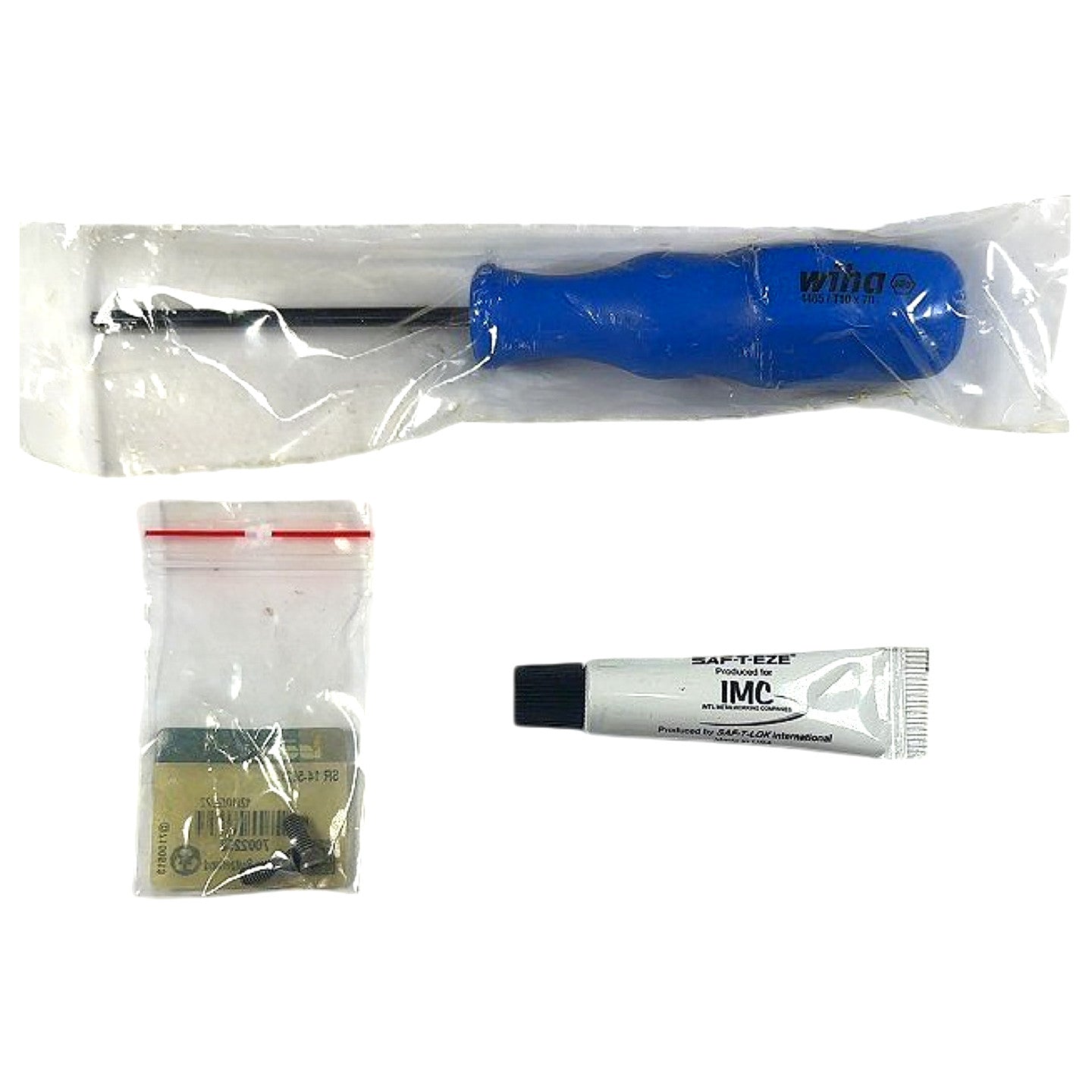

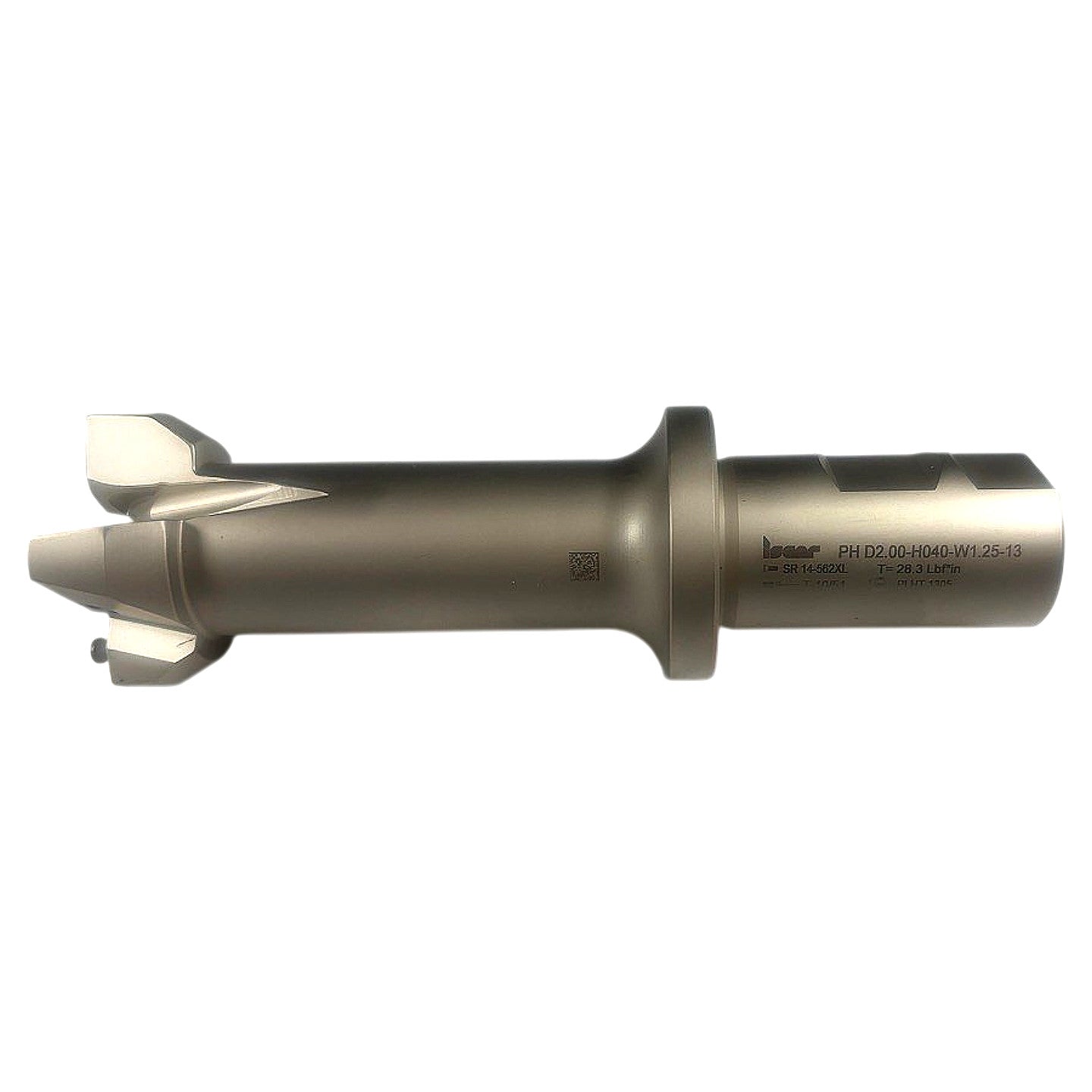

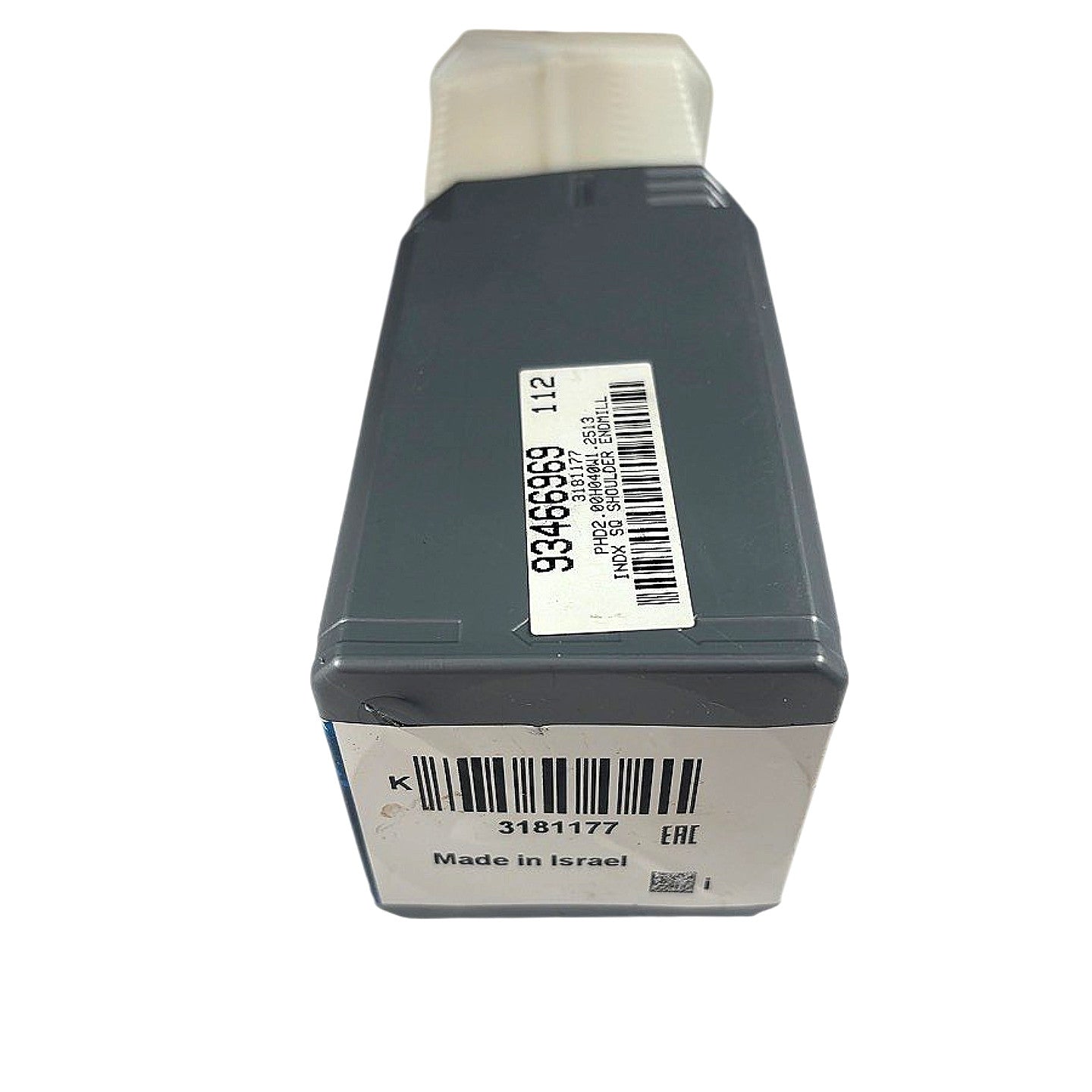

The Iscar PH D2.00-H040-W1.25-13 is a new, indexable-insert 90° shoulder end mill from Iscar's HELIMILL / ISMILL PH (helical-flute square-shoulder) product line, made in Israel and encoded as follows: D2.00 = 2.00 in (50.8 mm) cutting diameter, H040 = 40 mm bore / shank interface (Weldon-flat cylindrical shank with 40 mm diameter), W1.25 = 1.25 in (31.75 mm) shank diameter step / usable length designation, 13 = compatible with 13 mm (LNKT/LNMT 1306) double-sided tangential or radial square-shoulder inserts. The body is manufactured from alloy steel with a corrosion-resistant finish and features through-coolant capability (SR 14-562XL suffix and Saf-T-Eze lubricant tube indicate internal coolant supply screws are included), helical chip gullets for efficient chip evacuation, and multiple insert pockets arranged for 90° true radial rake shoulder milling. Rated at T = 28.3 lbf·in insert clamping torque as stamped on the body, this cutter is suited for square-shoulder milling, slotting, and ramping in steel, cast iron, and stainless steel on horizontal and vertical CNC machining centers; it ships complete with insert clamping screws, Torx wrench (Wiha T10×70), and IMC Saf-T-Eze anti-seize lubricant. Iscar catalog item number 3181177 (also labeled PHD2.00H040W1.25-13 / INDX 5G Shoulder Endmill) is verified from the packaging label; the Iscar IMC Group GTIN barcode 93466969 is visible on the box.

Product Specifications
