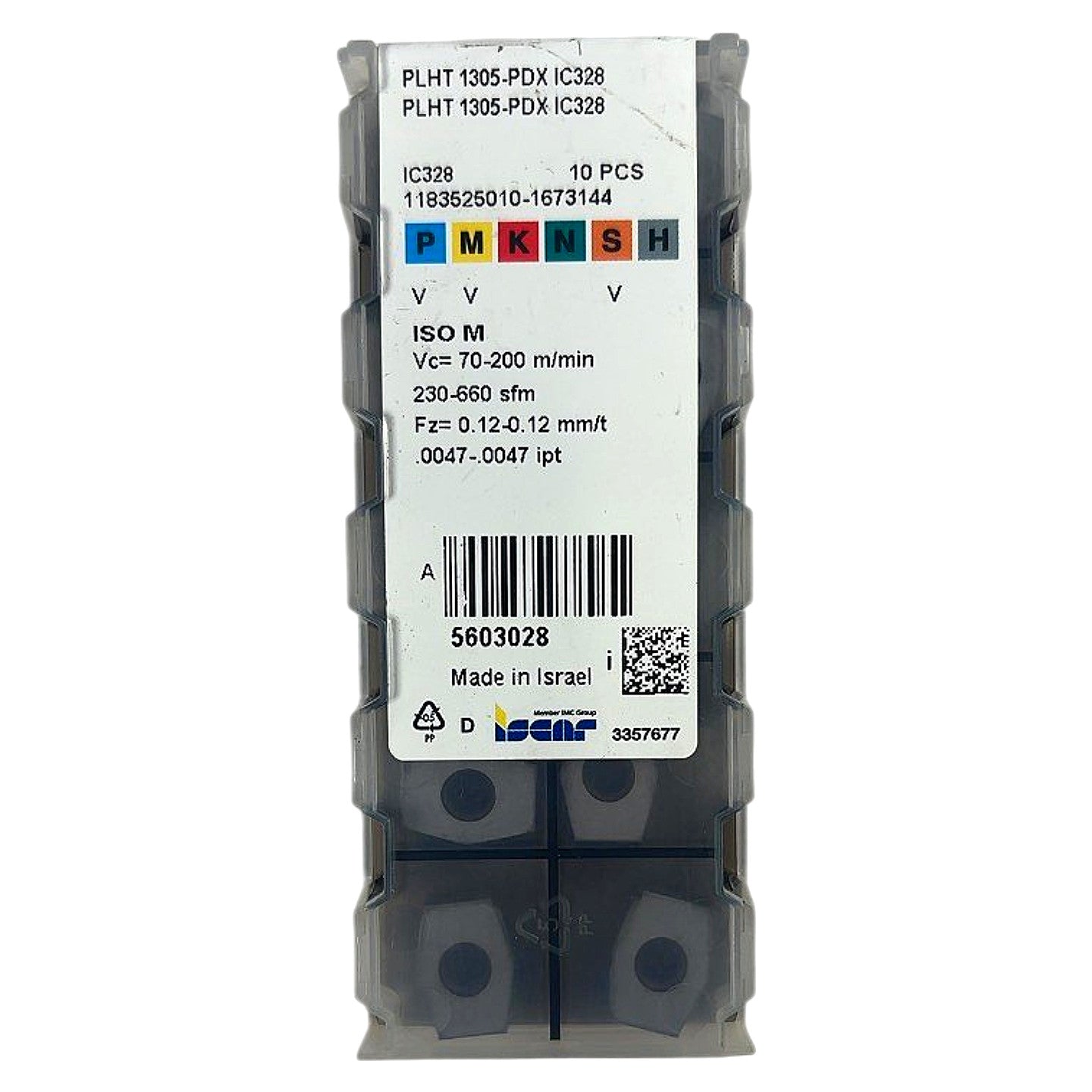

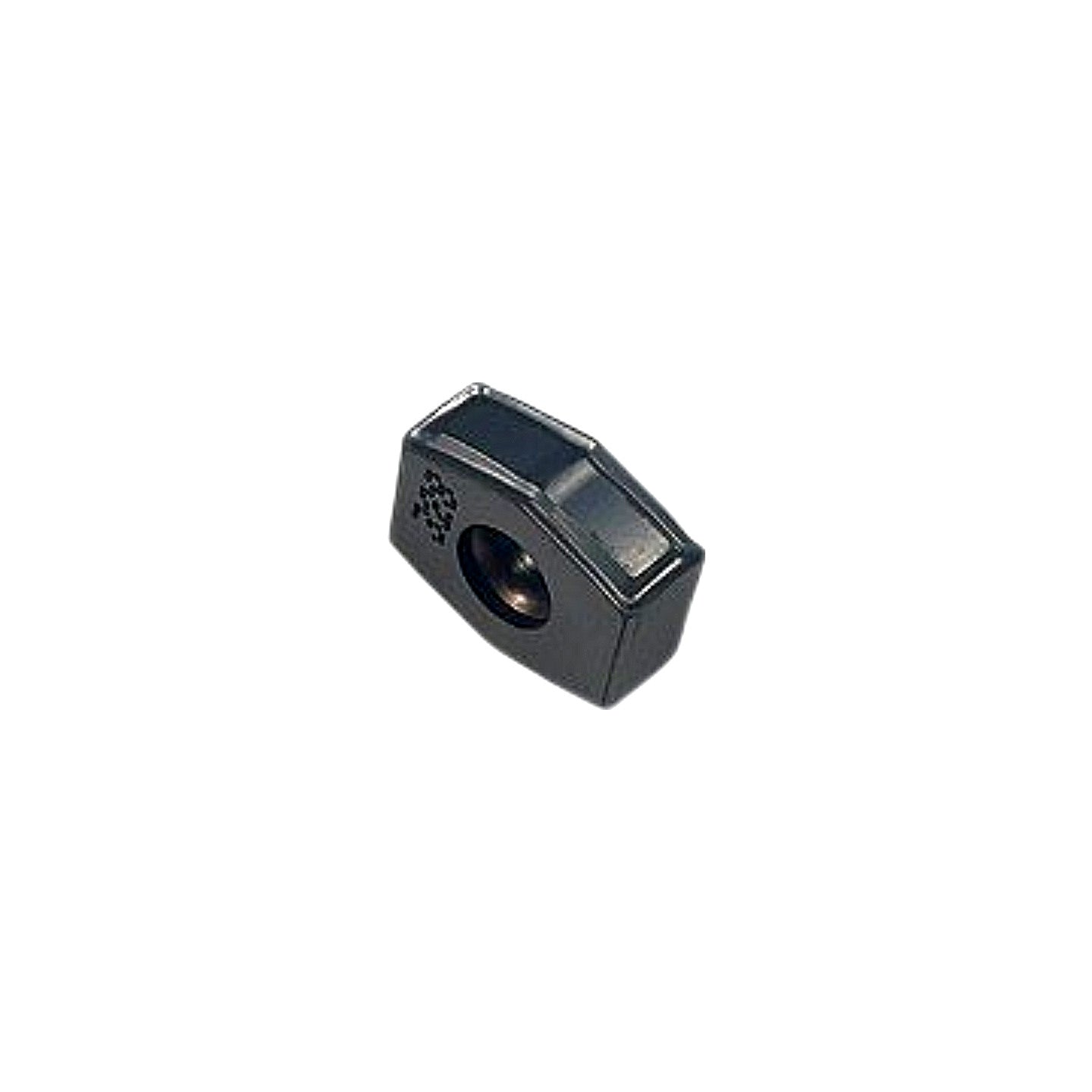

The Iscar PLHT 1305-PDX IC328 is a new, factory-packed indexable carbide milling insert designed for the Iscar HELIPLUS and HM90 family of high-feed and helical milling systems. The insert is manufactured in Israel to Iscar's IC328 grade — a PVD-coated submicron cemented carbide optimized for milling stainless steels (ISO M) with strong secondary suitability for steel (P) and non-ferrous/hardened (H) materials, as confirmed by the P/M/K/N/S/H material group indicators on the package label. The PDX chipbreaker geometry features a positive top rake with reinforced cutting edge geometry to reduce cutting forces while maintaining edge security in interrupted cuts. Per the label, recommended cutting data for ISO M stainless is Vc = 70–200 m/min (230–660 sfm) and Fz = 0.12 mm/tooth (0.0047 ipt). This package contains 10 inserts (Iscar lot 1183525010-1673144) in the original sealed plastic tray.
Product Specifications
| Brand | Iscar |
| MPN | PLHT 1305-PDX IC328 |
| Insert Grade | IC328 |
| Grade Type | PVD-coated submicron cemented carbide |
| Insert Shape | Parallelogram (PLHT) |
| Insert Size Code | 13 |
| Insert Thickness Code | 05 |
| Chipbreaker | PDX |
| ISO Material Groups | P, M, K, N, S, H (primary: M) |
| Cutting Speed (Vc) - ISO M | 70–200 m/min (230–660 sfm) |
| Feed per Tooth (Fz) - ISO M | 0.12 mm/t (0.0047 ipt) |
| Coating Process | PVD |
| Quantity per Package | 10 pcs |
| Country of Origin | Israel |
| Condition | New |
