Iscar PLMT 13-5-TR IC328 5601723 Carbide Milling Insert 10 Pack
Regular price
$43.61
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

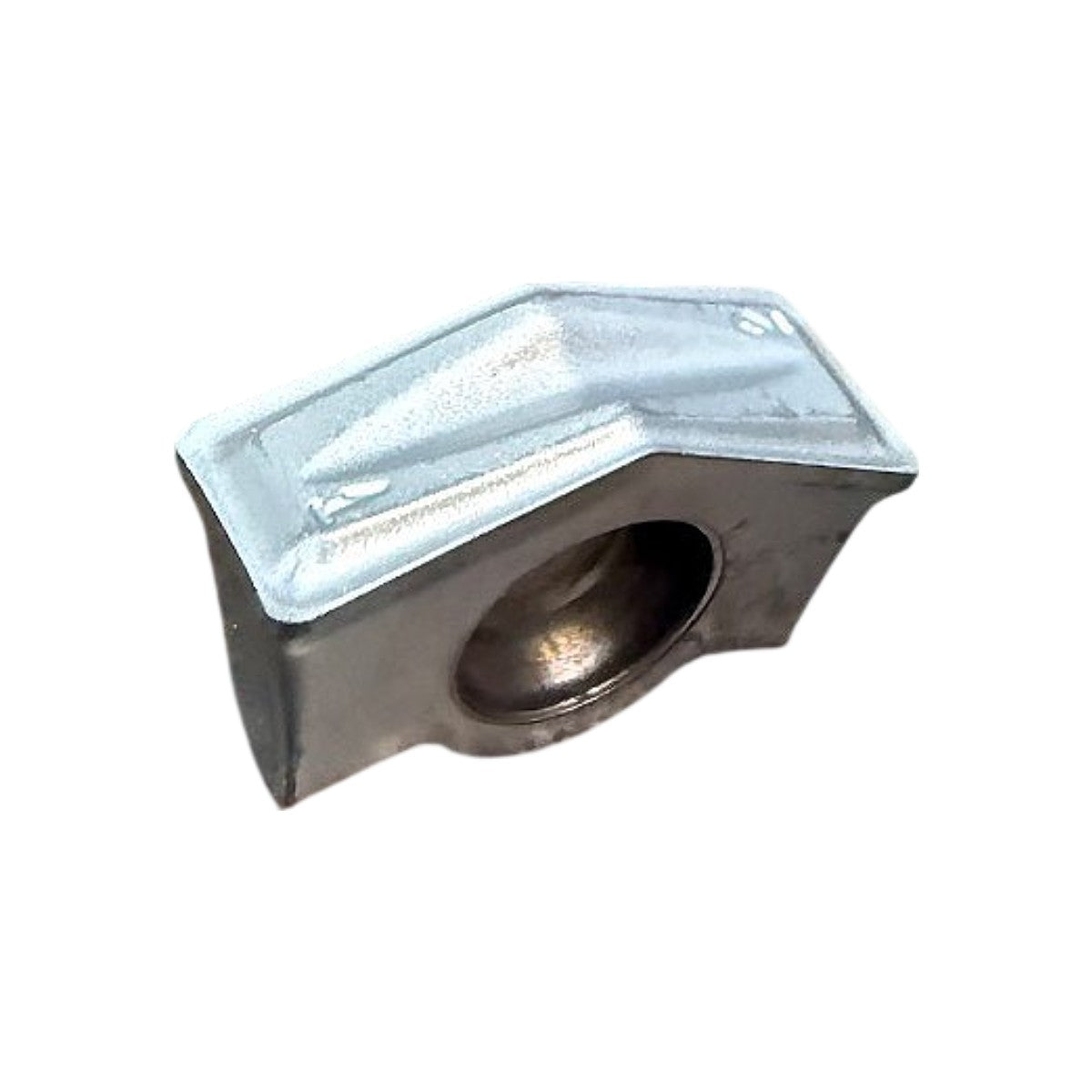

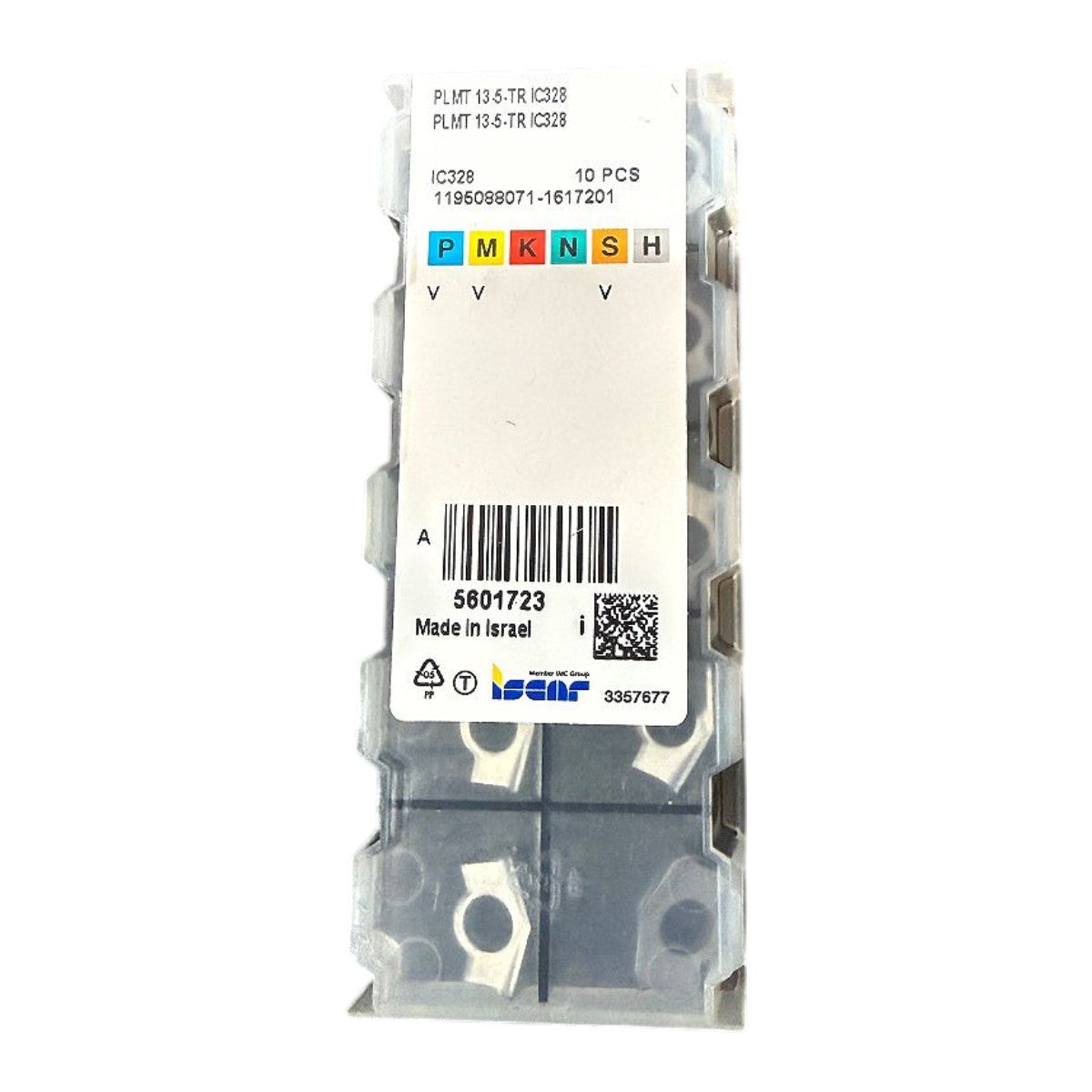

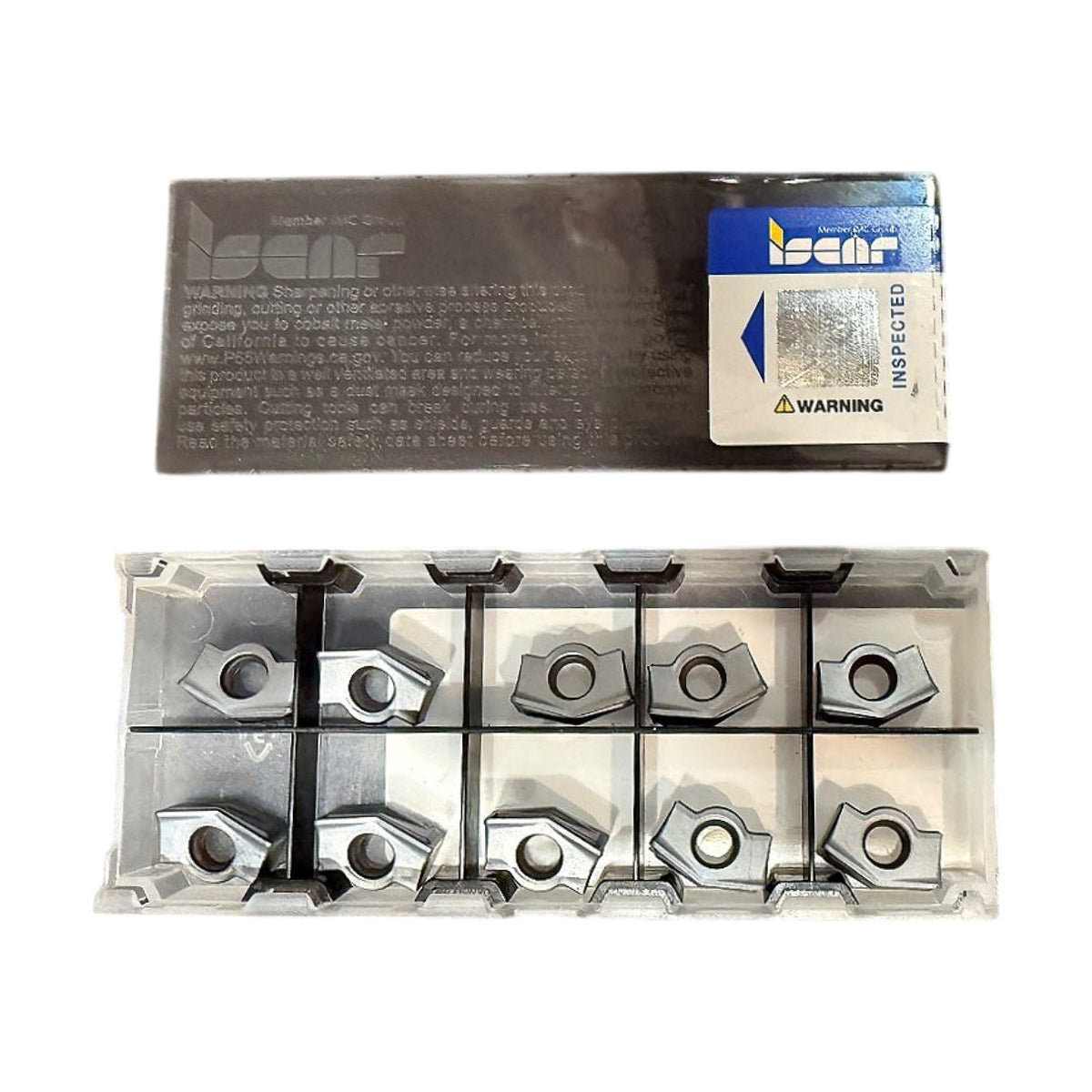

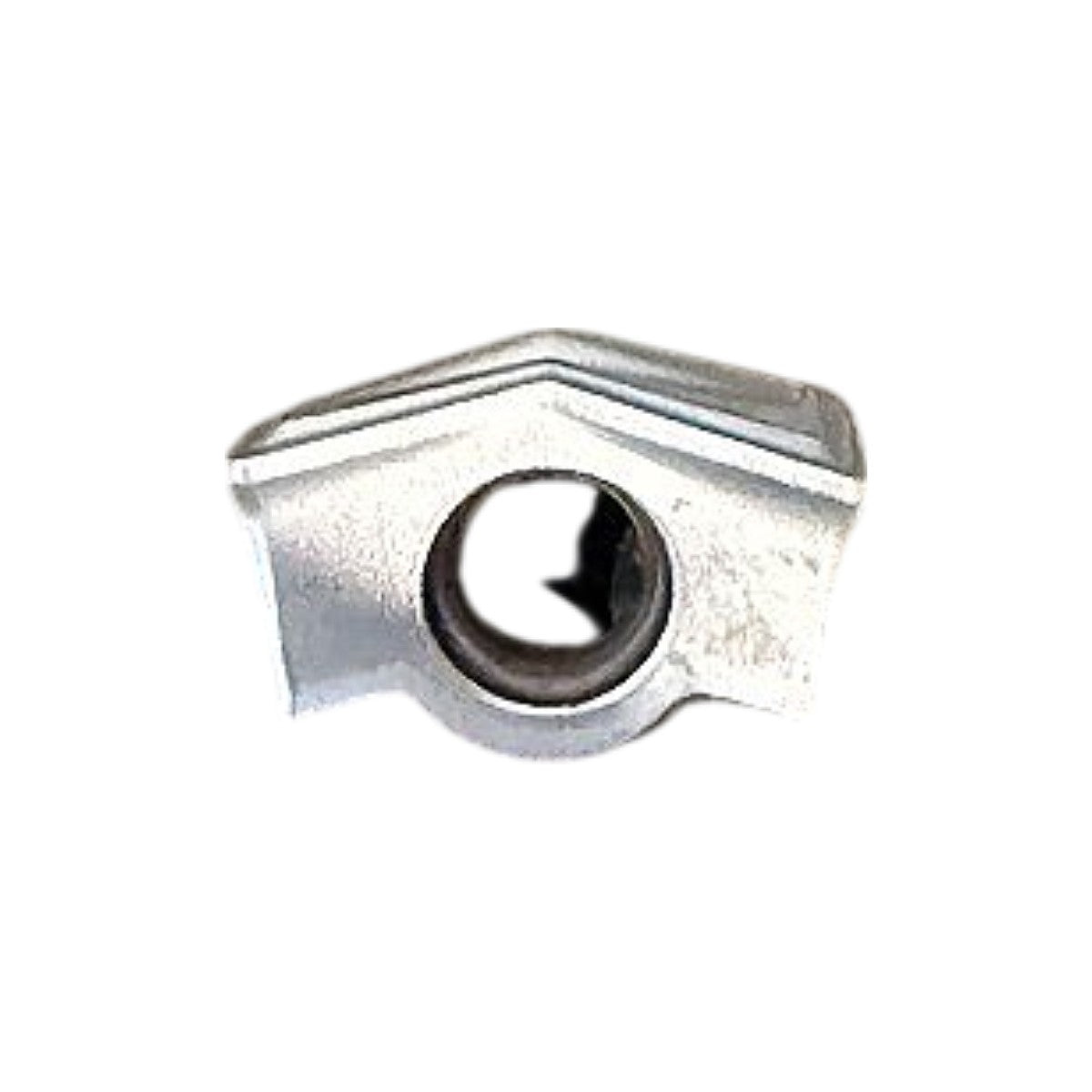

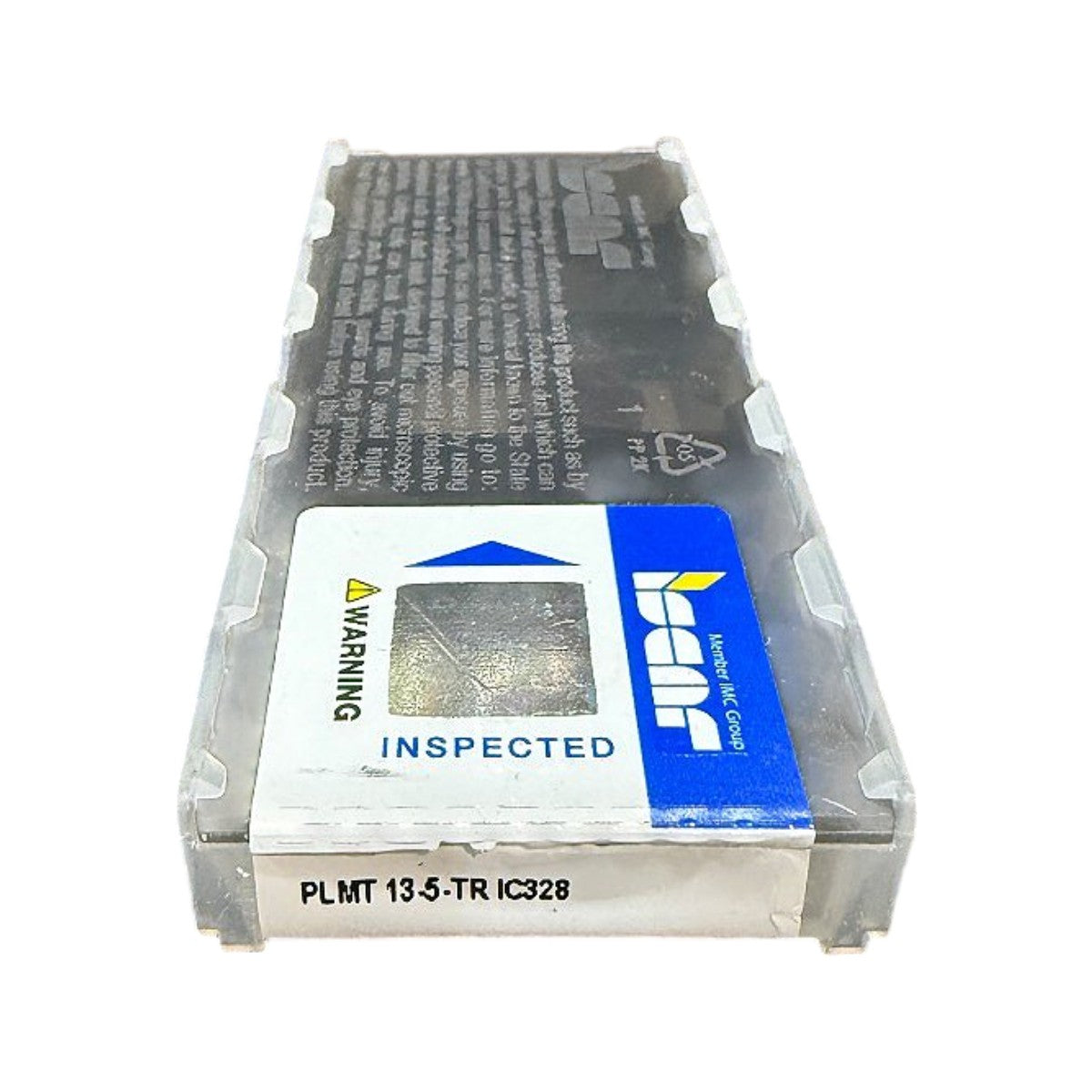

This is a new pack of 10 Iscar PLMT 13-5-TR IC328 carbide milling inserts, catalog number 5601723, made in Israel. IC328 is an Iscar PVD-coated fine-grain carbide grade, and the pack label marks it for ISO P (steel), M (stainless) and S (heat-resistant alloys and titanium) workpiece materials. The PLMT 13-5-TR designation is a through-hole, double-sided-style milling insert with a bevel-type geometry used in Iscar's high-feed and face milling cutter systems, and the insert is held by a center clamp screw. Inserts are sealed in Iscar's inspected retail packaging with a Prop 65 warning label.
Product Specifications
| Brand | Iscar |
| Manufacturer Part Number | PLMT 13-5-TR IC328 |
| Catalog Number | 5601723 |
| Grade | IC328 |
| Quantity per Pack | 10 |
| Country of Origin | Israel |
| Material | Carbide |
| Coating | PVD Coated |
| Operation | Milling |
| Insert Shape | P-type, pentagon-style milling insert |
| Insert Clearance Angle | L (5° per PLMT designation) |
| ISO Workpiece Materials | P, M, S |
| Mounting | Center screw through-hole |
| Insert Type | Indexable |
