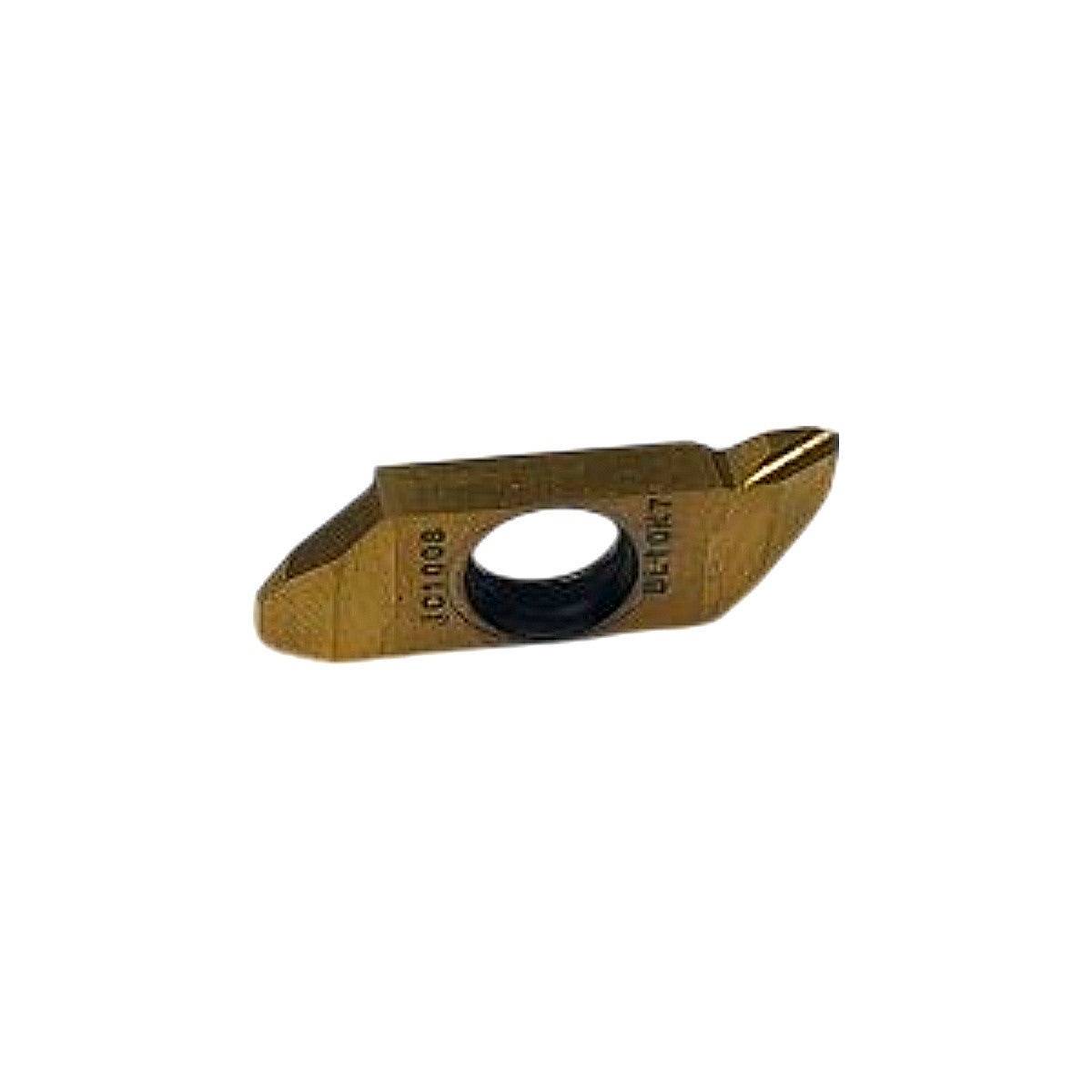

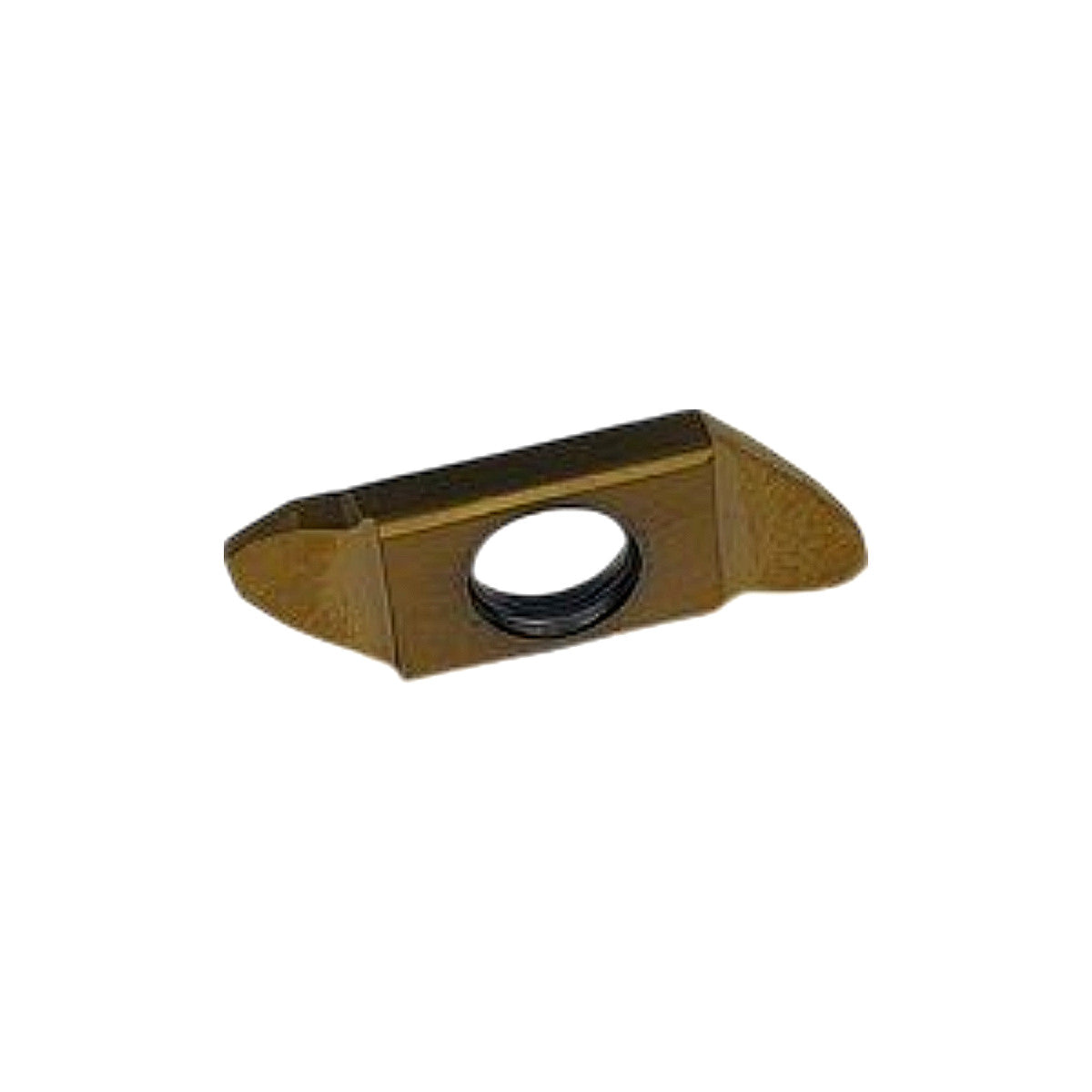

Iscar SCIL 22-BL08-10K7 IC1008 Carbide Grooving Insert (5pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

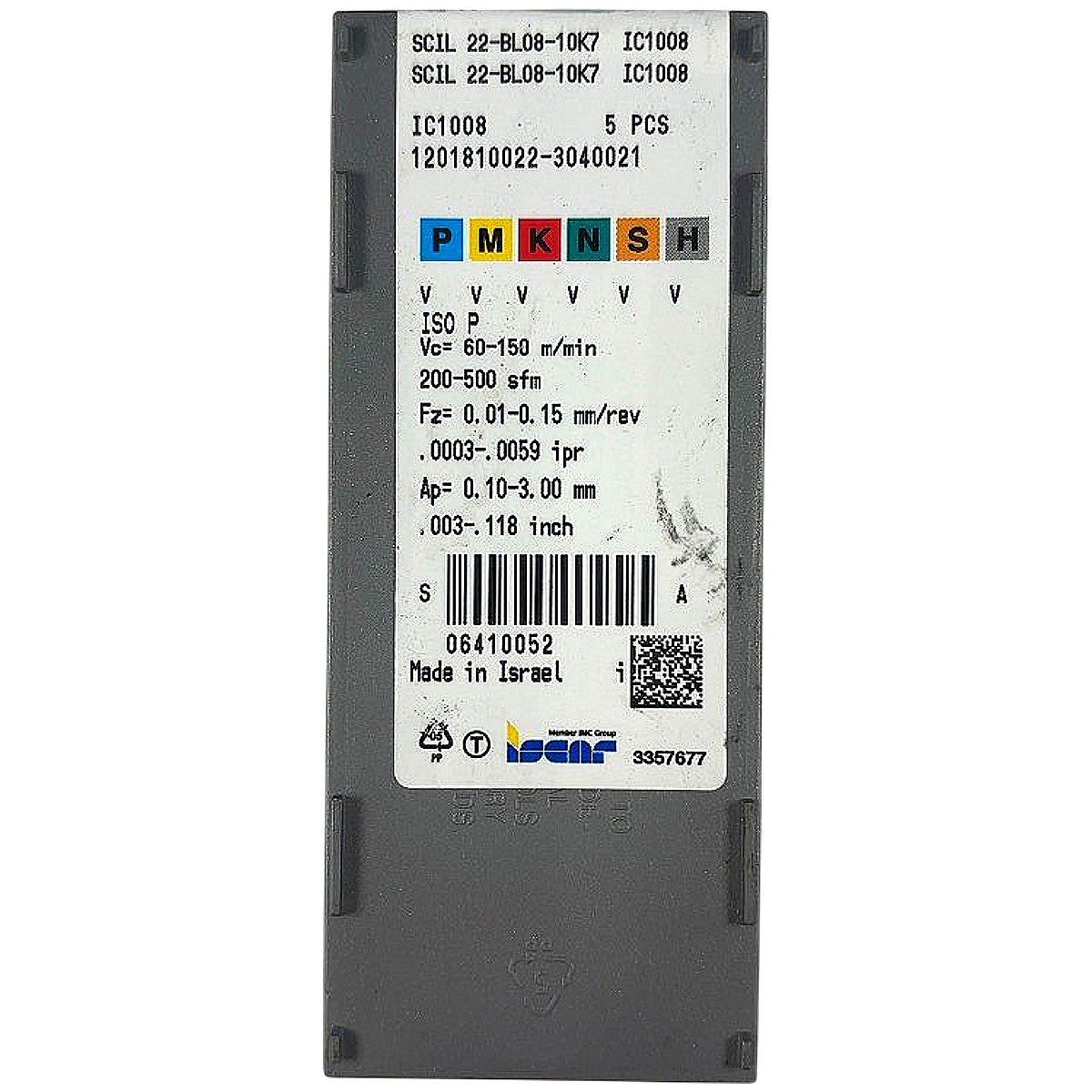

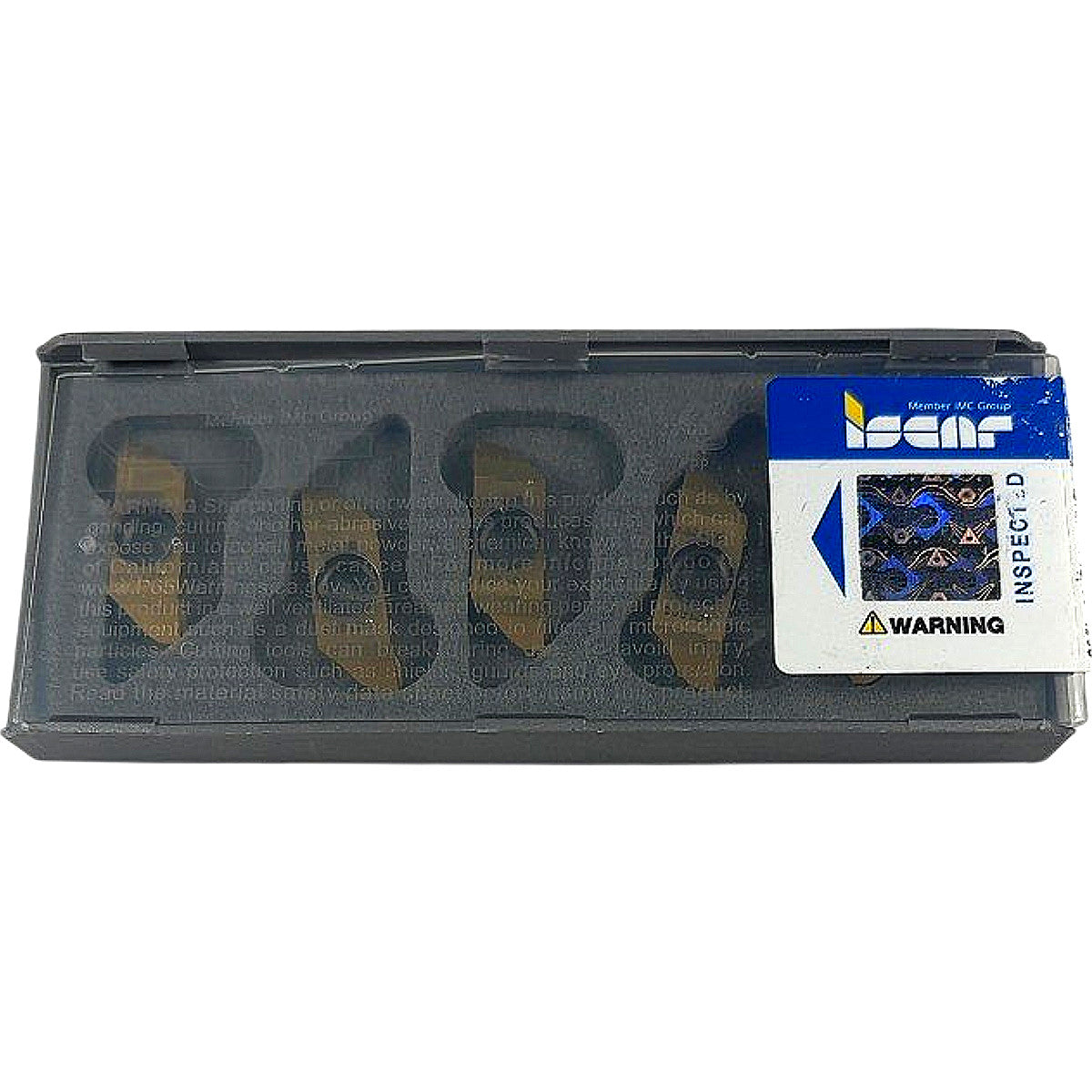

The Iscar SCIL 22-BL08-10K7 is a double-ended carbide grooving/turning insert from the SCIL (Shallow Cut Insert Line) system, designed for external grooving and turning operations on CNC lathes. The insert is manufactured in IC1008 grade — a PVD TiAlN-coated fine-grain carbide substrate engineered for high wear resistance and edge toughness, suitable across all workpiece material groups (ISO P, M, K, N, S, H) as confirmed on the package label. Designation decoding: "22" indicates the insert width/cutting edge length of 22 mm, "BL" denotes the bilateral (double-ended) geometry with a left-hand lead angle, "08" specifies an 0.8 mm nose radius, and "10K7" defines the insert thickness and clamping hole geometry compatible with the SCIL toolholder system. Per the package label, recommended cutting parameters are Vc = 60–150 m/min (200–500 sfm), feed Fz = 0.01–0.15 mm/rev (0.0003–0.0059 ipr), and depth of cut Ap = 0.10–3.00 mm (0.003–0.118 in). This listing is a new factory-sealed box of 5 inserts made in Israel.
Product Specifications
| Brand | Iscar |
| MPN | SCIL 22-BL08-10K7 |
| Grade | IC1008 |
| Coating | PVD TiAlN |
| Insert System | SCIL (Shallow Cut Insert Line) |
| Insert Style | Double-ended grooving/turning |
| Cutting Edge Width | 22 mm |
| Nose Radius | 0.8 mm |
| Geometry | BL — bilateral, left-hand lead angle |
| ISO Material Groups | P, M, K, N, S, H |
| Cutting Speed (Vc) | 60–150 m/min (200–500 sfm) |
| Feed Rate (Fz) | 0.01–0.15 mm/rev (0.0003–0.0059 ipr) |
| Depth of Cut (Ap) | 0.10–3.00 mm (0.003–0.118 in) |
| Quantity per Box | 5 pcs |
| Country of Origin | Israel |
| Condition | New (factory sealed) |
