Iscar TGAQ D82-3-4Z-JHP TangFGrip 82mm 4-Edge Parting Disc
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

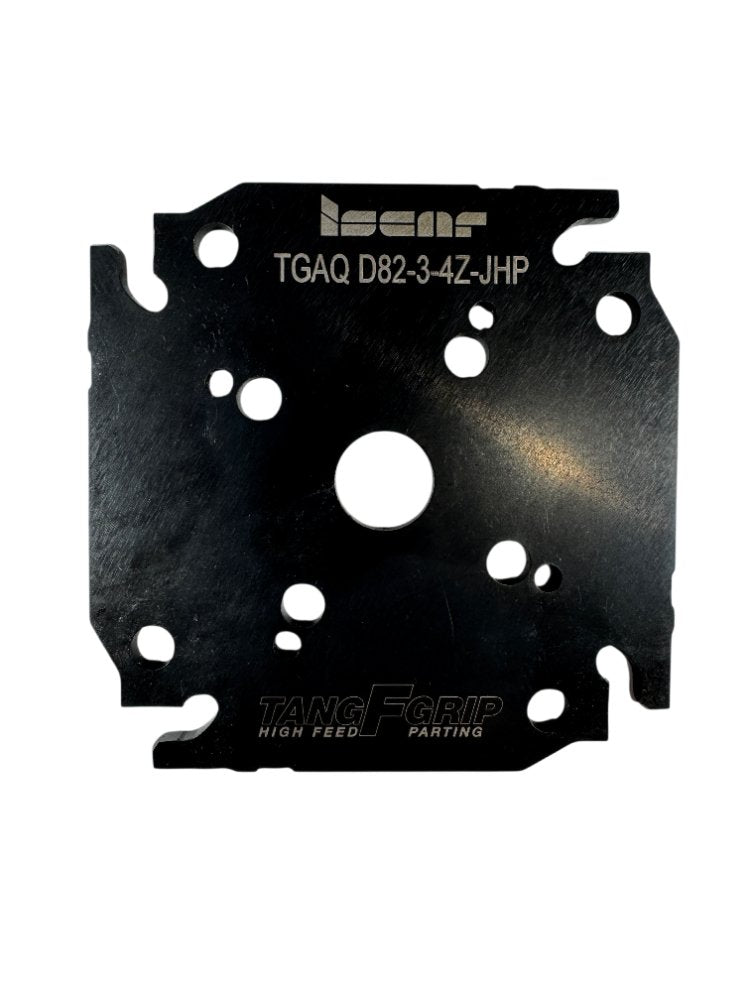

The Iscar TGAQ D82-3-4Z-JHP is a new, factory-fresh TangFGrip High Feed Parting disc-style blade body manufactured in Israel, designed for use with Iscar's Tang-Grip tangential clamping insert system for parting and grooving operations on CNC lathes and turning centers. The body is 82mm in diameter (D82), accepts a 3mm groove width insert, and features 4 indexable insert pockets (4Z) arranged around the disc periphery, allowing the body to be indexed to present a fresh pocket as edges wear. The JHP designation indicates the body is configured for Jet High Pressure through-coolant delivery, compatible with the separate JHP Copper Seal 1/8" fitting (Iscar item 7520696) included in this kit alongside the clamping screw. The disc-style format provides high rigidity and is suited for deep, high-feed parting applications; compatible inserts are from Iscar's Tang-Grip TGMF/TGMM series in 3mm width.
Product Specifications
| Brand | Iscar |
| Part Number (MPN) | TGAQ D82-3-4Z-JHP |
| Product Line | TangFGrip High Feed Parting |
| Body Diameter (D) | 82 mm |
| Insert Groove Width | 3 mm |
| Number of Insert Pockets (Z) | 4 |
| Coolant System | JHP (Jet High Pressure through-coolant) |

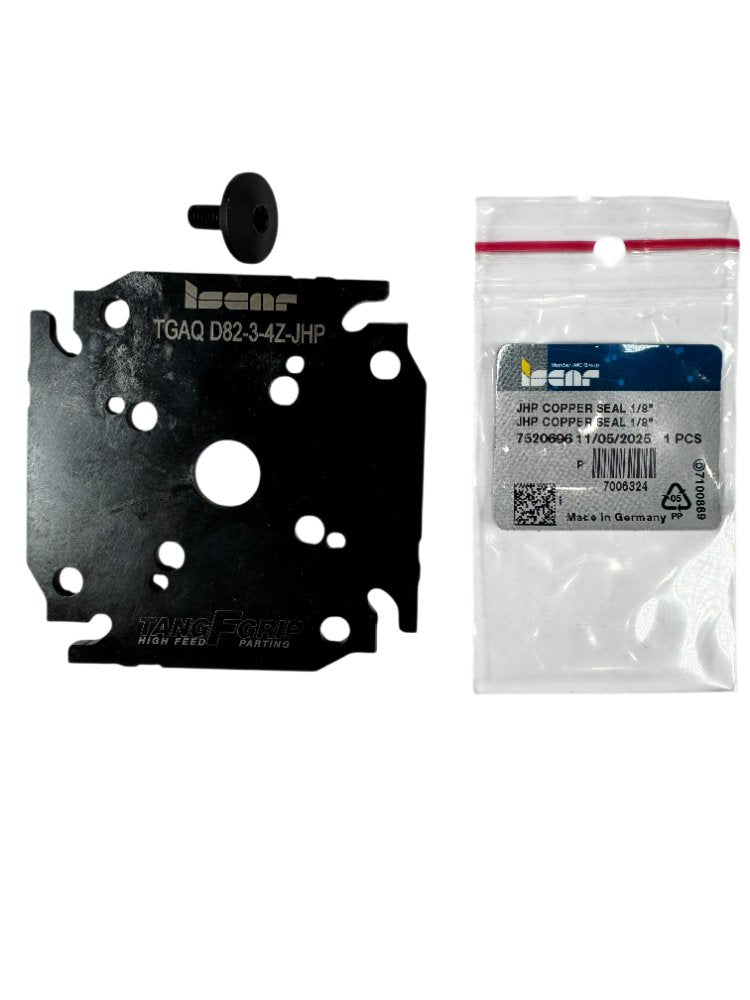

| Coolant Seal Included | JHP Copper Seal 1/8" (Iscar 7520696) |
| Clamping Screw Included | Yes (1 screw visible in photos) |
| Country of Manufacture | Israel |
| Insert Clamping System | Tangential (Tang-Grip) |
| Condition | New |
| Iscar Catalog Item Number | 7473049 |
| Body Style | Disc / circular parting blade |
