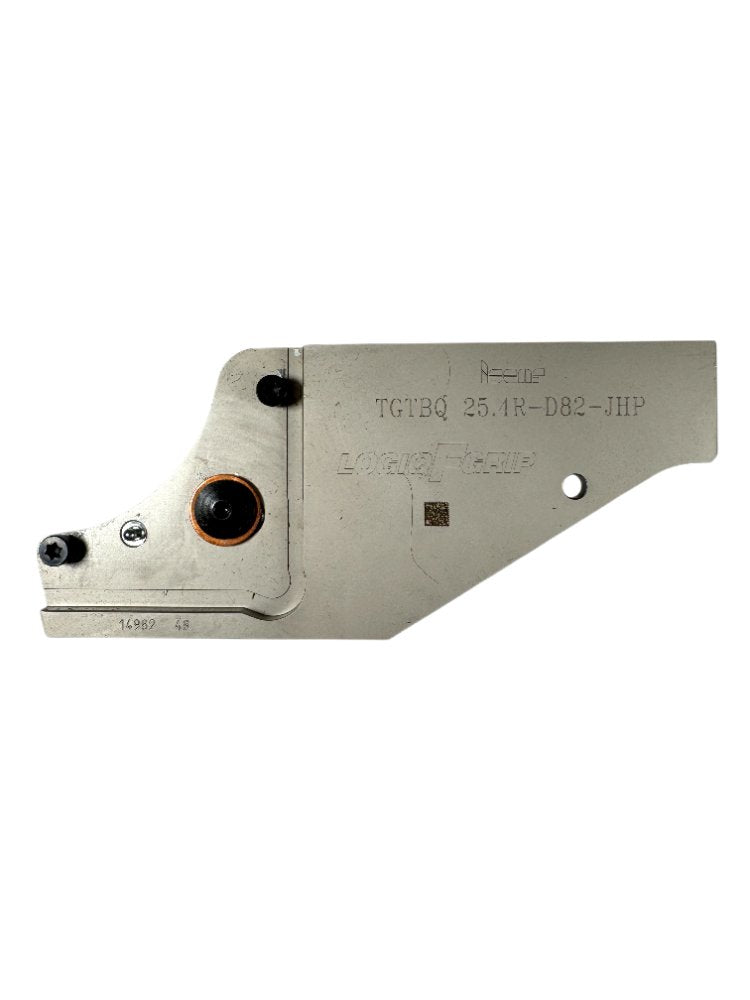

Iscar TGTBQ 25.4R-D82-JHP Logiq-Grip Grooving Toolholder Blade
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

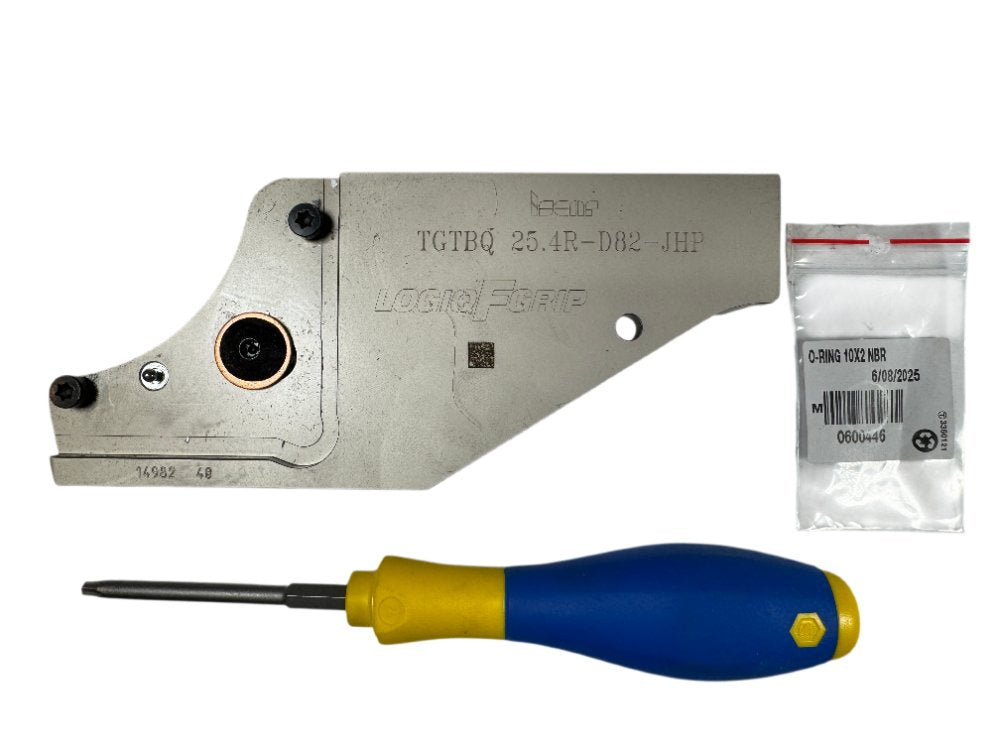

The Iscar TGTBQ 25.4R-D82-JHP is a new, right-hand Logiq-Grip tangential grooving blade from Iscar's TANG-GRIP system, designed for high-pressure through-coolant (JHP) delivery directly to the cutting zone via internal channels. The blade accepts TANG-GRIP double-ended tangential grooving inserts with a 25.4 mm insert width designation, suited for face and axial grooving operations on CNC turning centers and lathes. The D82 designation indicates a blade body height/depth dimension of 82 mm, and the tangential clamping mechanism provides rigid insert clamping without a top clamp, enabling excellent chip flow and access in tight grooving applications. Included in the package are a Torx wrench/screwdriver for insert clamping and a replacement NBR O-ring (10x2 mm) for the coolant sealing circuit. Made in Israel; Iscar part number 7514982.
Product Specifications
| Brand | Iscar |
| Part Number (MPN) | TGTBQ 25.4R-D82-JHP |
| Iscar Item Number | 7514982 |
| Tooling System | TANG-GRIP (Logiq-Grip) Tangential Grooving |
| Hand of Cut | Right-Hand (R) |
| Insert Width / Grooving Width | 25.4 mm |
| Blade Body Height (D dimension) | 82 mm |
| Coolant System | High-Pressure Through-Coolant (JHP — Jet High Pressure internal coolant) |
| Coolant O-Ring Included | NBR O-Ring 10x2 mm |
| Clamping Method | Tangential screw clamp (no top clamp) |
| Compatible Insert Type | TANG-GRIP double-ended tangential grooving inserts, 25.4 mm width |
| Country of Origin | Israel |
| Condition | New |
| Accessories Included | Torx insert-clamping screwdriver, NBR O-Ring 10x2 mm |
