Iscar V60-MAHDL-R-XL-JHP JetCut Right-Hand XL Parting Blade Holder

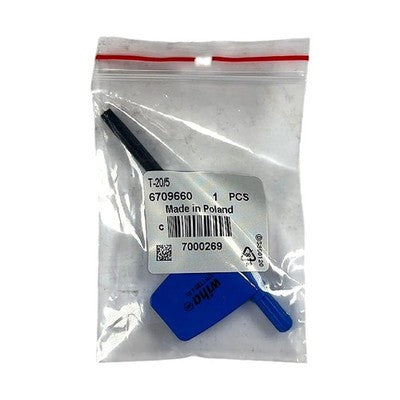

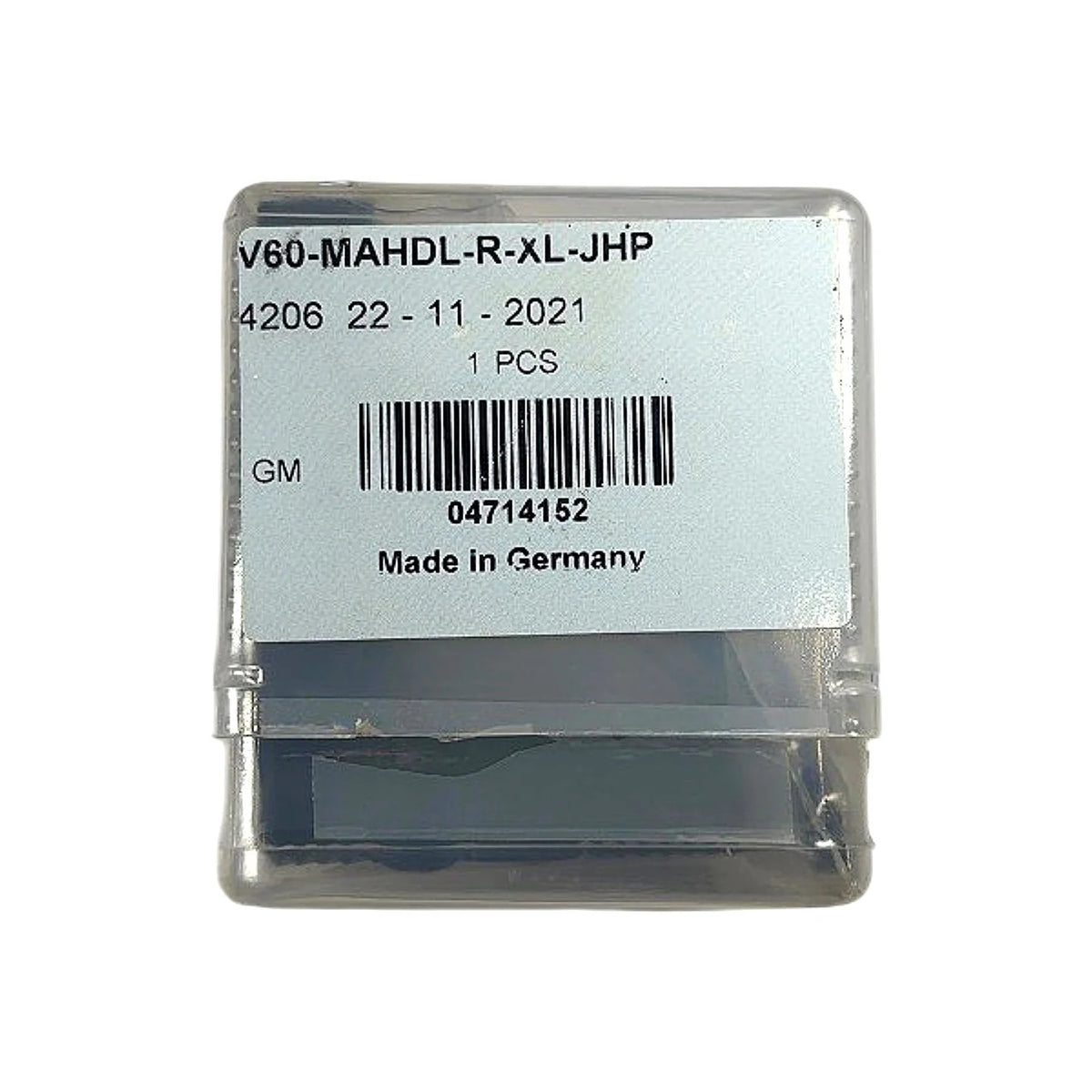

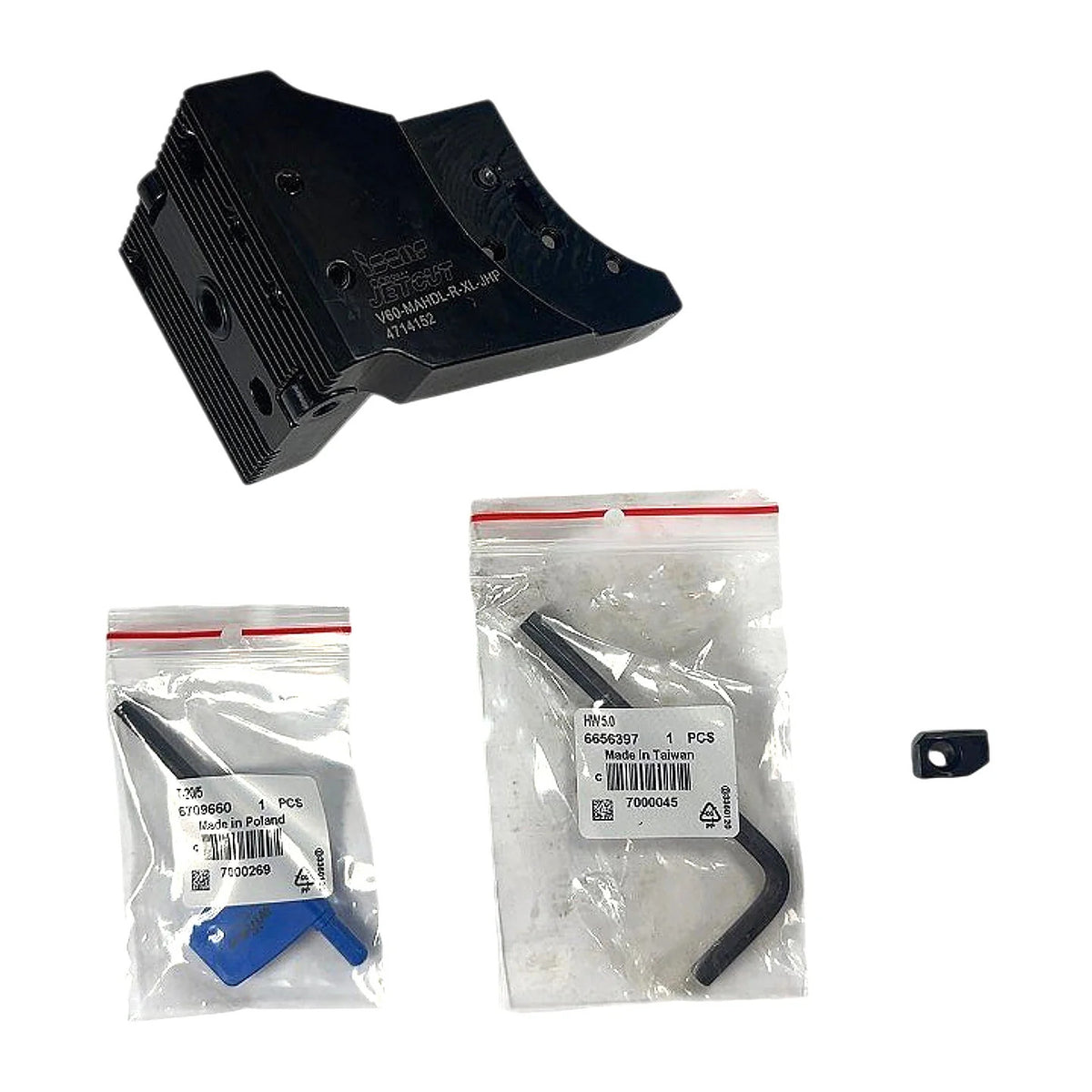

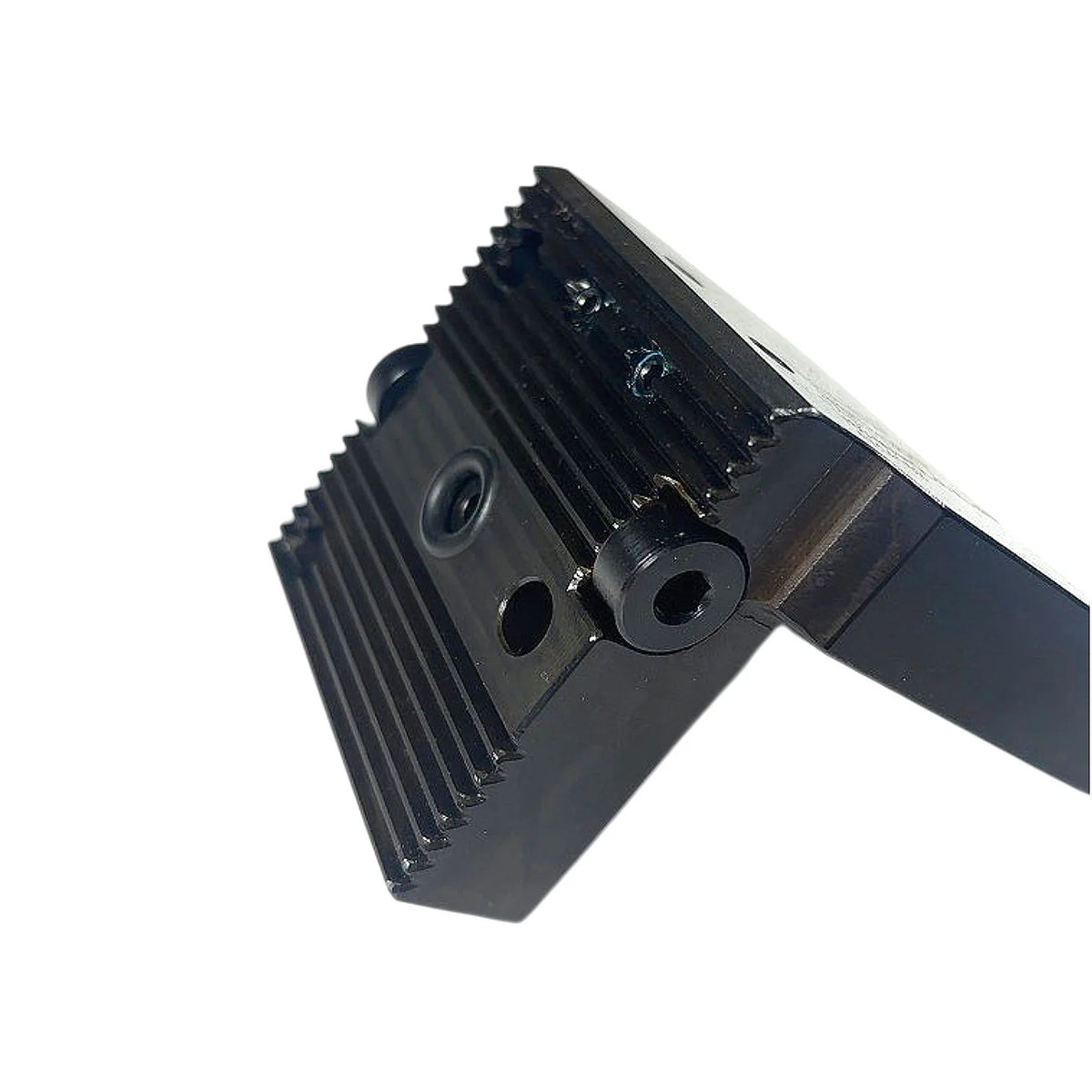

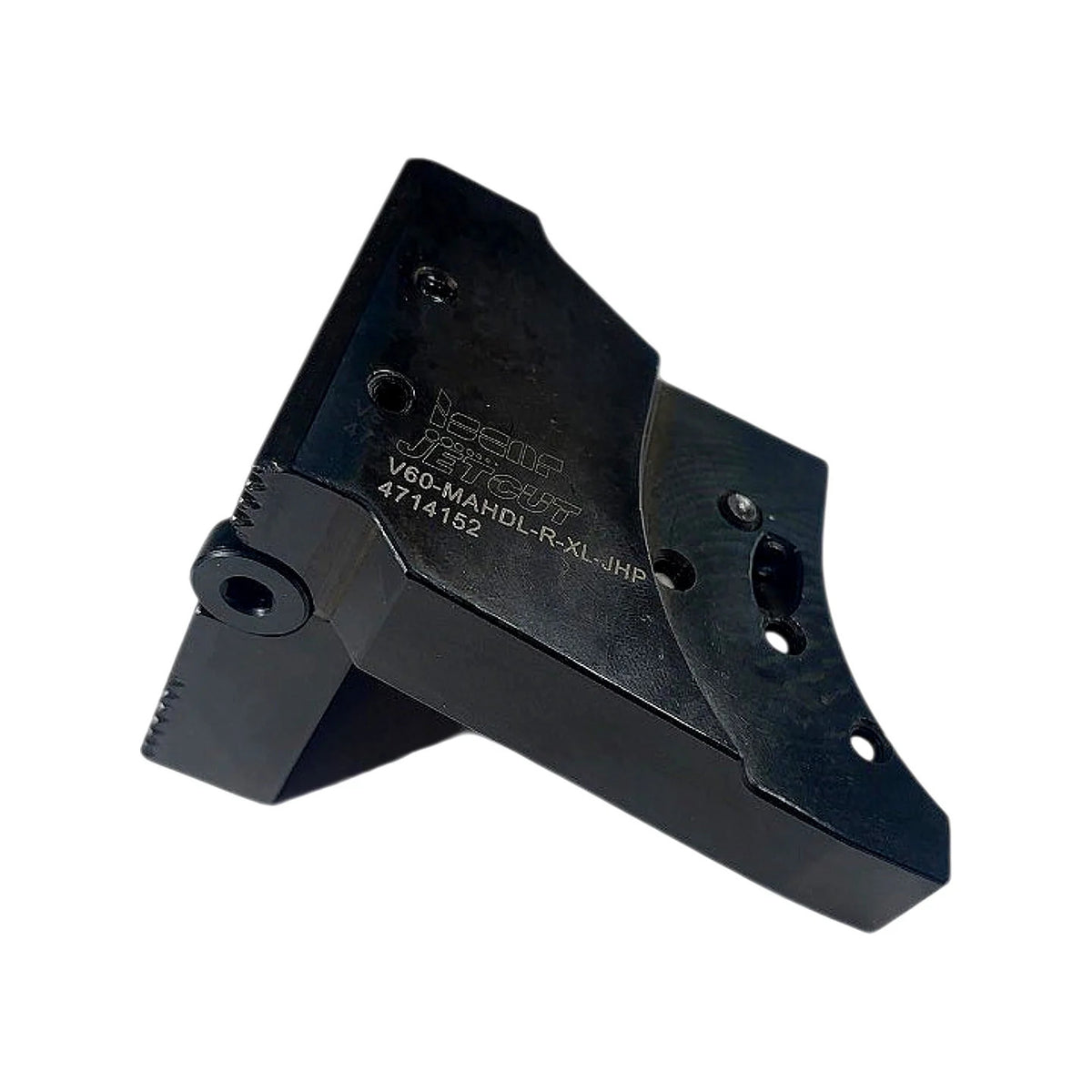

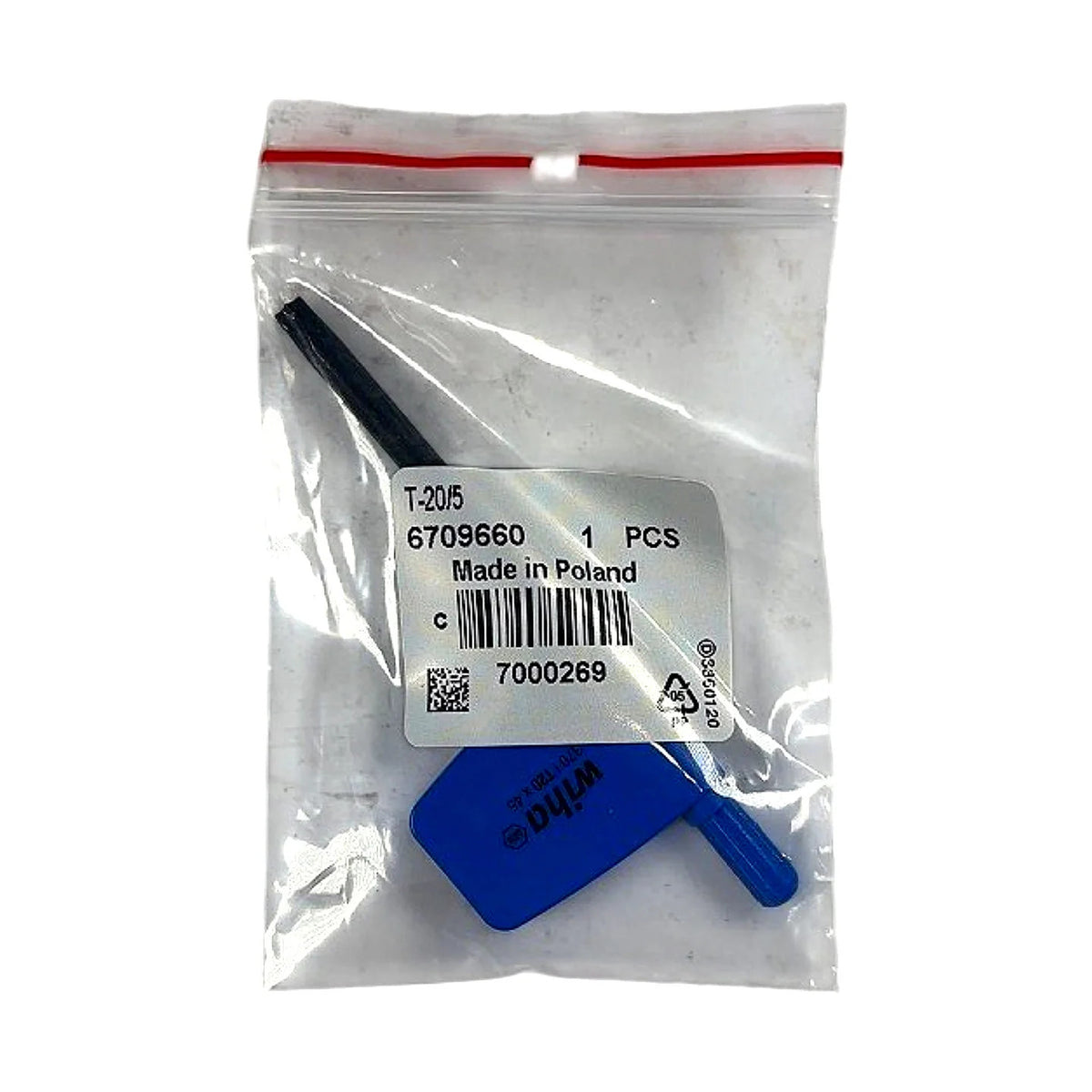

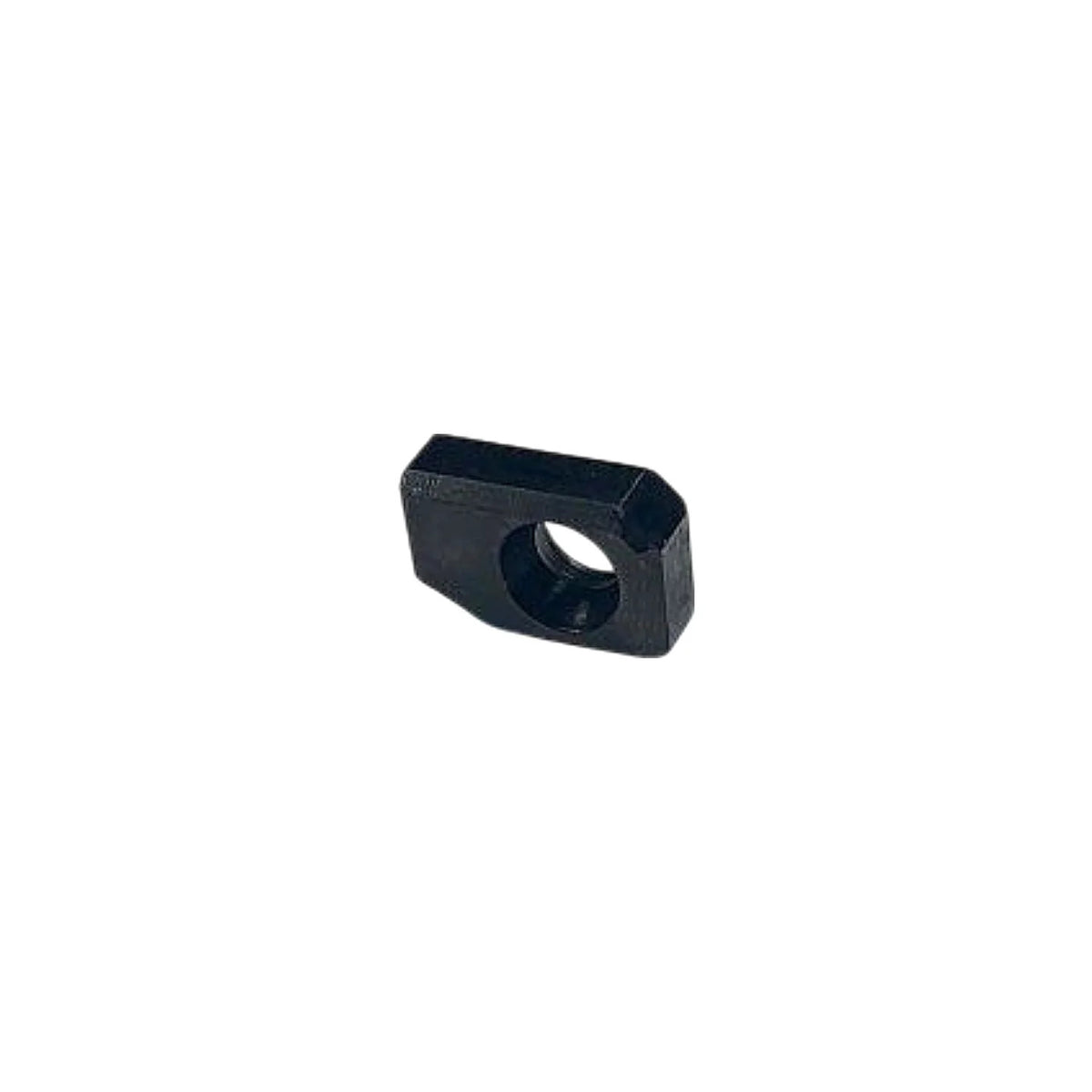

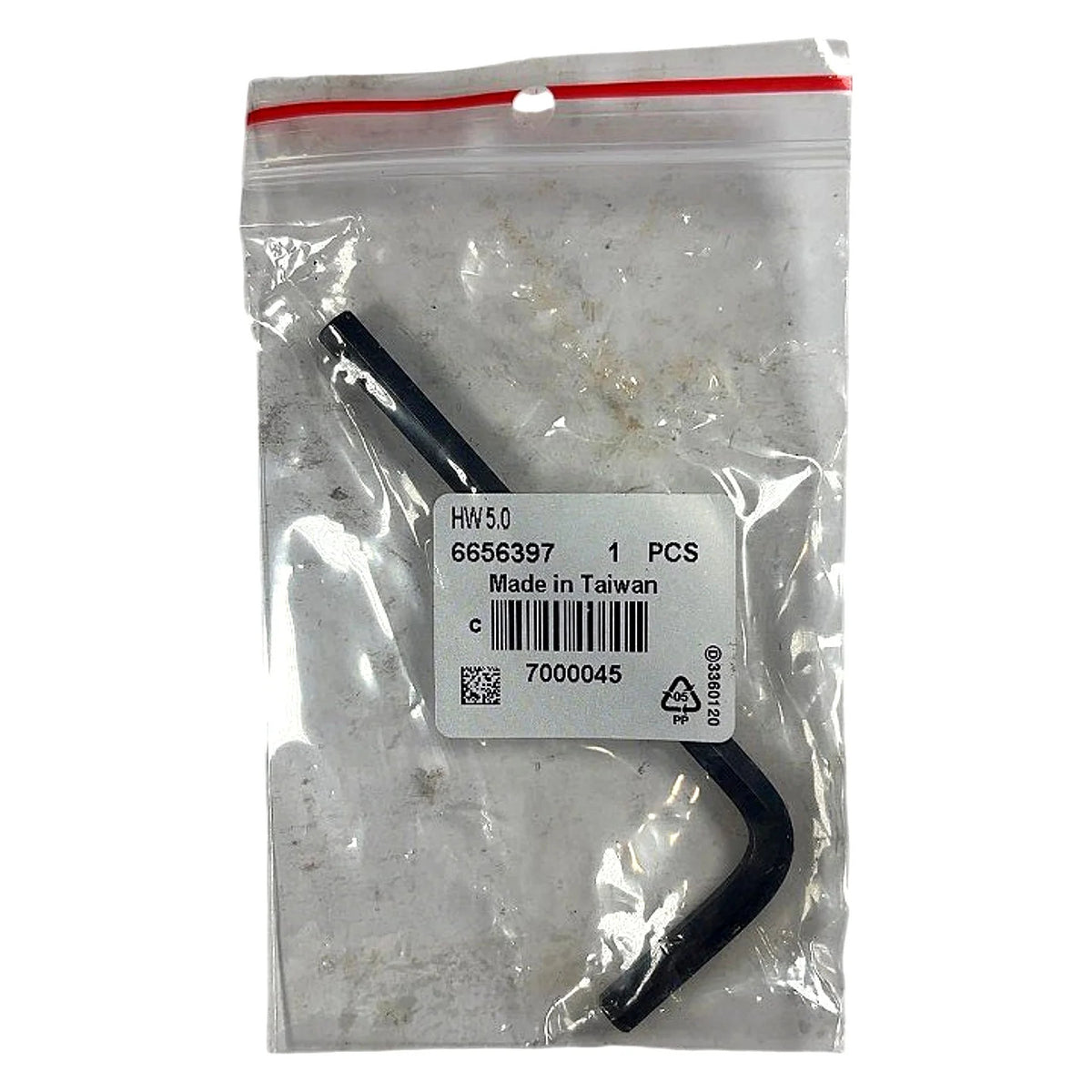

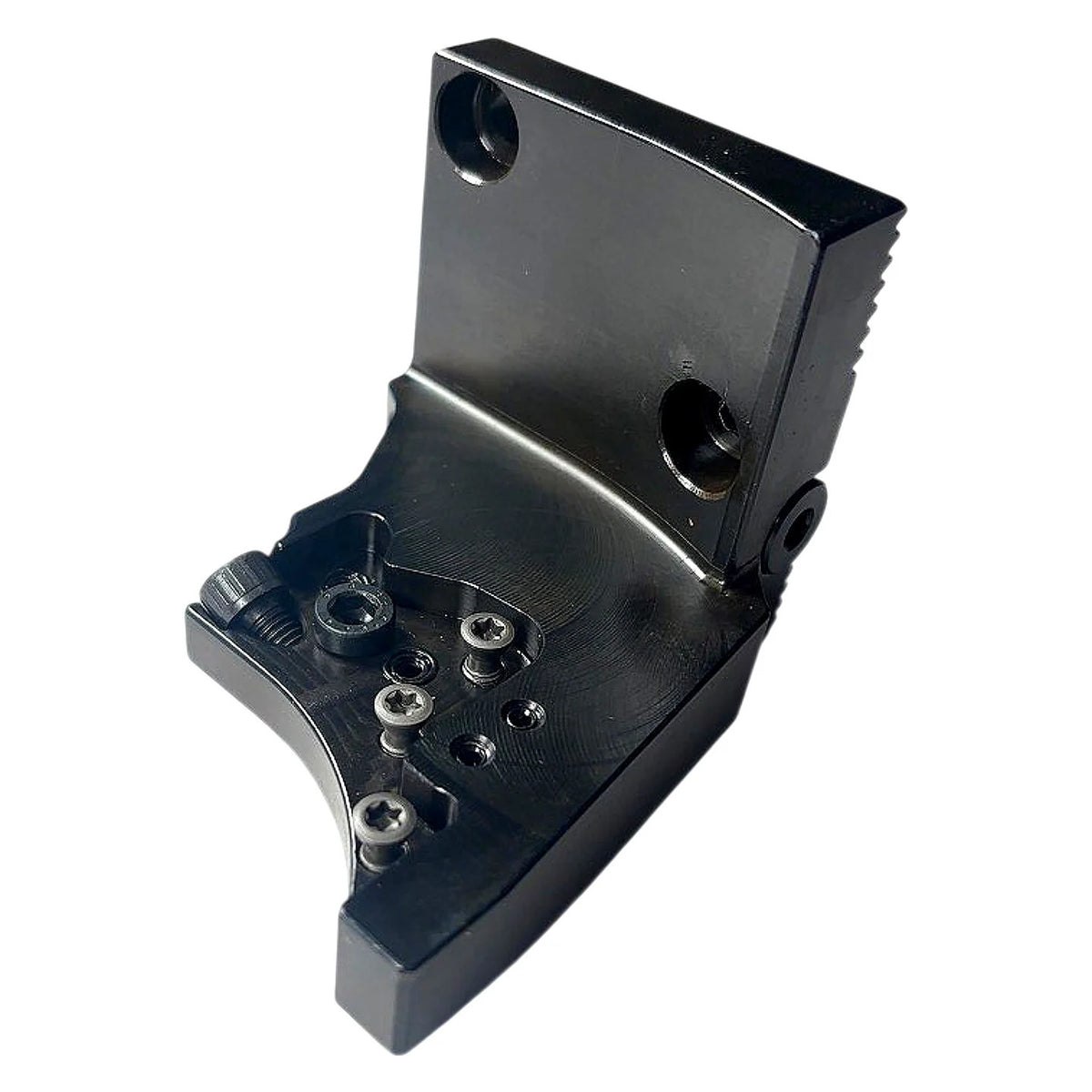

The Iscar V60-MAHDL-R-XL-JHP is a new, genuine Iscar JetCut series right-hand indexable parting/grooving blade holder (Item No. 4714152), manufactured in Germany and designed for use with the Multi-Master / MAHDL blade interface on CNC turning centers and lathes. The "V60" designation indicates compatibility with Iscar's V60 machine-side clamping unit (VDI-60 or equivalent turret pocket interface), "R" denotes right-hand cutting direction, and "XL" indicates the extra-long blade length for deep-groove and cut-off applications; the "JHP" suffix specifies the internal high-pressure through-coolant capability, directing coolant directly to the cutting edge for improved chip evacuation and tool life in demanding materials. The holder body is constructed from hardened alloy steel with a black-oxide/nitrided finish and features a serrated (sawtooth) blade-clamping jaw visible in the photos, providing rigid, repeatable blade positioning. Included in the package are the blade holder body, one Iscar clamping screw/nut (small black component), a 5.0 mm hex key (Iscar PN 6656397, Made in Taiwan), and a T-20 Torx L-key (Iscar PN 6709660 / Wiha T-20/5, Made in Poland). This holder accepts Iscar MAHDL-series parting blades and is suited for cut-off and deep-grooving operations on CNC lathes with high-pressure coolant systems.

Product Specifications
