Iscar WNMG 332-F3M IC6015 PVD Carbide Turning Insert (10 Pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

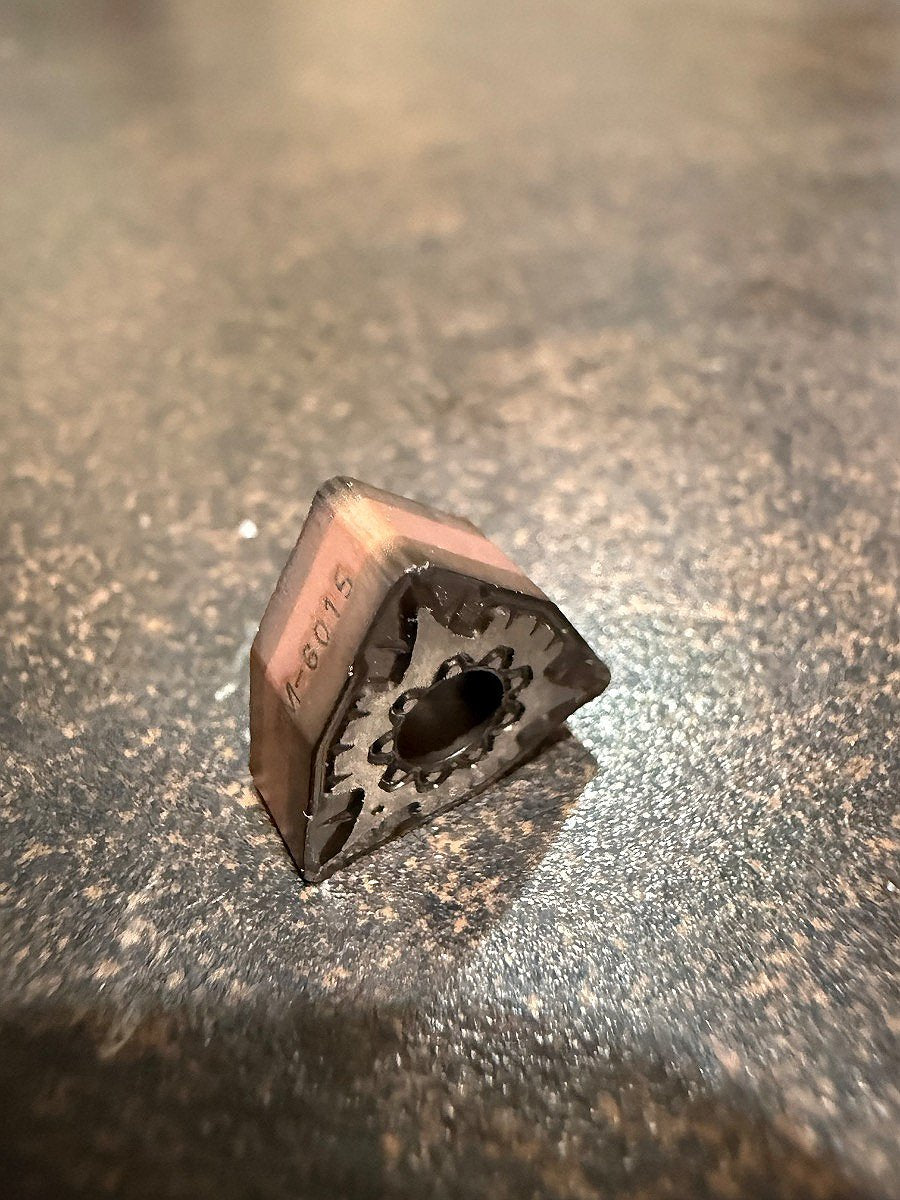

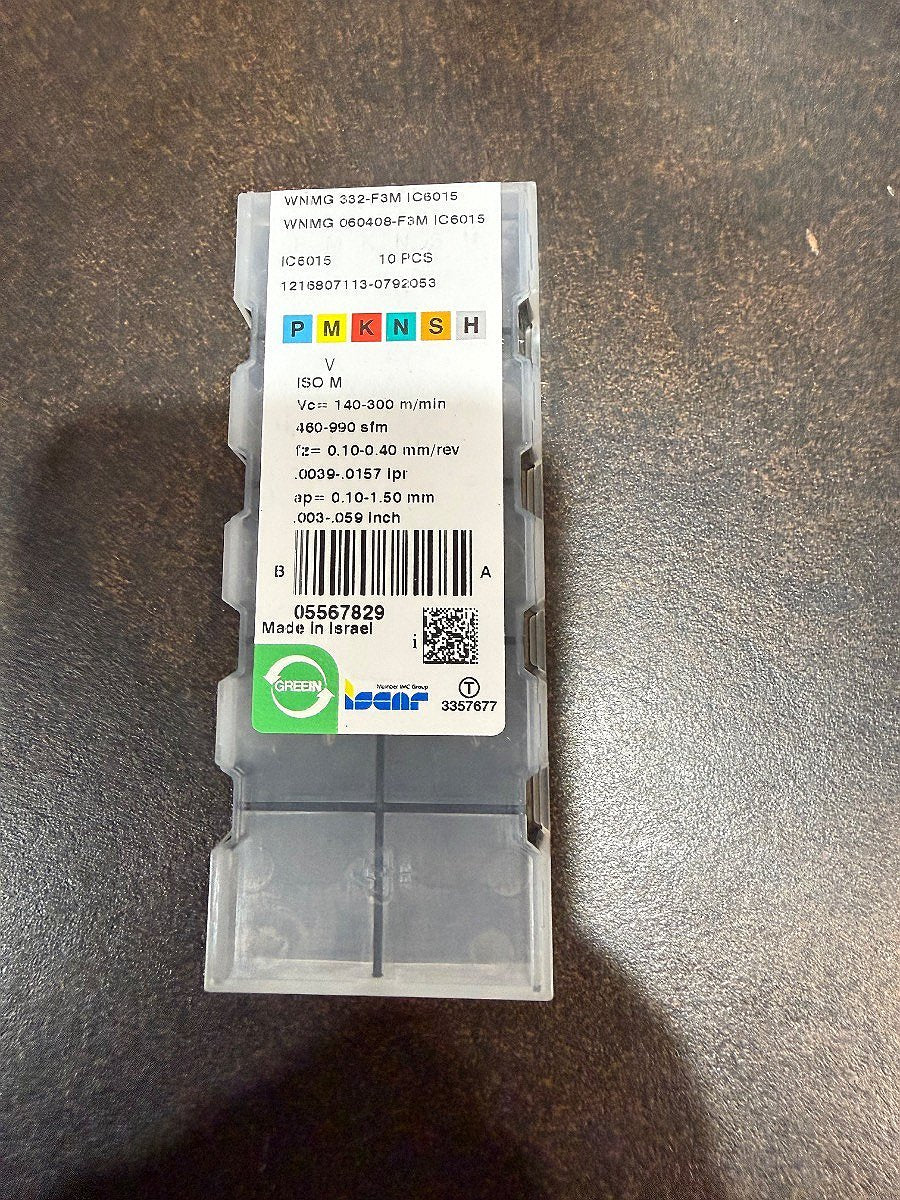

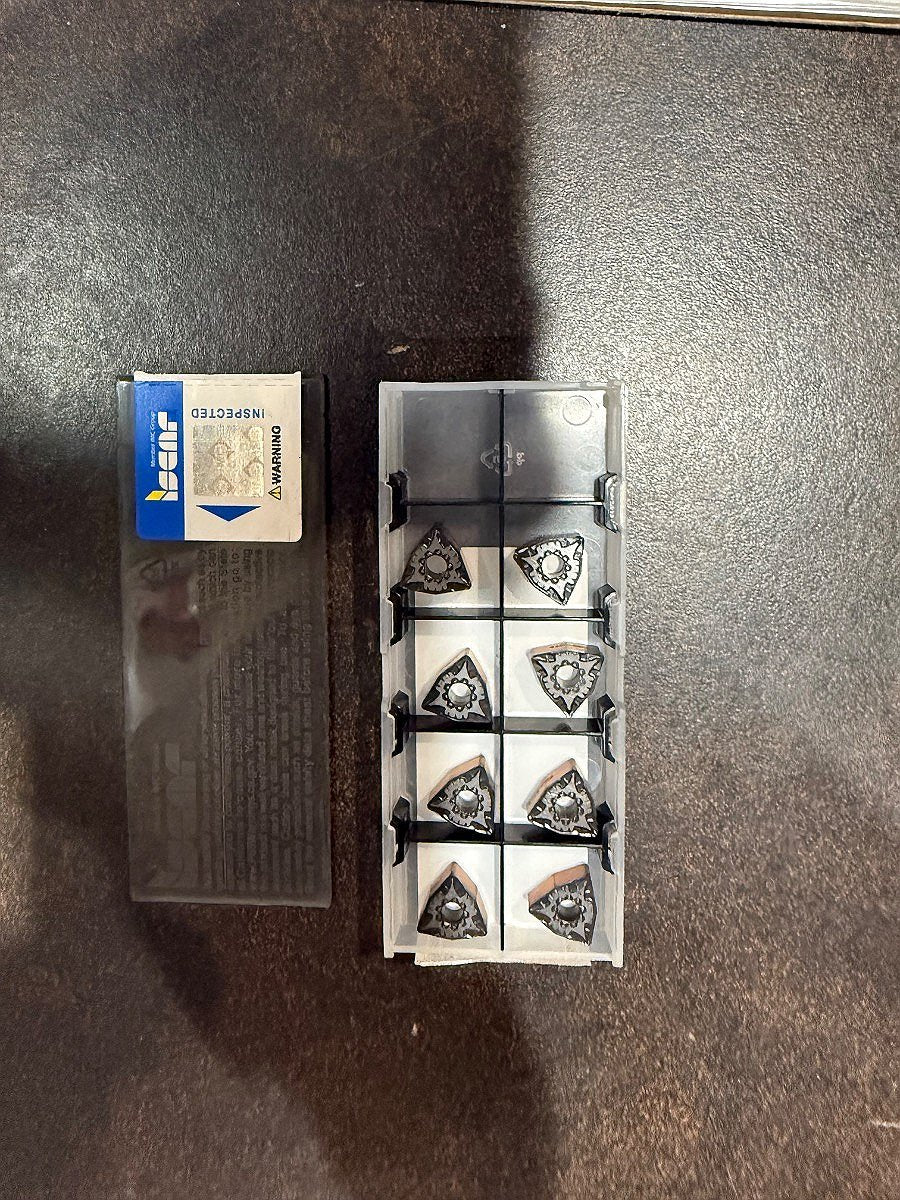

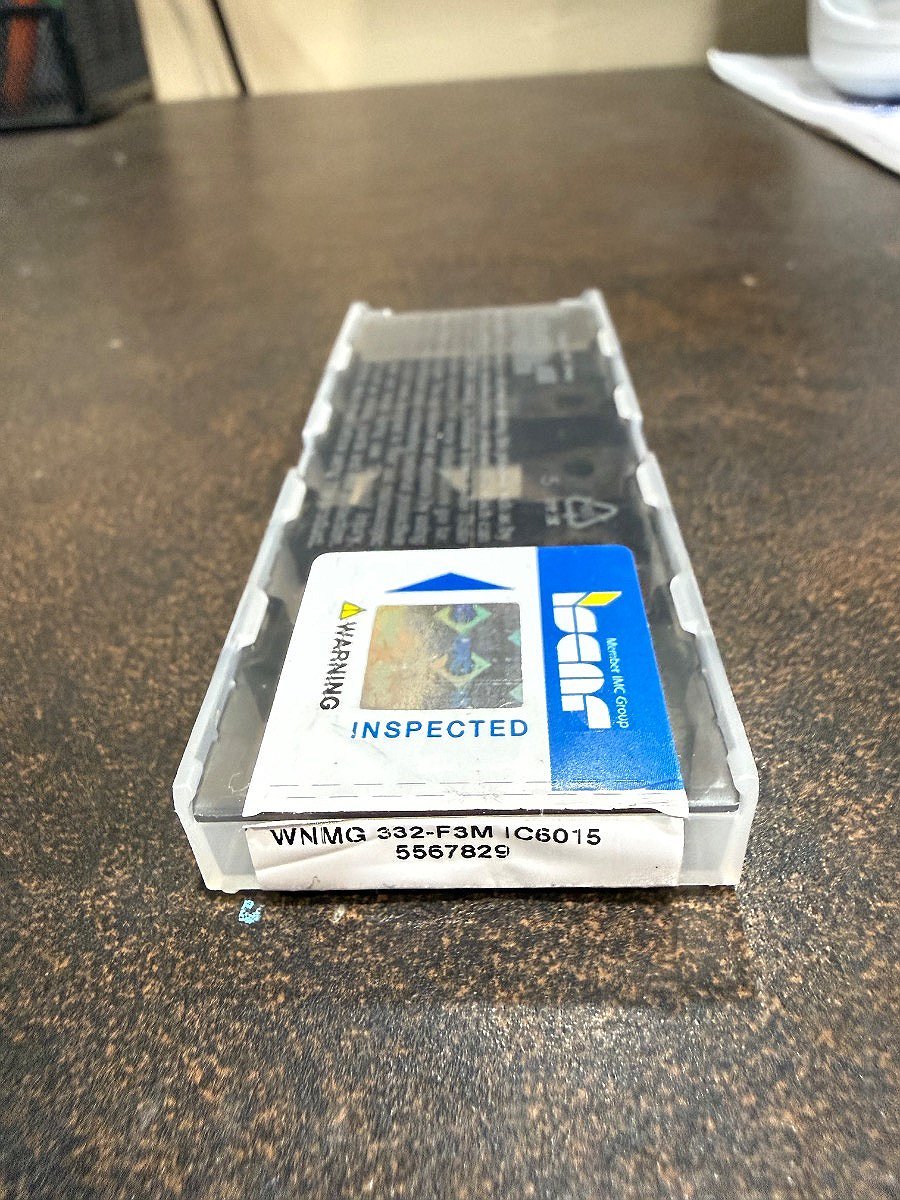

This is a new pack of 10 Iscar WNMG 332-F3M IC6015 (metric WNMG 060408-F3M, catalog 5567829) negative-rake carbide turning inserts, made in Israel. The WNMG designation is an 80° trigon shape with 0° clearance, M tolerance, and a cylindrical center hole with chipbreakers on both faces. It has a 3/8 in (9.525 mm) inscribed circle, 3/16 in (4.76 mm) thickness, and a 1/32 in (0.8 mm) nose radius, giving up to 6 cutting edges. The F3M chipbreaker is a finishing to light-medium geometry, and the IC6015 grade is a PVD-coated carbide for ISO M (stainless steel) turning. The box label lists a cutting speed of 140-300 m/min (460-990 sfm), a feed of 0.10-0.40 mm/rev (.0039-.0157 ipr), and a depth of cut of 0.10-1.50 mm (.003-.059 in).
Product Specifications
| Brand | Iscar |
| Manufacturer Part Number | WNMG 332-F3M IC6015 |
| Catalog/EDP Number | 5567829 |
| Metric Designation | WNMG 060408-F3M IC6015 |
| Grade | IC6015 |
| Chipbreaker | F3M |
| Insert Shape | W (80° Trigon) |
| Clearance Angle | N (0°) |
| Tolerance Class | M |
| Insert Type | G (Hole, Double-Sided Chipbreaker) |
| Inscribed Circle (IC) | 3/8 in (9.525 mm) |
| Thickness | 3/16 in (4.76 mm) |
| Nose Radius | 1/32 in (0.8 mm) |
| Material | Carbide |
| Coating | PVD Coated |
| Number of Cutting Edges | 6 |
| Operation | Turning |
| Workpiece Material | ISO M (Stainless Steel) |
| Cutting Speed (Vc) | 140-300 m/min (460-990 sfm) |
| Feed Rate (fz) | 0.10-0.40 mm/rev (.0039-.0157 ipr) |
| Depth of Cut (ap) | 0.10-1.50 mm (.003-.059 in) |
| Quantity per Pack | 10 |
| Country of Origin | Israel |
