ITT Goulds F1616SDLALX102 3196 STX 1x1.5-6 Cast Iron Liquid End
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

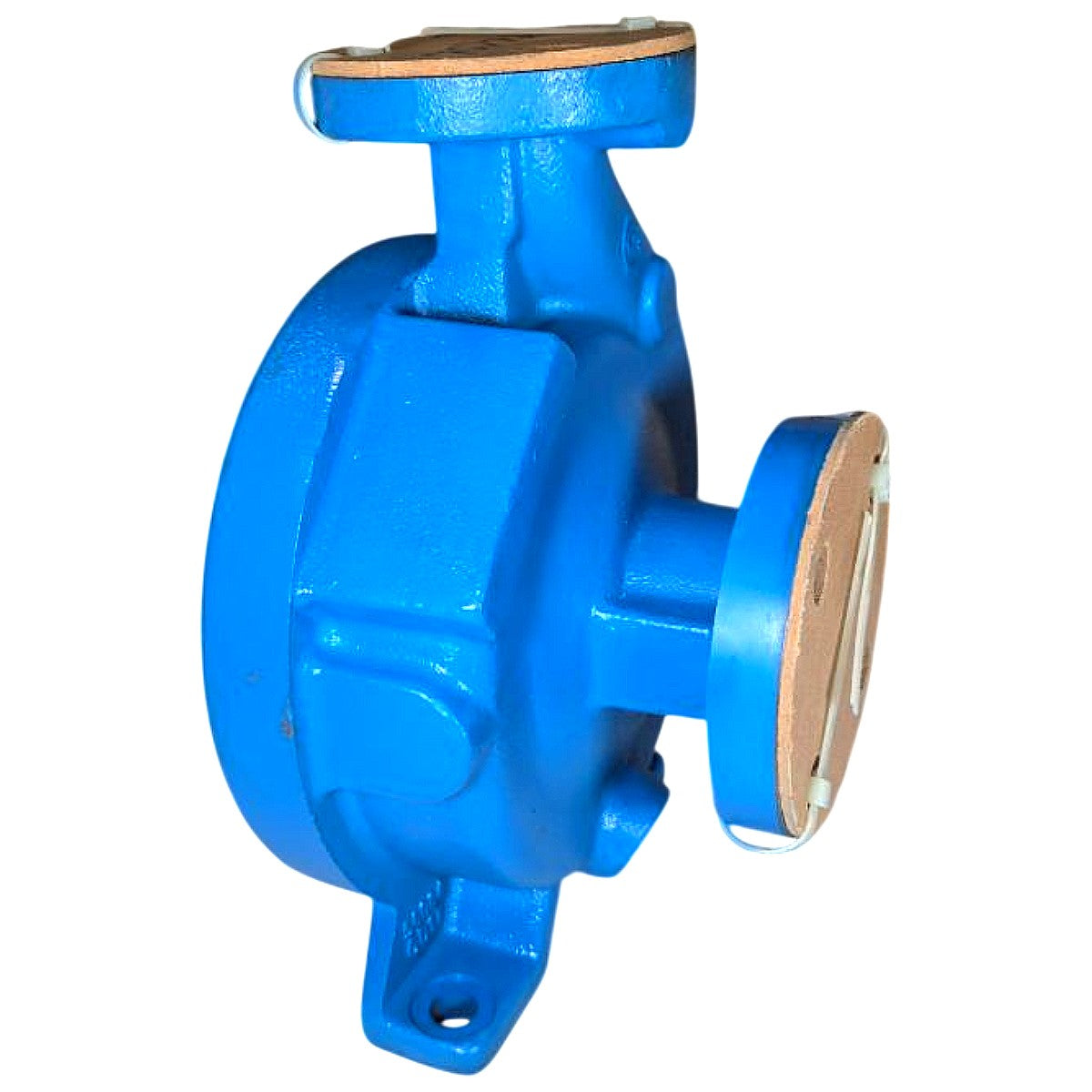

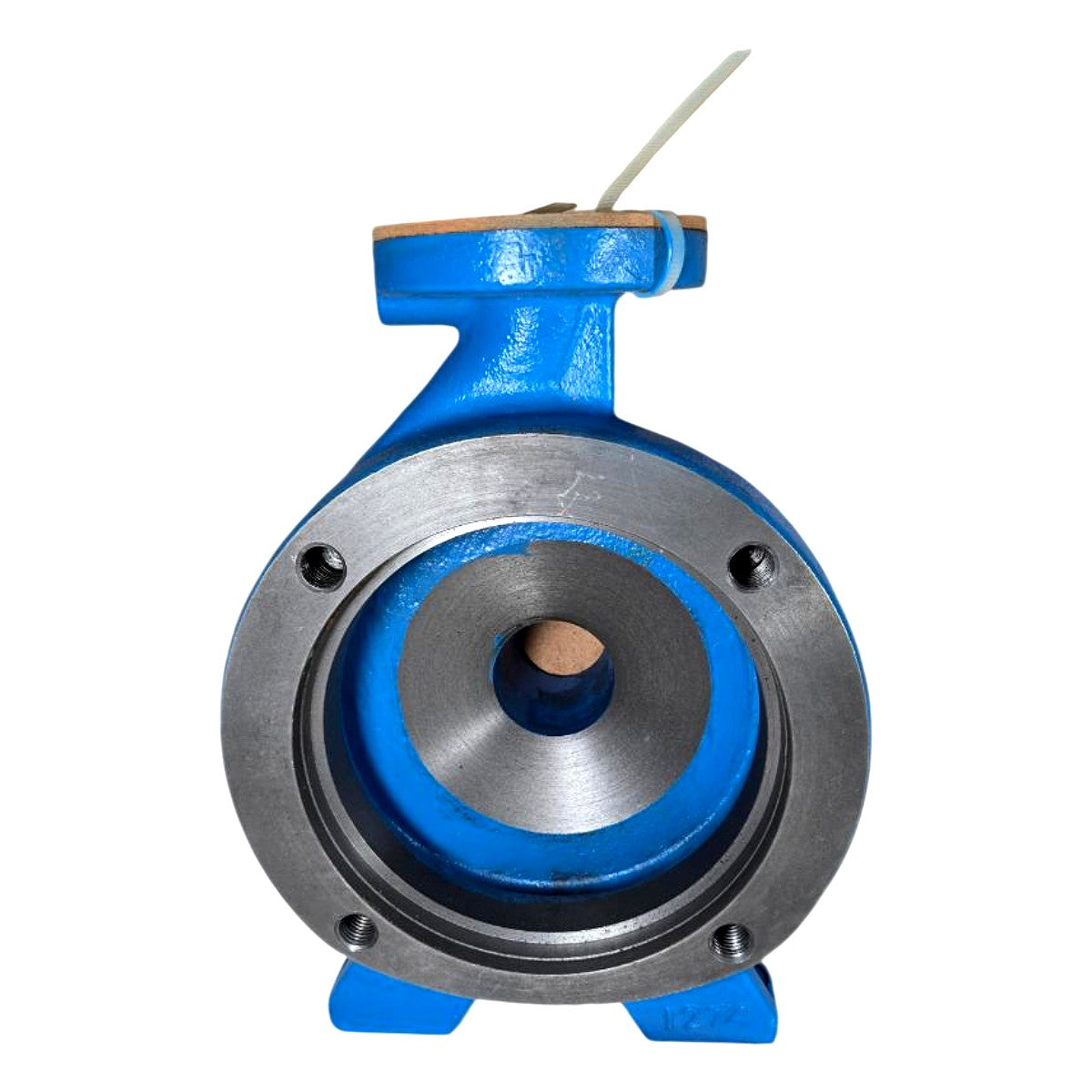

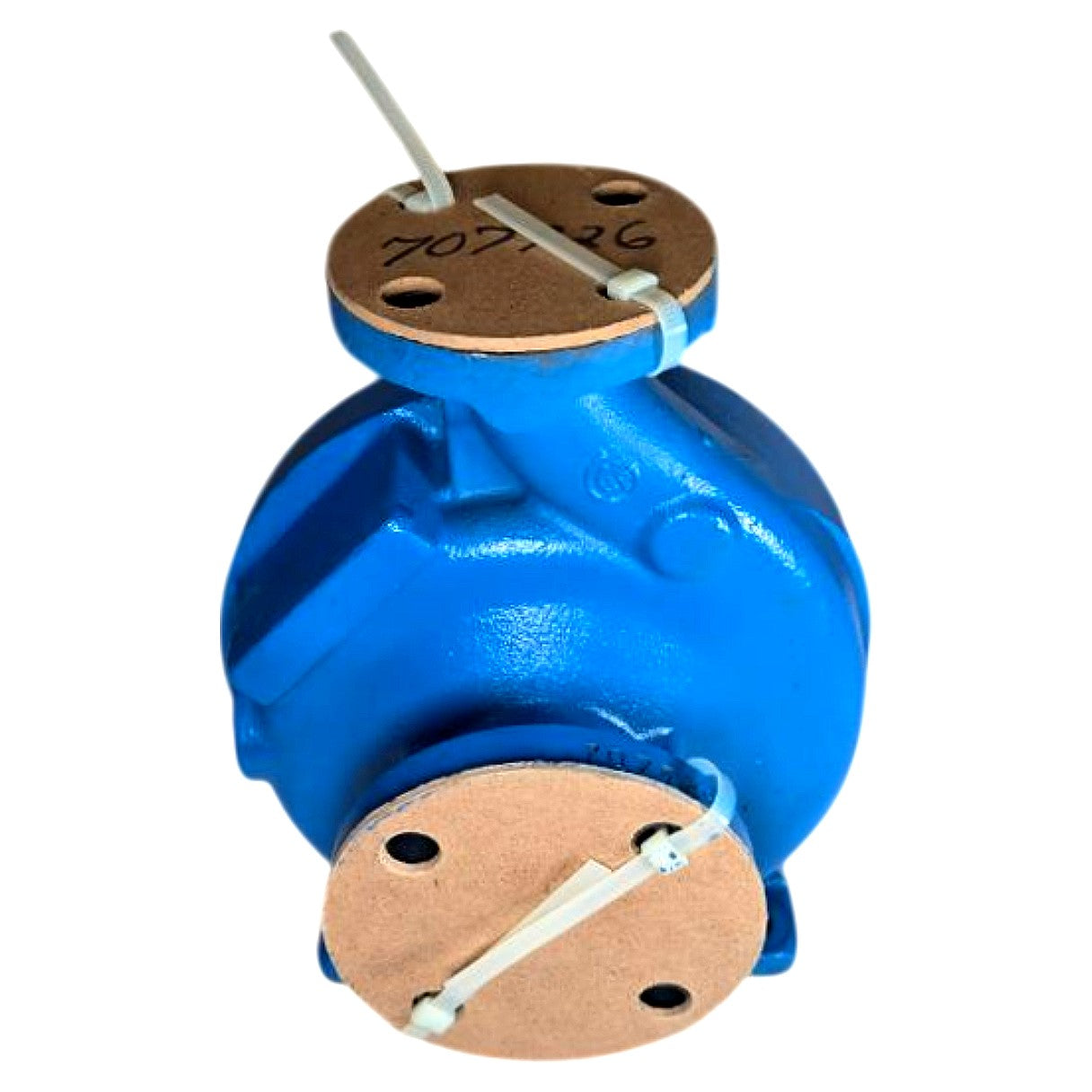

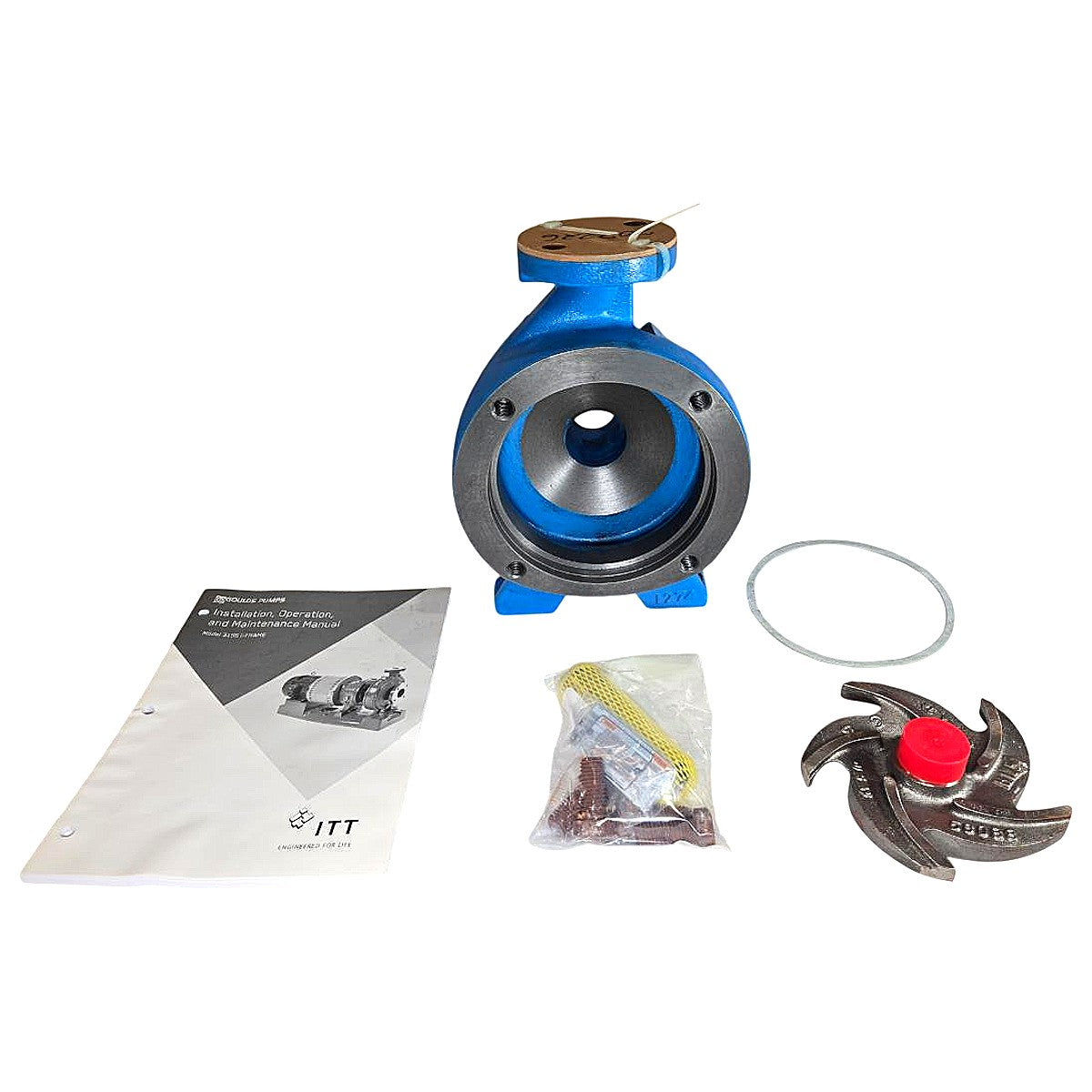

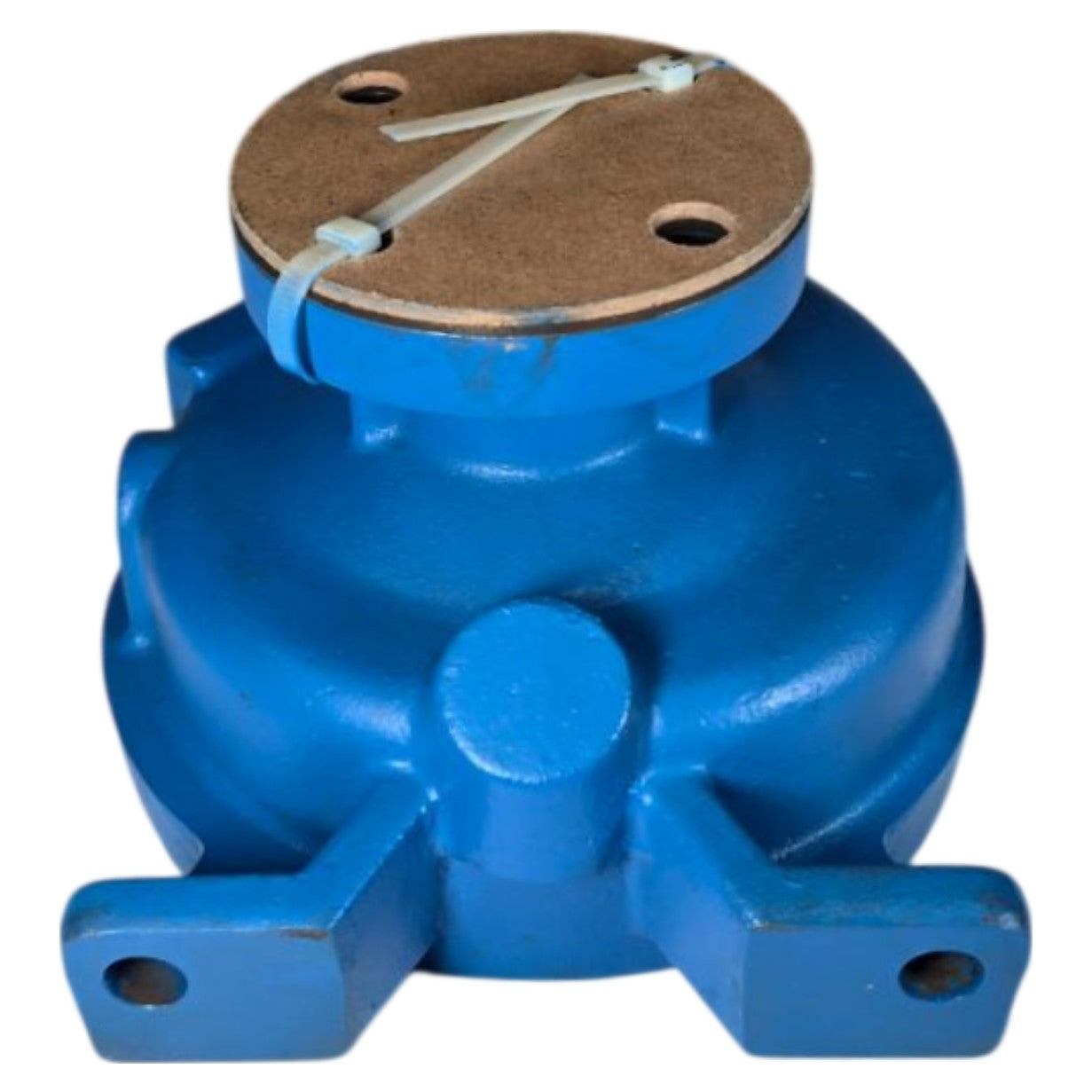

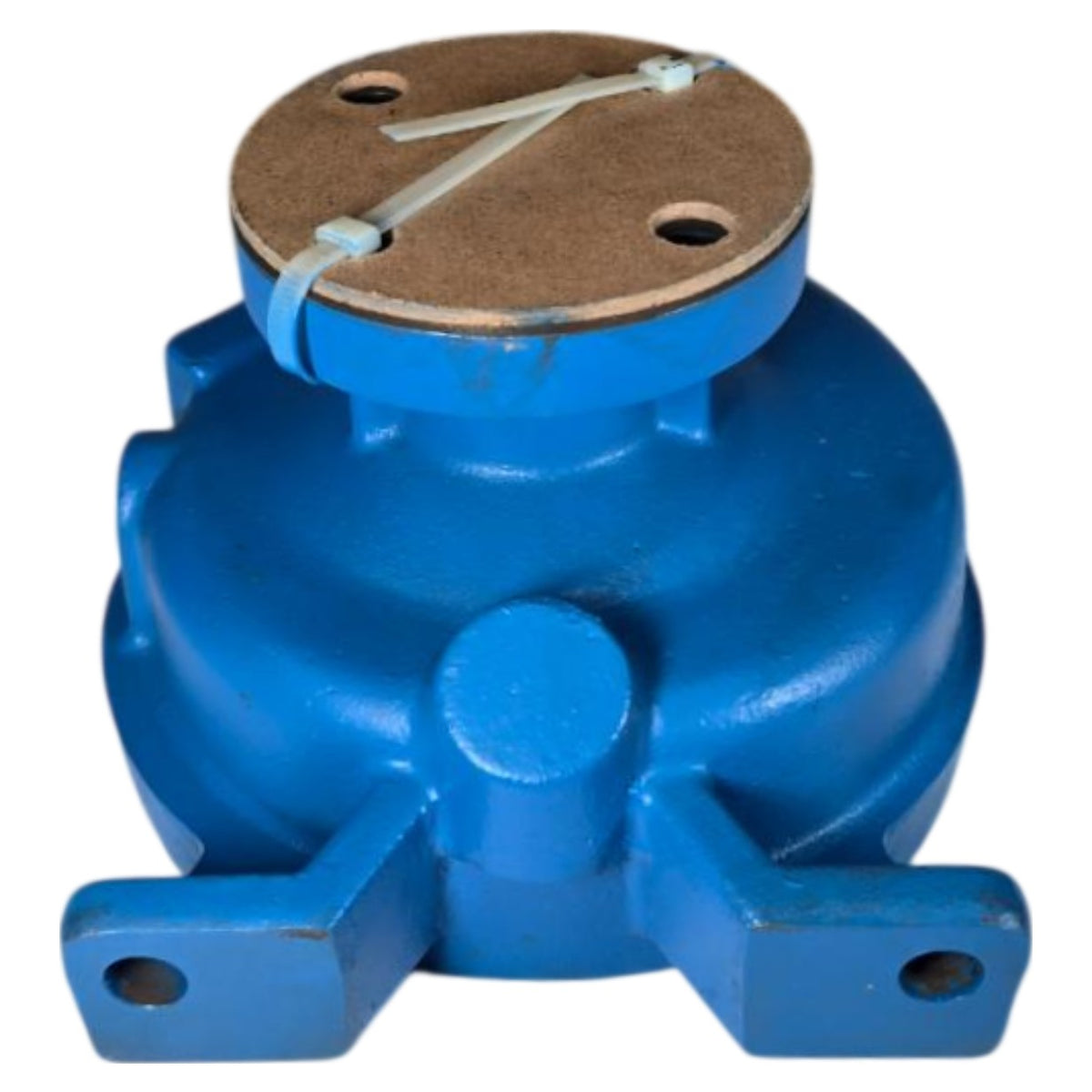

This is a new ITT Goulds Pumps Model 3196 STX group liquid end assembly, Goulds part number F1616SDLALX102, sized 1x1½-6 (1 in. discharge x 1.5 in. suction x 6 in. impeller diameter), constructed of ductile iron (Material Code 1012) per the label on the original shipping carton. The 3196 is an ANSI B73.1 horizontal, end-suction, centerline-discharge process pump platform widely used in chemical processing, industrial water service, and general transfer applications; the STX group designates the smallest frame/bearing-bracket size in the 3196 family. The liquid end kit ships complete with the casing (blue-painted ductile iron, precision-machined stuffing box/seal chamber bore and volute face), a closed cast iron impeller with red bore plug, a casing gasket/O-ring, and the ITT Goulds 3196 I-FRAME Installation, Operation and Maintenance manual, exactly as shown in the photos. Port flanges are protected with cardboard covers secured with cable ties, and all machined mating faces are in new, undamaged condition consistent with OEM original production (dated 03/30/15 on the warehouse label).
Product Specifications
| Brand | ITT Goulds Pumps |
| Part Number (MPN) | F1616SDLALX102 |
| Pump Model | 3196 |
| Frame/Group | STX (smallest 3196 frame group) |
| Size Description | 1x1-1/2-6 (1 in discharge x 1.5 in suction x 6 in imp) |
| Discharge Size | 1 in |
| Suction Size | 1.5 in |
| Impeller Diameter (max) | 6 in |
| Casing Material | Ductile Iron (Material Code 1012) |
| Impeller Material | Cast Iron |
| Pump Standard | ANSI B73.1 |
| Pump Type | Horizontal end-suction centrifugal, centerline discharge |
| Kit Contents | Casing, impeller, casing gasket/O-ring, IOM manual |
| Condition | New (OEM original, dated 03/30/15) |
| Part Name (label) | LIQEND/3196S/1X1.5.6/LC/DI |
