ITT Goulds F1616SDLALX102 3196 STX 1x1.5-6 LIQEND Cast Iron Liquid End

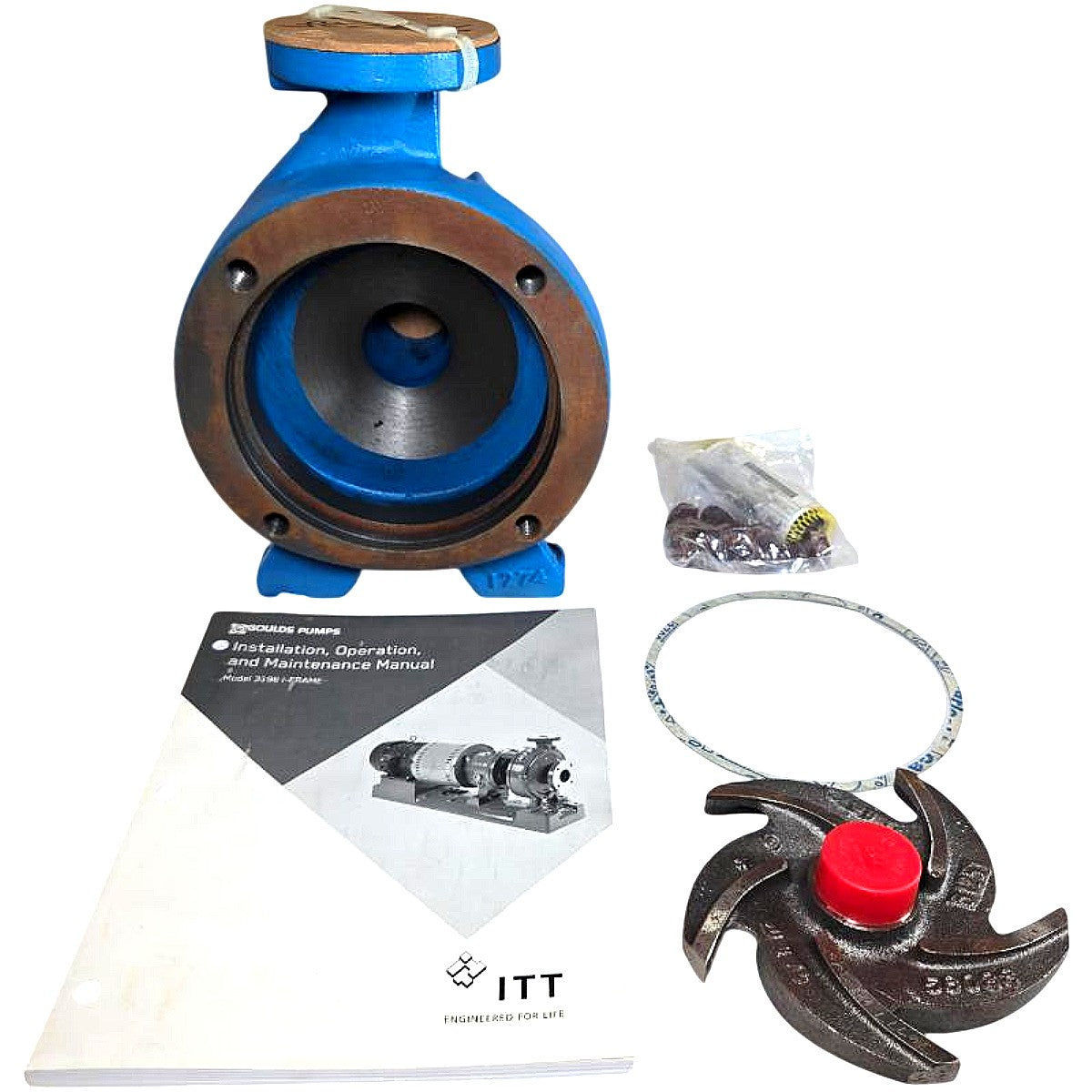

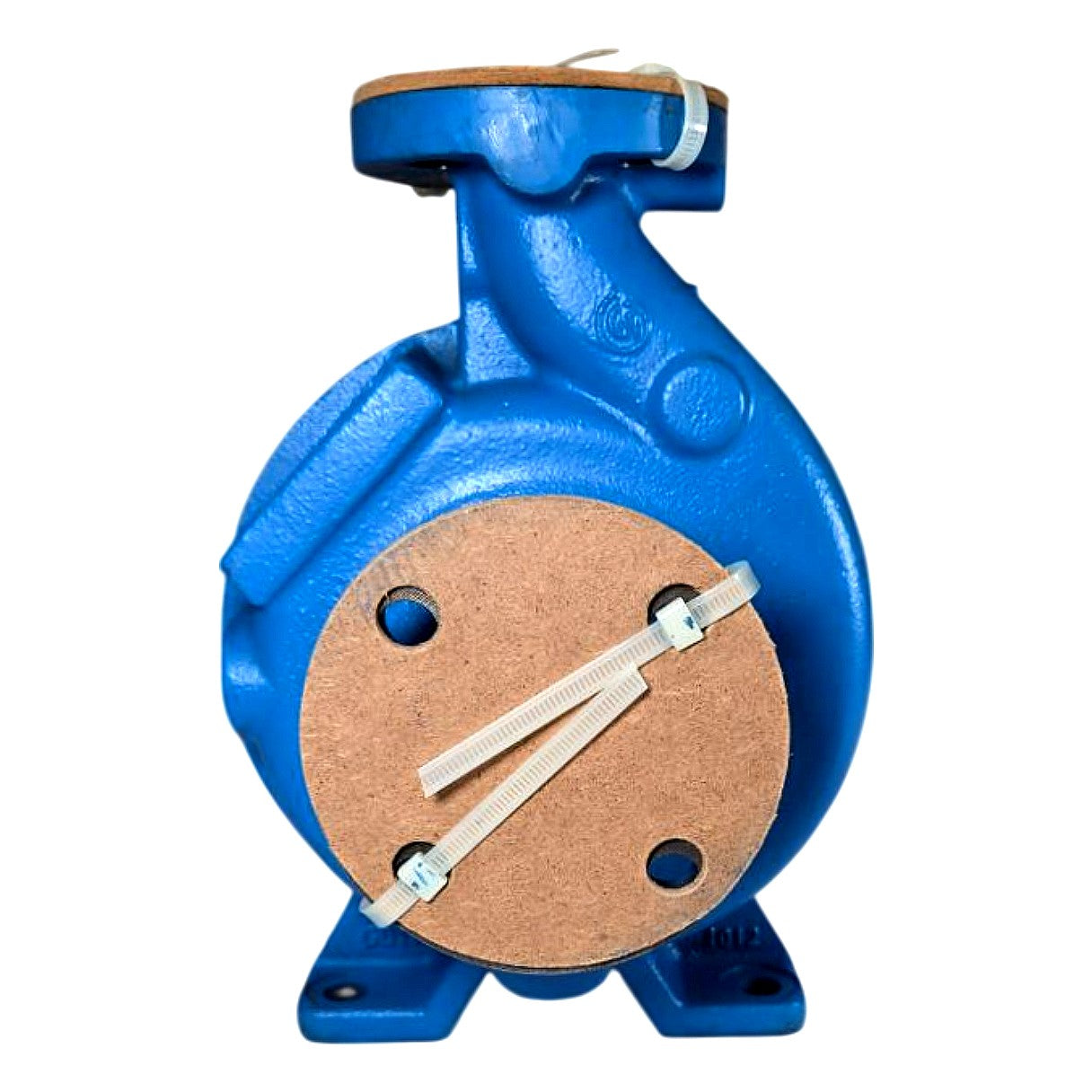

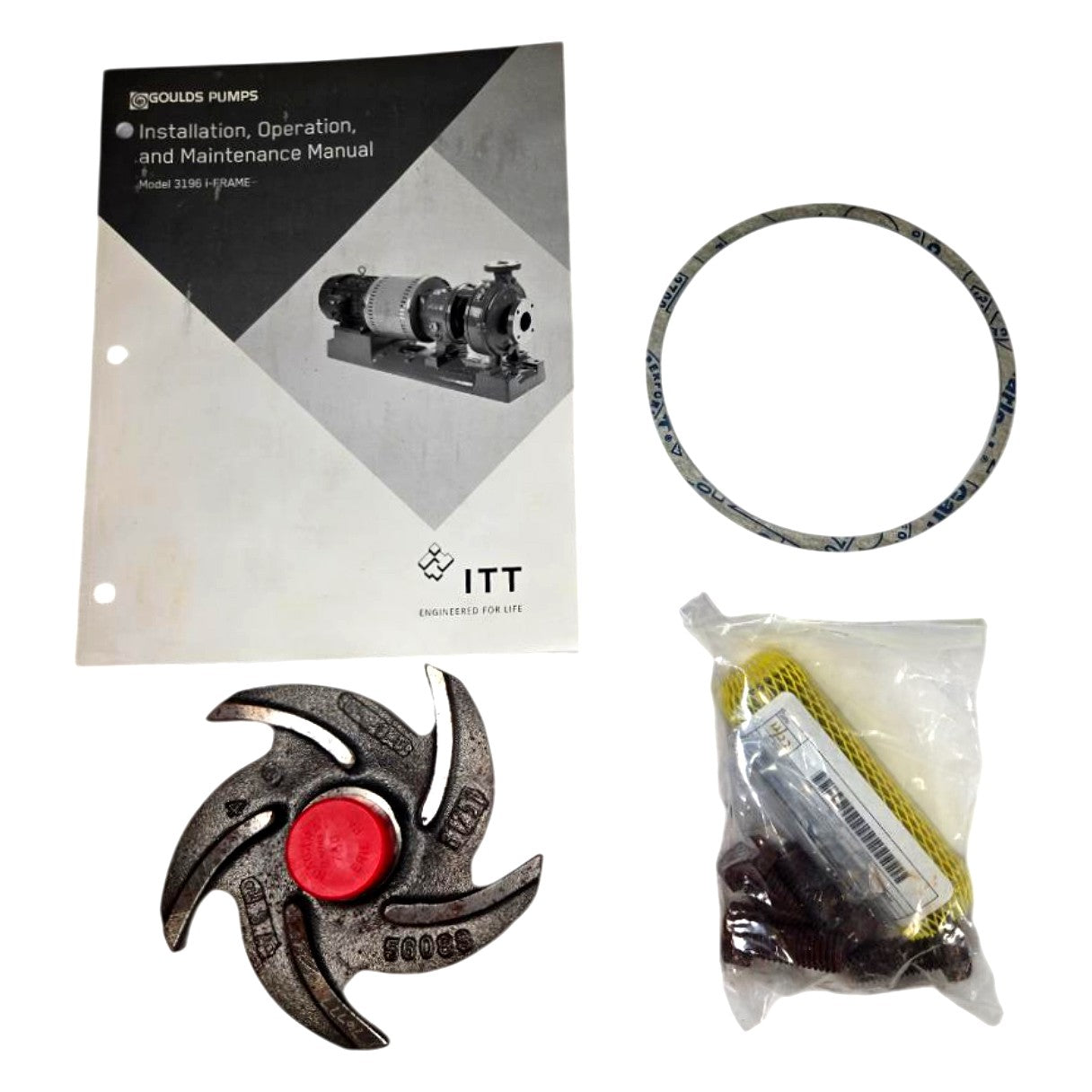

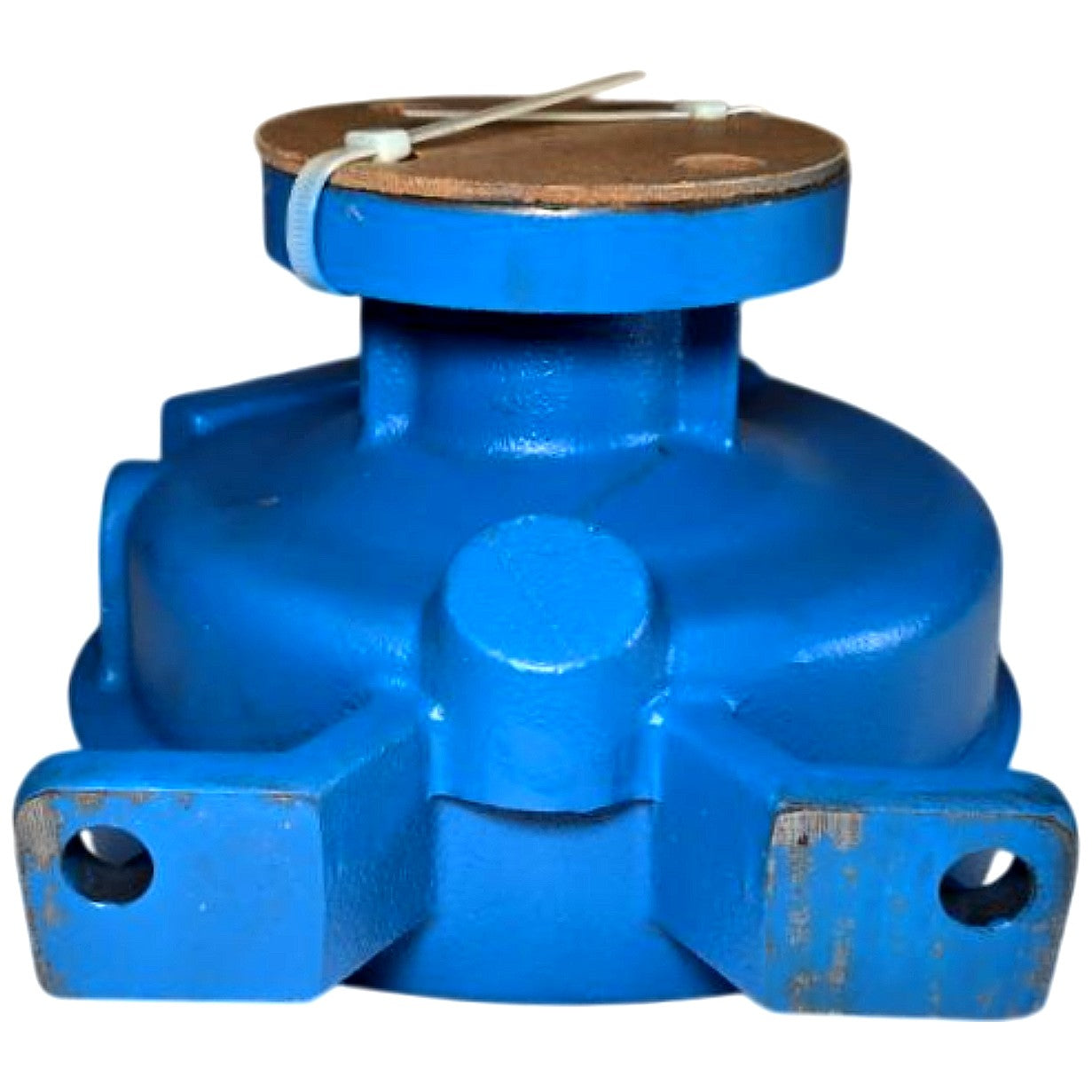

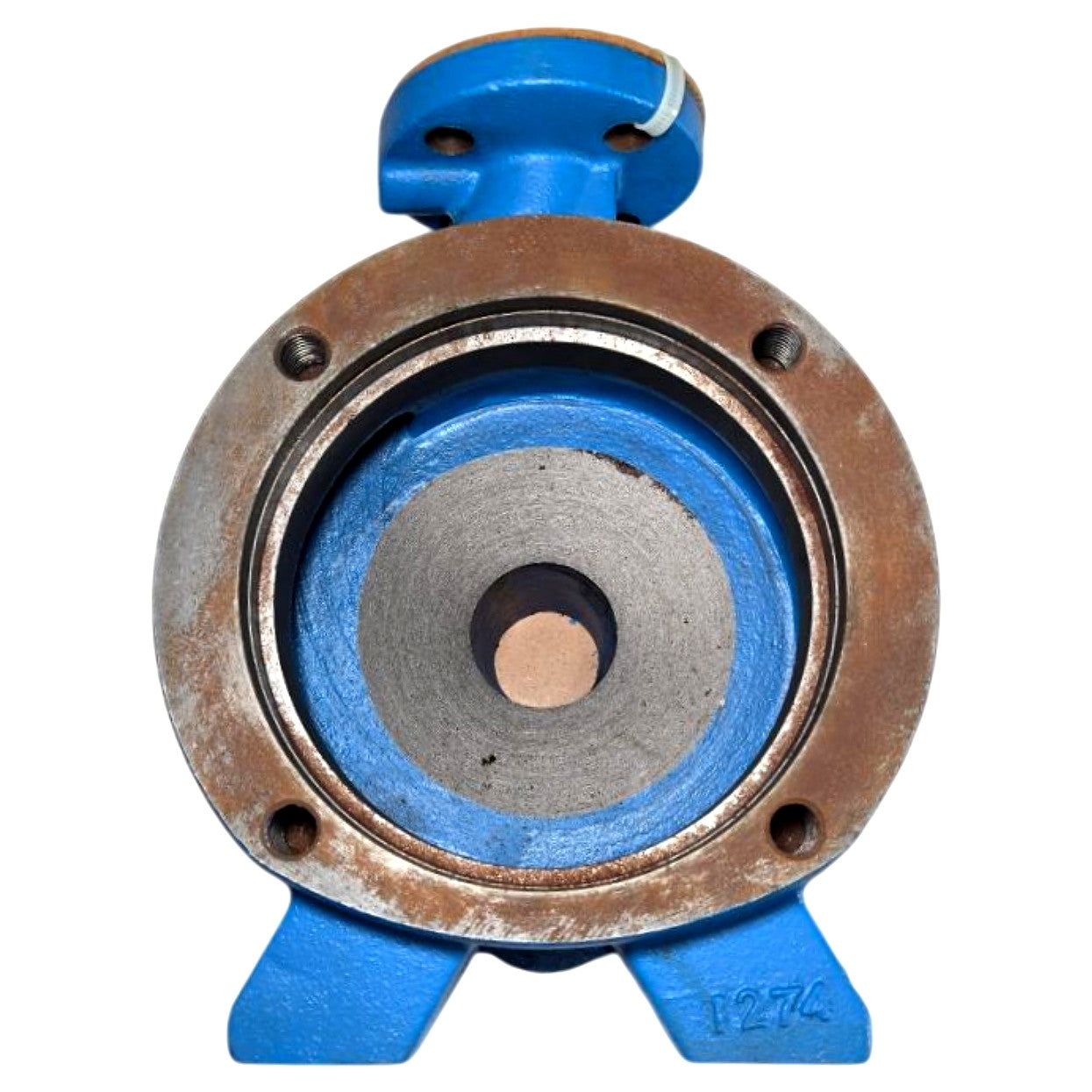

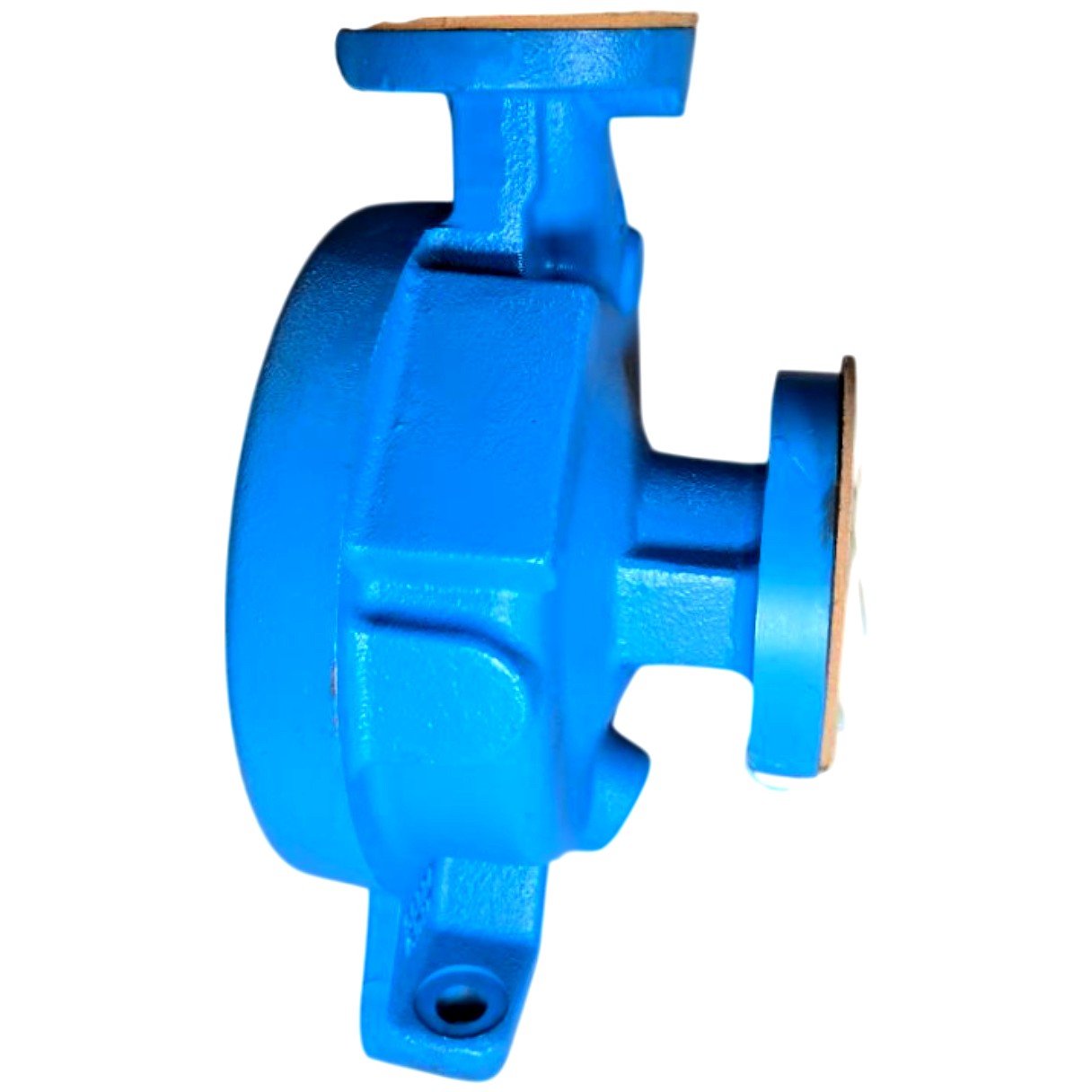

This is an ITT Goulds Pumps Model 3196 i-FRAME Group STX liquid end assembly, Goulds part number F1616SDLALX102, in new-other condition with original factory packaging and documentation. The kit includes the cast iron (Material Code 1012 = ductile iron / cast iron) volute/casing in Goulds blue, a 4-vane closed cast iron impeller (cast number 56085 visible), a volute casing gasket, and a hardware pack with studs and nuts — all consistent with a complete LIQEND (liquid end) rebuild set for a 3196S pump. The pump size designation is 1x1.5-6, indicating a 1 in. discharge / 1.5 in. suction / 6 in. maximum impeller diameter frame; the STX group denotes the small frame i-FRAME power end bracket configuration. The 3196 is an ANSI B73.1 horizontal end-suction centrifugal pump widely used in chemical process, water treatment, industrial, and general service applications; this liquid end is compatible with Goulds 3196 STX i-FRAME power ends and bearing frames. The impeller bore is capped with a red plug and the casing flanges are protected with cardboard covers and cable ties as shipped from Goulds; the IOM manual (Model 3196 i-FRAME) is included.

Product Specifications
