ITT Goulds F1650MSLTSX102 3196 i-FRAME 1.5x3-10 DI/316SS Liquid End Kit
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

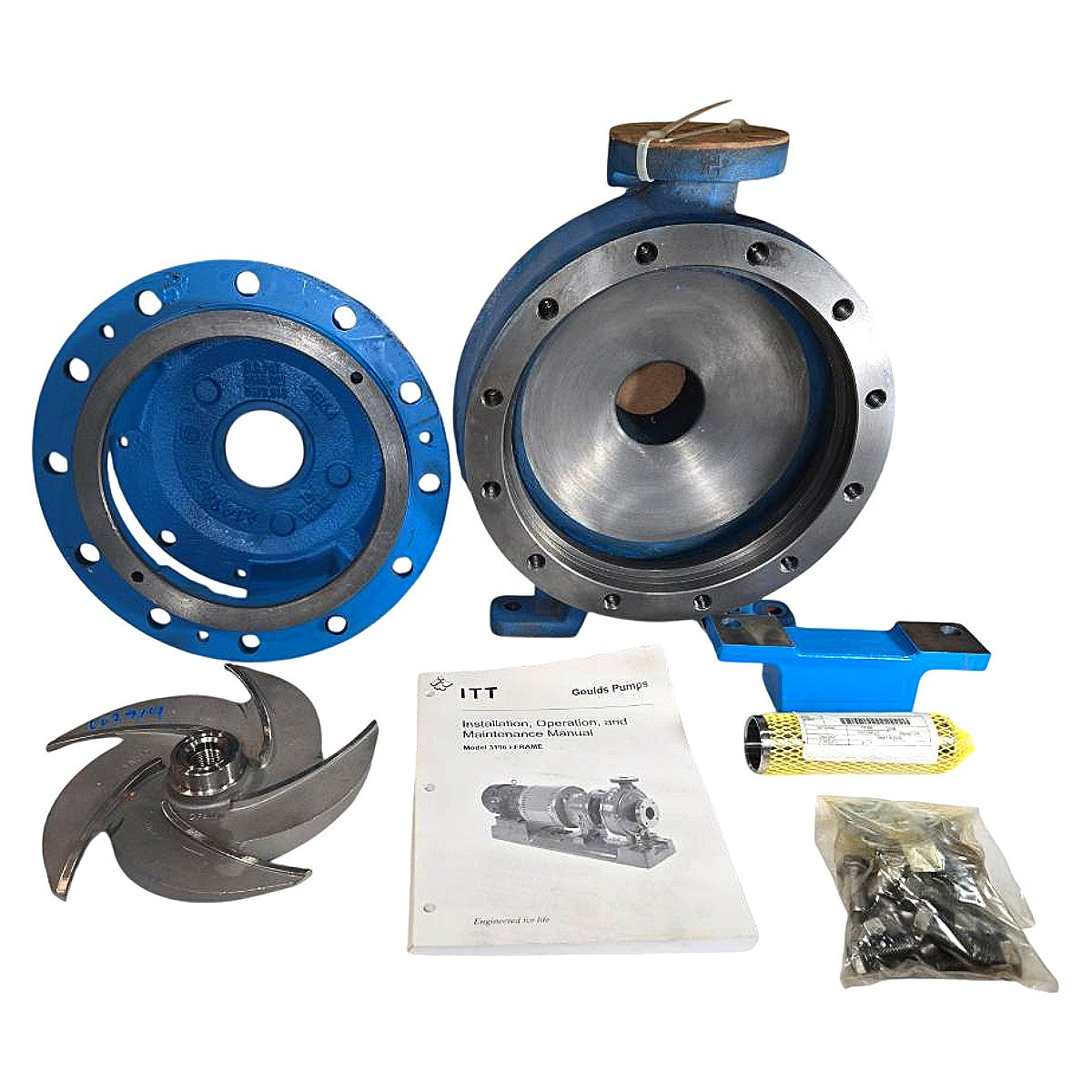

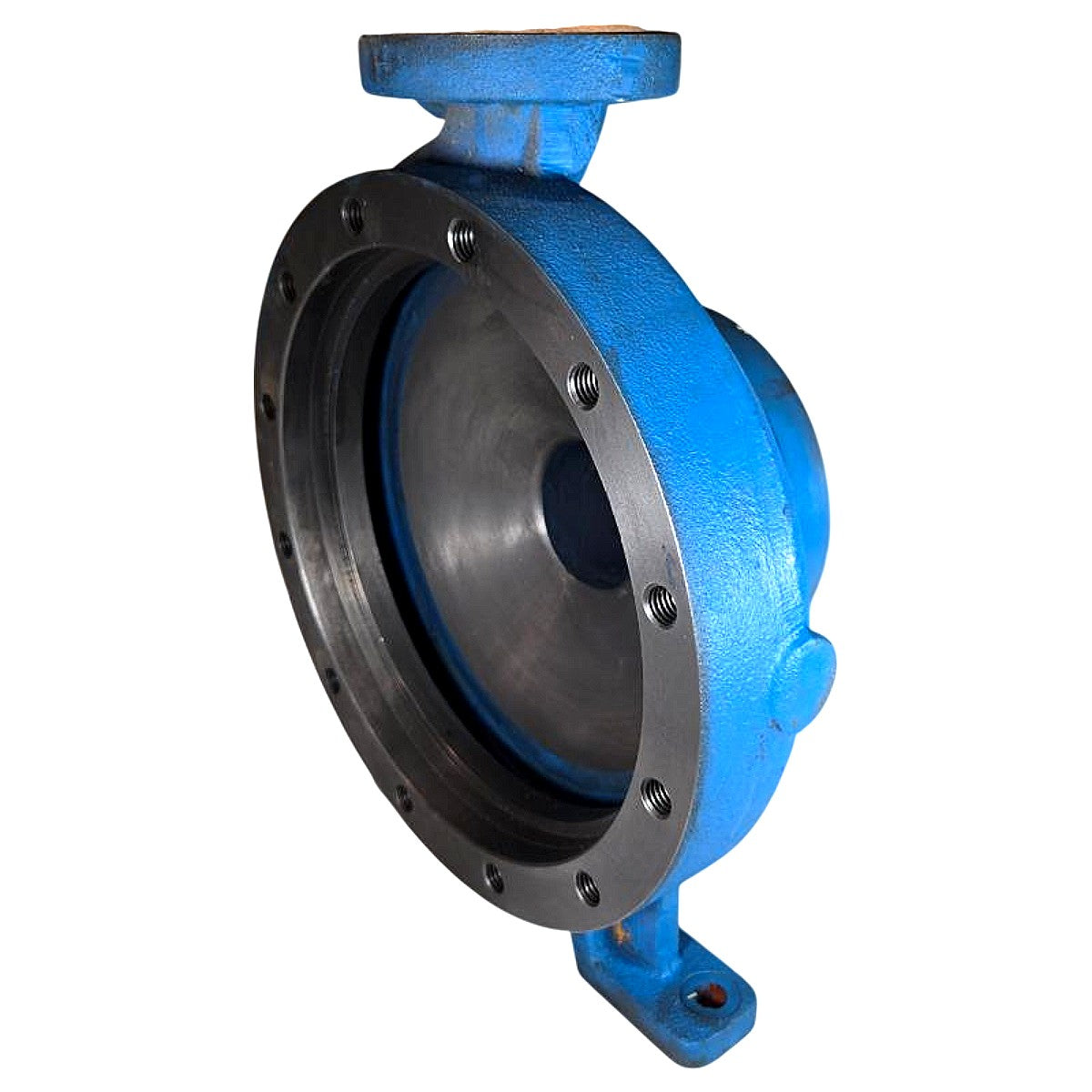

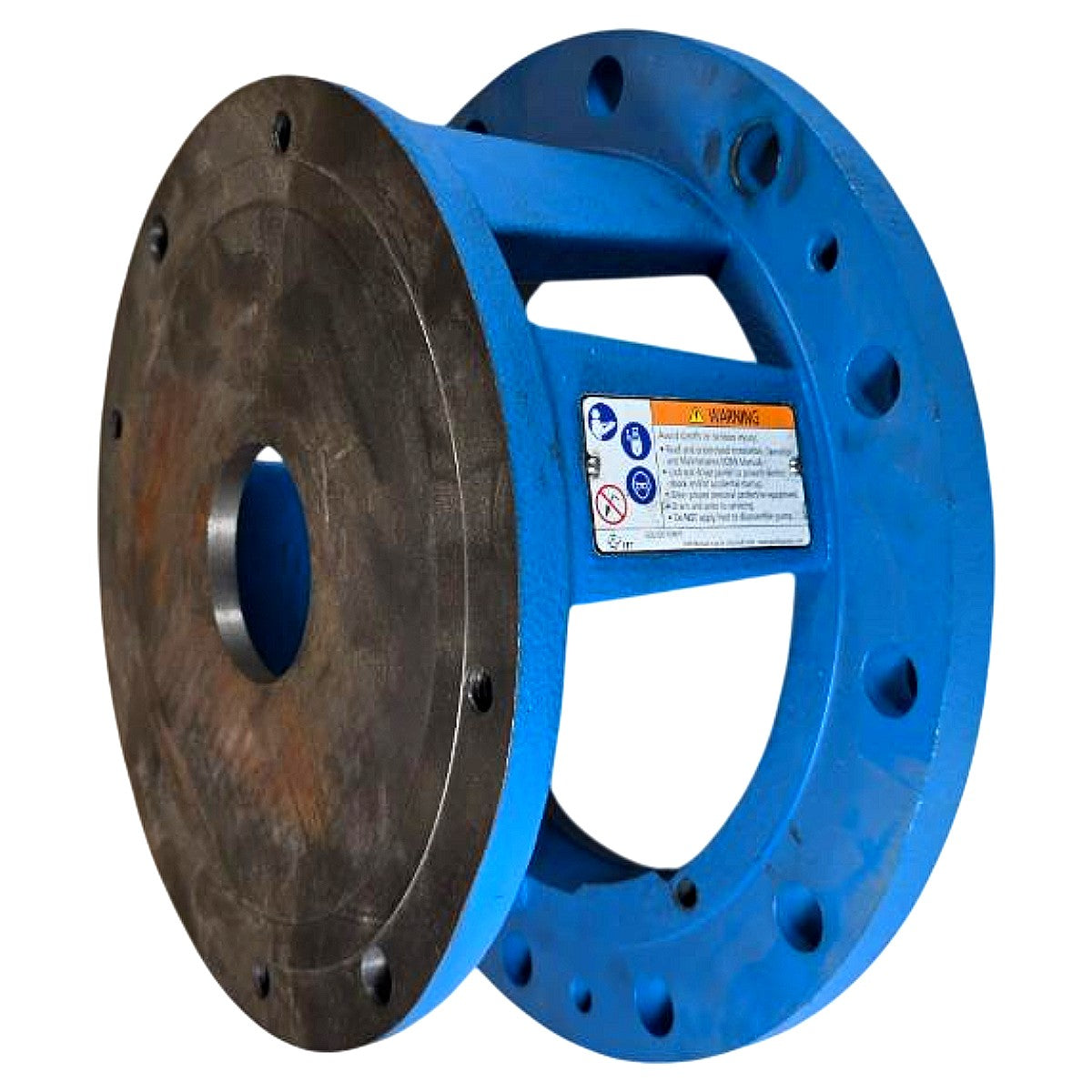

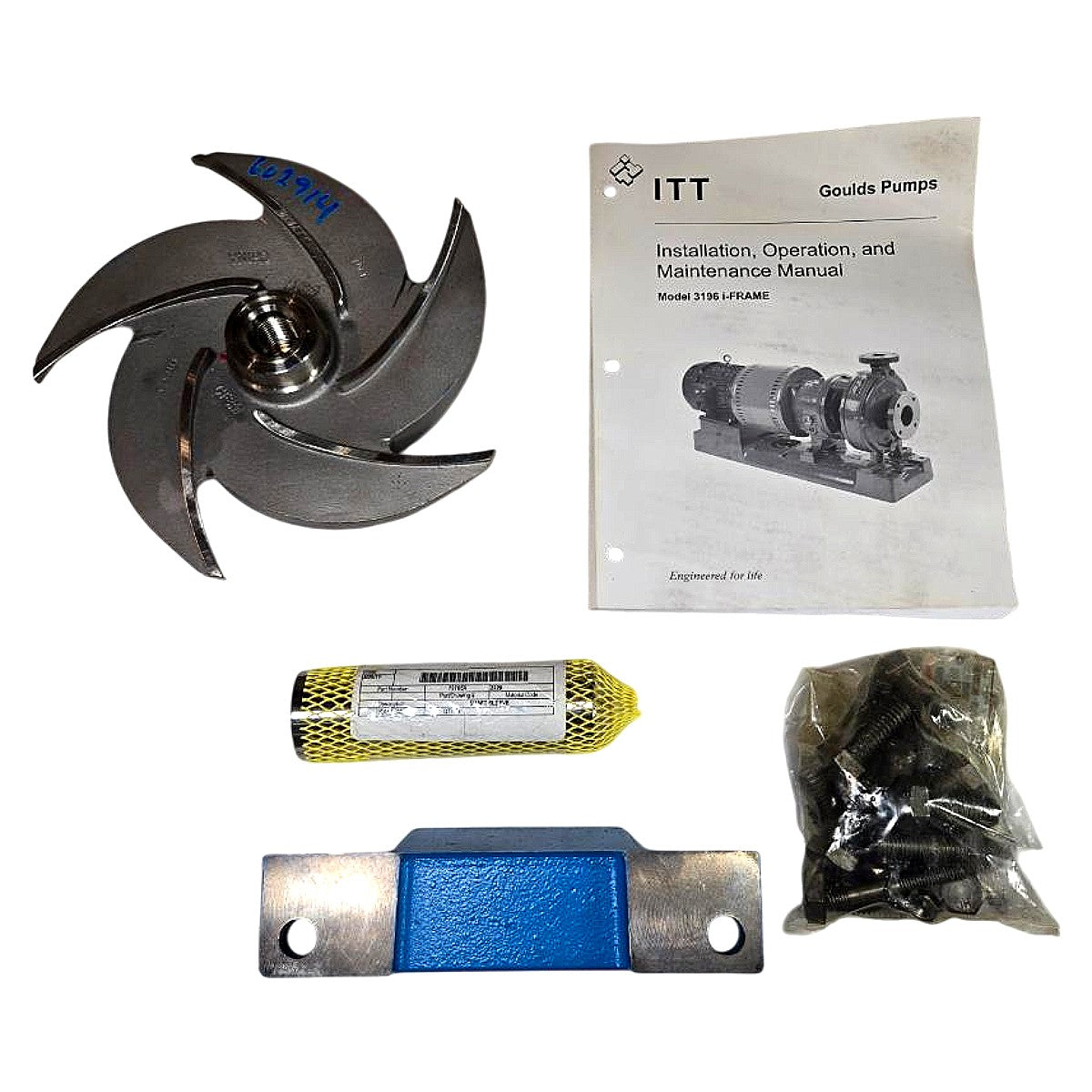

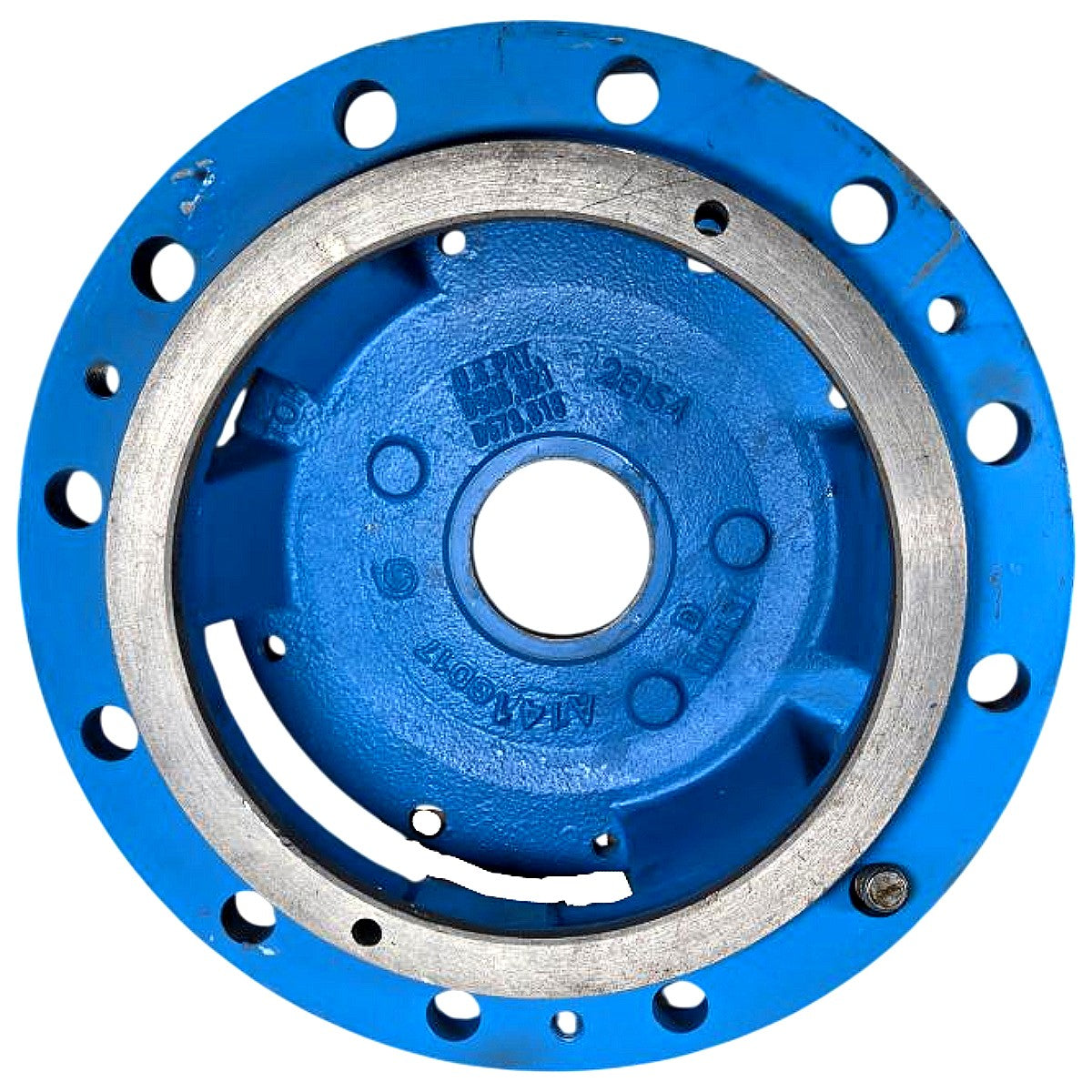

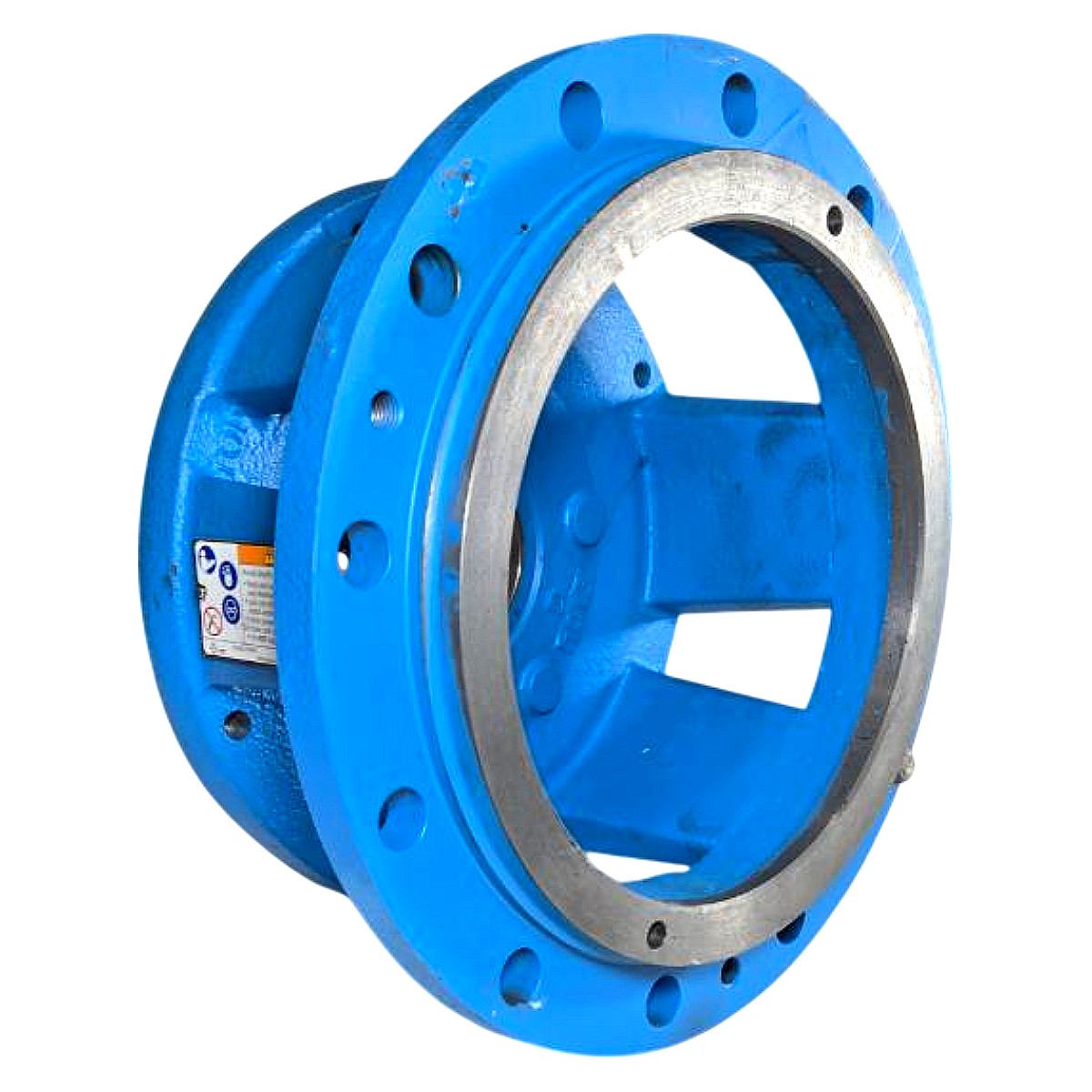

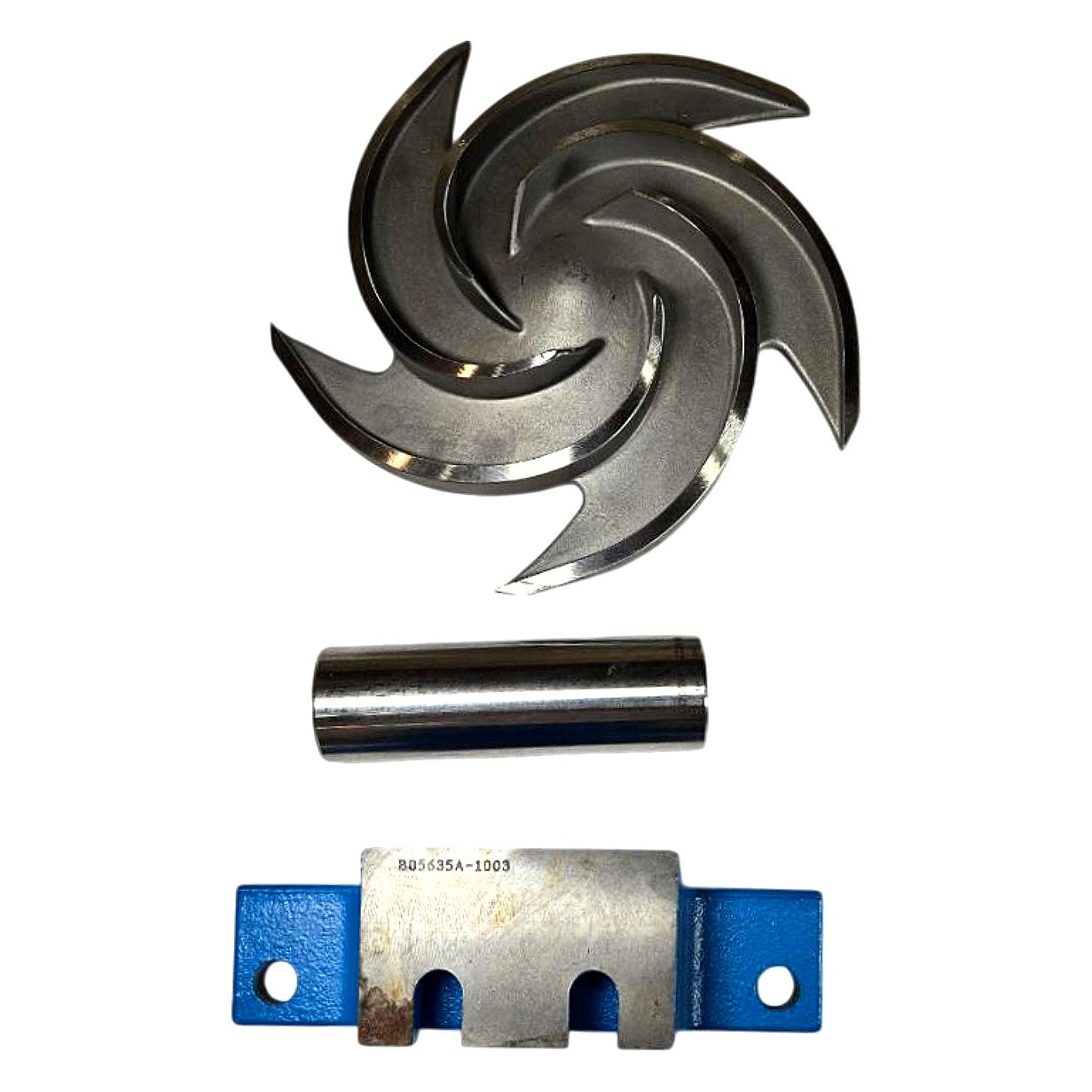

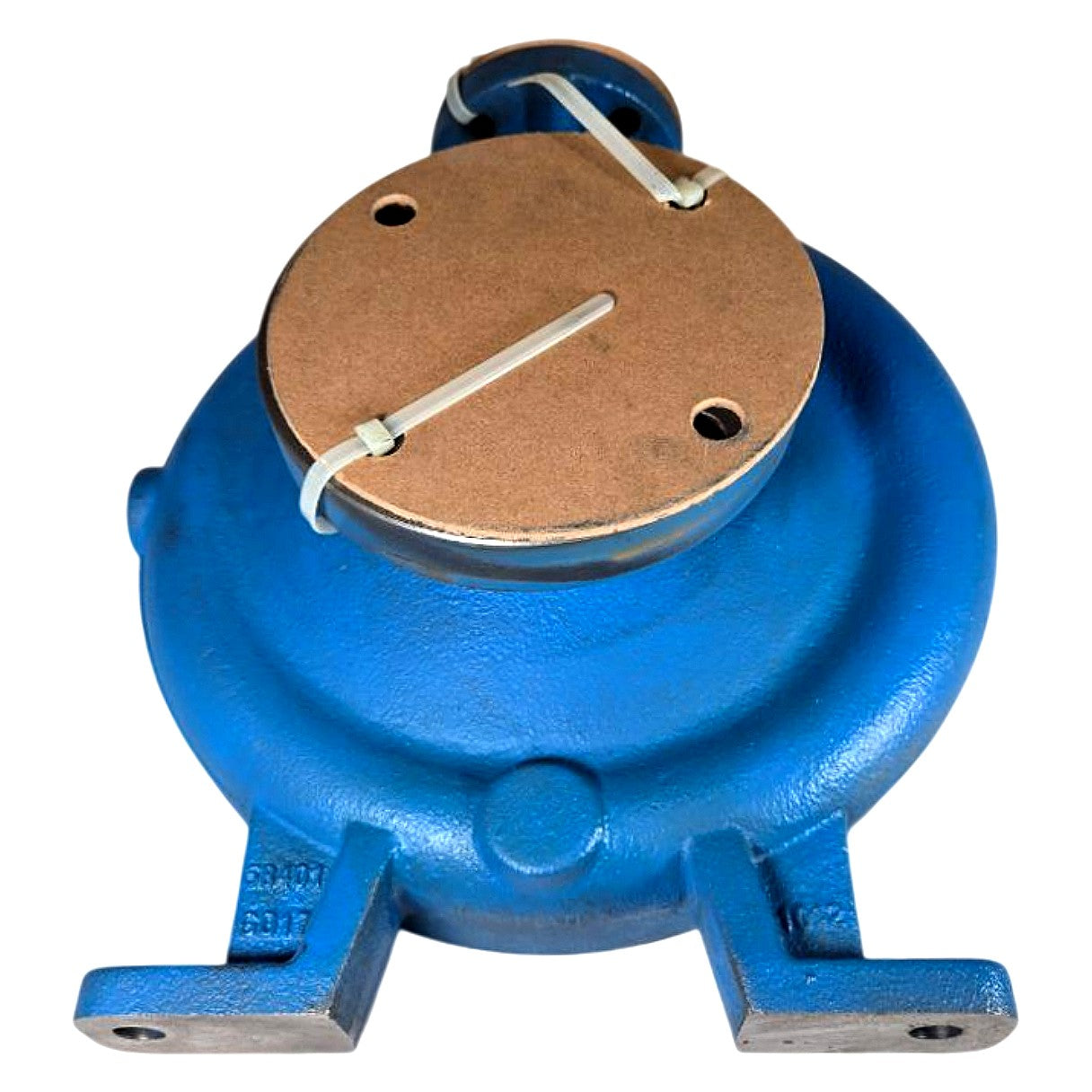

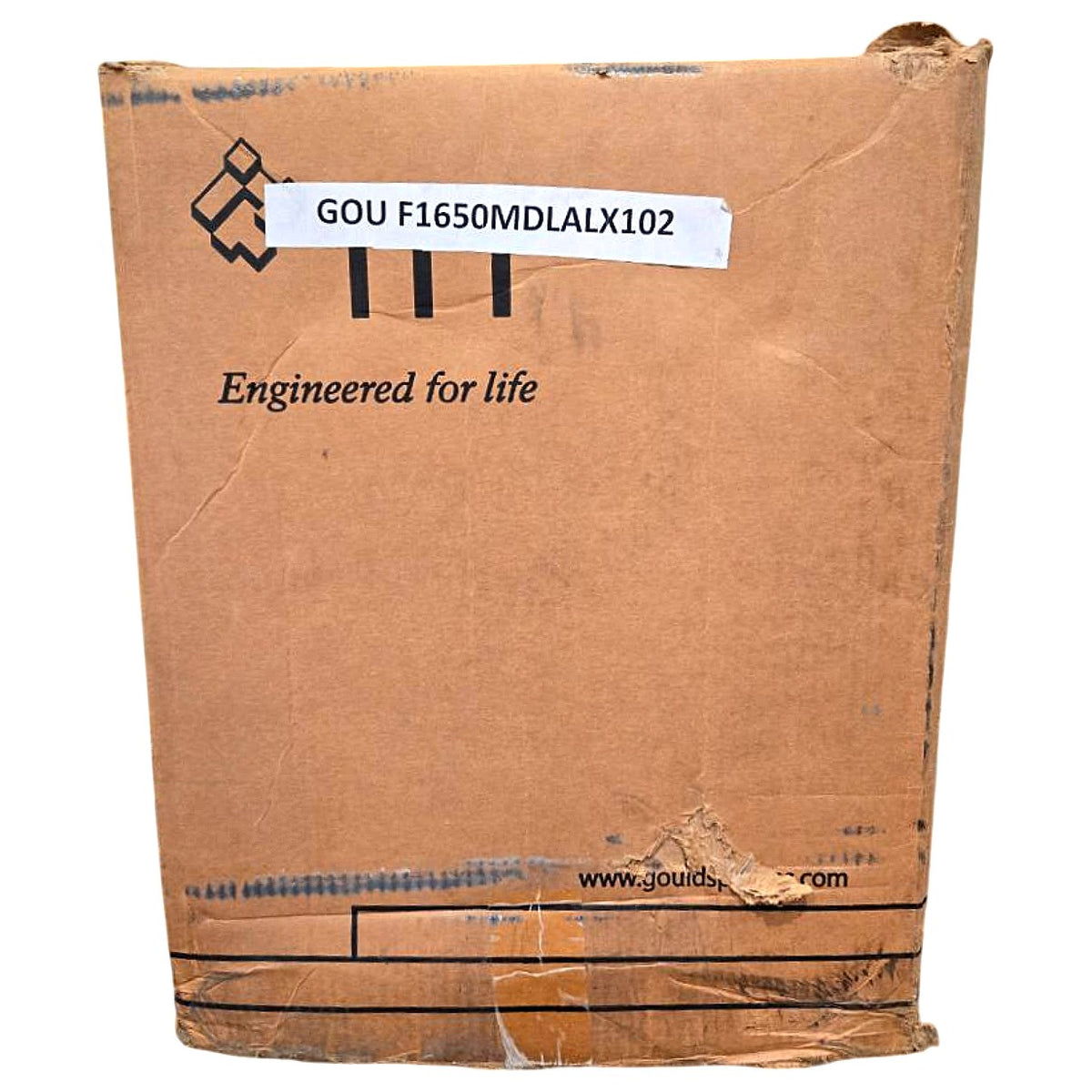

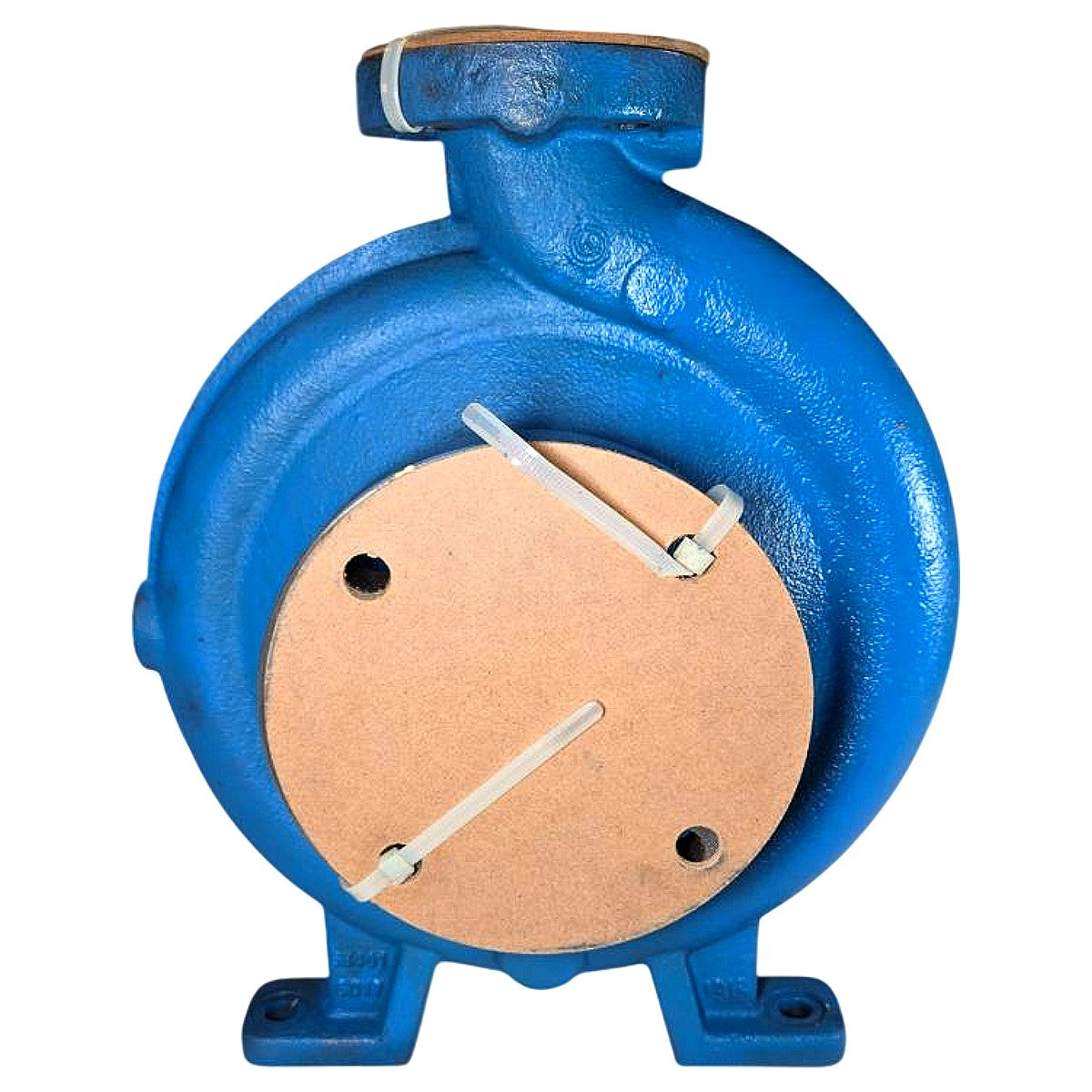

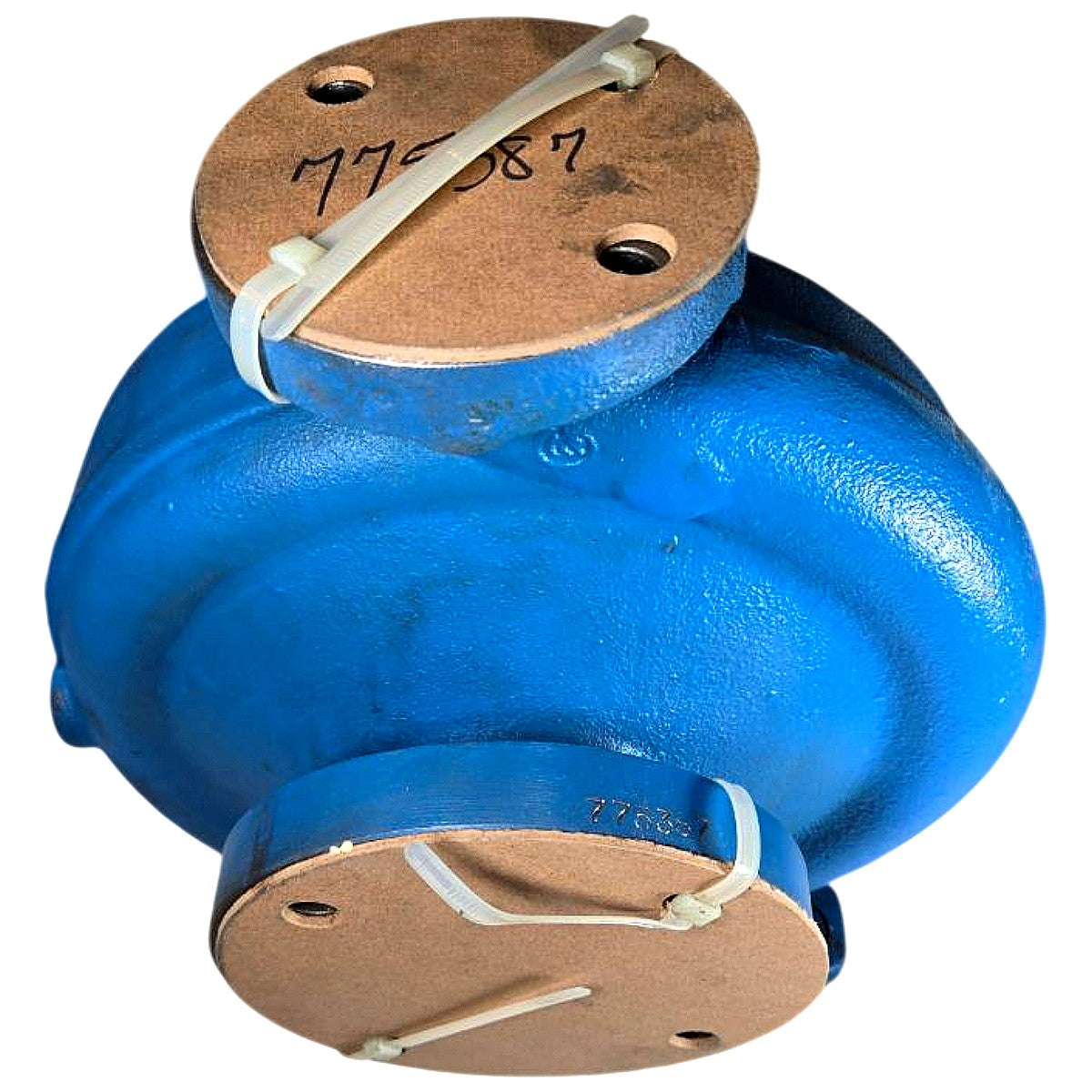

This is a new ITT Goulds Pumps Model 3196 i-FRAME liquid end kit, part number F1650MSLTSX102 (also cross-referenced as F1650MDLALX102, Item #030, Mat Code DI316 9104), configured for a 1.5×3-10 pump size with a ductile iron (DI) casing and 316 stainless steel (316SS) impeller wetted construction. The kit includes the volute/casing, stuffing box cover/frame adapter, 316SS enclosed impeller, shaft sleeve (316SS), bearing frame foot/support bracket, impeller bolt hardware bag, and an ITT Goulds 3196 i-FRAME Installation, Operation & Maintenance Manual. The Goulds 3196 i-FRAME is an ANSI B73.1-compliant, back pull-out centrifugal pump widely deployed in chemical processing, petrochemical, water treatment, and general industrial fluid-handling applications; the DI/316SS material combination (Mat Code DI316) offers corrosion resistance suitable for mildly corrosive aqueous services. The casing inlet bore is protected with cardboard shipping blanks and zip-ties, confirming the kit is unused new-old-stock; all machined mating faces are visibly clean and free of wear. The box label confirms OEM Goulds part number GOU F1650MDLALX102 and the "Engineered for life" ITT Goulds branding.
Product Specifications
| Brand | ITT Goulds Pumps |
| Part Number | F1650MSLTSX102 |
| Cross-Reference Part # | F1650MDLALX102 |
| Item # | 030 |
| Part Name | LiqEnd 3196M/1.5X3.10/TB/DI316 |
| Pump Model | Goulds 3196 i-FRAME |
| Pump Size (Discharge x Suction x Impeller) | 1.5 x 3 x 10 in |
| Material Code | DI316 (Ductile Iron casing, 316SS impeller) |
| Casing Material | Ductile Iron |
| Impeller Material | 316 Stainless Steel |
| Impeller Type | Enclosed, 6-vane |
| Seal/Packing Type | Mechanical seal / packing (TB = packing box) |
| ANSI Standard | ANSI B73.1 |
| Kit Contents | Casing, stuffing box cover, 316SS impeller, shaft sleeve, frame foot, hardware, IOM manual |
| Condition | New (unused, OEM) |
| Pump Type | Horizontal end-suction centrifugal, back pull-out |
