ITT Goulds F1656SDLALX102 3196 STX 1.5x3-6 Ductile Iron Liquid End Kit
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

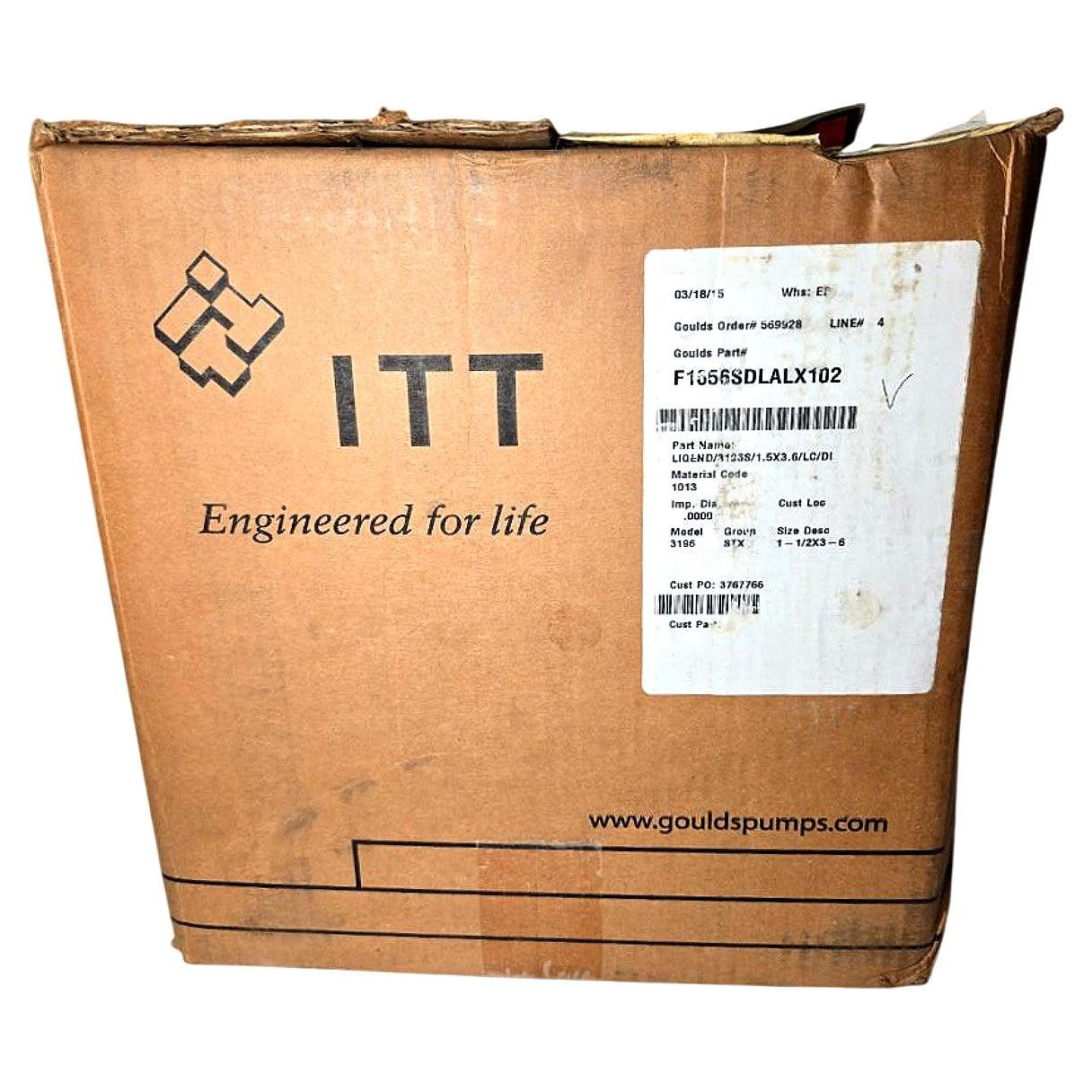

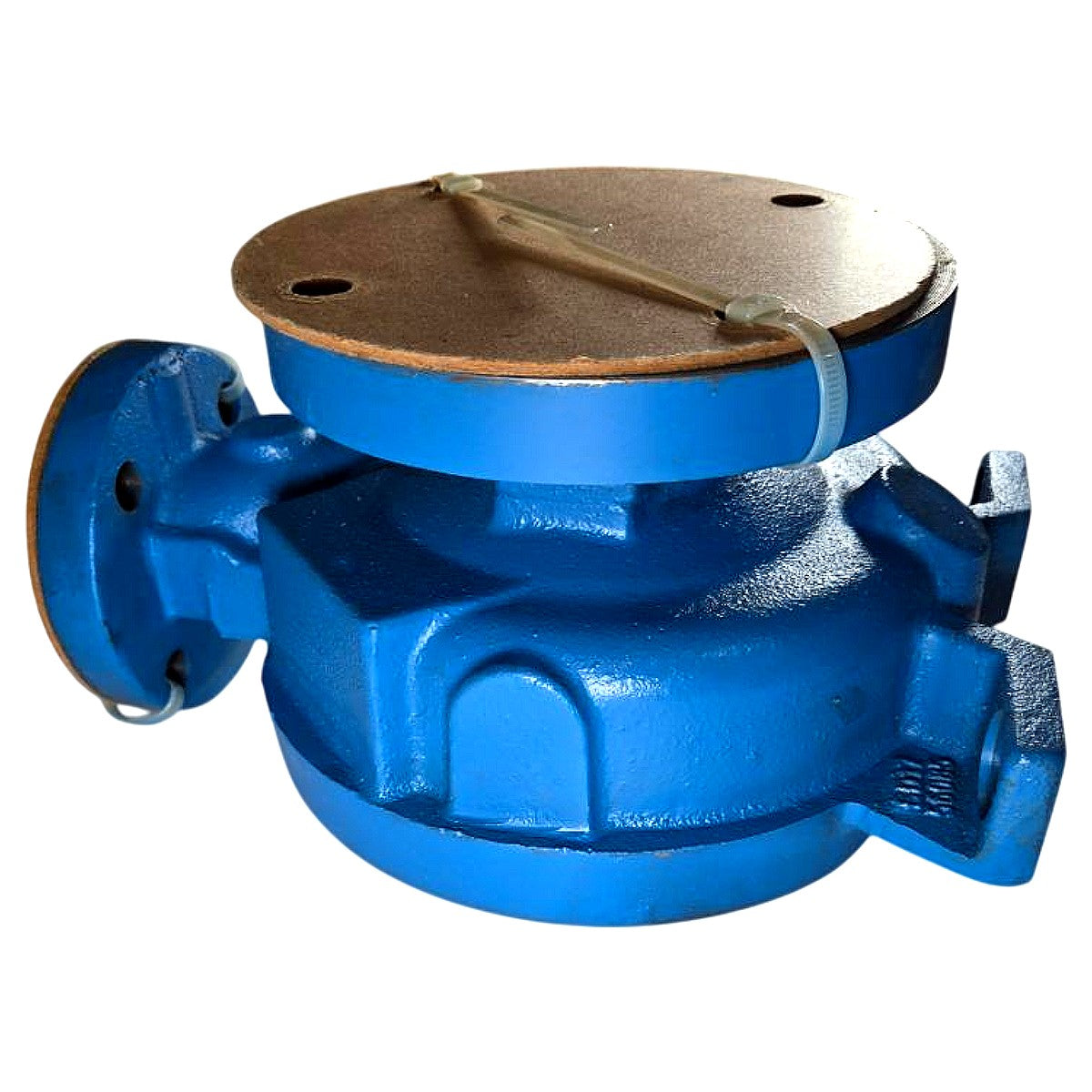

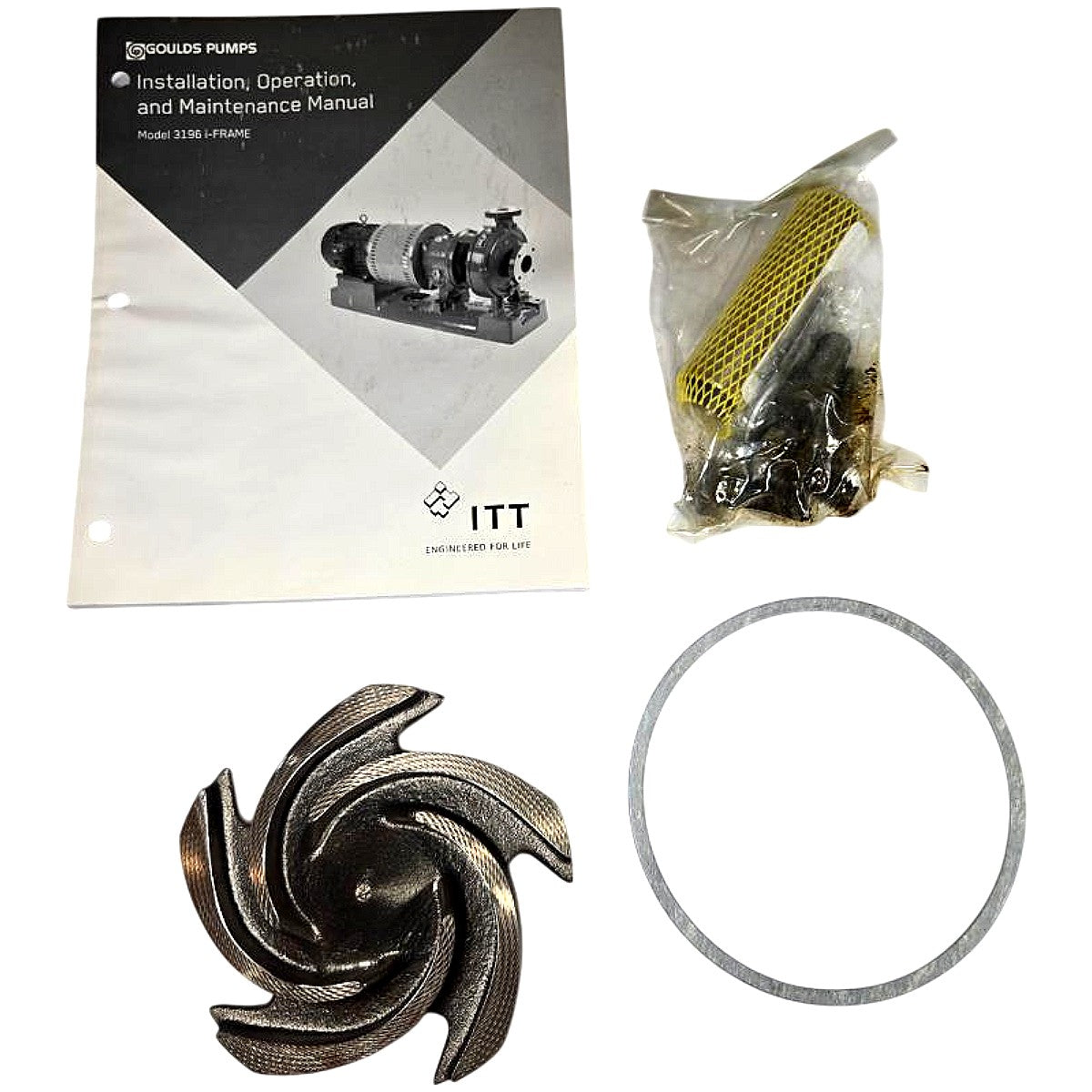

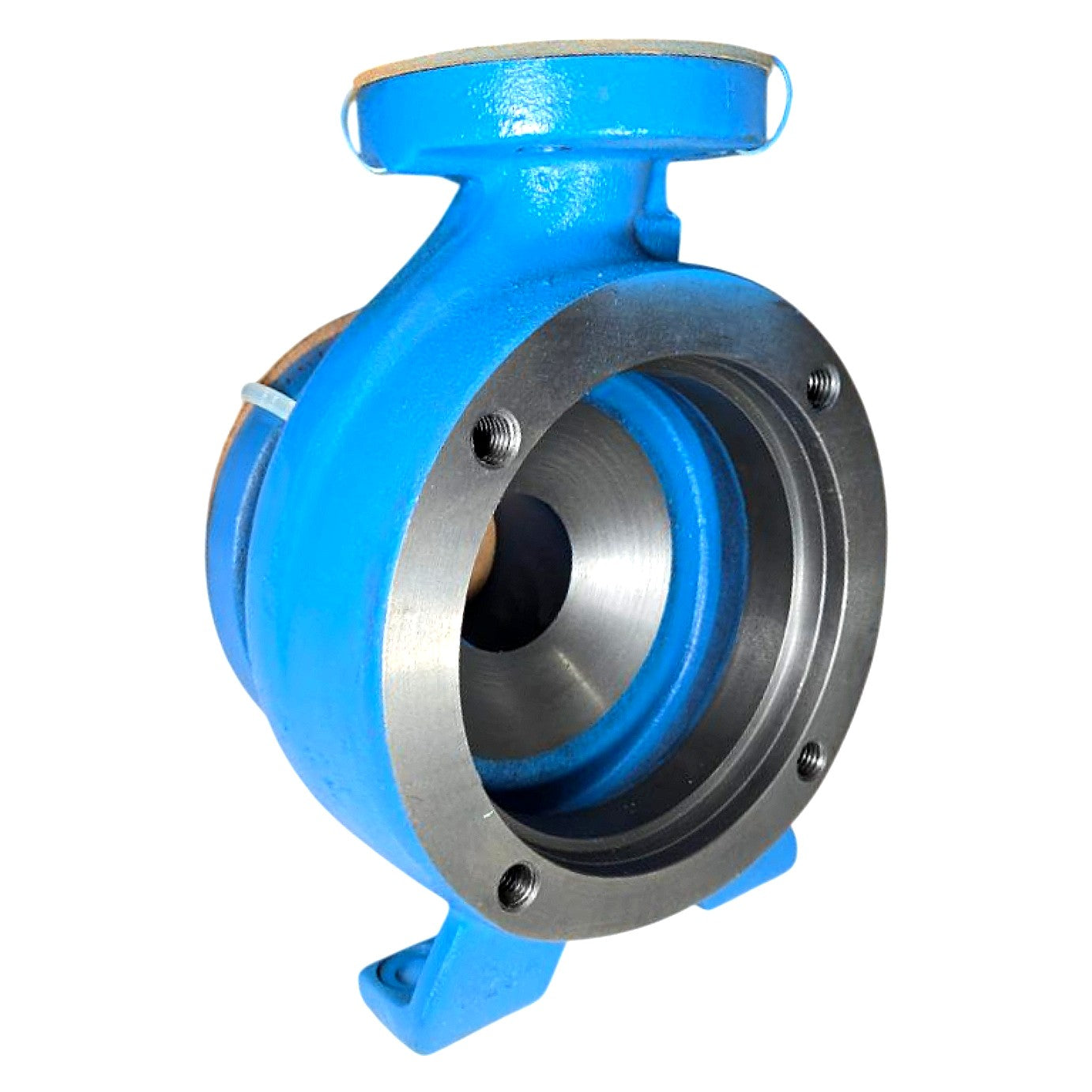

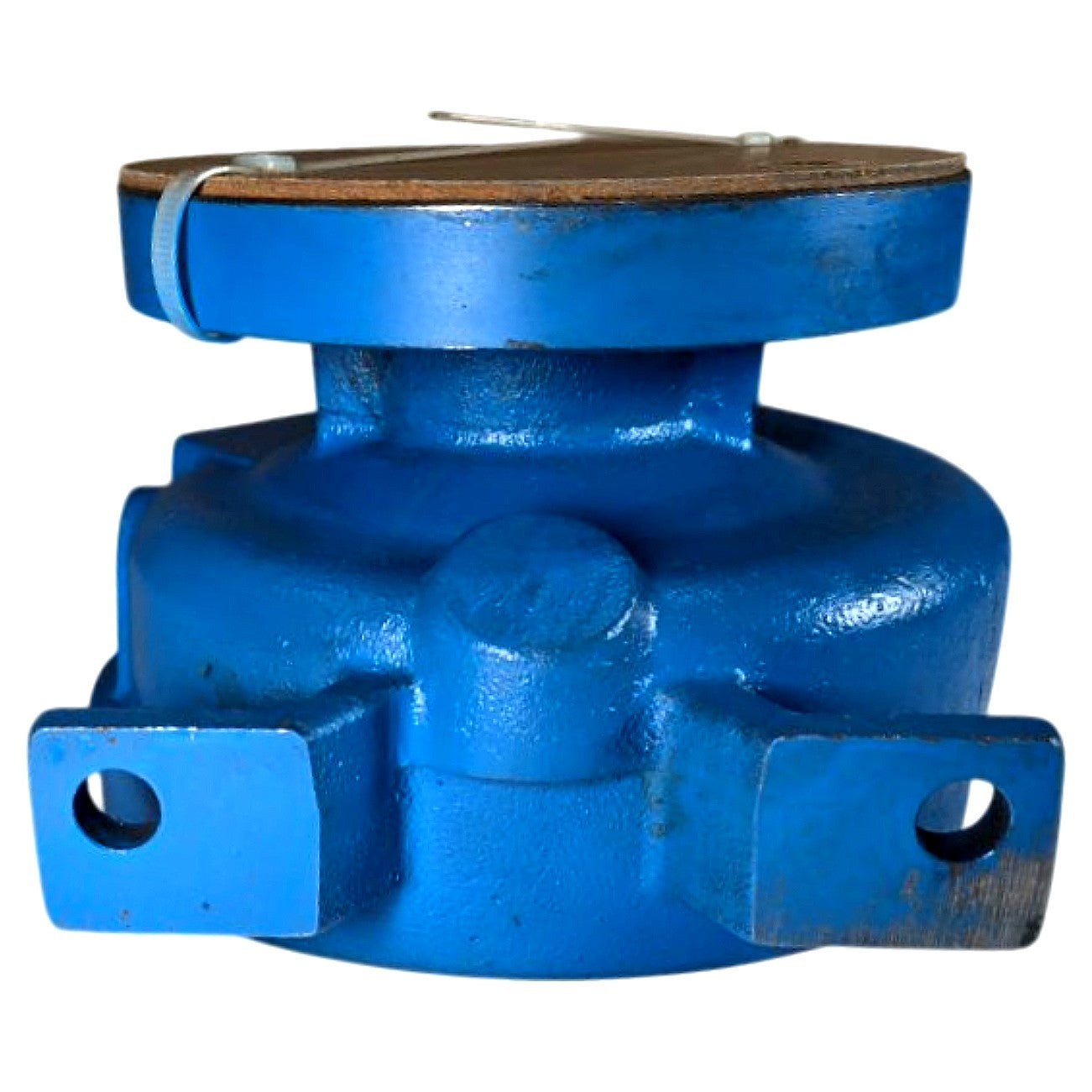

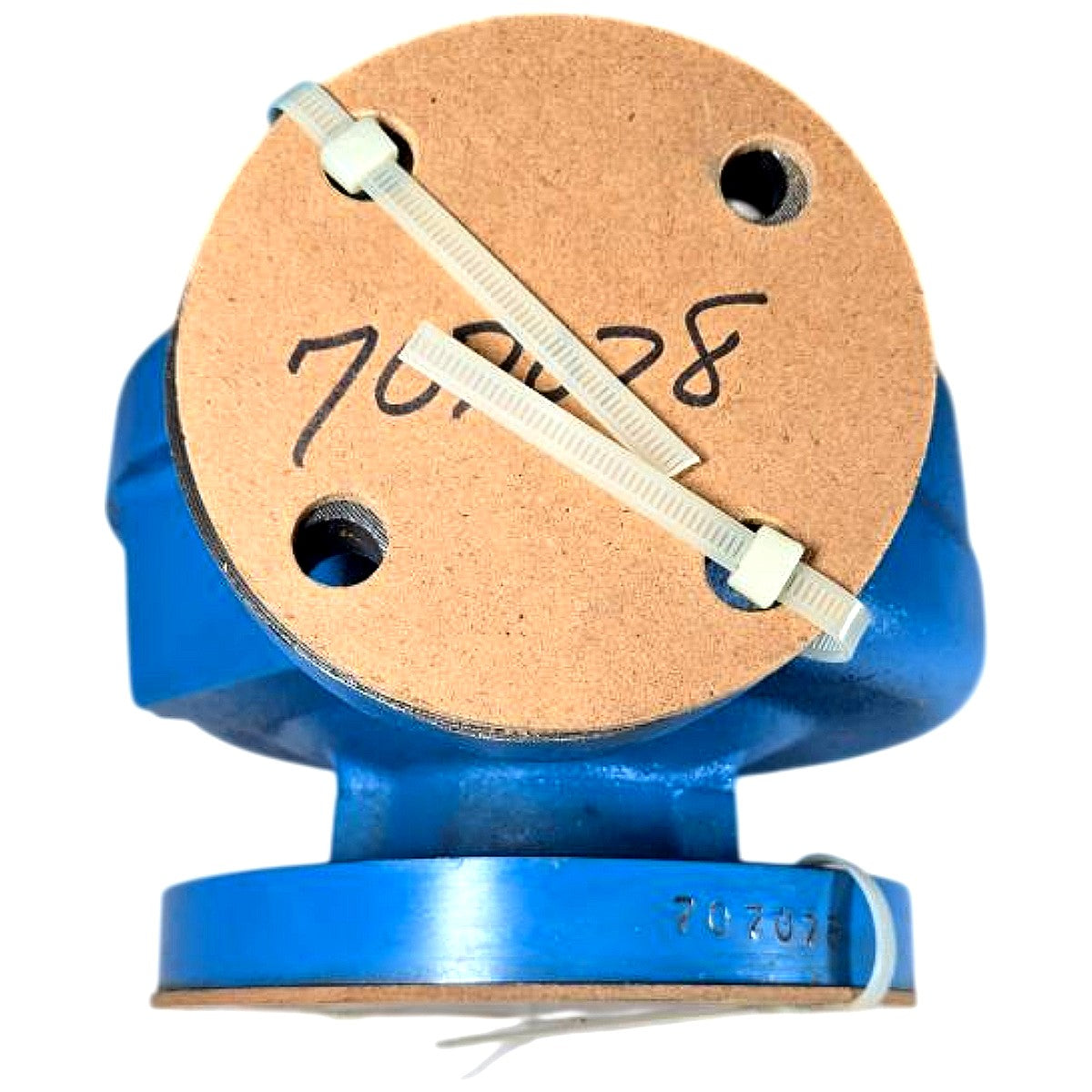

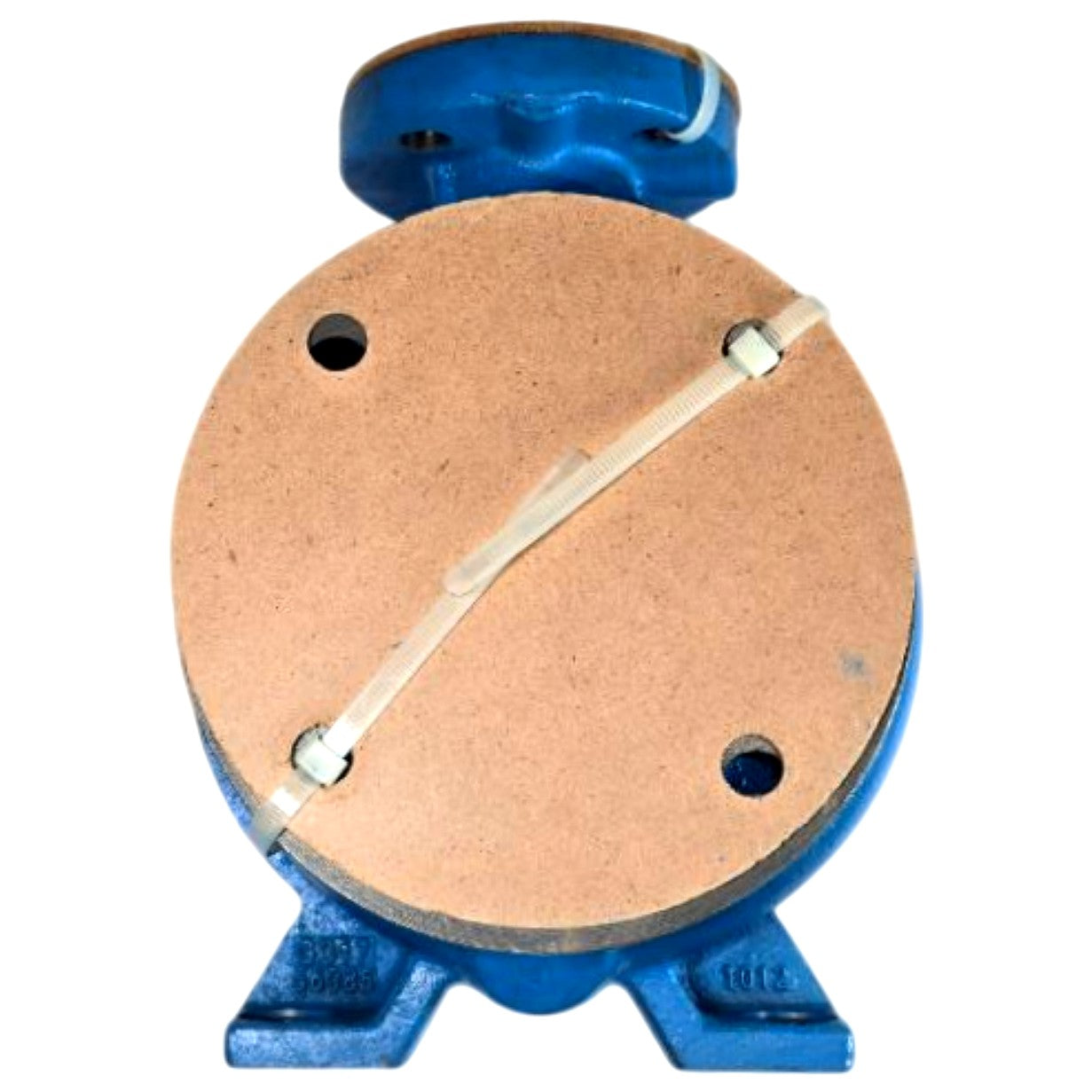

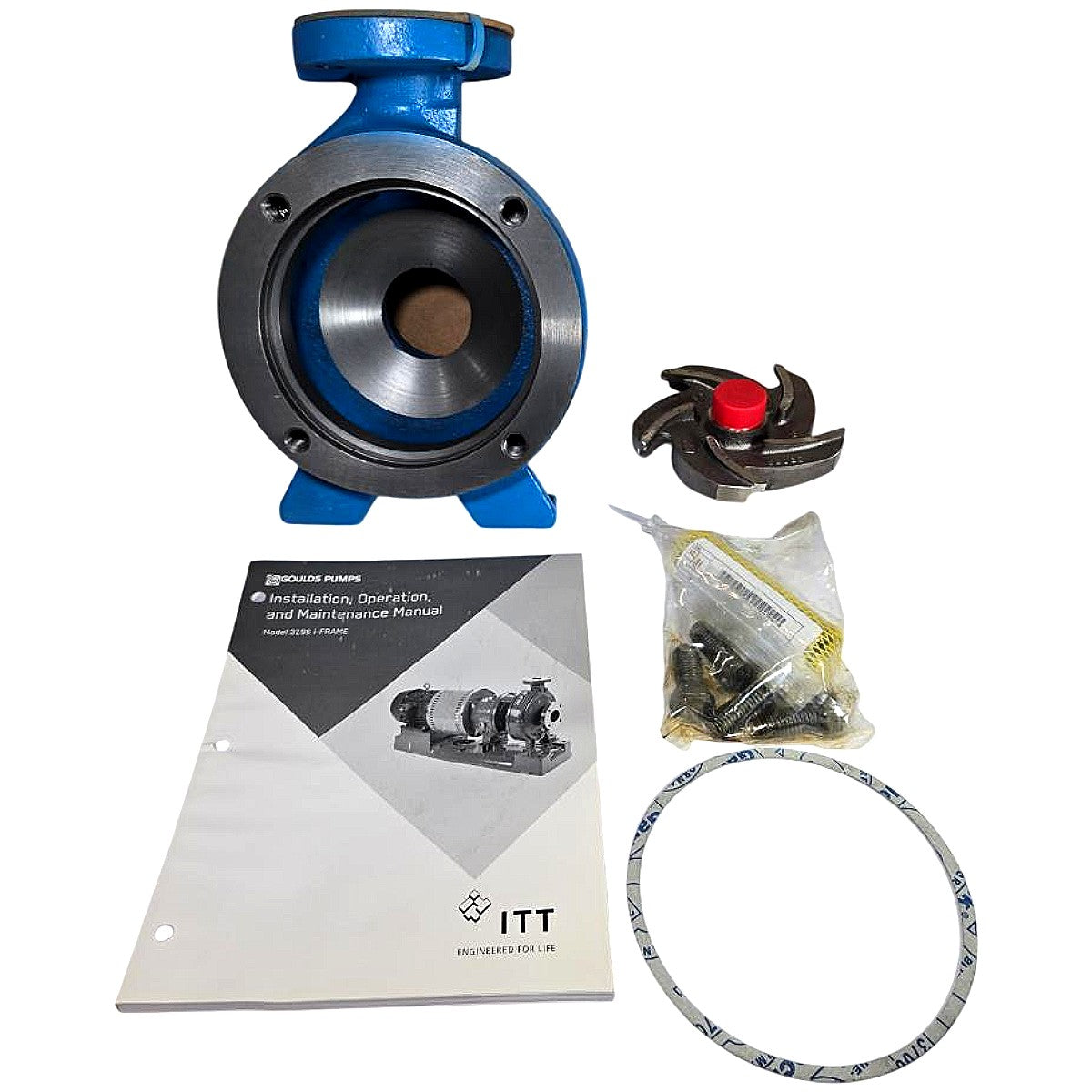

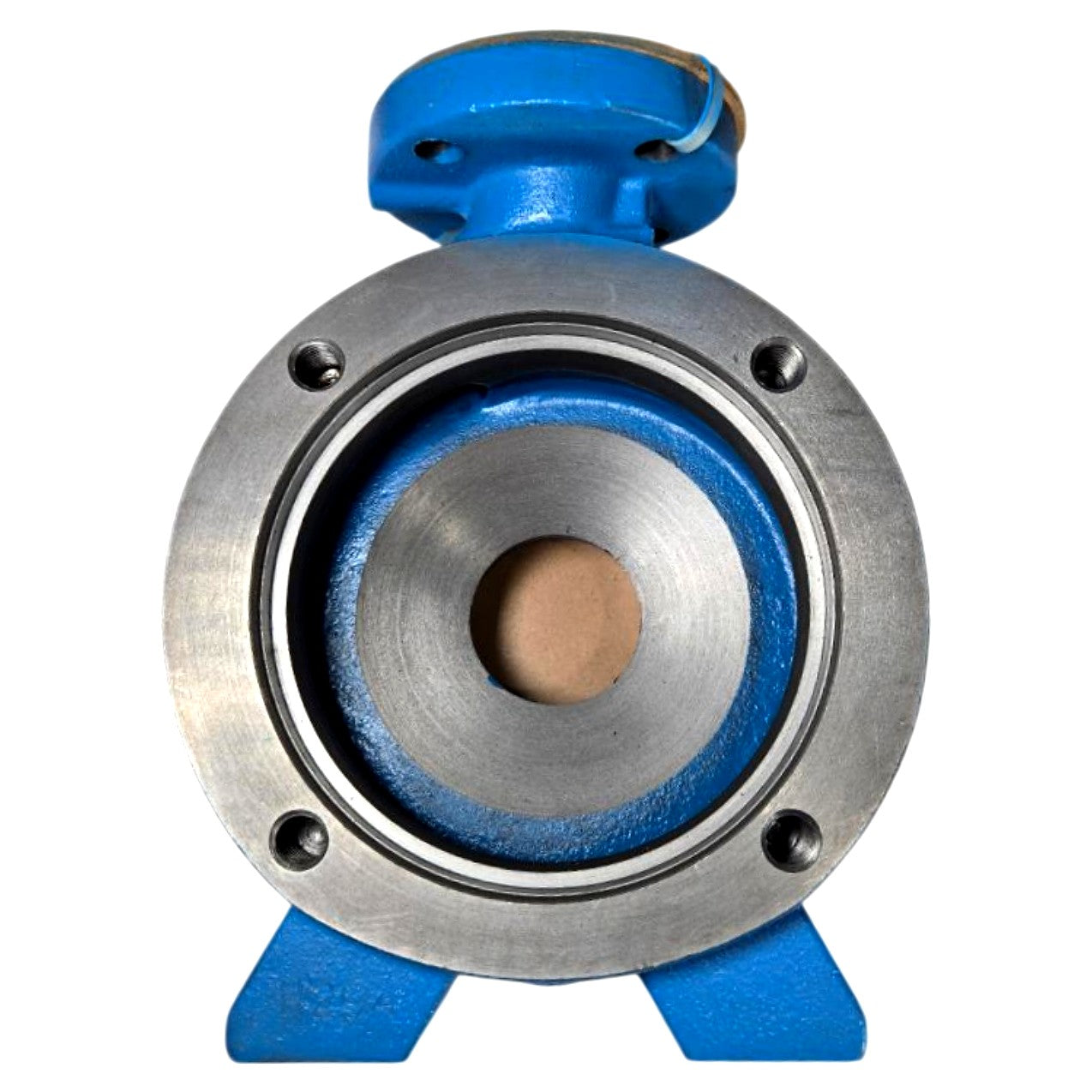

This is a new ITT Goulds Pumps Model 3196 i-FRAME STX Group liquid end kit, Goulds part number F1656SDLALX102, configured as LIQEND/3196S/1.5X3.6/LC/DI — a complete liquid end assembly for the 3196 ANSI B73.1 centrifugal pump in size 1-1/2 x 3 – 6 (1.5" discharge x 3" suction x 6" maximum impeller diameter). Material Code 1013 designates a ductile iron (DI) casing with a low-clearance (LC) impeller configuration; the casing is finish-painted in Goulds blue epoxy. The kit includes the ductile iron volute casing, a closed (back-pullout) impeller, casing gasket, hardware fastener pack, and the official Goulds Pumps Model 3196 i-FRAME Installation, Operation, and Maintenance manual, as confirmed in the photos. The 3196 STX group is engineered for ANSI chemical process service handling corrosive and abrasive liquids in refining, petrochemical, and general industrial plants, and is dimensionally interchangeable with other ANSI B73.1-compliant 3196 STX frames.
Product Specifications
| Brand | ITT Goulds Pumps |
| Part Number | F1656SDLALX102 |
| Part Name | LIQEND/3196S/1.5X3.6/LC/DI |
| Pump Model | 3196 i-FRAME |
| Pump Series / Group | STX |
| Pump Size | 1-1/2 x 3 - 6 (1.5" disch x 3" suct x 6" max imp dia) |
| Discharge Size | 1-1/2 in |
| Suction Size | 3 in |
| Max Impeller Diameter | 6 in |
| Material Code | 1013 |
| Casing Material | Ductile Iron (DI) |
| Impeller Configuration | Low Clearance (LC), closed type |
| Standard Compliance | ANSI B73.1 |
| Kit Contents | Casing, impeller, casing gasket, hardware kit, IOM manual |
| Goulds Order # | 569928 |
| Condition | New |
