John Crane XFS010151 Type 21 1.625in Mechanical Shaft Seal

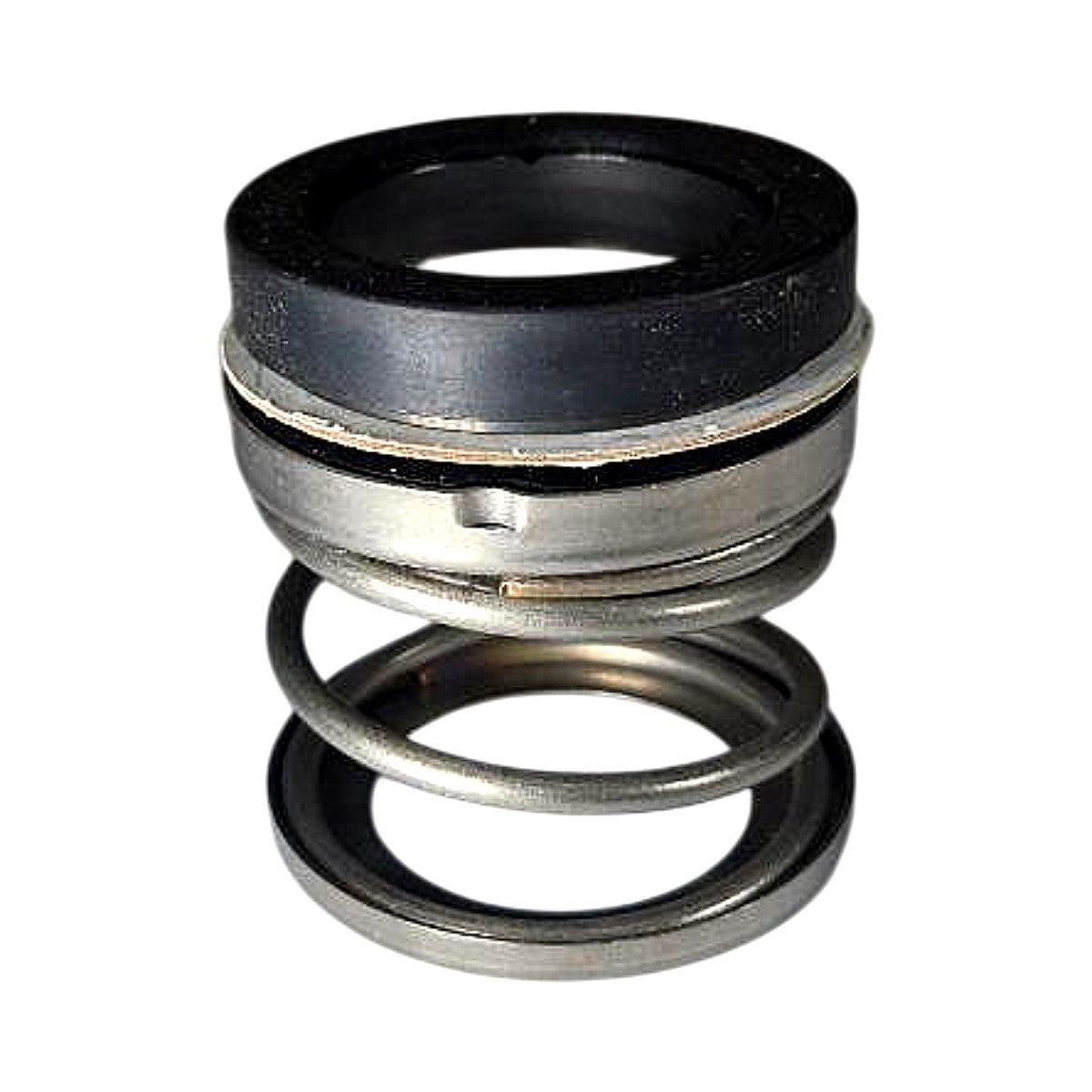

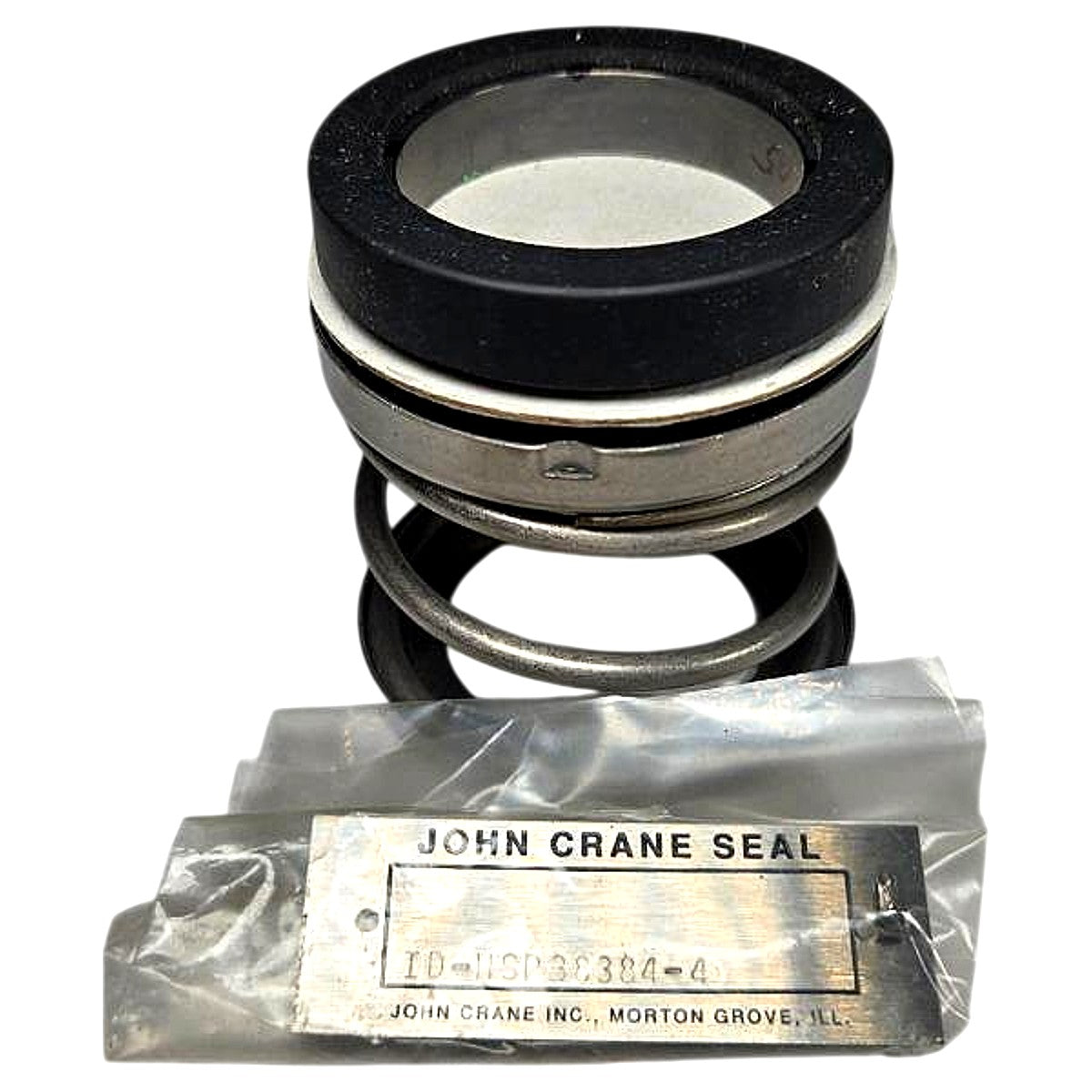

This is a new John Crane Type 21 single-coil spring mechanical shaft seal, part number XFS010151, supplied to Goulds Pumps (Goulds part# A06101A08) for use on the Goulds Model 3100 centrifugal pump, M Group / pump size designation, as confirmed by the original Goulds packaging labels. The John Crane Type 21 is a widely standardized elastomer-bellows/single-spring rotating seal design that uses a carbon-graphite primary sealing face against a ceramic mating ring (stationary seat), with NBR/Buna-N elastomers and a stainless steel spring and metal parts — materials consistent with what is visible in the photos (black carbon face, stainless coil spring, metal retainer). The seal accommodates a shaft size of approximately 1.625 inches (1-5/8 in), decoded from the part number suffix and confirmed by the Goulds label notation "TYP21(1.62)"; the Type 21 design is a proven workhorse for water, light chemicals, and general process fluids in ANSI/end-suction centrifugal pumps. The seal label (ID-HSD38384-4) is John Crane's internal traceability/lot code, and the item is unused in original Goulds OEM packaging.

Product Specifications
