Kason 10056L05020 Chrome Walk-In 3-3/8 in Overall Width Cooler Door Latch Body
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

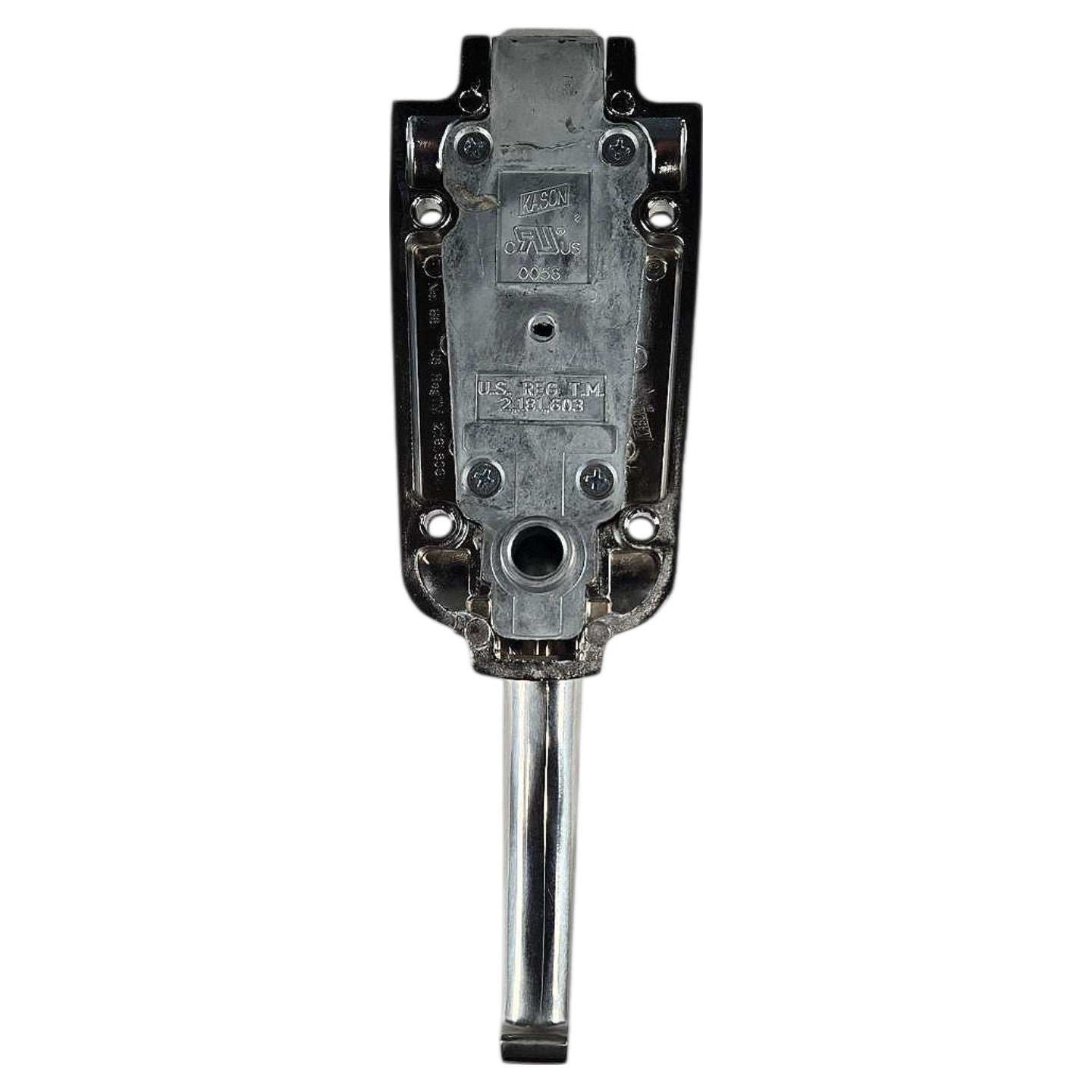

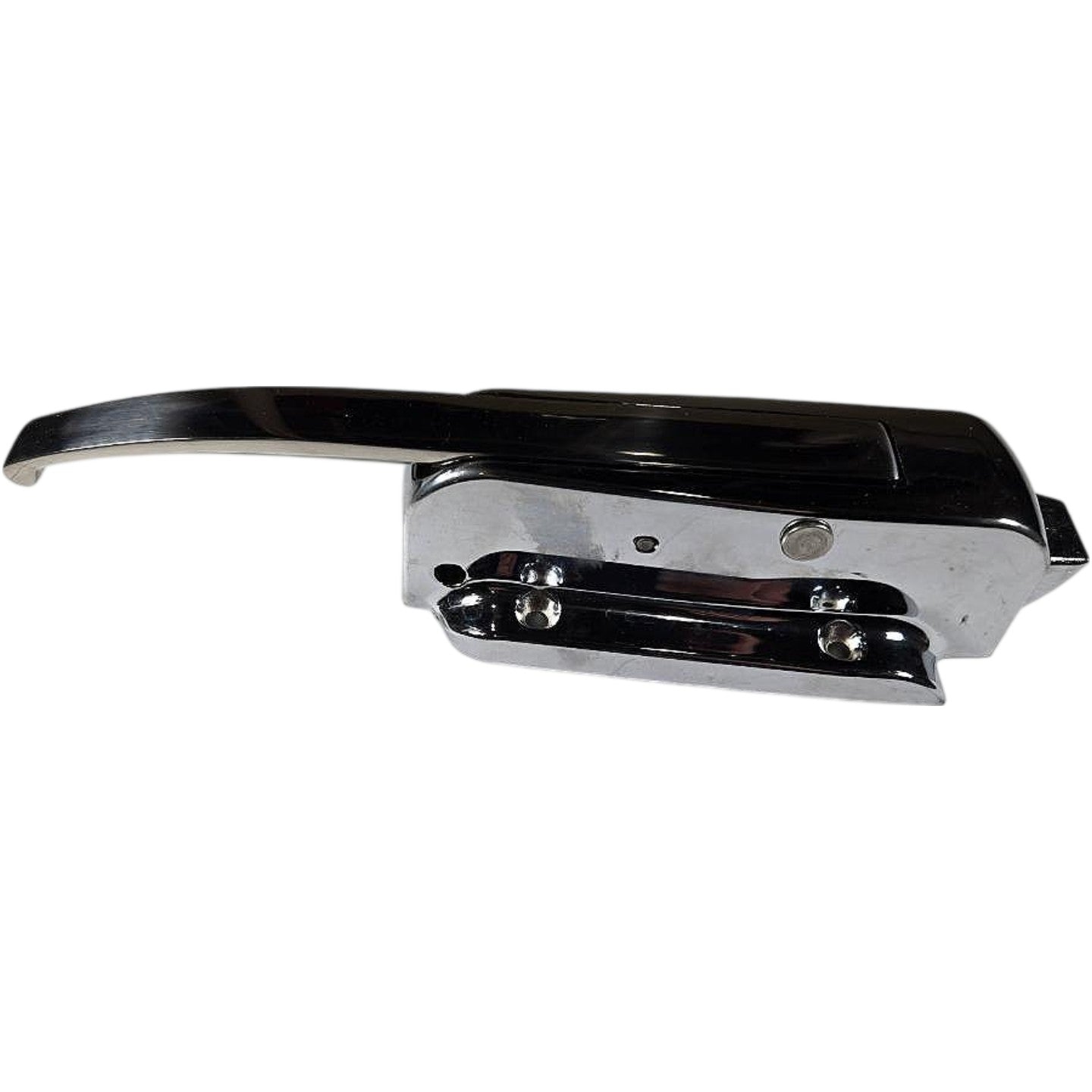

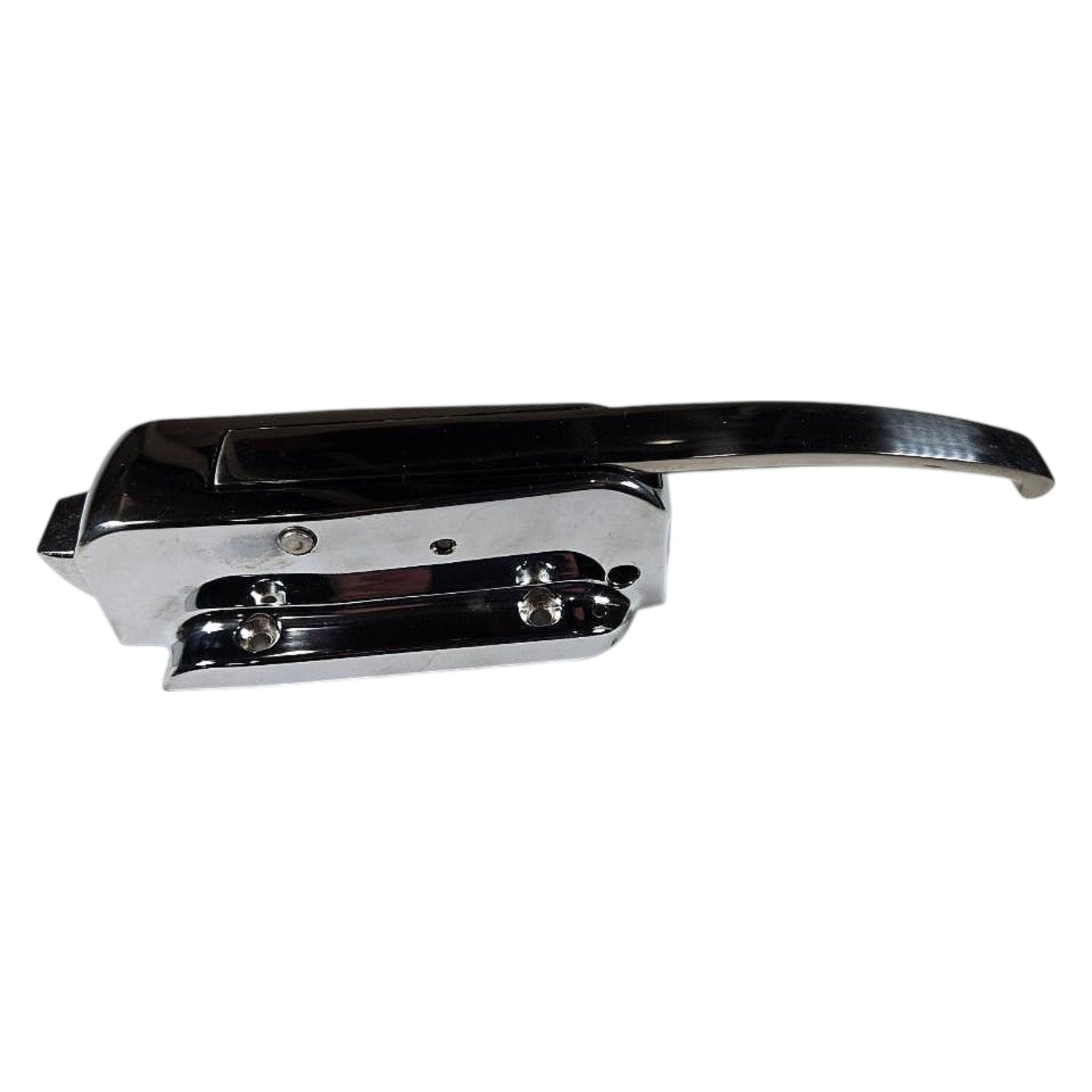

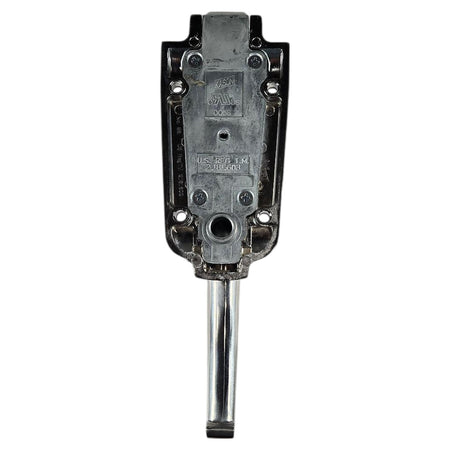

The Kason 10056L05020 is a new, chrome-plated latch body assembly designed for walk-in cooler and freezer doors, manufactured by Kason Industries — a UL-listed supplier (UL mark and model number 0056 are clearly visible on the back plate). The latch features a black thermoplastic handle paired with a chrome die-cast zinc body, a spring-loaded trigger release mechanism, and a squared spindle drive stub at the base for connecting to a handle escutcheon or interior safety release. The unit carries a U.S. Registered Trademark stamp (U.S. REG. T.M. 2,181,603) on the back casting, consistent with Kason's standard commercial refrigeration door hardware line. This latch body mounts to the door face via four corner fastener holes visible in the photos and is compatible with Kason's standard 10056 series strike plates and interior escutcheons used on commercial walk-in cooler and freezer installations.
Product Specifications
| Brand | Kason |
| MPN | 10056L05020 |
| Series | 10056 |
| UL Listing | UL Listed (cULus) |
| Kason Model Code | 0056 |
| Finish | Chrome-plated body, black thermoplastic handle |
| Handle Color | Black |
| Body Material | Die-cast zinc, chrome plated |
| Application | Walk-in cooler/freezer door |
| Mounting | Surface mount, 4-hole bolt pattern |
| Drive Type | Square spindle stub |
| Condition | New |
| Quantity | 1 pc |
| U.S. Reg. T.M. | 2,181,603 |
