Keckley BVS2THFSSRGSL-400 4" CF8M SS 1000 WOG NACE Ball Valve
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

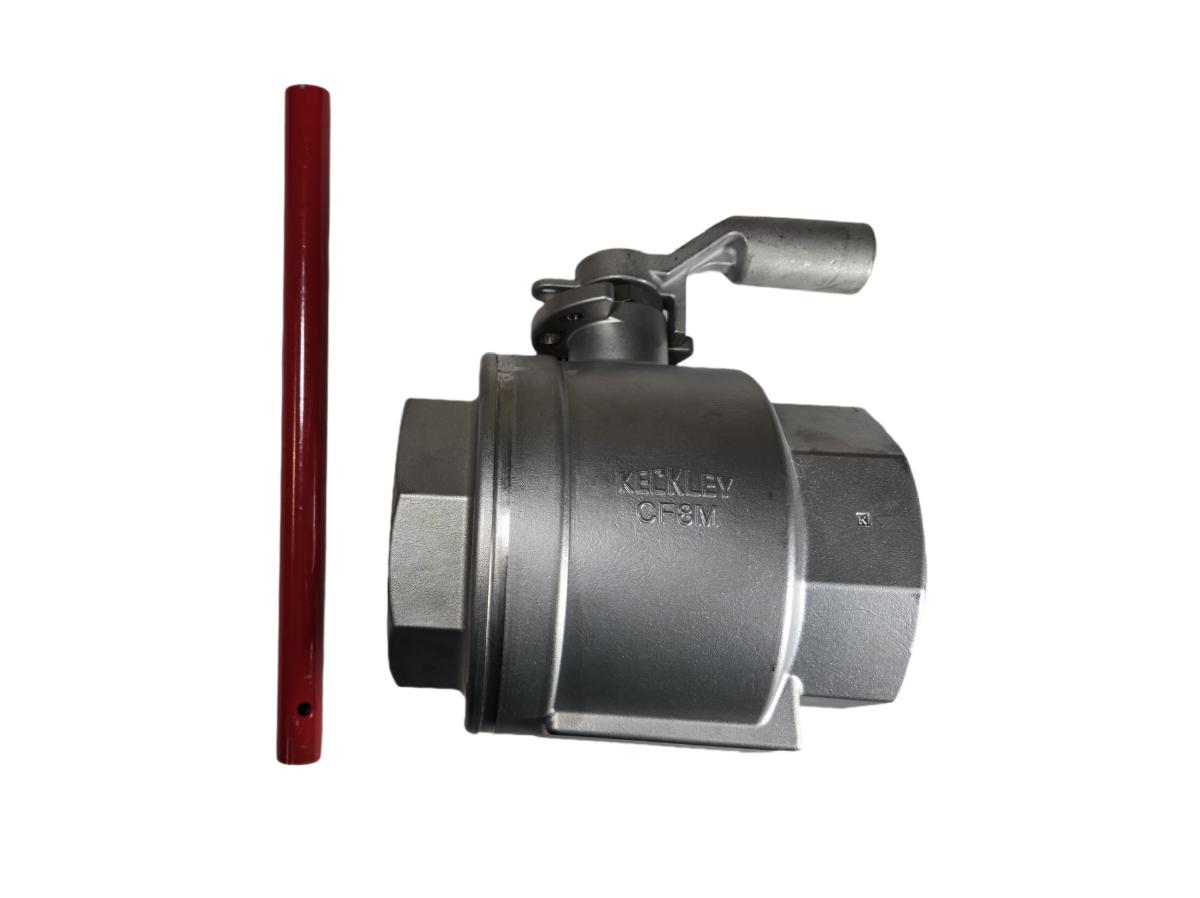

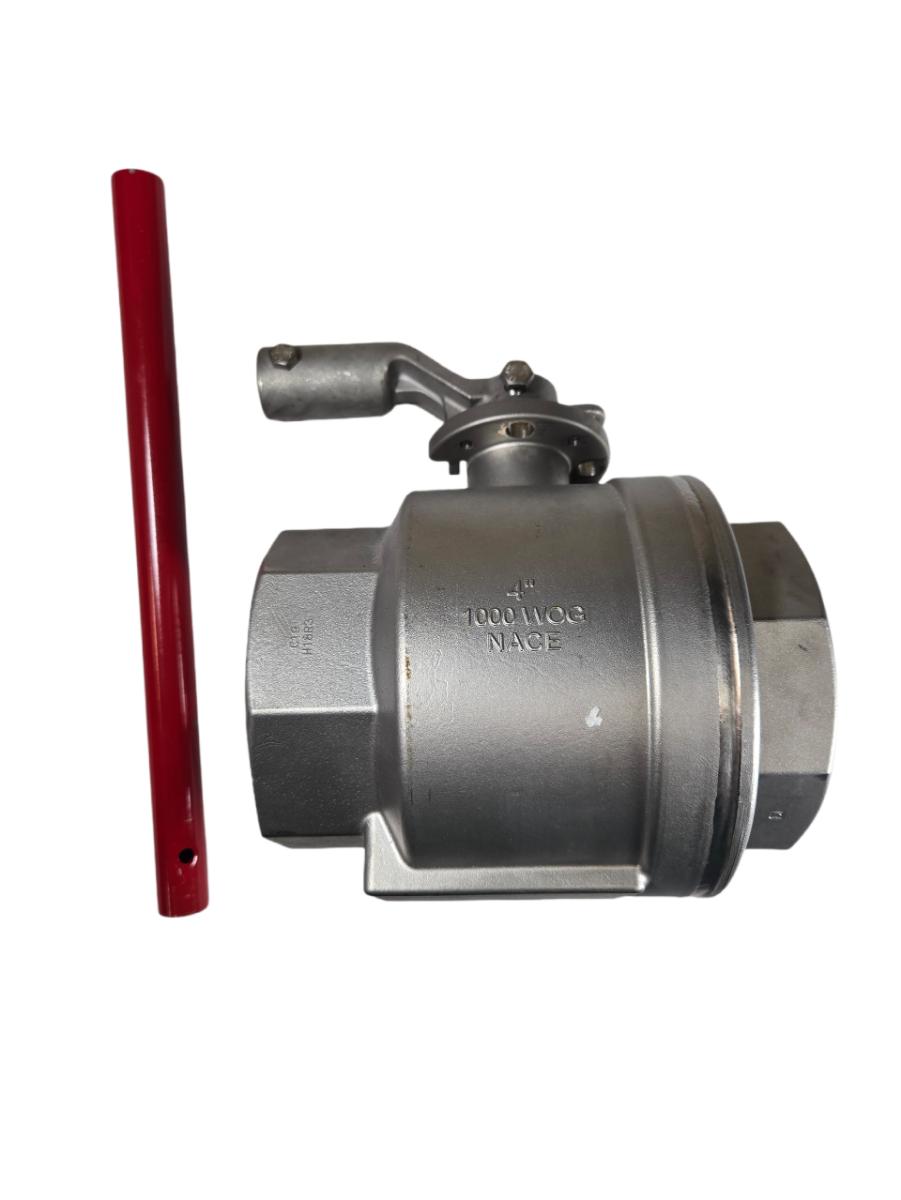

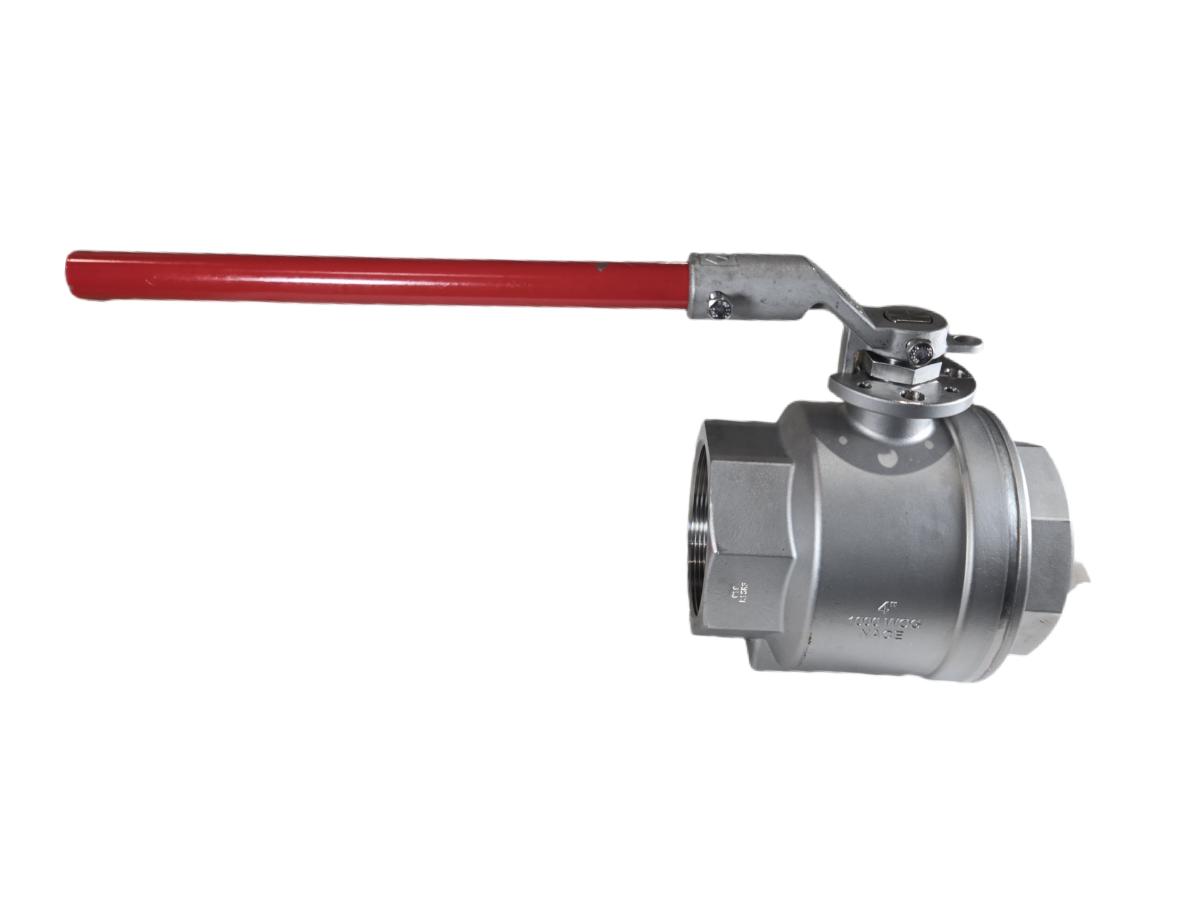

This is a new Keckley BVS2THFSSRGSL-400 two-piece threaded stainless steel ball valve in 4" size, cast from CF8M (316 stainless steel equivalent) as clearly marked on the valve body, rated for 1000 WOG (Water, Oil, Gas) service and NACE MR0175/ISO 15156 compliant for sour gas and corrosive environments as stamped on the body. The valve features female NPT threaded end connections on both ends, a full-port bore design for maximum flow, and a locking lever handle with the red steel extension bar for high-torque operation at large bore sizes. The two-piece body construction allows for in-line maintenance, and the stem incorporates a blowout-proof design consistent with Keckley's BVS2 series standard. NACE compliance makes this valve suitable for upstream oil and gas, chemical processing, and refinery applications where H2S or chloride exposure is a factor.
Product Specifications
| Manufacturer | Keckley |
| Part Number | BVS2THFSSRGSL-400 |
| Valve Type | Two-Piece Ball Valve |
| Pipe Size | 4 inch |
| End Connection | Female NPT Threaded (both ends) |
| Body Material | CF8M (Cast 316 Stainless Steel) |
| Pressure Rating | 1000 WOG (psi) |
| Port Type | Full Port |
| Handle Type | Lever with locking mechanism and red steel extension bar |
| Compliance | NACE MR0175/ISO 15156 |
| Condition | New |
