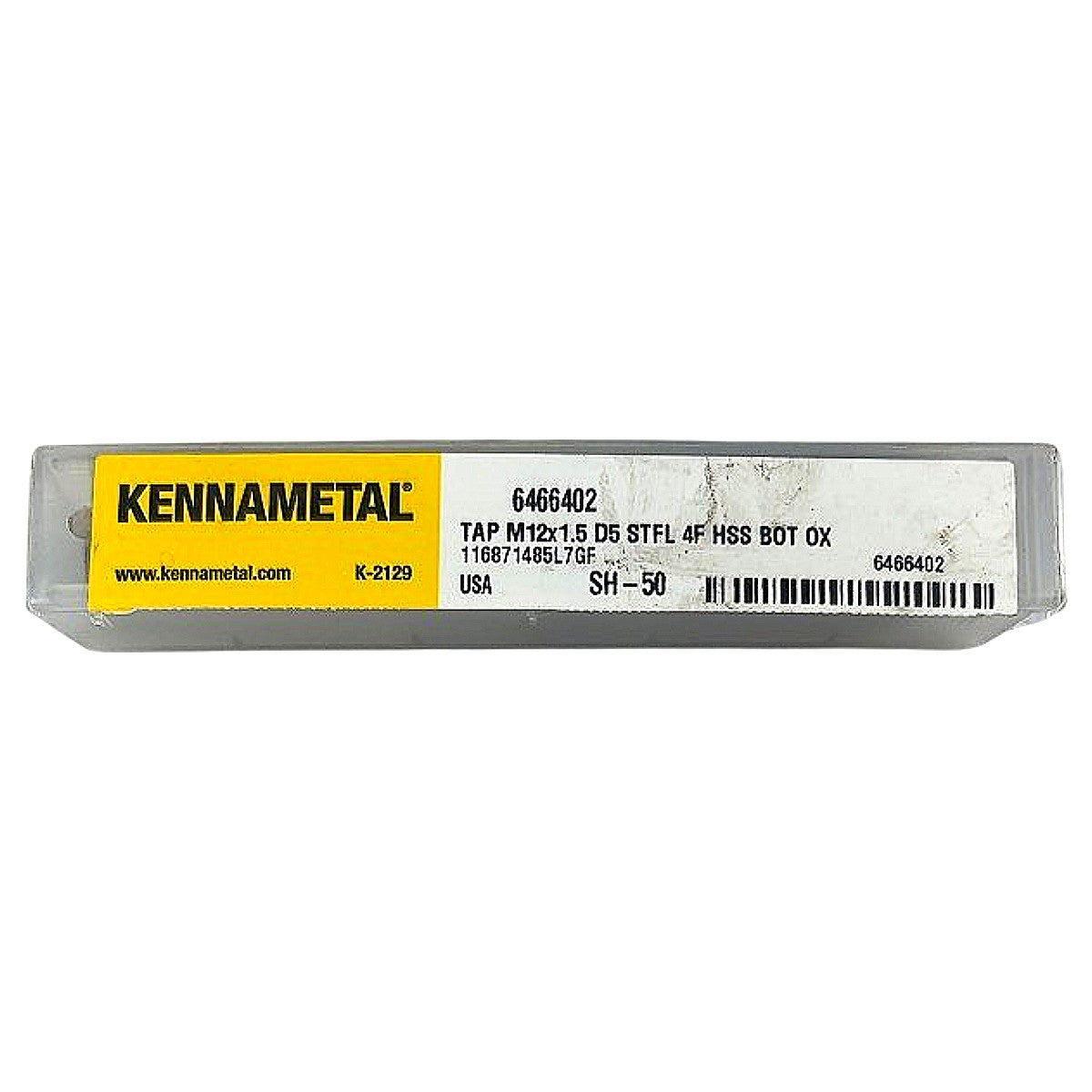

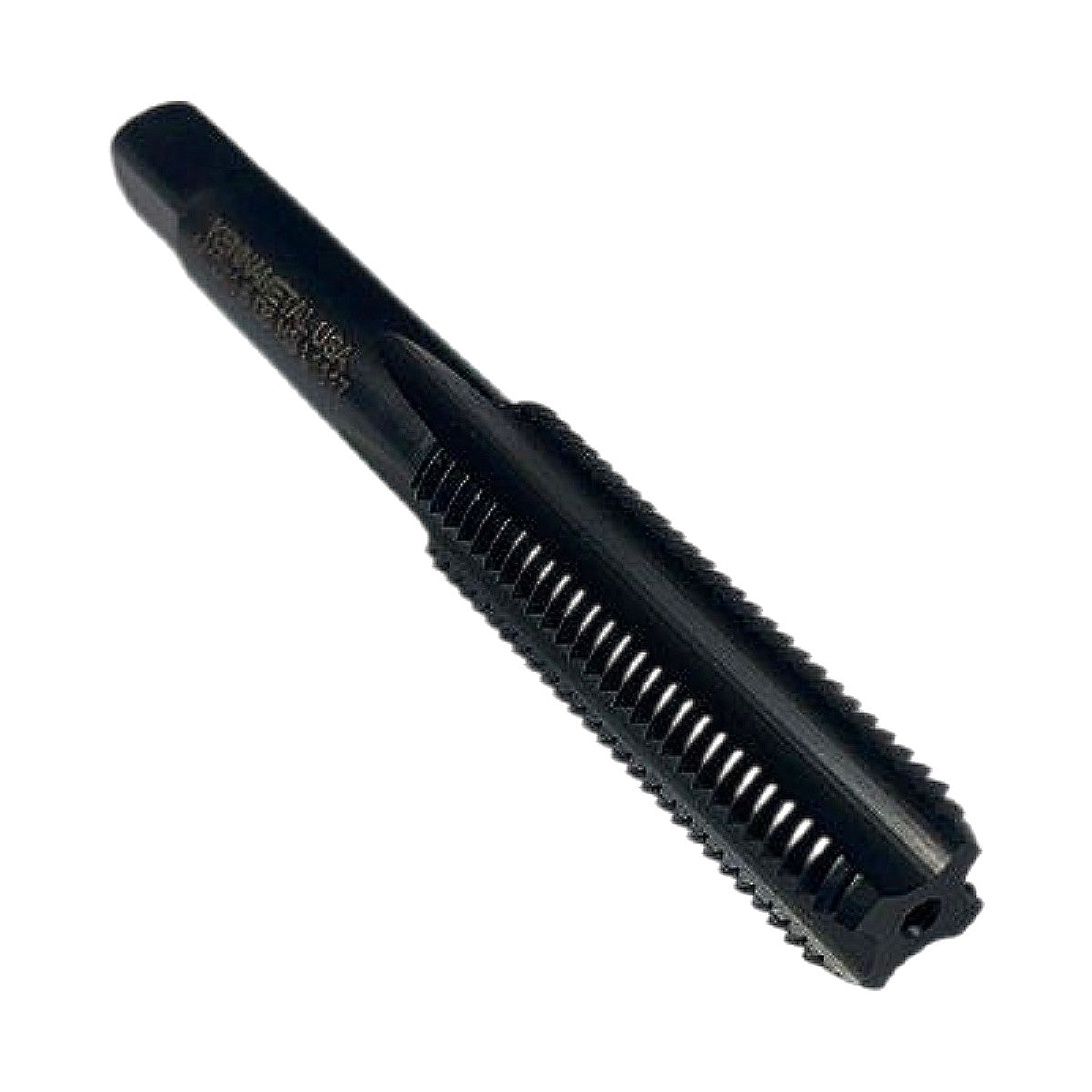

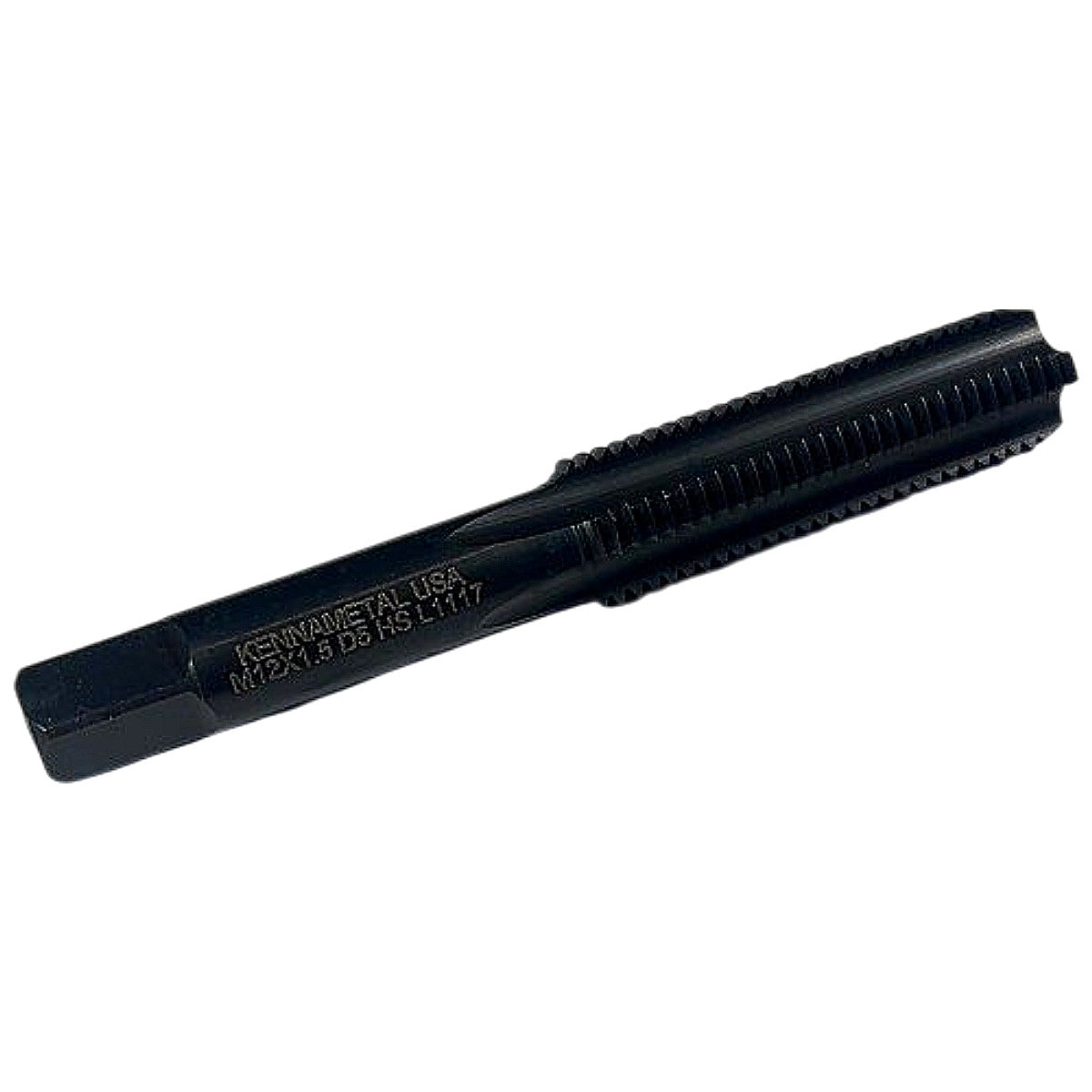

Kennametal 6466402 M12x1.5 D5 4-Flute HSS Bottoming Tap Oxide
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
This is a new Kennametal 6466402 hand tap in M12x1.5 thread size, manufactured in the USA from High Speed Steel (HSS) with a black oxide (OX) surface treatment for improved lubricity and corrosion resistance. The tap carries a D5 pitch diameter limit (H5 tolerance class), indicating a tolerance range of +0.0005" to +0.0010" over basic pitch diameter, suitable for producing 6H class threads in steel and similar materials. It is a straight-flute (STFL) bottoming (BOT) configuration with 4 flutes, allowing thread cutting to the bottom of blind holes with minimal chamfer lead — typically 1–2 thread chamfer. The square shank drive end is compatible with standard tap wrenches and machine collets sized for M12 taps. This tap is designed for hand or low-speed machine tapping in steels and other ferrous materials where a full-depth blind-hole thread is required.
Product Specifications
| Brand | Kennametal |
| Part Number (MPN) | 6466402 |
| Thread Size | M12x1.5 |
| Thread Standard | Metric Coarse (ISO) |
| Pitch | 1.5 mm |
| Tap Type | Bottoming (BOT) — 1–2 thread chamfer |
| Flute Style | Straight Flute (STFL) |
| Number of Flutes | 4 |
| Pitch Diameter Limit | D5 (H5) |
| Material | High Speed Steel (HSS) |
| Coating / Finish | Black Oxide (OX) |
| Thread Class Produced | 6H |
| Country of Origin | USA |
| Condition | New |
| Shank Type | Square drive shank |
