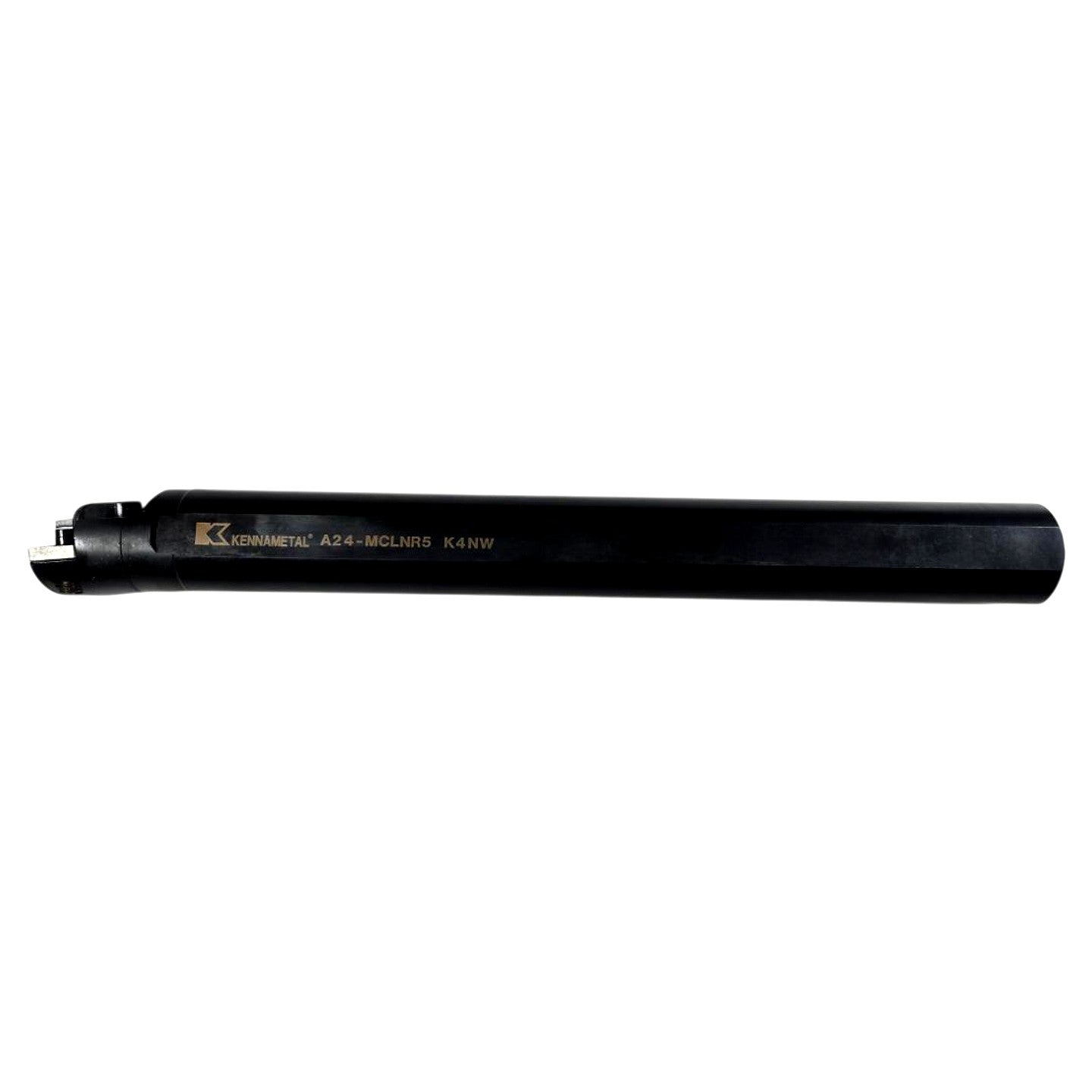

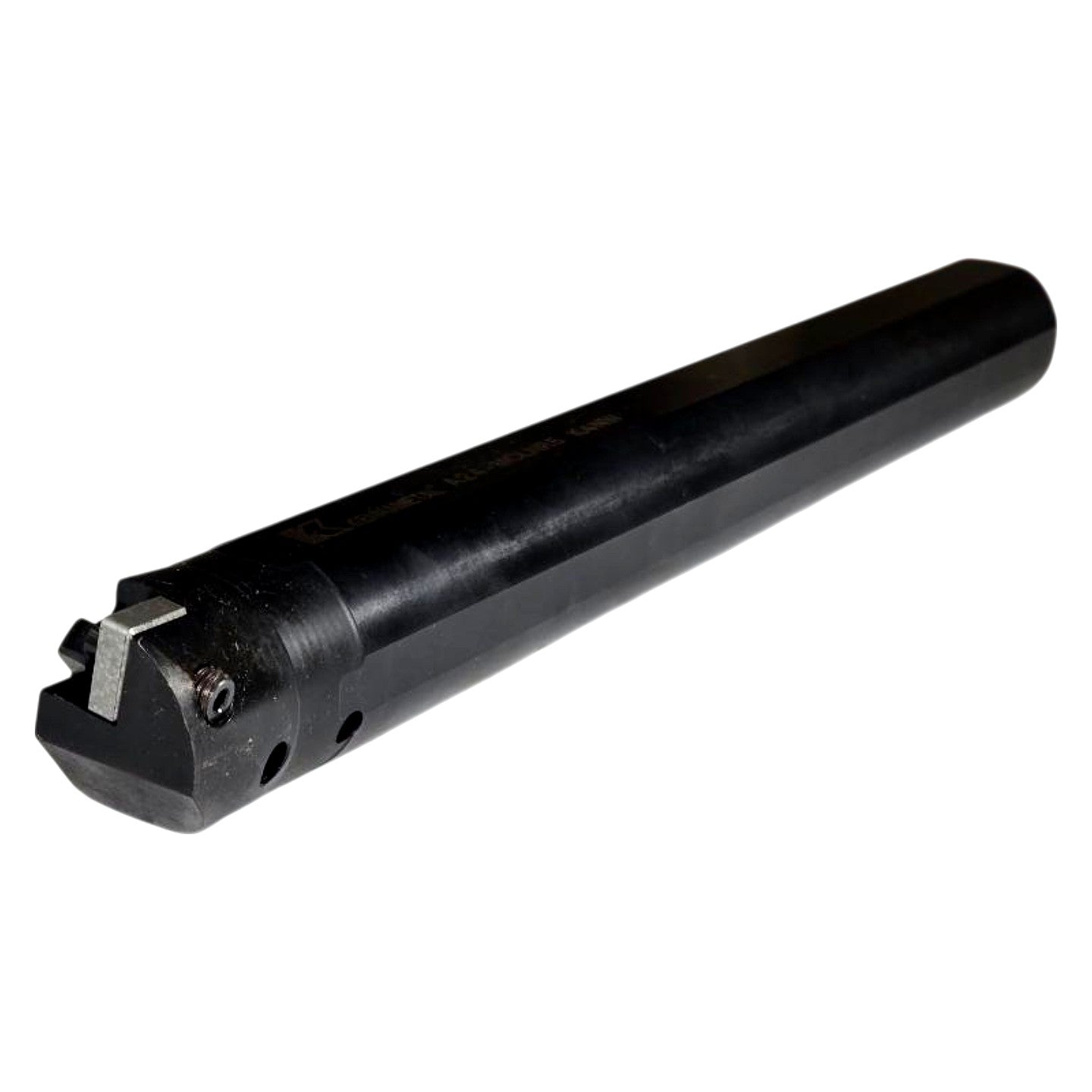

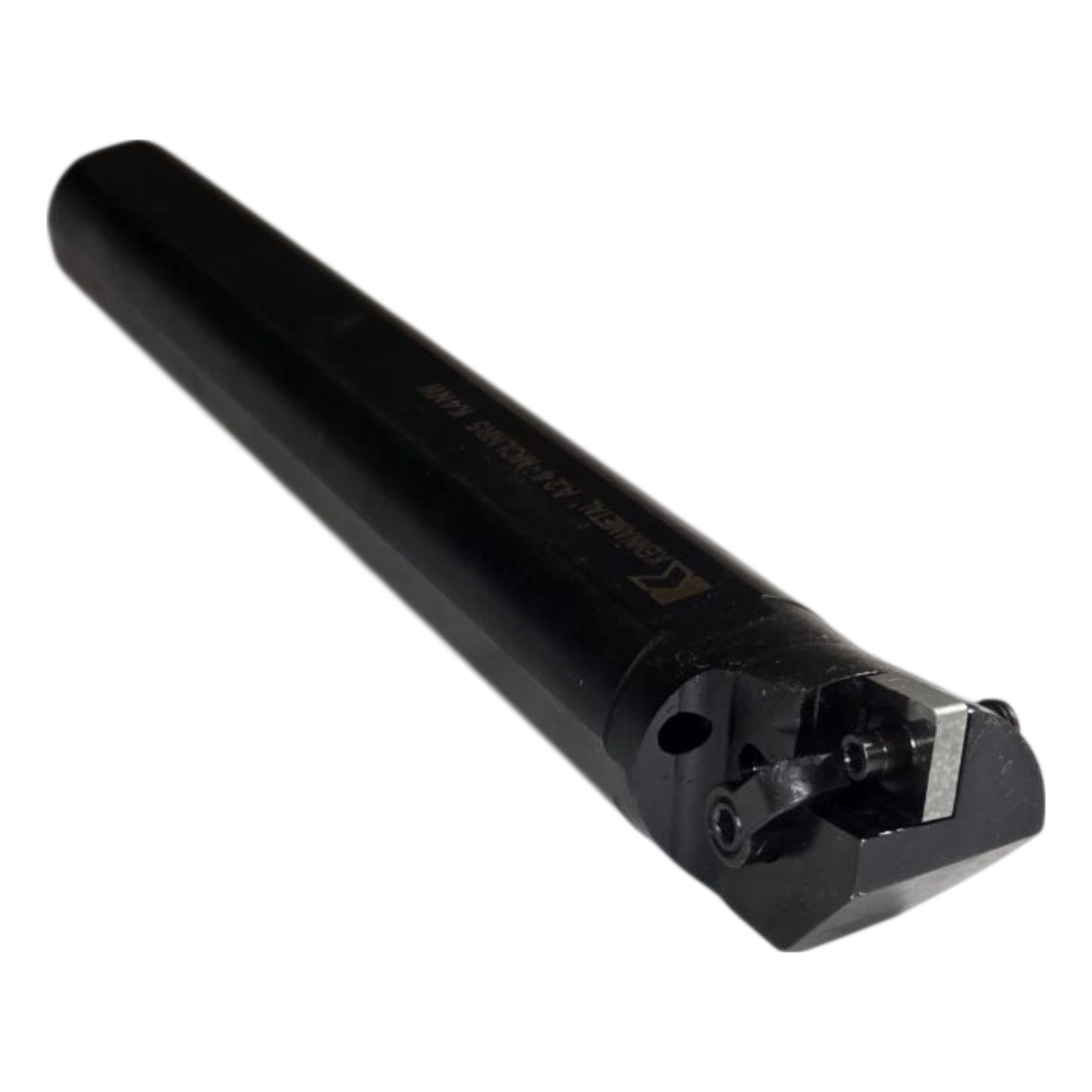

Kennametal A24-MCLNR5 1-1/2in Shank RH Steel Indexable Boring Bar
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Kennametal A24-MCLNR5 is a right-hand indexable boring bar with a 1-1/2 in (38.10 mm) round steel shank and a 14.00 in (355.60 mm) overall length, designed for internal turning on CNC and manual lathes. The MCLNR designation decodes as: M = shank style (cylindrical), C = insert clamping method (screw and clamp/top clamp), L = insert shape (CN.. — 80° diamond/rhombic), N = insert clearance (0° normal), R = hand of cut (right hand), and 5 = insert IC size (5/8 in / 15.875 mm IC for CN..-5__ inserts); the A24 prefix indicates a 1-1/2 in (24/16 in) shank diameter in the Kennametal boring bar series. The -5.000° lead angle (MCLNR geometry) directs cutting forces axially, reducing radial deflection and improving bore geometry in steel and cast iron at moderate to aggressive depths of cut. Compatible inserts are CN.. (CNMG/CNMA) style in size 5 (5/8 in IC), with the minimum bore diameter of 44.70 mm (1.760 in) defining the smallest bore this bar can address. This bar is offered in new — other condition, meaning it is an unused or surplus unit that may show minor cosmetic marks consistent with storage or handling, but is functionally new.
Product Specifications
| Brand | Kennametal |
| MPN | A24-MCLNR5 |

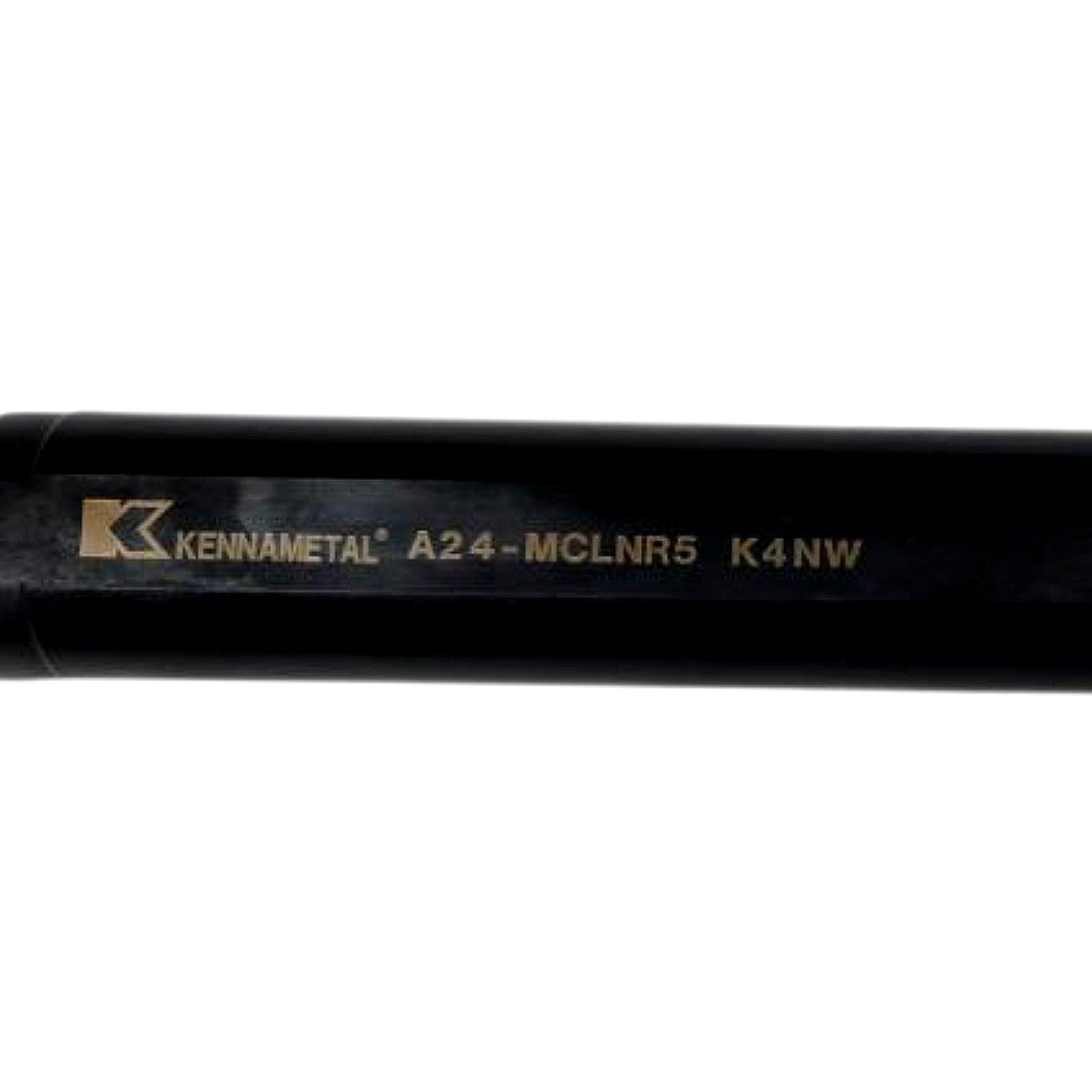

| Series | A24-MCLNR5 K4NW |
| Shank Diameter | 1-1/2 in (38.10 mm) |
| Shank Shape | Round |
| Overall Length (OAL) | 14.00 in (355.60 mm) |
| Minimum Bore Diameter | 44.70 mm (1.760 in) |
| Hand of Cut | Right Hand (R) |
| Insert Shape | CN.. (80° Diamond/Rhombic) |
| Insert IC Size | 5/8 in (15.875 mm) — size 5 |
| Insert Clamping Method | Screw & Clamp (Top Clamp) |
| Insert Clearance Angle | 0° (Normal — N) |
| Lead Angle | -5.000° |
| Shank Material | Steel |
| Compatible Insert Style | CNMG, CNMA (CN..-5__ series) |
| Condition | New — Other (unused/surplus) |
