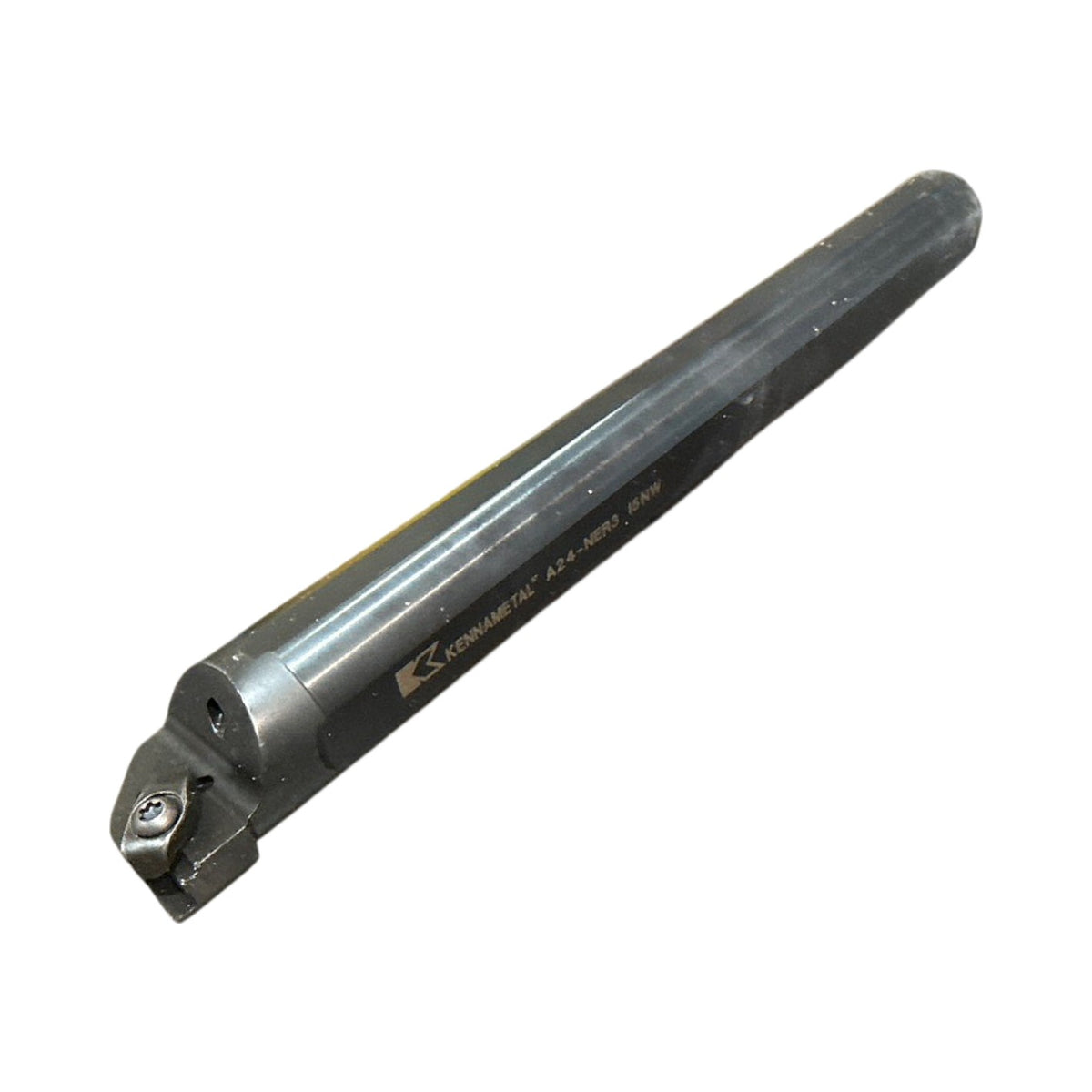

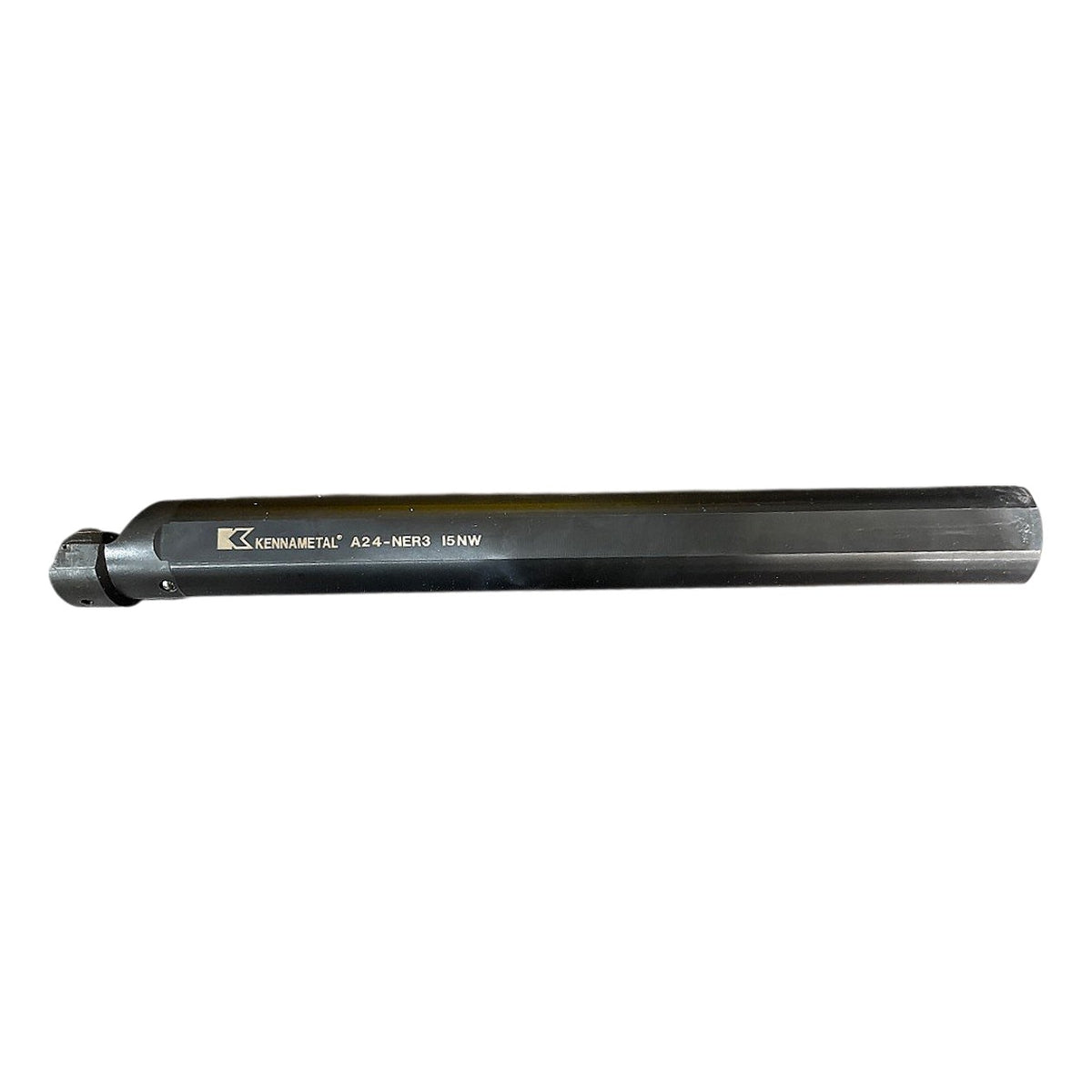

Kennametal A24NER3 1.5in x 14in Top Notch Indexable Boring Bar
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

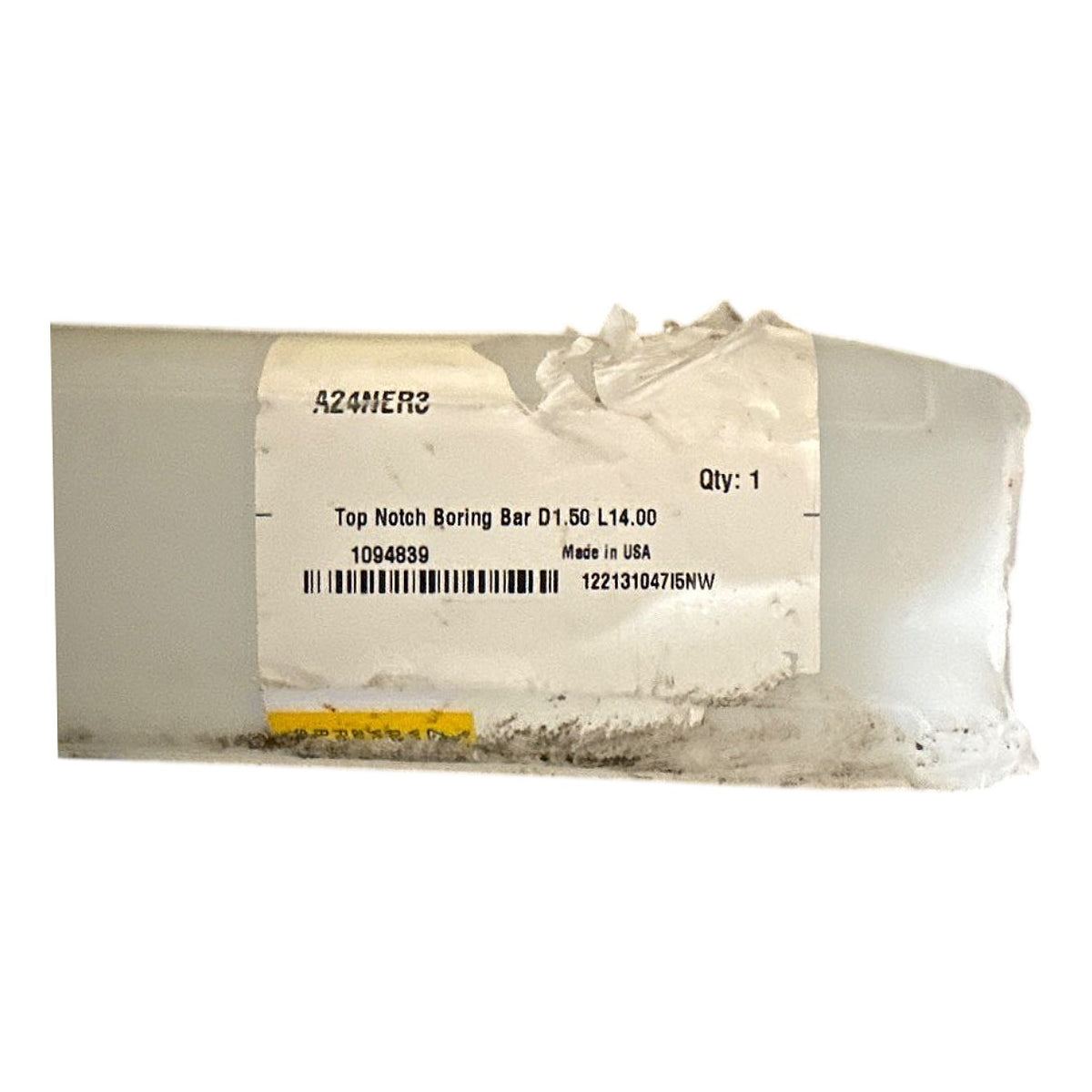

The Kennametal A24NER3 is a new, USA-made Top Notch indexable boring bar with a 1.500 in (38.1 mm) shank diameter and 14.00 in overall length, as confirmed by the original label (part number 1094839). Decoded from the MPN: "A" denotes a round shank, "24" indicates a 1.500 in shank diameter (24/16 in), "N" signifies the Top Notch insert system, "E" designates a 0° end-cutting-edge angle (90° lead angle for internal turning), "R" indicates a right-hand cutting direction, and "3" specifies compatibility with 3/32 in (2.38 mm) Top Notch grooving/threading inserts. The bar is constructed from alloy steel and accepts Kennametal Top Notch NE-style inserts for internal threading, grooving, and profiling operations on CNC and manual lathes; the right-hand orientation suits standard spindle rotation with the cutting edge engaging from the bore wall.
Product Specifications
| Brand | Kennametal |
| MPN | A24NER3 |
| Kennametal Item # | 1094839 |
| Product Line | Top Notch |
| Shank Diameter | 1.500 in (1-1/2 in) |
| Overall Length (OAL) | 14.00 in |
| Shank Style | Round (A-style) |
| Cutting Direction | Right-hand |
| Insert System | Top Notch (N-style) |
| Insert Width | 3/32 in (2.38 mm) |
| End-Cutting-Edge Angle | 0° (90° lead angle) |
| Operation | Internal threading, grooving, profiling |
| Country of Origin | USA |
| Condition | New |
