Kennametal A32VNSR3 2" Shank 16" OAL Right Hand Indexable Boring Bar
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

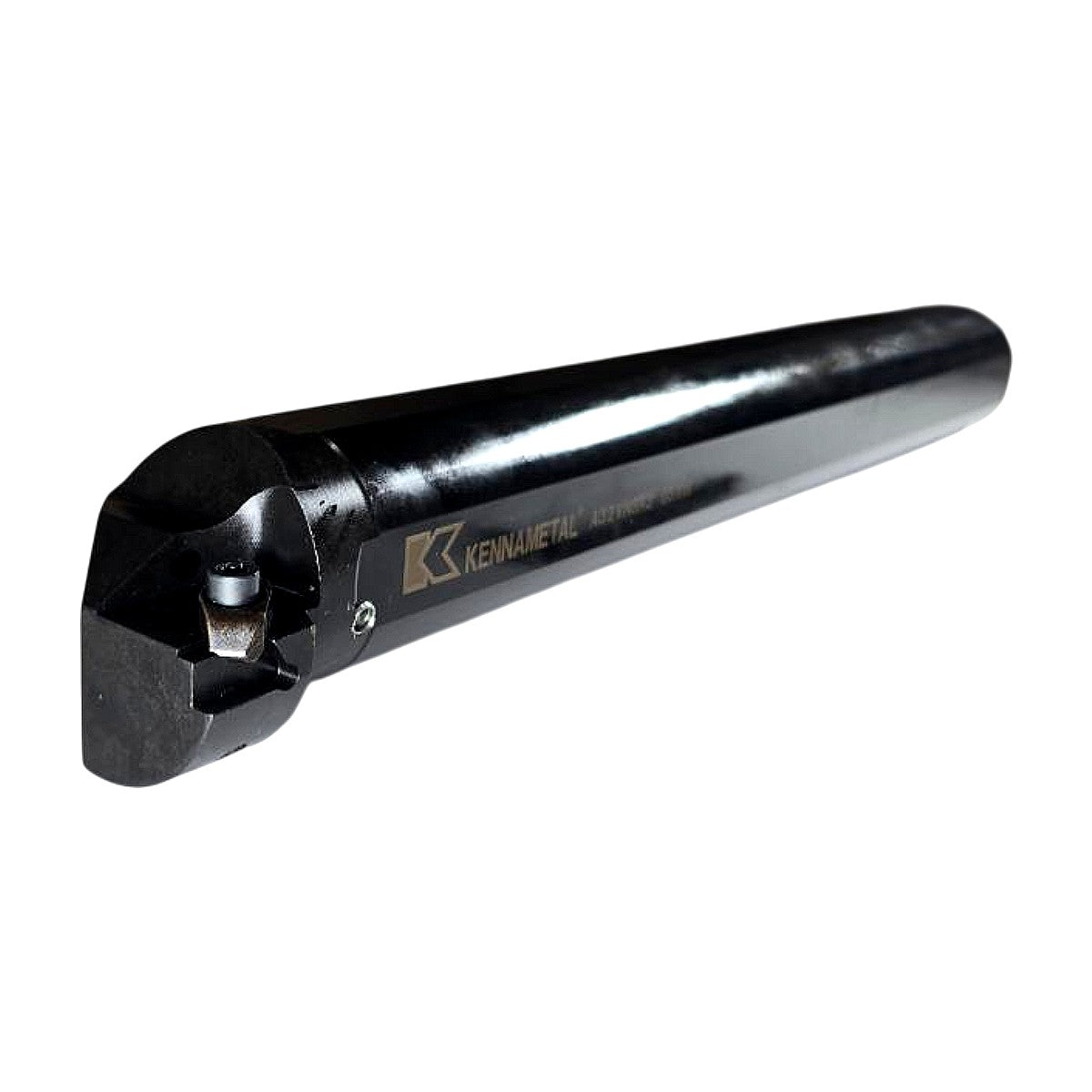

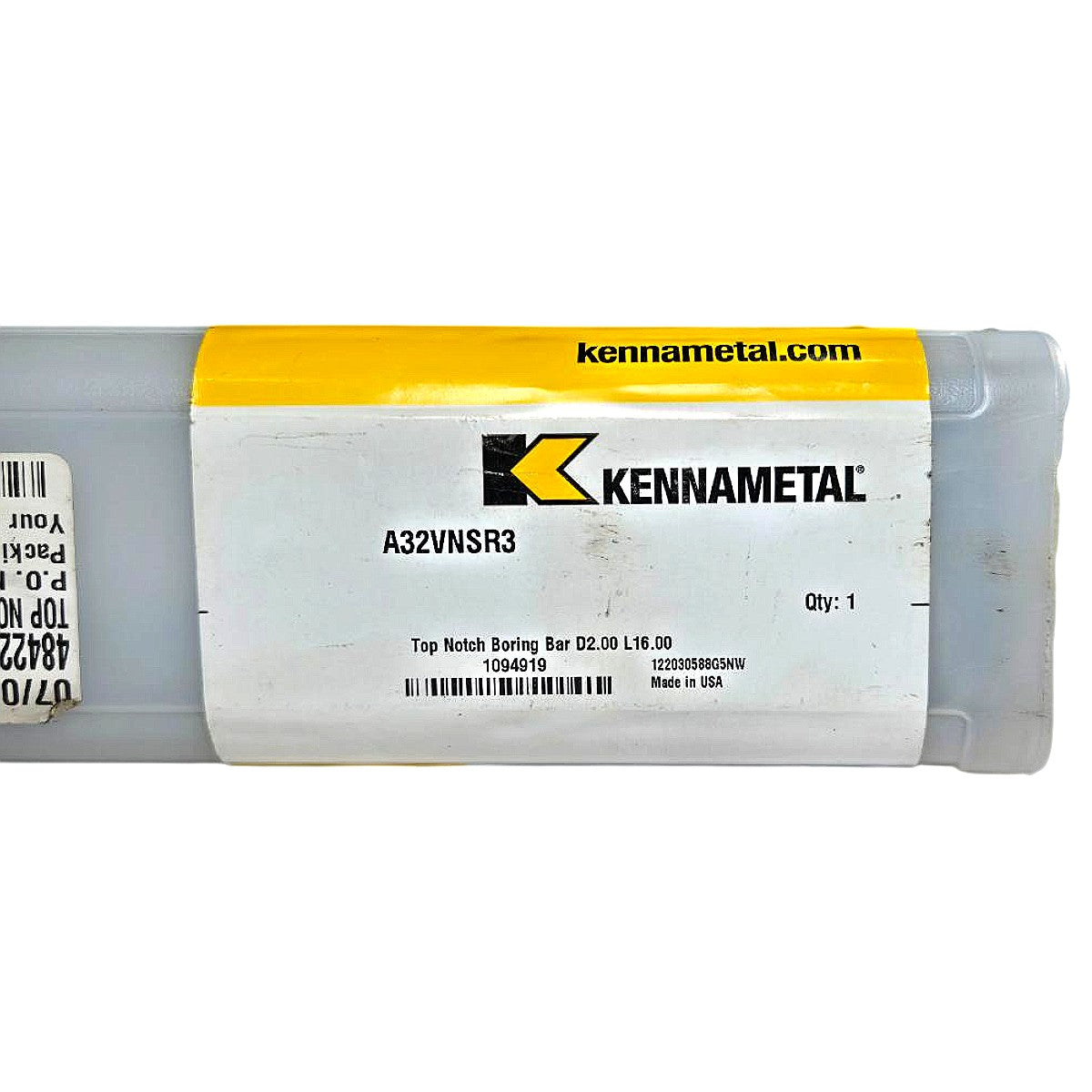

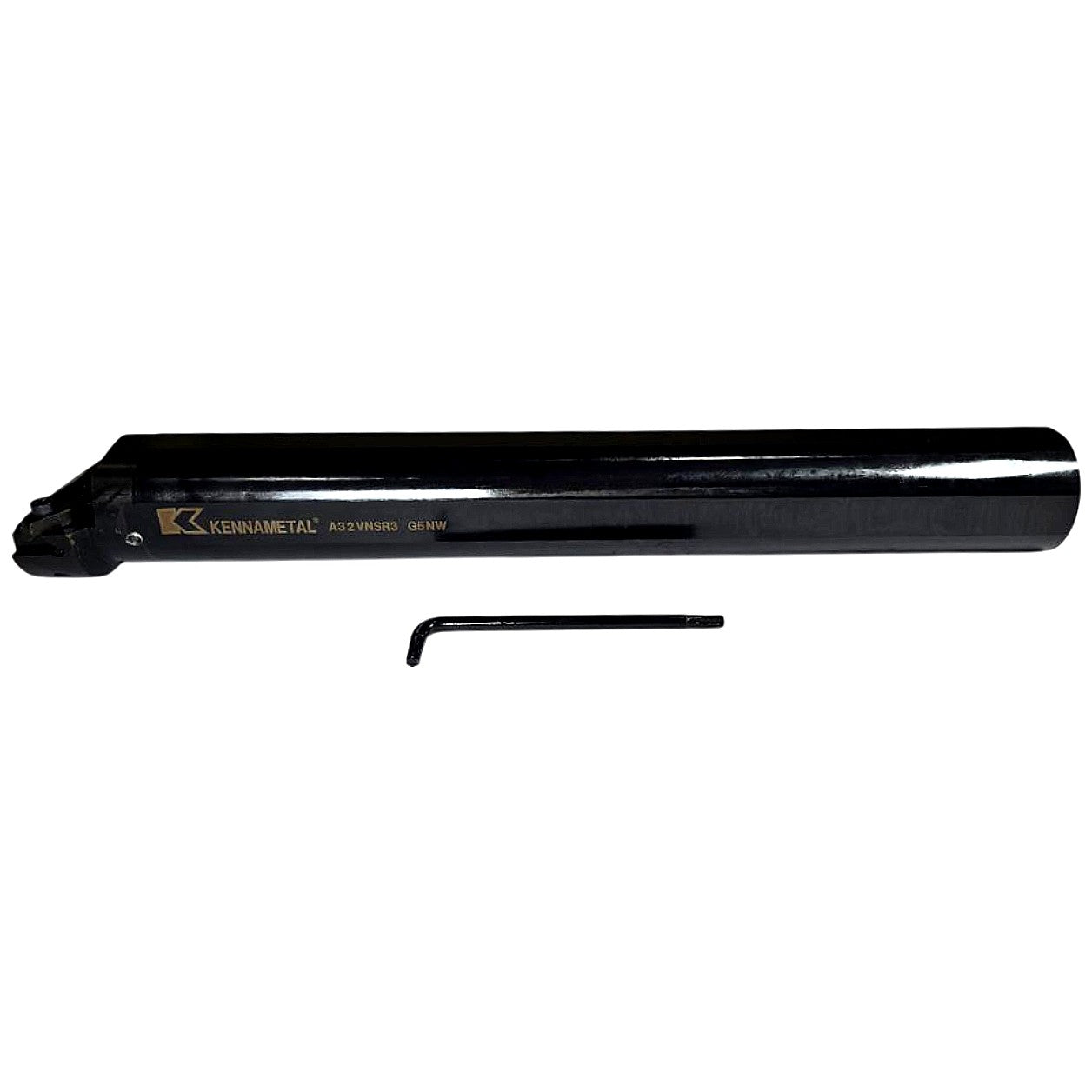

The Kennametal A32VNSR3 (item# 1094919) is a new Top Notch indexable boring bar from Kennametal's Top Notch tooling system, designed for internal turning and boring operations on CNC and manual lathes. Decoded from the part number: "A" = round shank (through-coolant), "32" = 2.000 in (32/16") shank diameter, "V" = 35° insert pocket angle compatible with VNMG-style inserts, "N" = 0° normal clearance angle, "S" = screw clamp insert lock style, "R" = right-hand cutting direction, "3" = insert size 3 (suits VNMG 332 inserts). Per the Kennametal label, the bar has a 2.00 in shank diameter and 16.00 in overall length, and is manufactured in the USA. The round steel shank features an internal through-coolant channel for direct coolant delivery to the cutting zone, and the angled head provides 35° lead angle geometry suited for profile turning, facing, and chamfering in bored holes. A torx/hex key wrench is included for insert clamping screw actuation.
Product Specifications
| Brand | Kennametal |
| MPN | A32VNSR3 |
| Item Number | 1094919 |
| Shank Diameter | 2.000 in |
| Overall Length (OAL) | 16.00 in |
| Shank Style | Round (through-coolant) |
| Cutting Direction | Right Hand |
| Insert Shape | V — 35° diamond (VNMG) |
| Insert Clearance Angle | N — 0° |
| Insert Clamping Style | S — Screw clamp (Top Notch) |
| Insert Size | 3 (VNMG 332 / VNMG 16 04 08) |
| Lead Angle | 35° |
| Through Coolant | Yes |
| Country of Origin | USA |
| Condition | New |
| Tooling System | Kennametal Top Notch |
