Kennametal AADE0375J3BRC K600 3/8" 3-Flute R.06 Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

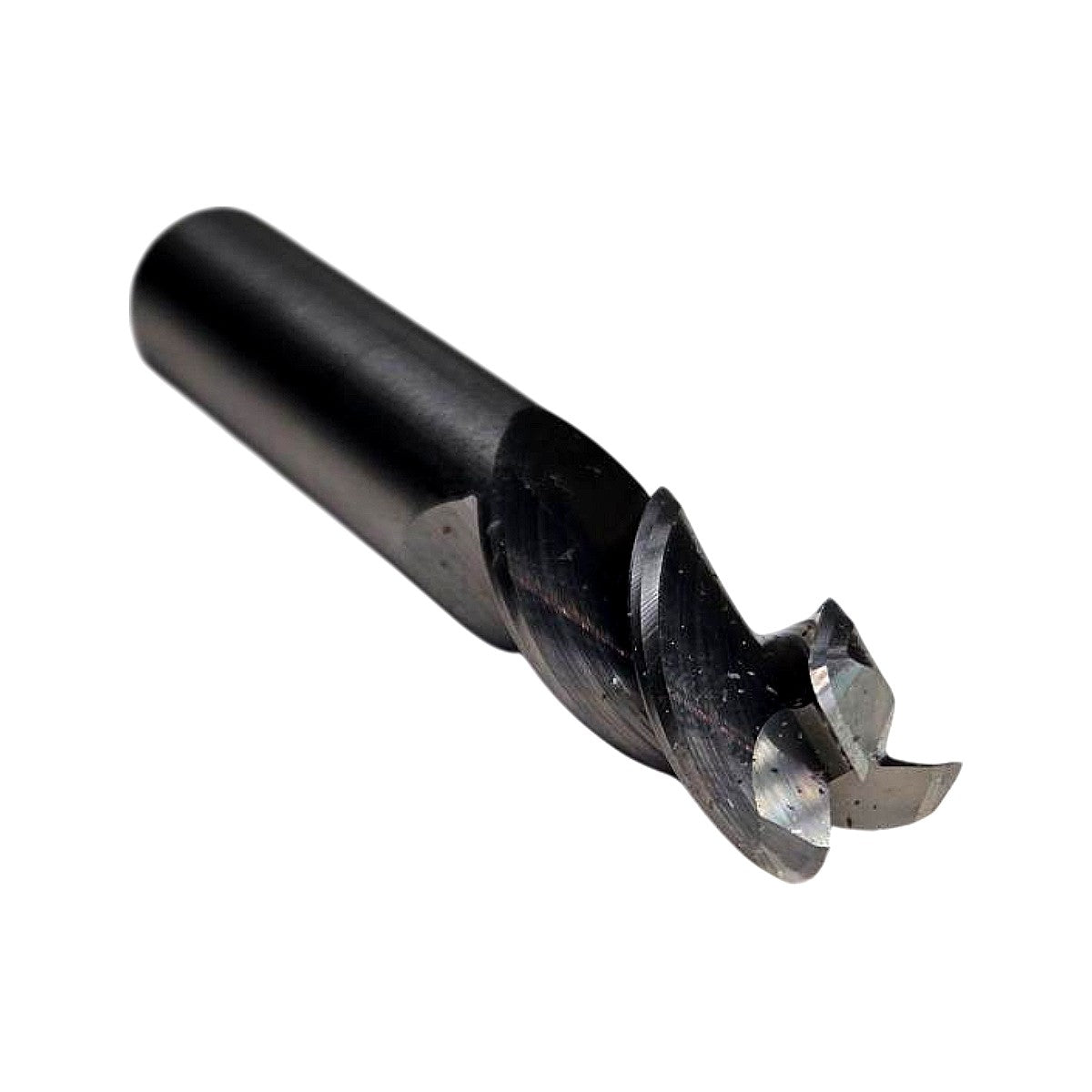

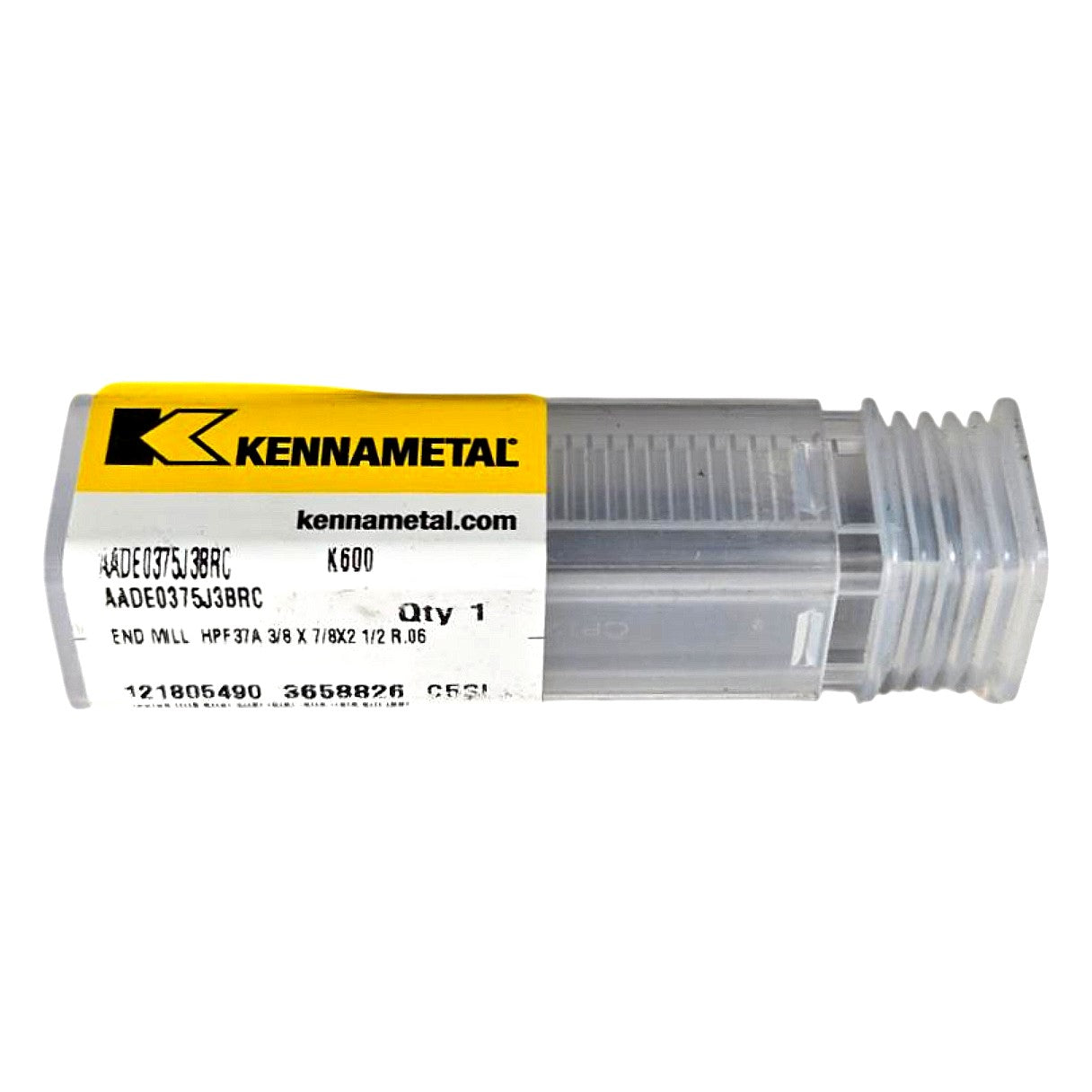

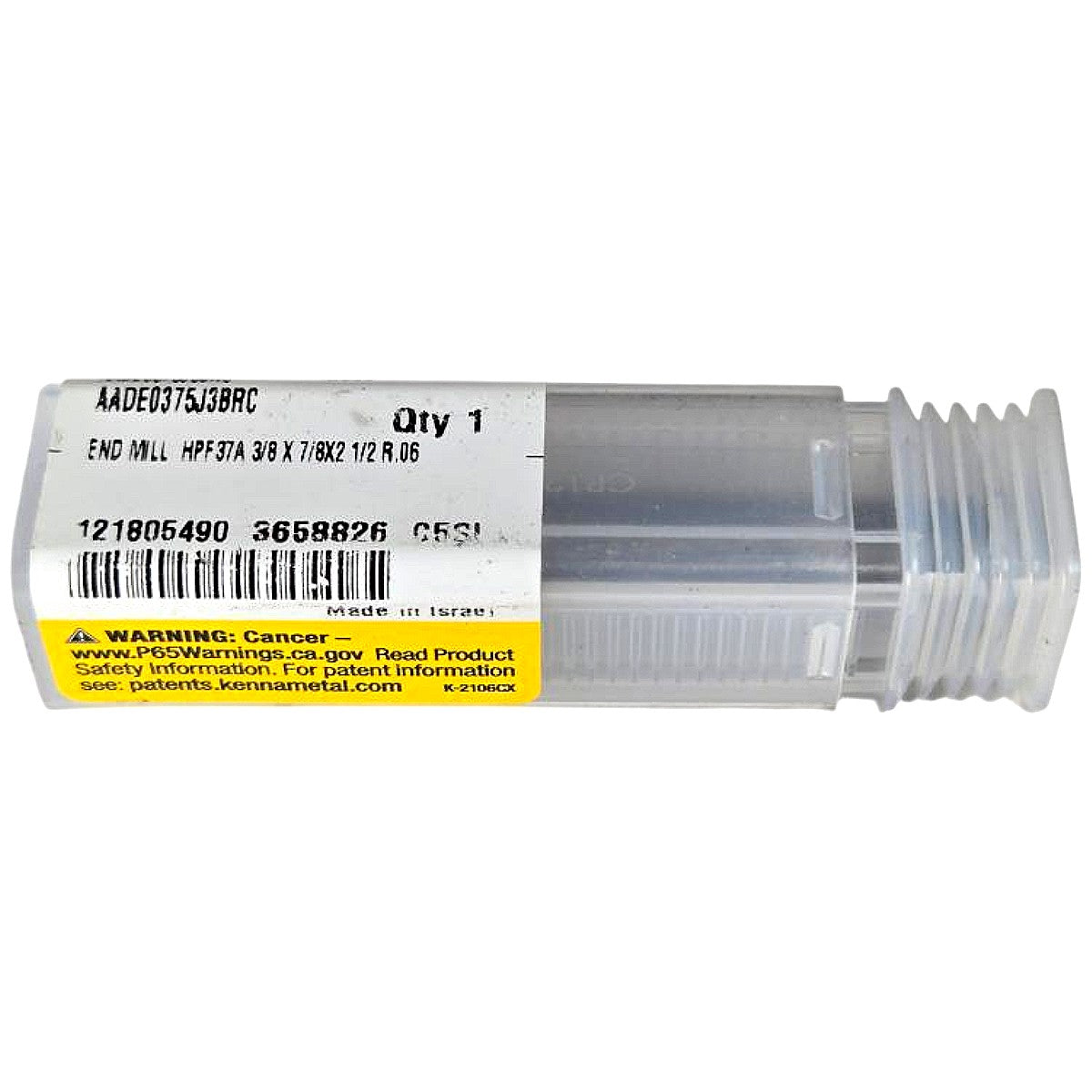

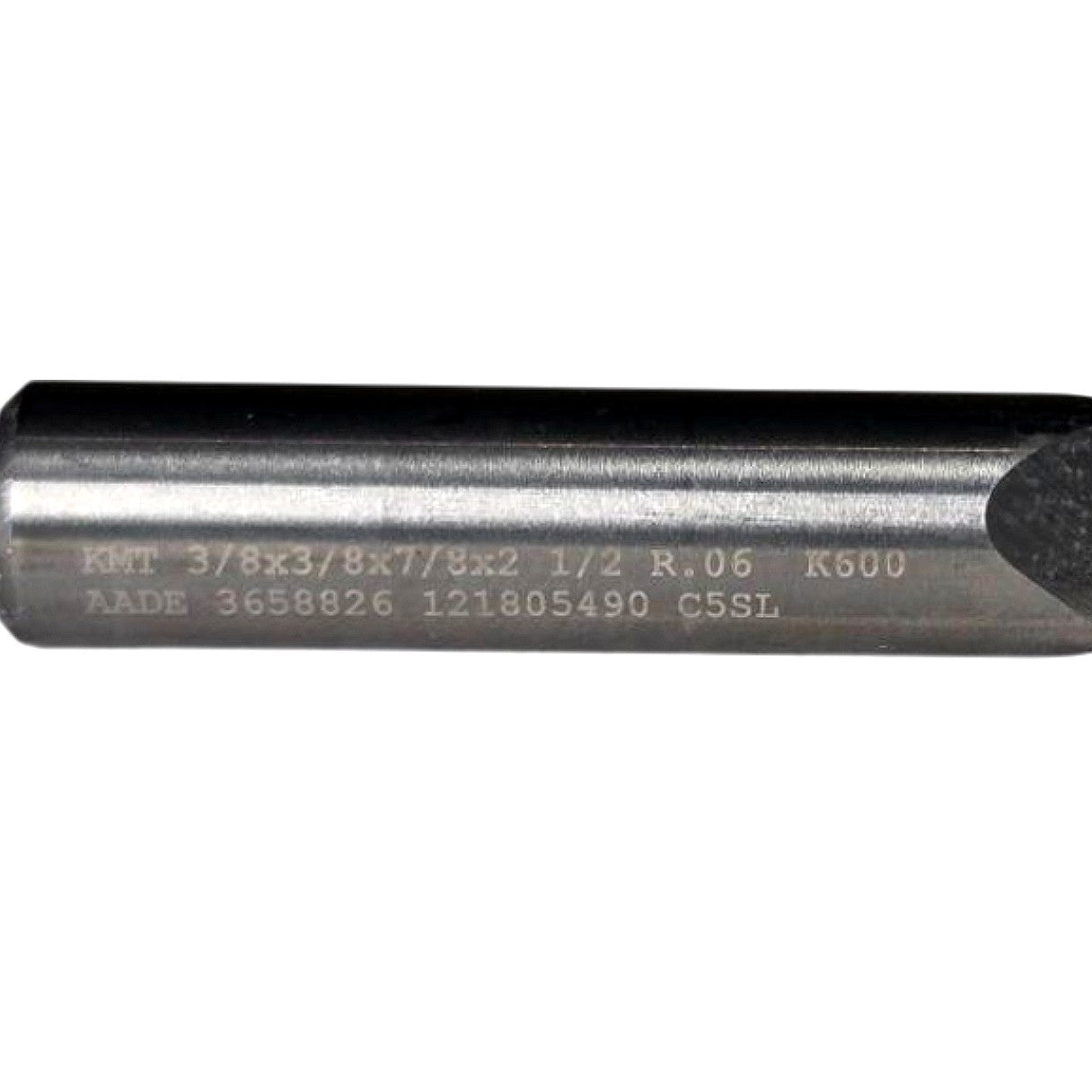

This is a new Kennametal AADE0375J3BRC solid carbide end mill from the HPF37A series, ground in K600 submicron carbide grade with a C5SL (AlTiN-family) PVD coating optimized for high-performance ferrous and hardened steel milling. The tool features a 3/8 in (0.375 in) cutting diameter, 3-flute geometry with a 0.060 in corner radius, 7/8 in length of cut, and 2-1/2 in overall length on a 3/8 in straight shank — all dimensions confirmed directly from the label and shank engraving. The HPF37A designation identifies Kennametal's high-feed / high-performance variable-helix geometry engineered to reduce chatter and maximize metal removal rates in steels, stainless, and cast iron; the 3-flute configuration balances chip evacuation with cutting stability in slotting and profiling. Compatible with standard 3/8 in ER, Weldon, or shrink-fit toolholders; the 0.060 in corner radius protects the cutting edge and improves surface finish in shoulder milling and 3D contouring. Manufactured in Israel per label; catalog/order number 3658826 and item number 121805490 confirmed from packaging.
Product Specifications
| Brand | Kennametal |
| MPN | AADE0375J3BRC |
| Series | HPF37A |
| Catalog # | 3658826 |
| Item # | 121805490 |
| Grade | K600 |
| Coating | C5SL (PVD AlTiN-family) |
| Material | Solid Carbide (submicron) |
| Number of Flutes | 3 |
| Cutting Diameter | 3/8 in (0.375 in) |
| Shank Diameter | 3/8 in (0.375 in) |
| Length of Cut (LOC) | 7/8 in (0.875 in) |
| Overall Length (OAL) | 2-1/2 in (2.500 in) |
| Corner Radius | 0.060 in (R.06) |
| End Type | Corner Radius (Bull Nose) |
| Shank Type | Straight Shank w/ Weldon Flat |
| Country of Origin | Israel |
| Condition | New |
