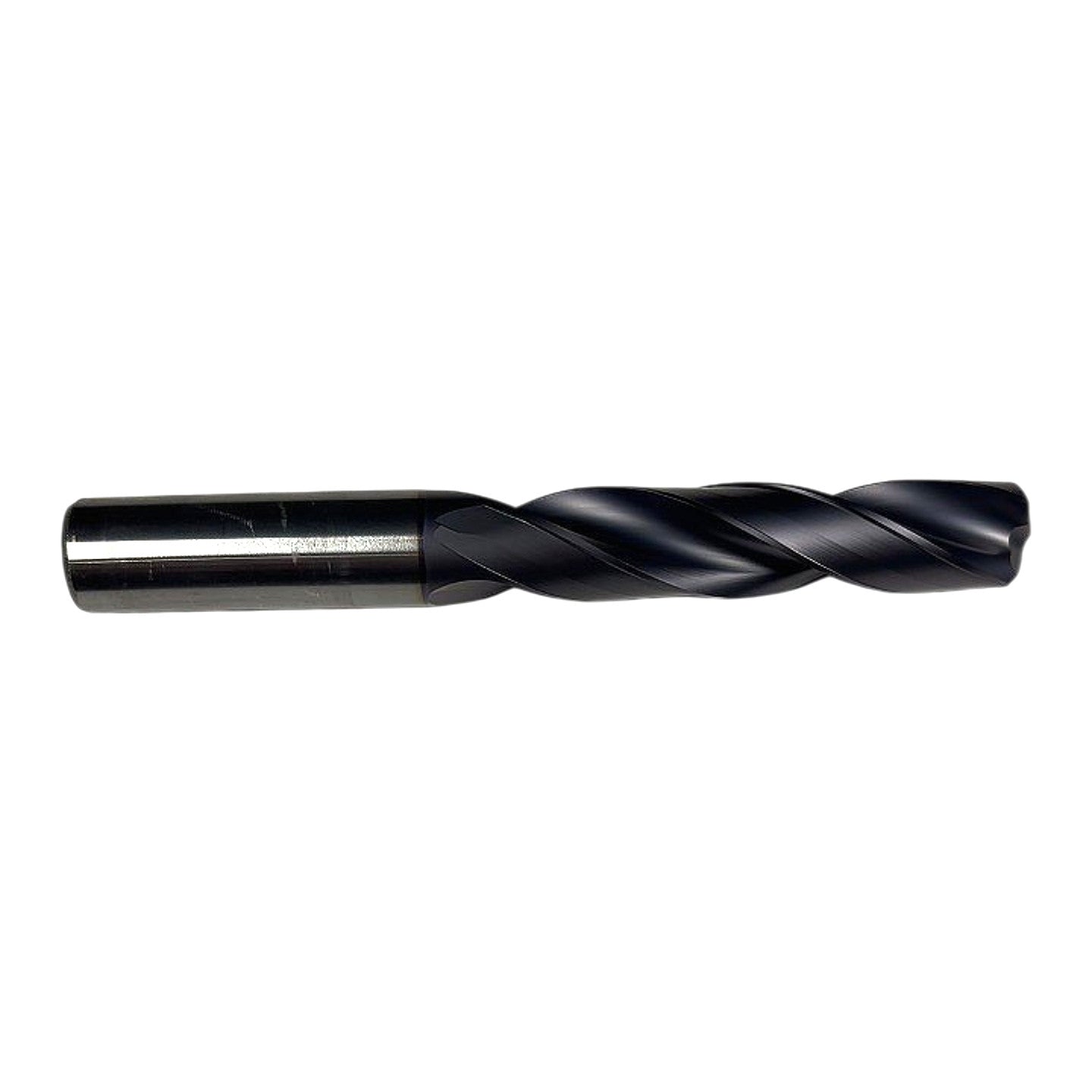

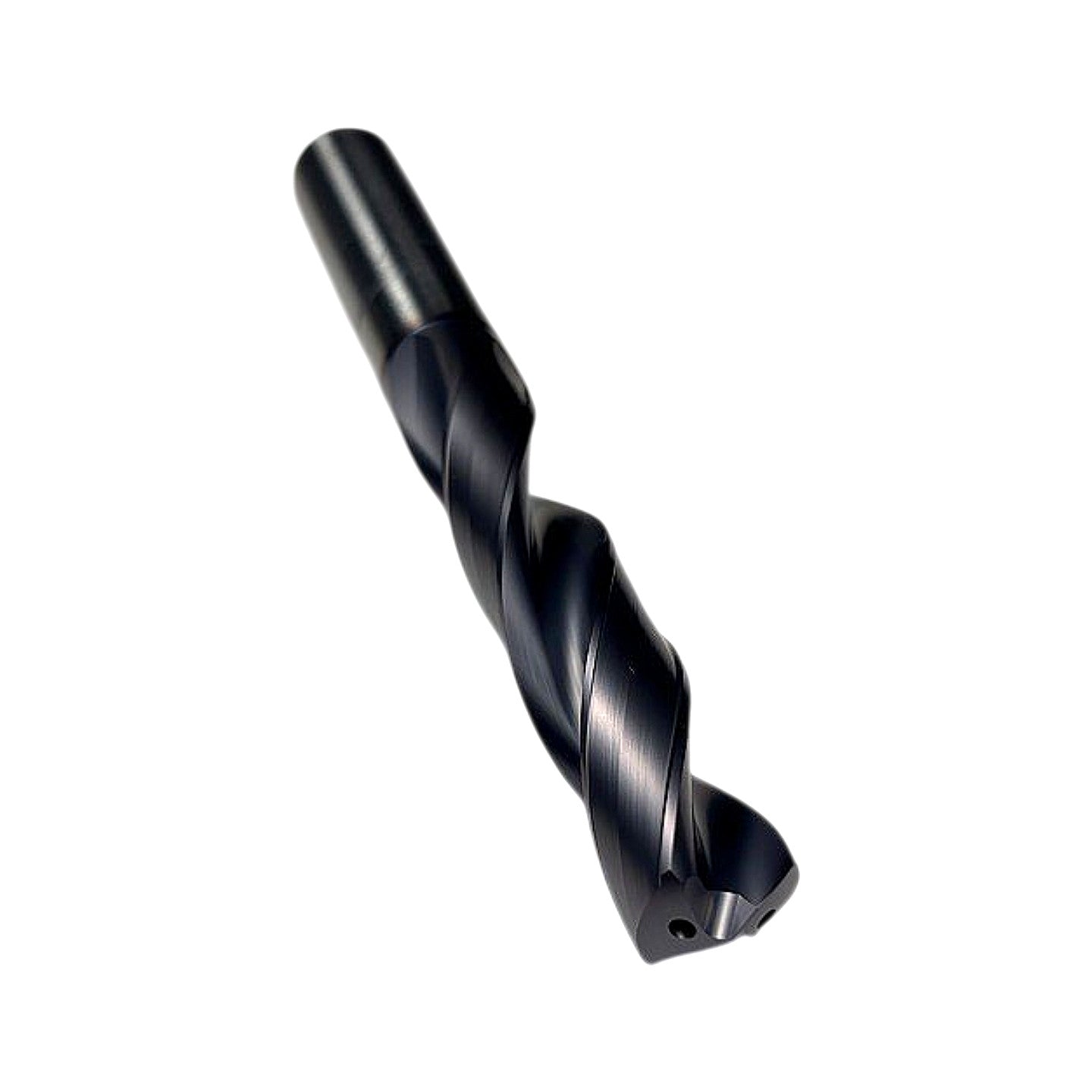

The Kennametal B977A15875 is a new, solid carbide through-coolant drill from Kennametal's B977 series, manufactured in Germany and ground in grade KC7315 — a PVD-coated submicron carbide grade engineered for high-productivity drilling in steel, cast iron, and stainless steel. The MPN decodes as follows: "B977" identifies the Beyond™ drill product line (cylindrical shank, through-coolant, stub/jobber length), "A" denotes a cylindrical (straight) shank, and "15875" encodes the diameter of 15.875 mm (5/8 in). KC7315 is Kennametal's PVD TiAlN-based coating on a fine-grain carbide substrate, providing high hardness and thermal resistance for dry or minimum-quantity lubrication (MQL) machining. The drill features internal through-coolant holes visible at the cutting tip, a 140° split point for self-centering, and a black oxide/PVD-finished flute body; it is designed for use in CNC machining centers with Weldon or straight-shank ER/hydraulic chuck toolholders sized for 15.875 mm (5/8 in) shank.
Product Specifications
| Brand | Kennametal |
| MPN | B977A15875 |
| Grade | KC7315 |
| Diameter | 15.875 mm (5/8 in) |
| Shank Type | Straight (Cylindrical) |
| Shank Diameter | 15.875 mm (5/8 in) |
| Coolant | Through-coolant |
| Material | Solid Carbide |
| Coating | PVD TiAlN (KC7315) |
| Point Angle | 140° |
| Point Type | Split Point |
| Country of Origin | Germany |
| Condition | New |
| Product Line | Beyond Drill B977 |
| Kennametal Item # | 2658236 |
