Kennametal CCGT09T302LF KC5025 Carbide Turning Insert (5pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

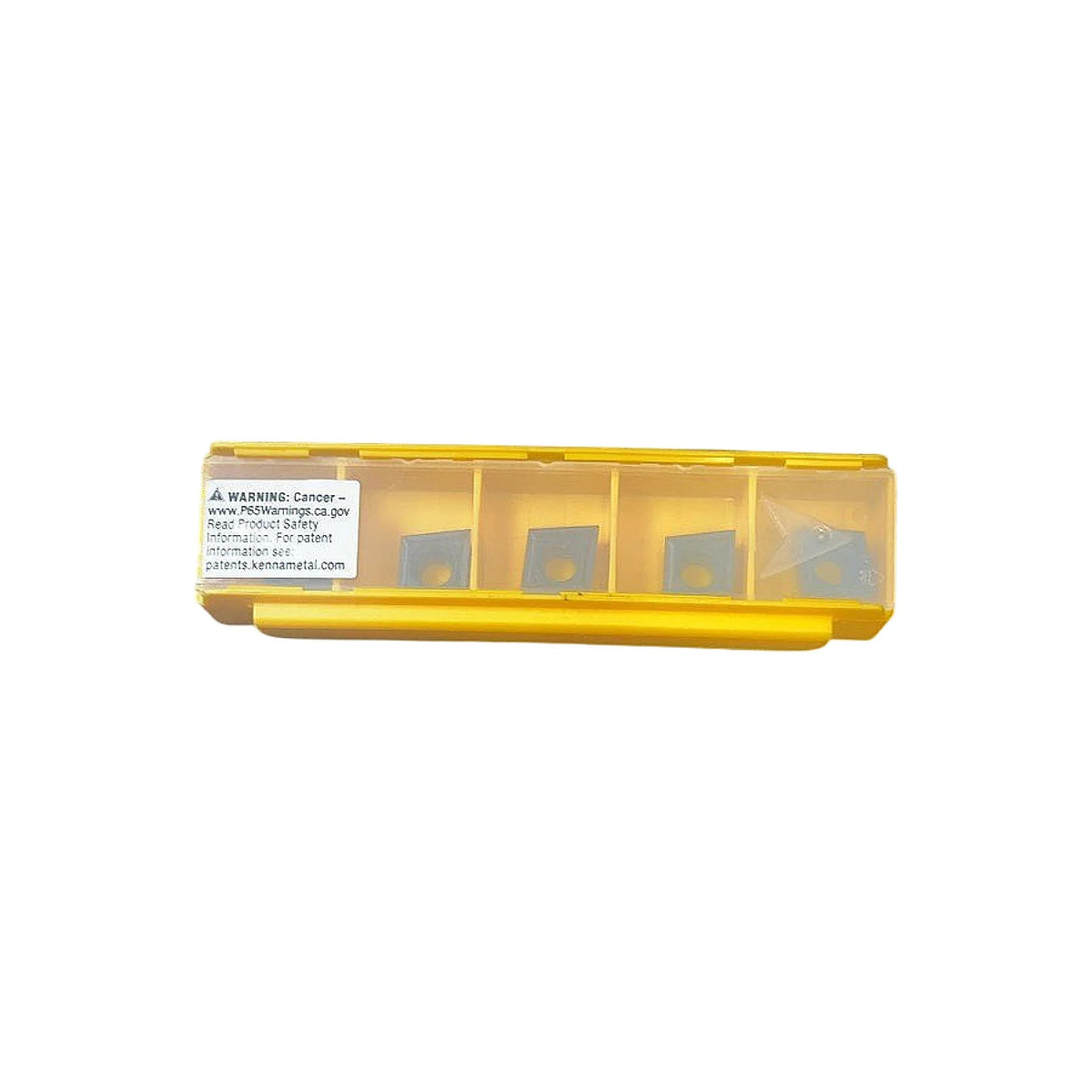

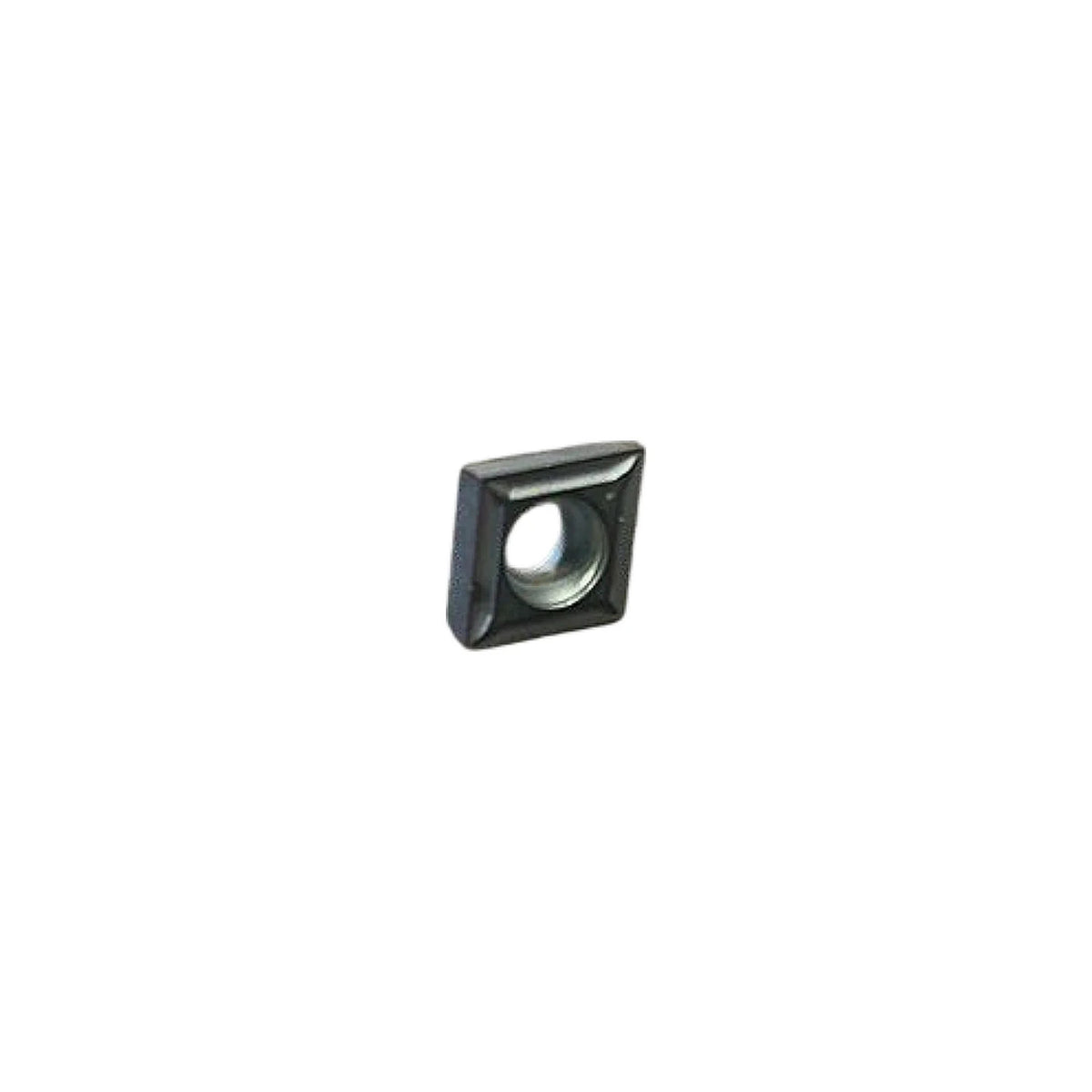

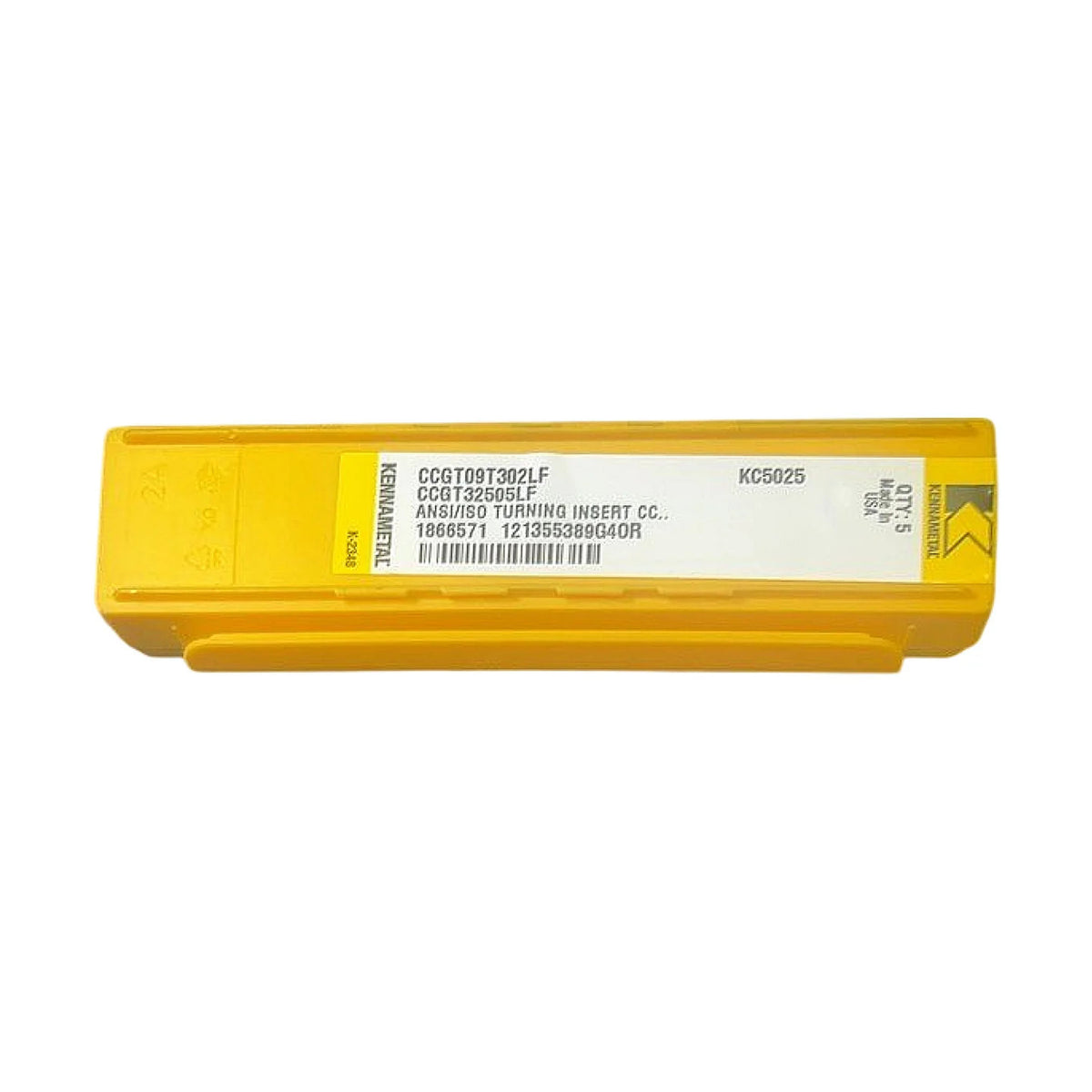

This listing is for a new, factory-sealed box of 5 Kennametal CCGT09T302LF turning inserts in grade KC5025, made in the USA. The CCGT designation decodes as: 80° diamond (rhombic) shape, 7° clearance angle, close tolerance (G-class), top-chip-forming geometry with central hole, 09 = 9.525 mm (3/8 in) inscribed circle, T3 = 3.97 mm thickness, 02 = 0.2 mm nose radius, LF chipbreaker. The LF chipbreaker is a light-finishing geometry engineered for low cutting forces and superior surface finish, particularly suited for turning non-ferrous metals, aluminum alloys, and other soft or gummy materials. KC5025 is an uncoated, ultra-fine-grain carbide grade optimized for finishing cuts on aluminum, copper, brass, and plastics, providing a sharp, polished cutting edge that resists built-up edge. Compatible toolholders use CCMT/CCGT 09T3 pockets; typical ANSI holders include SCLCR/L and SDJCR/L styles in 3/4 in and 1 in shank sizes.
Product Specifications
| Brand | Kennametal |
| MPN (ANSI) | CCGT09T302LF |
| MPN (ISO) | CCGT32505LF |
| Grade | KC5025 |
| Insert Shape | 80° Diamond (C) |
| Clearance Angle | 7° (C) |
| Tolerance Class | G (close tolerance) |
| Insert Type / Hole | T - w/ hole, chipbreaker both faces |
| Inscribed Circle (IC) | 9.525 mm (3/8 in) |
| Thickness | 3.97 mm (5/32 in) |
| Nose Radius | 0.2 mm (1/64 in) |
| Chipbreaker | LF (light finishing) |
| Coating | Uncoated |
| Substrate | Ultra-fine grain carbide |
| Country of Origin | USA |
| Quantity per Box | 5 |
| Application Materials | Aluminum, copper, brass, plastics, non-ferrous |
| Operation | Light finishing turning |
| Compatible Holder Style | SCLCR/L, SDJCR/L (CCGT 09T3 pocket) |
| Condition | New |
