Kennametal DFSP1313R3SSF125 1.313in 3xD RH Indexable Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

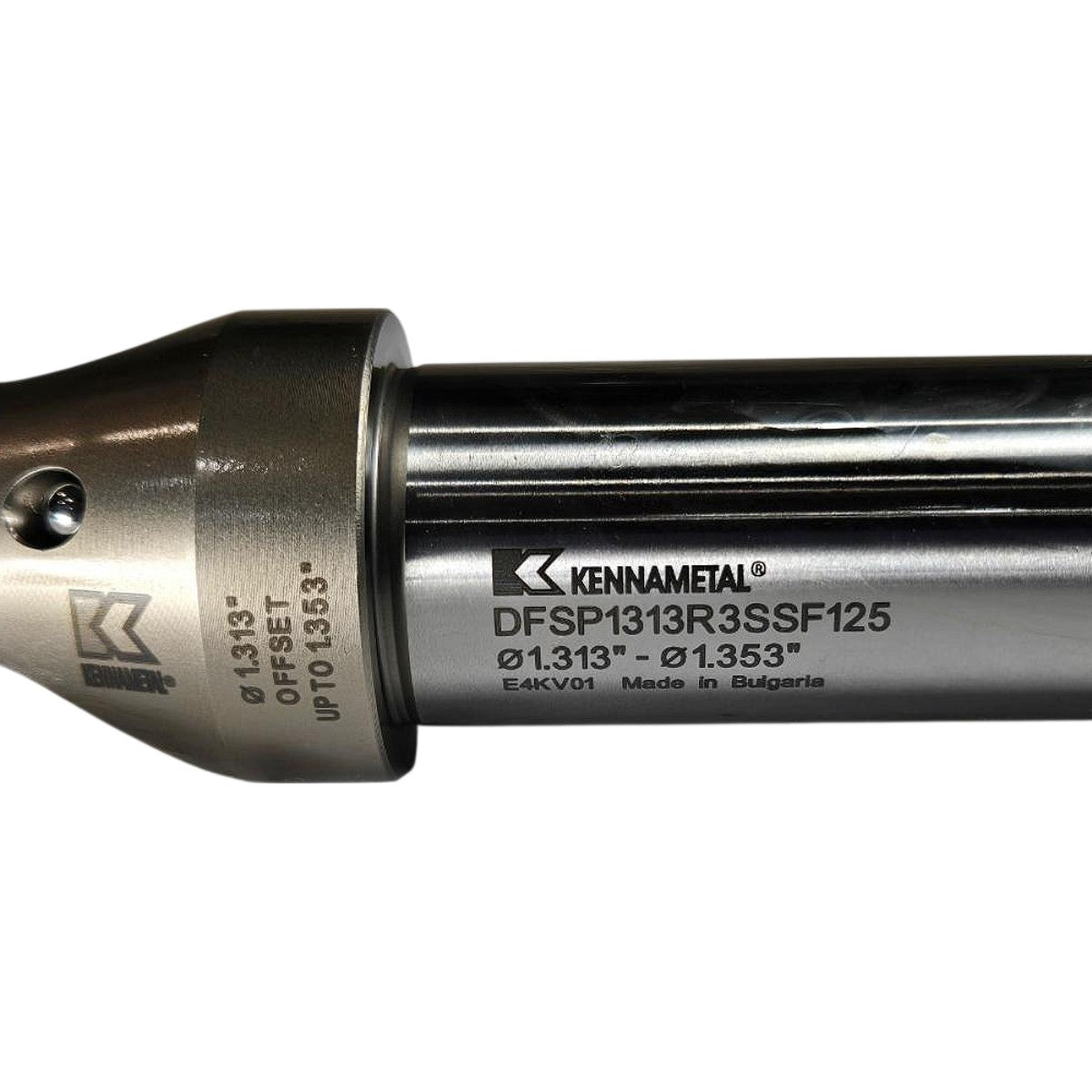

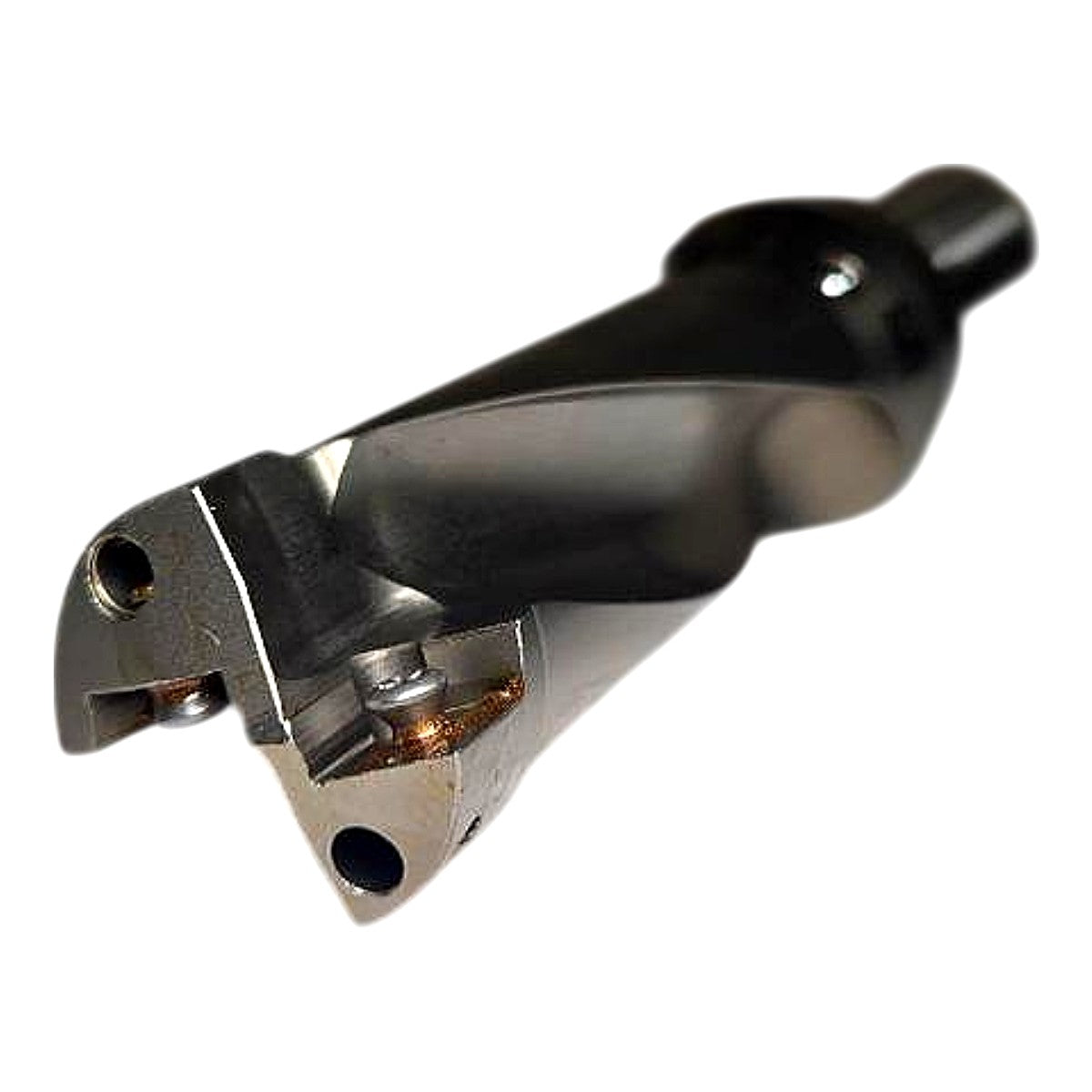

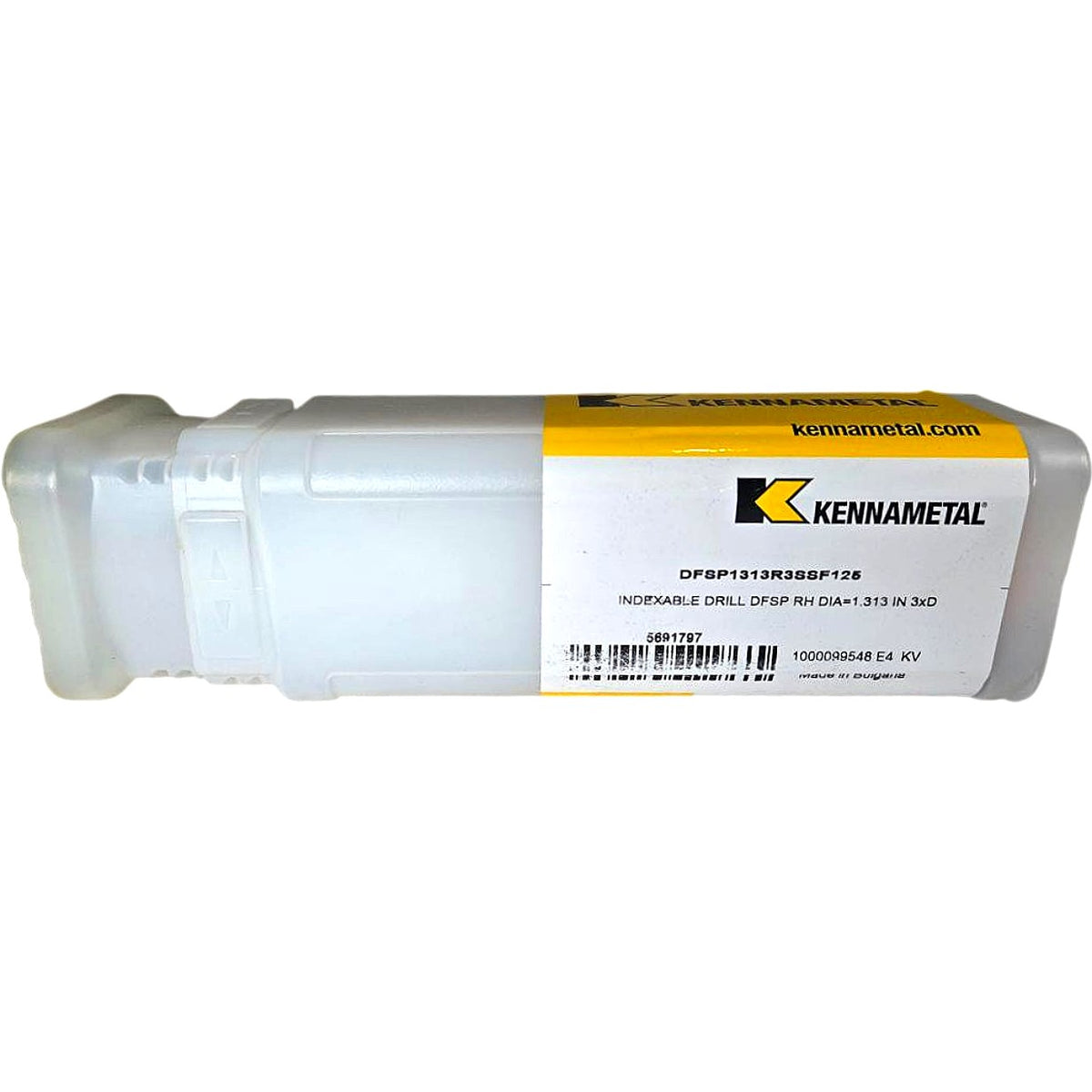

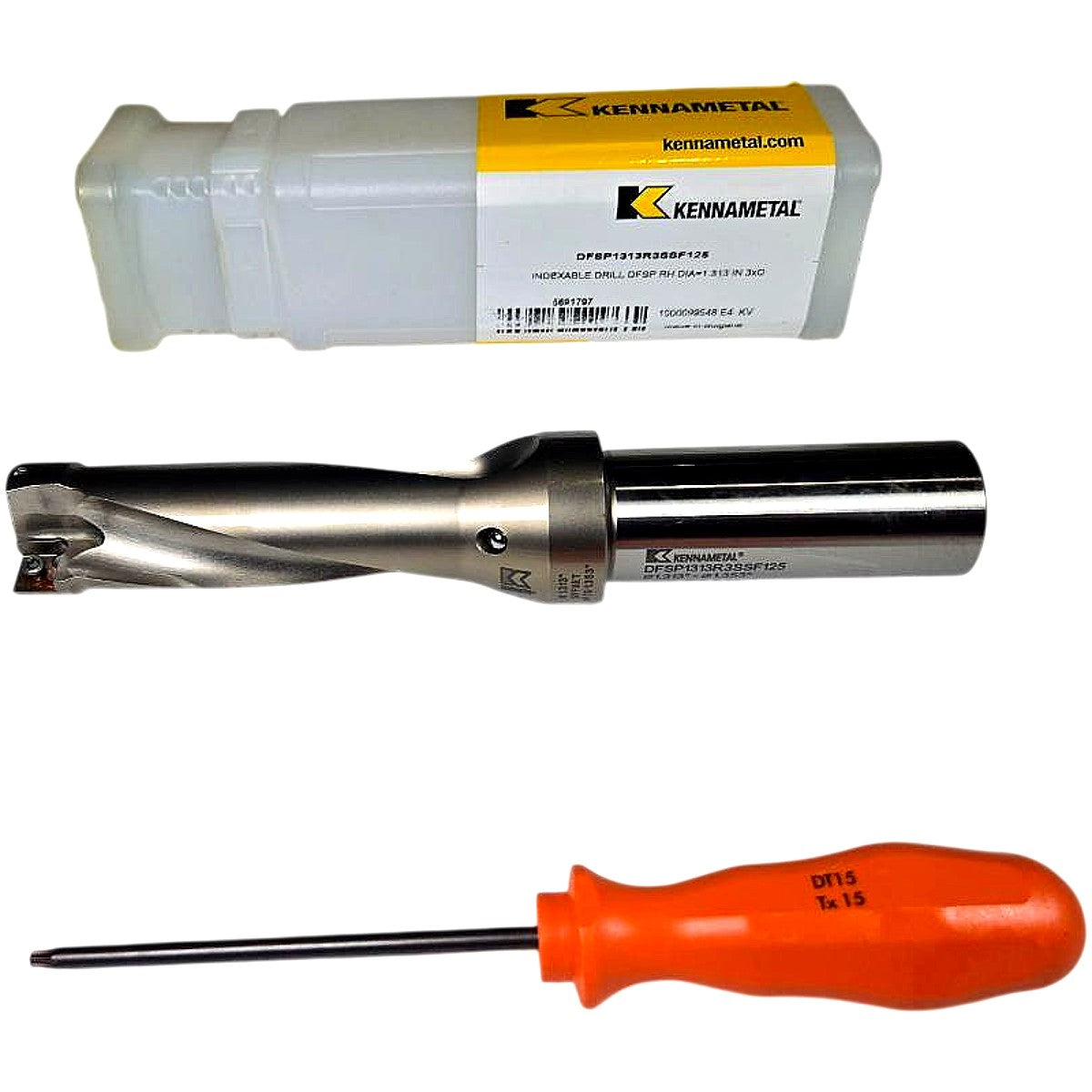

This Kennametal DFSP1313R3SSF125 (catalog 5691797) is a new right-hand indexable insert drill from the DFSP series with a 1.313 in (33.35 mm) nominal drill diameter and a 3xD hole depth capability. The body is marked for a diameter range of 1.313 in to 1.353 in, with an offset adjustment allowing diameters up to 1.353 in. It has a straight cylindrical shank (the F125 suffix indicates a 1.25 in shank) and two helical flutes. The drill is made in Bulgaria and ships in the original Kennametal packaging with a DT15 Torx Plus 15 driver for the insert clamp screws. It is intended for use with replaceable indexable drill inserts, and the visible coolant-through features and insert pockets are designed for machining on CNC lathes and machining centers.
Product Specifications
| Brand | Kennametal |
| MPN | DFSP1313R3SSF125 |
| Catalog Number | 5691797 |
| EDP Number | 1000099548 |
| Series | DFSP |
| Drill Diameter | 1.313 in |
| Diameter Range | 1.313 in - 1.353 in |
| Hole Depth Ratio | 3xD |
| Hand | Right Hand |
| Shank Diameter | 1.25 in |
| Shank Type | Straight Cylindrical |
| Drill Type | Indexable Insert Drill |
| Number of Flutes | 2 |
| Operation | Drilling |
| Country of Origin | Bulgaria |
| Insert Screw Driver | Torx Plus 15 (DT15) |
| Included | Drill body, DT15 Torx Plus 15 driver |
