Kennametal GOPR4BN0156S031HA KCU20 5/32 in 4 Flute Ball Nose End Mill
Regular price
$34.20
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

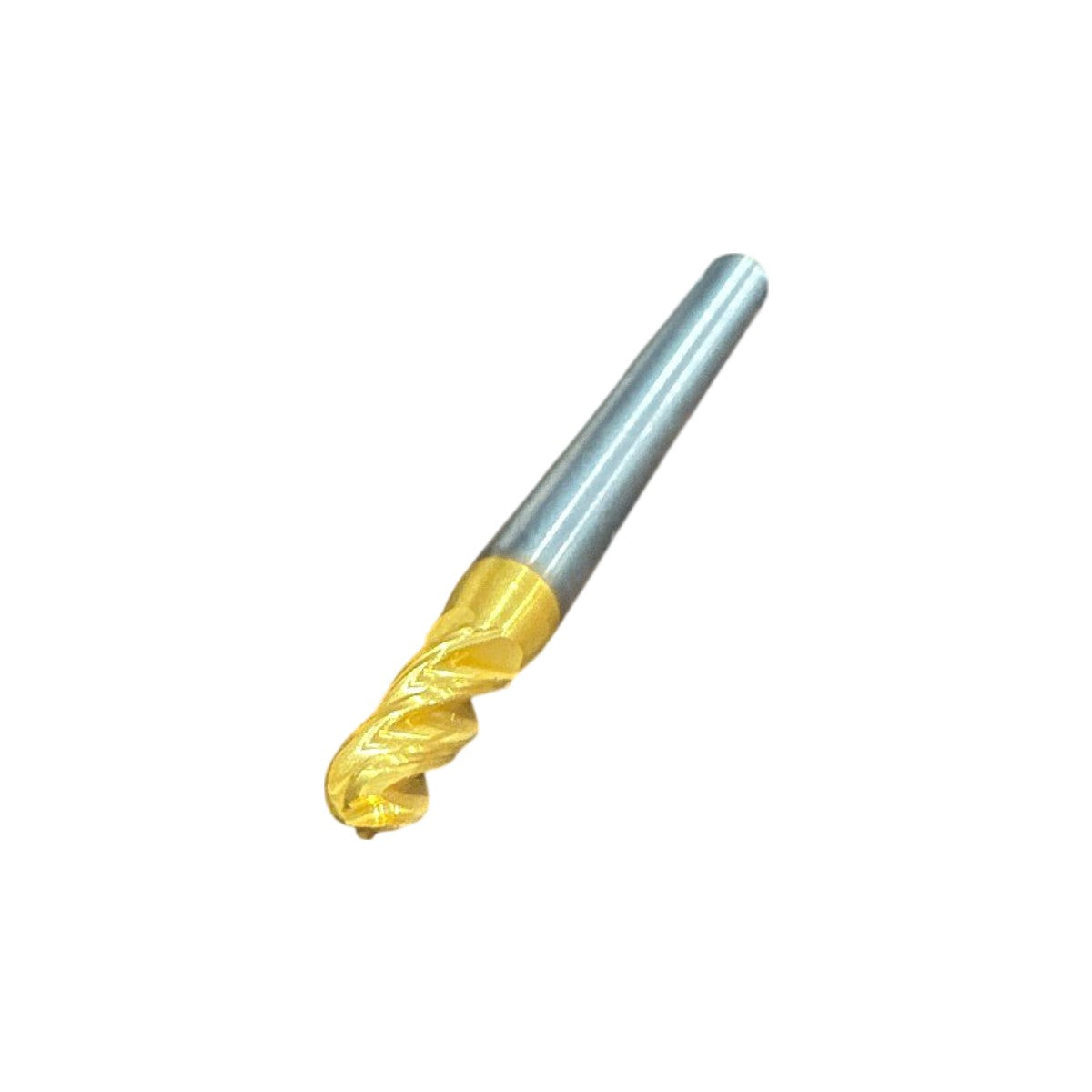

This new Kennametal GOMill Pro ball nose end mill, part number GOPR4BN0156S031HA in grade KCU20 (catalog number 7301206), has a 5/32 in cutting diameter, 3/16 in shank diameter, 5/16 in length of cut and 2 in overall length. The GOPR4 designation identifies a 4-flute GOMill Pro design, and the BN designation identifies a ball nose profile for contour and 3D milling work. The tool has a gold-colored coated flute section and a bare ground shank, and it was made in Vietnam. It is suited to CNC milling and profiling in a collet or milling chuck.
Product Specifications
| Brand | Kennametal |
| MPN | GOPR4BN0156S031HA |
| Catalog Number | 7301206 |
| Series | GOMill Pro |
| Grade | KCU20 |
| Cutting Diameter | 5/32 in |
| Shank Diameter | 3/16 in |
| Length of Cut | 5/16 in |
| Overall Length | 2 in |
| End Type | Ball Nose |
| Ball Radius | 5/64 in (full radius) |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Coating | Coated (KCU20) |
| Coating Color | Gold |
| Operation | Milling, Contouring, 3D Profiling |
| Country of Origin | Vietnam |
