Kennametal KCP10 DWG 62029911 Kenloc RN Roughing Negative Carbide Insert 5pc

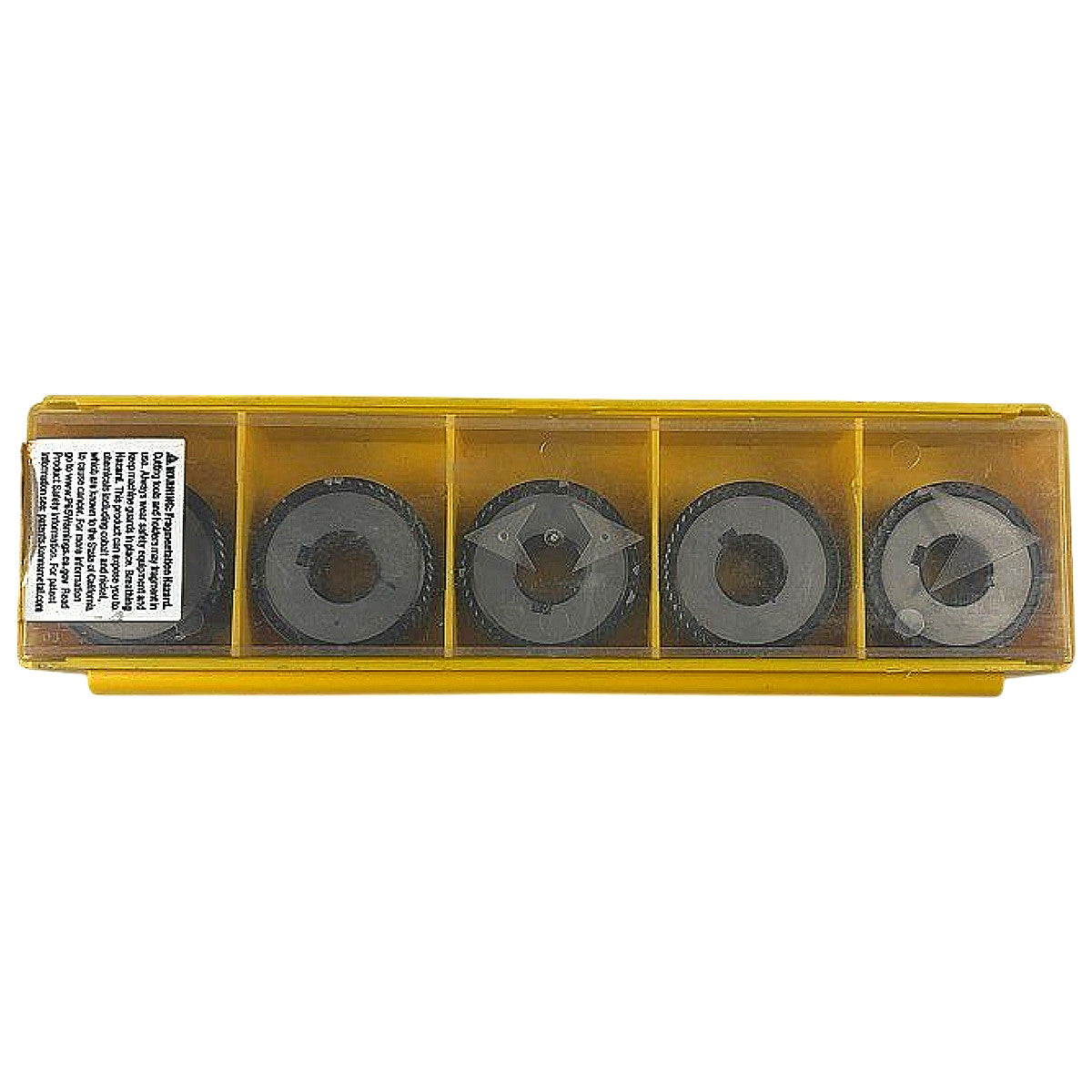

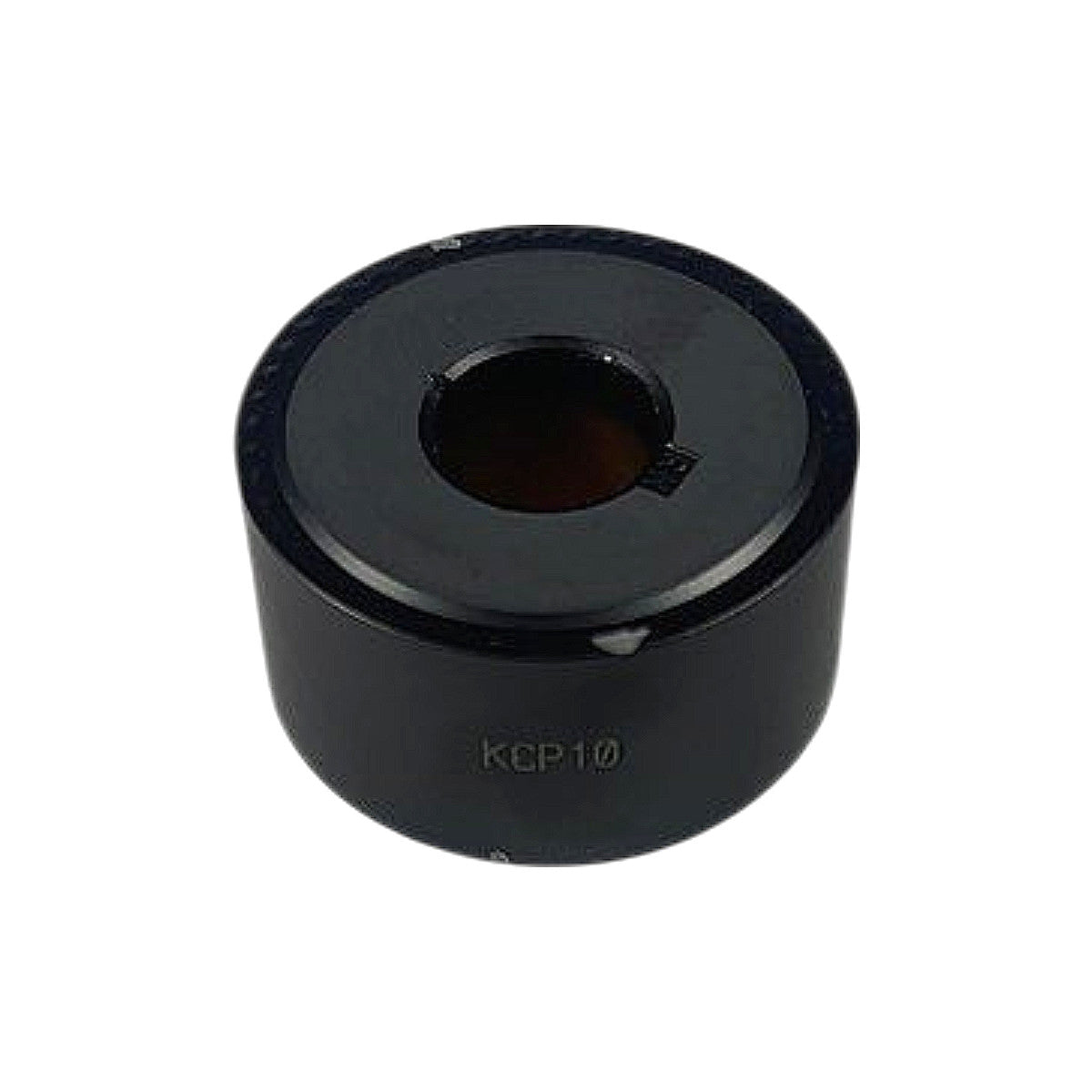

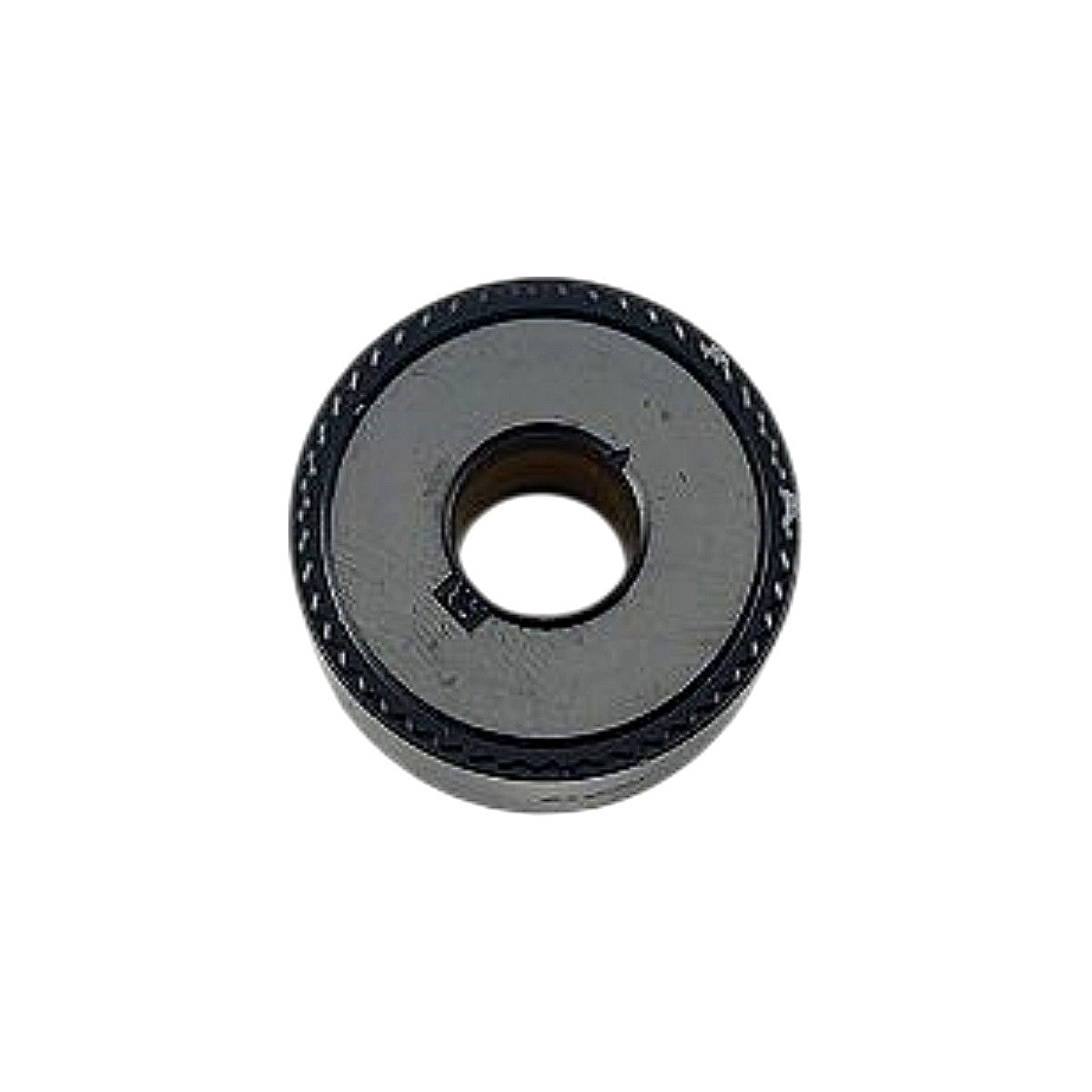

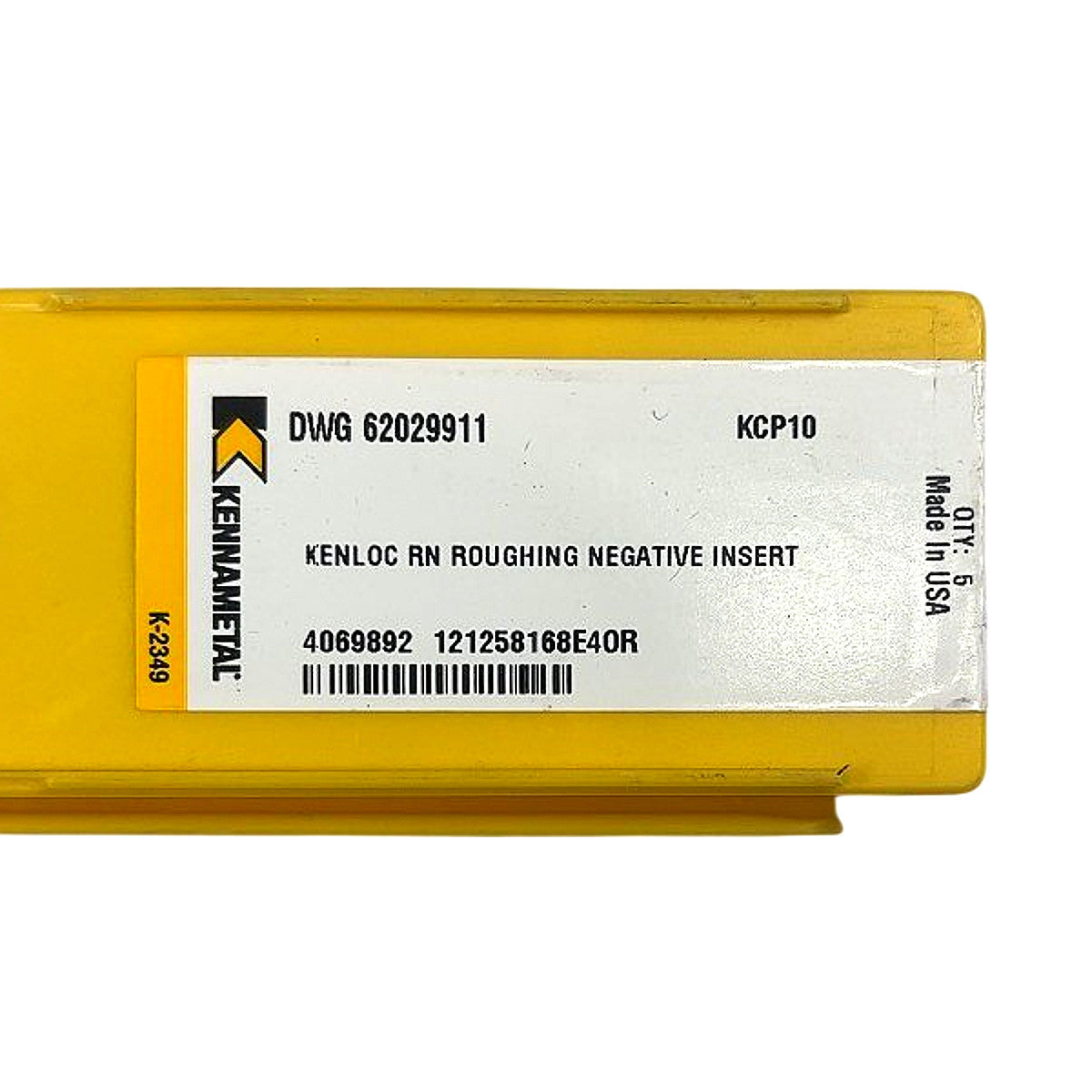

This is a new, factory-sealed package of 5 Kennametal Kenloc RN Roughing Negative carbide milling inserts in grade KCP10, drawing number DWG 62029911 (Kennametal part number 4069892, encoded spec string 121258168E4OR), manufactured in the USA. KCP10 is a CVD-coated (TiCN/Al₂O₃) coated carbide grade engineered for high-productivity roughing of steel and cast iron at elevated feed rates, offering superior crater and flank wear resistance under interrupted and continuous heavy cutting conditions. The round (RN) insert geometry is double-sided and negative rake, providing multiple usable cutting edges and the robust edge strength required for aggressive depth-of-cut roughing passes; the knurled perimeter on the insert OD is characteristic of Kennametal's Kenloc positive-drive seating system, which prevents insert rotation under high cutting forces. These inserts are designed for use in Kennametal Kenloc round-insert milling cutter bodies and are suited for face milling, shoulder milling, and copy milling of carbon steels, alloy steels, and gray/nodular cast irons.

Product Specifications
