Kennametal KSEM0672HP KC7235 SE-Drill Modular Carbide Drilling Insert
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

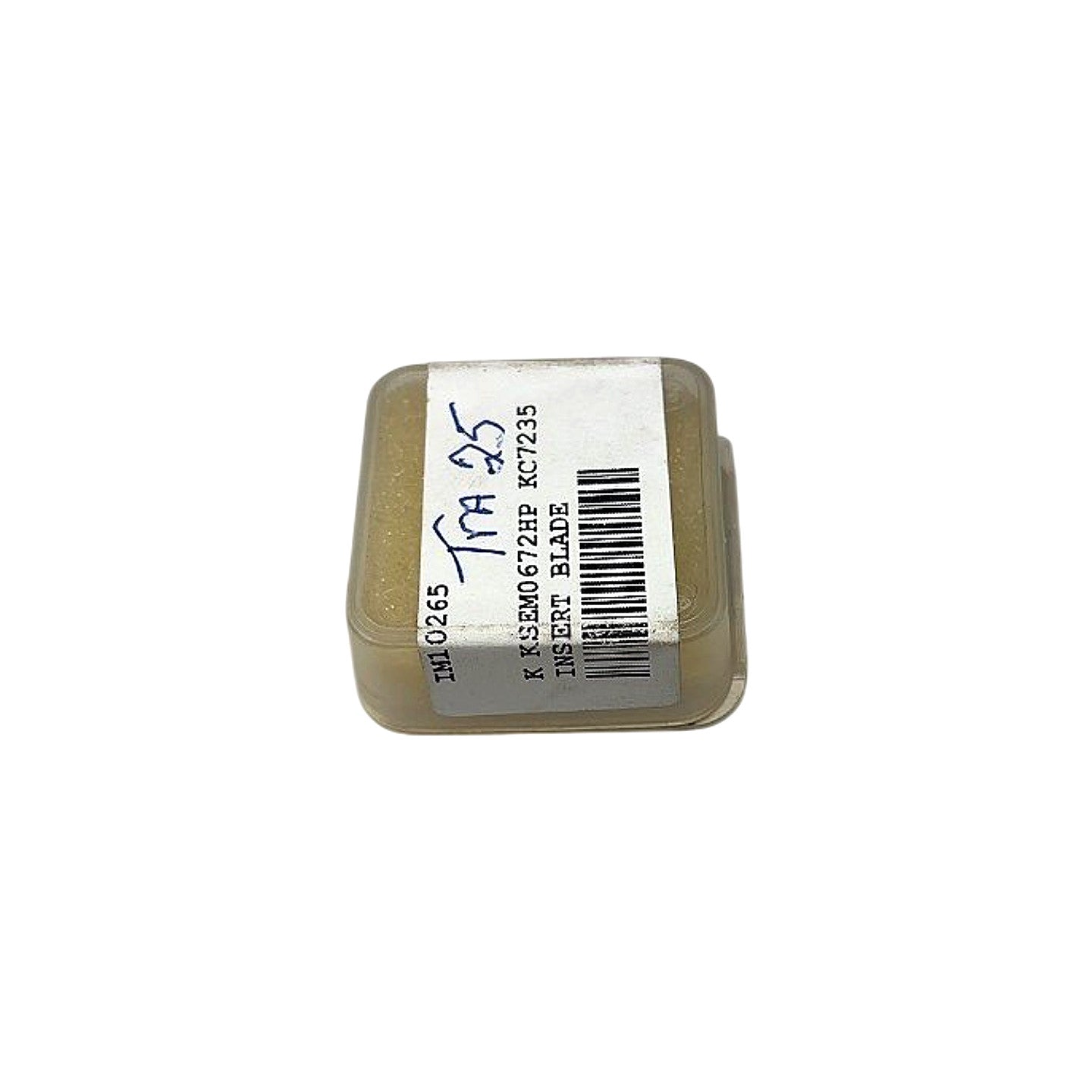

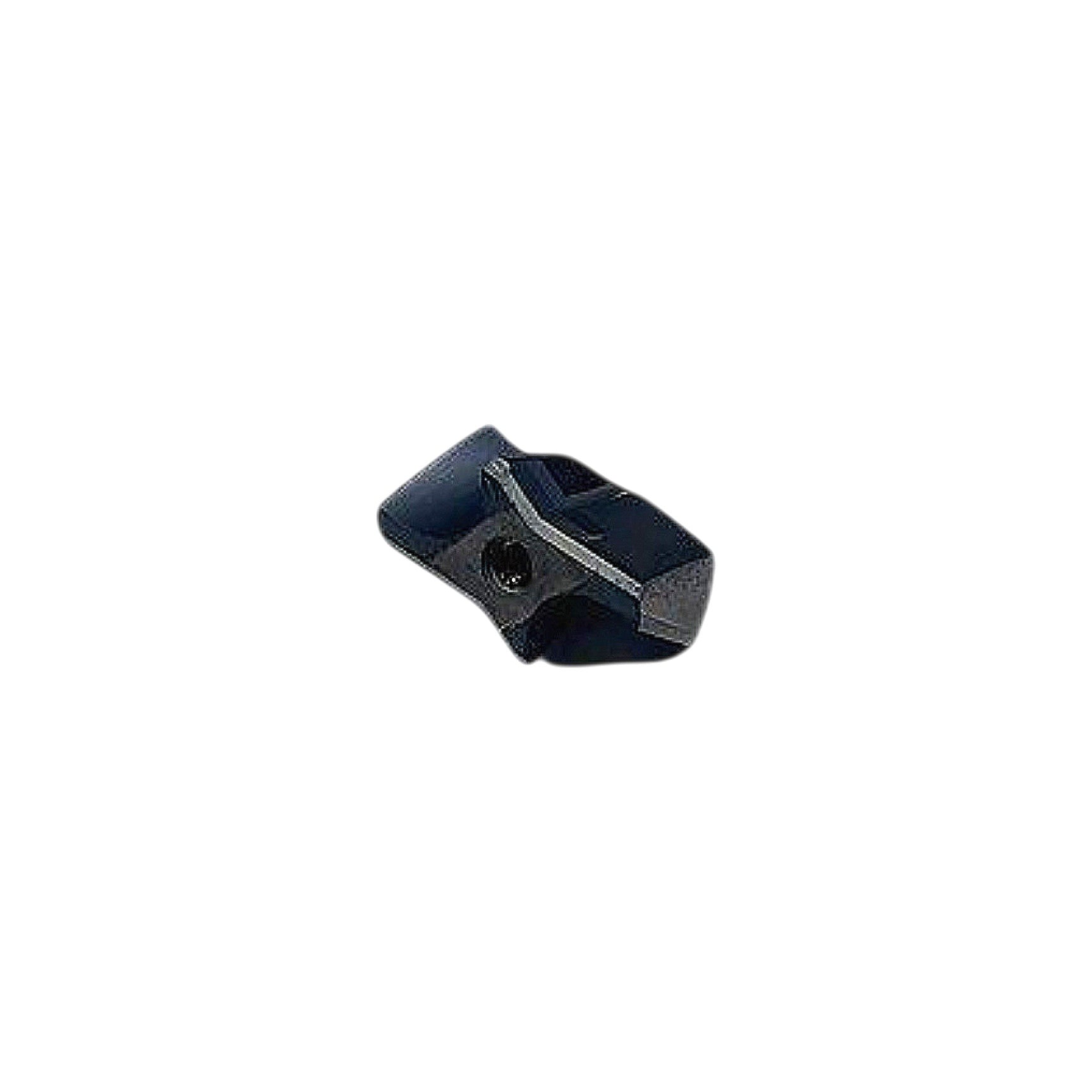

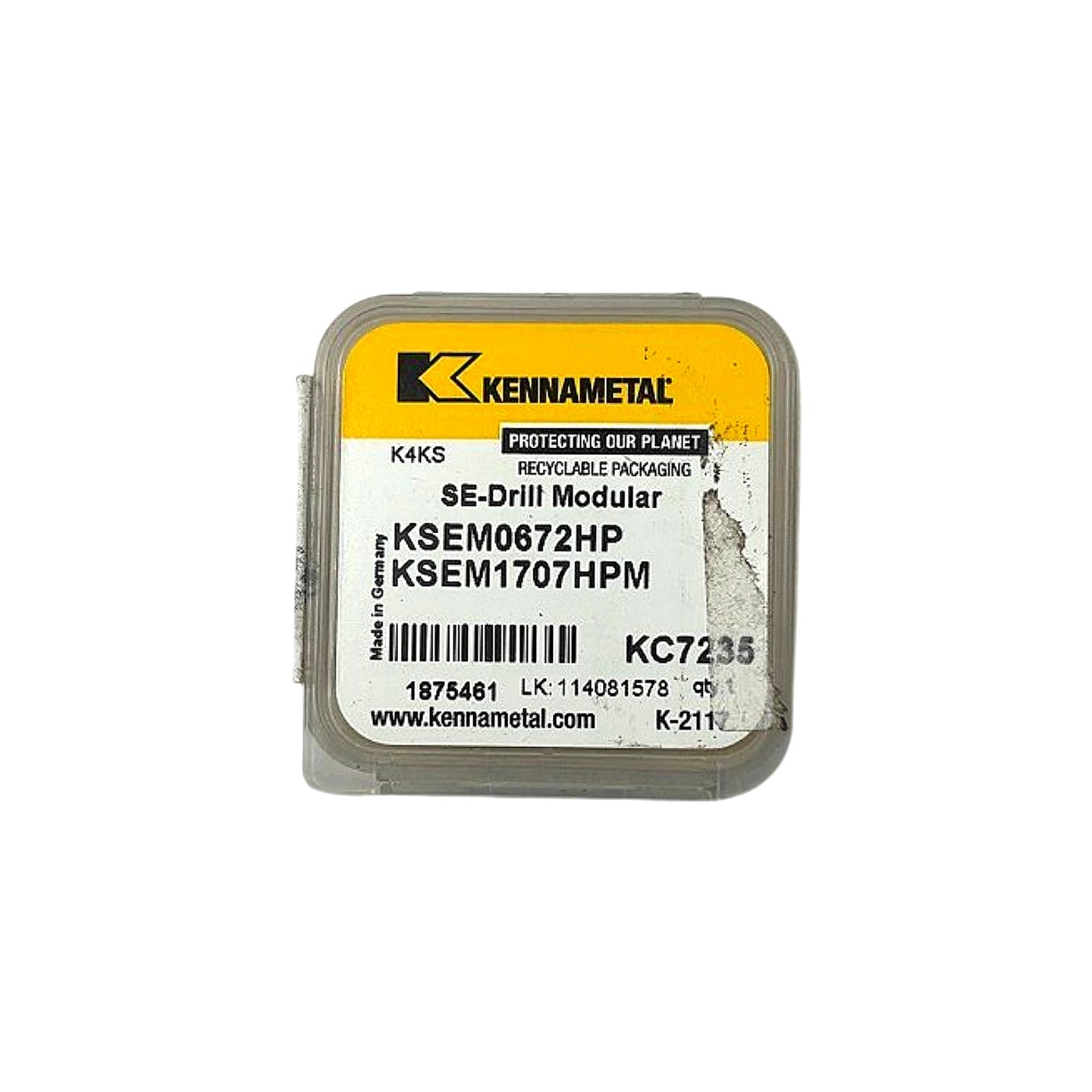

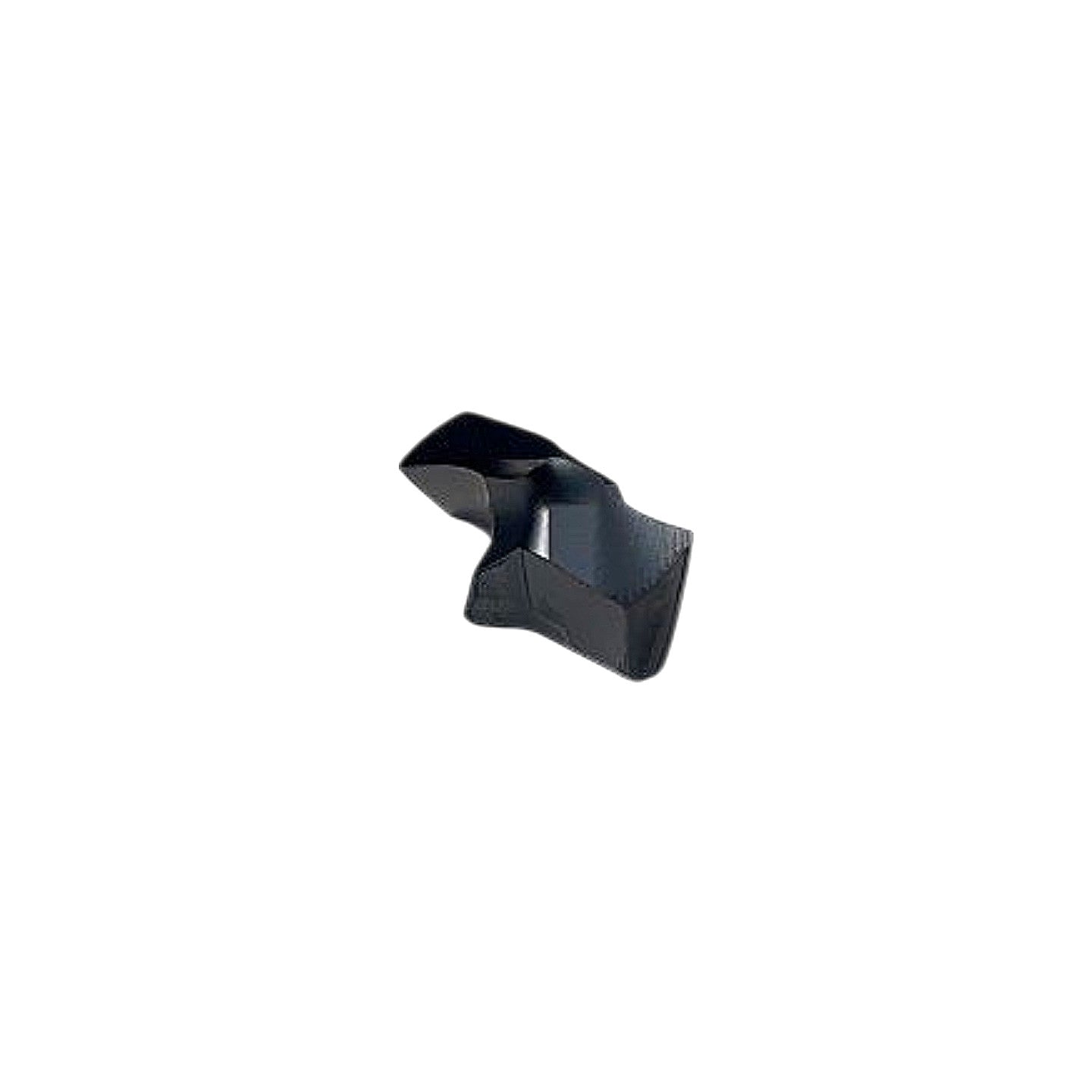

This is a new Kennametal KSEM0672HP carbide insert blade for the SE-Drill Modular indexable drilling system, graded in KC7235 — a PVD-coated submicron carbide grade engineered for high-performance drilling in steel, stainless steel, and cast iron. The KSEM designation identifies it as a periphery (outer) insert for the SE-Drill modular drill body, with the 0672 encoding a nominal diameter range of 6.72 in the Kennametal SE-Drill sizing convention; it is paired with the KSEM1707HPM inner insert on the same drill body. KC7235 features a TiAlN-based PVD coating providing excellent hot hardness and oxidation resistance, making it suitable for demanding drilling operations including dry cutting and high-pressure coolant (HP) applications as indicated by the HP suffix. Made in Germany and supplied in Kennametal's recyclable packaging (K4KS series), this insert is a direct OEM replacement for SE-Drill Modular toolholders requiring the KSEM0672HP periphery blade.
Product Specifications
| Brand | Kennametal |
| Part Number | KSEM0672HP |
| Grade | KC7235 |
| Insert Series | SE-Drill Modular |
| Insert Position | Periphery (outer) insert |
| Compatible Inner Insert | KSEM1707HPM |
| Coating | PVD TiAlN-based |
| Substrate | Submicron carbide |
| Coolant | High-pressure coolant (HP) |
| Country of Origin | Germany |
| Condition | New |
| Quantity | 1 insert blade |
| ISO Material Groups | P, M, K (steel, stainless, cast iron) |
