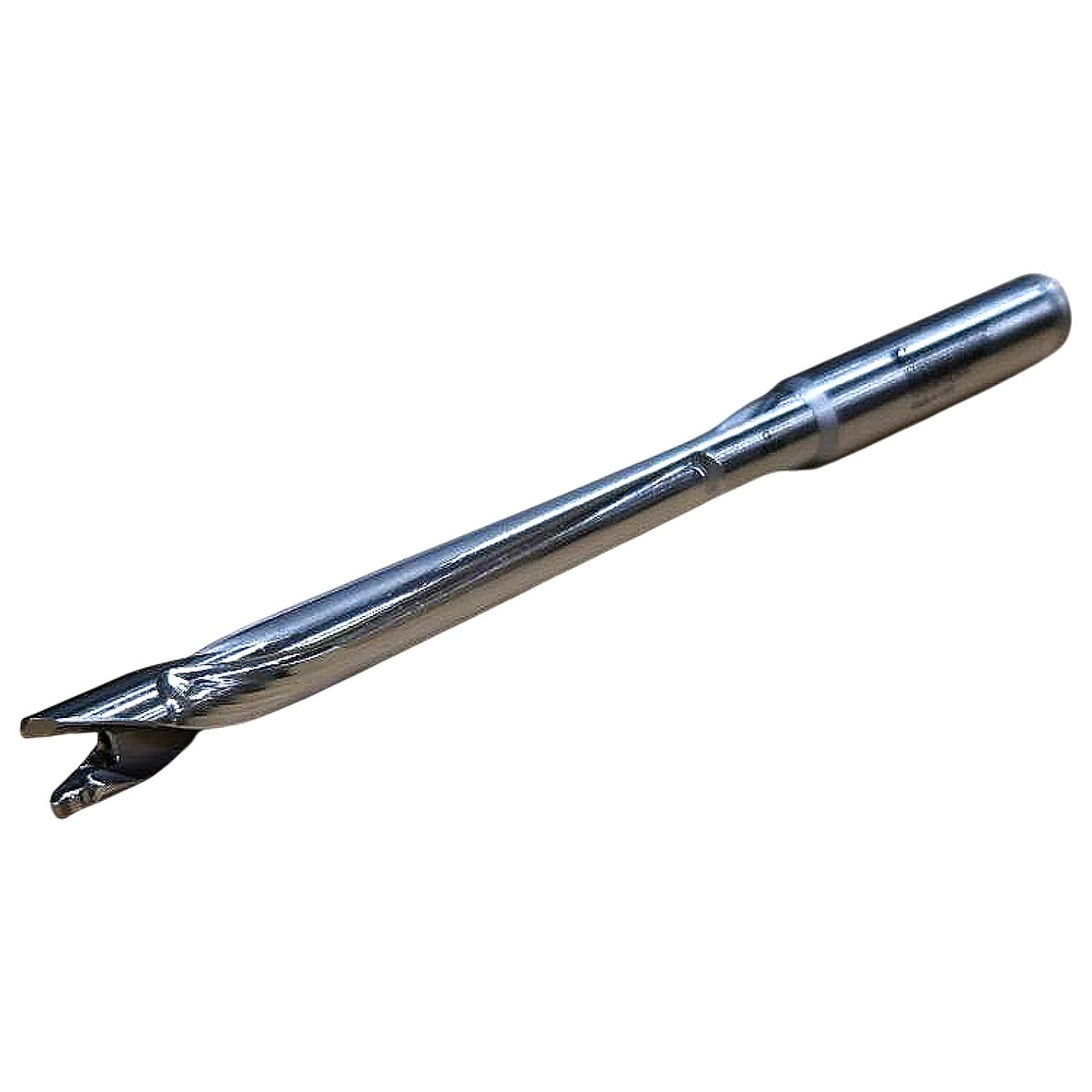

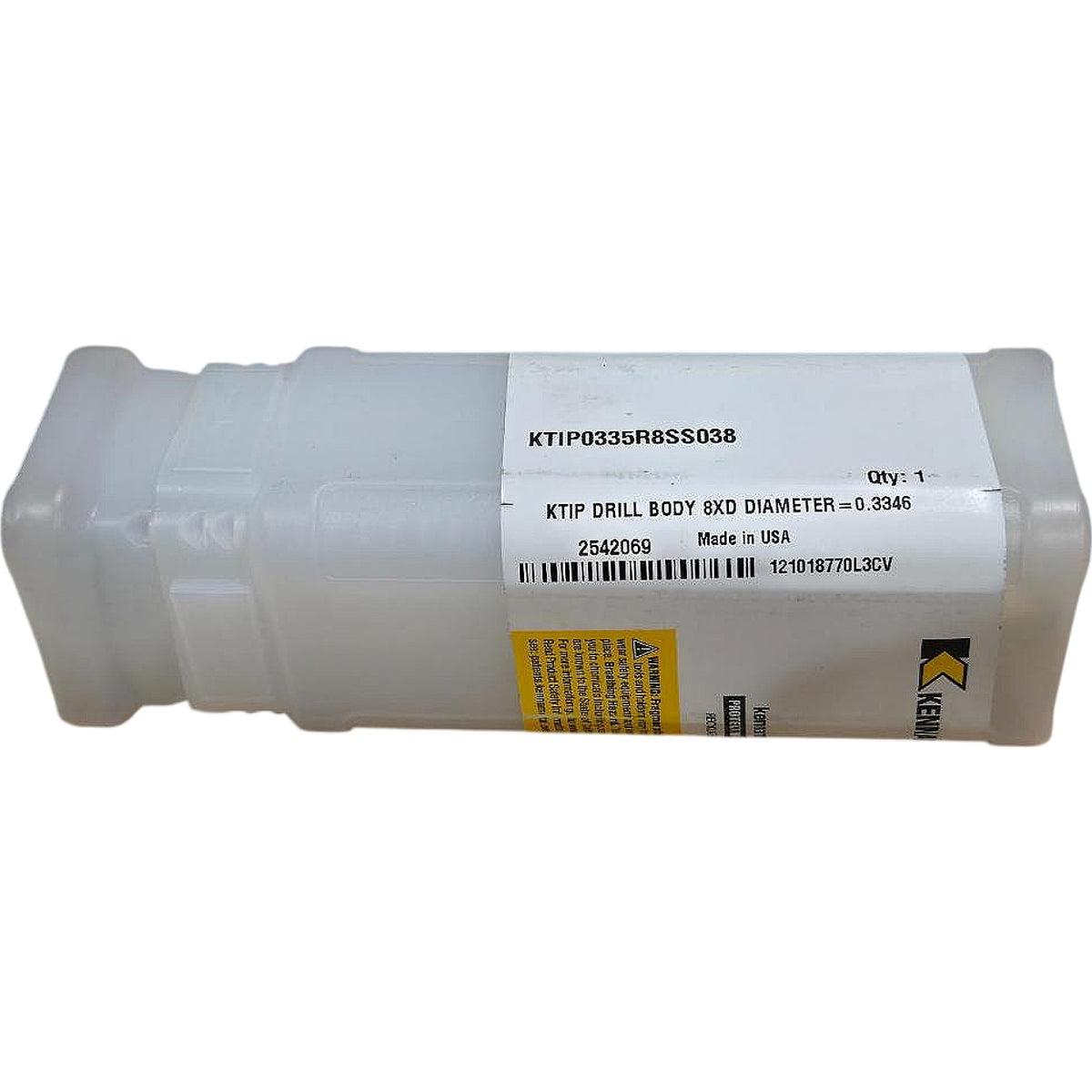

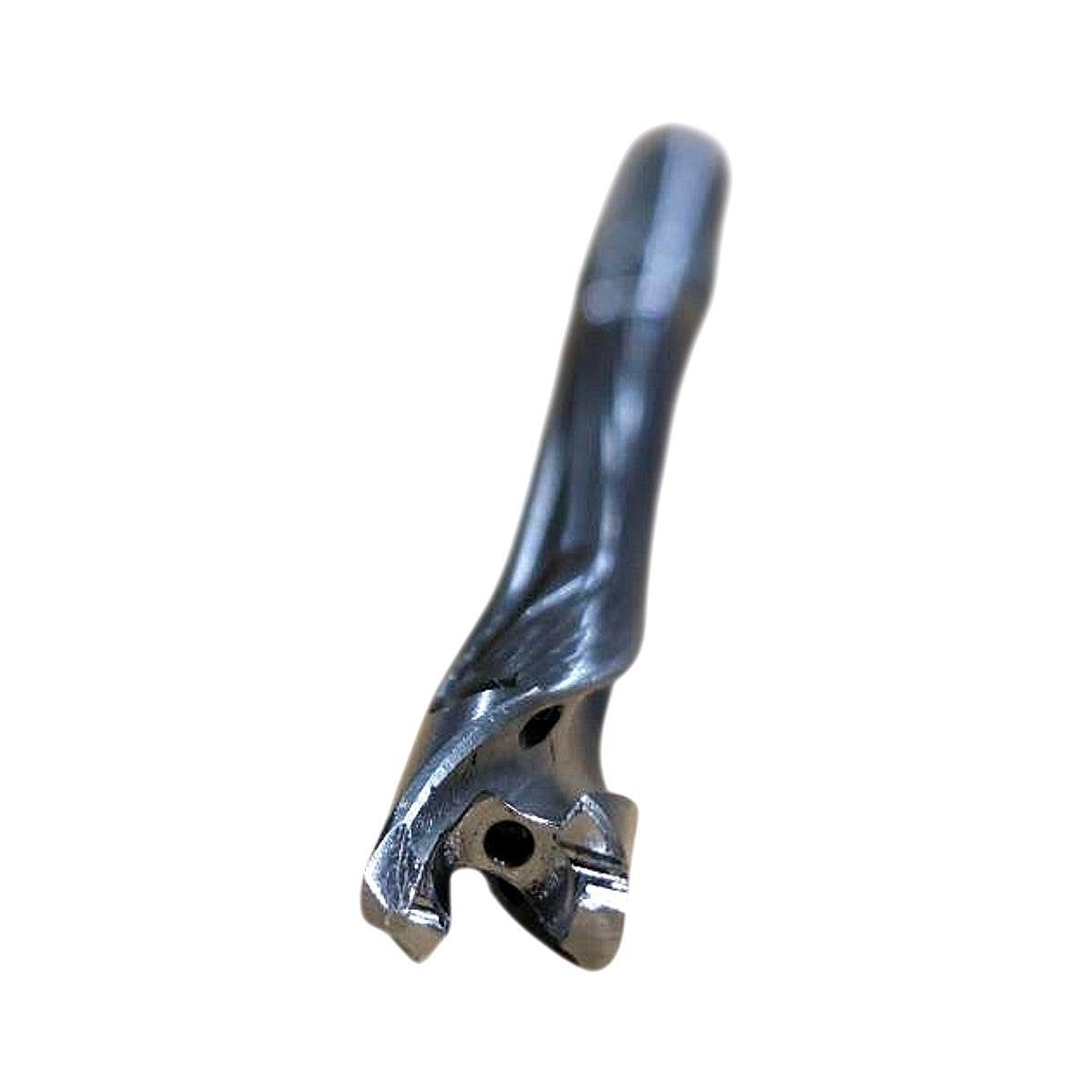

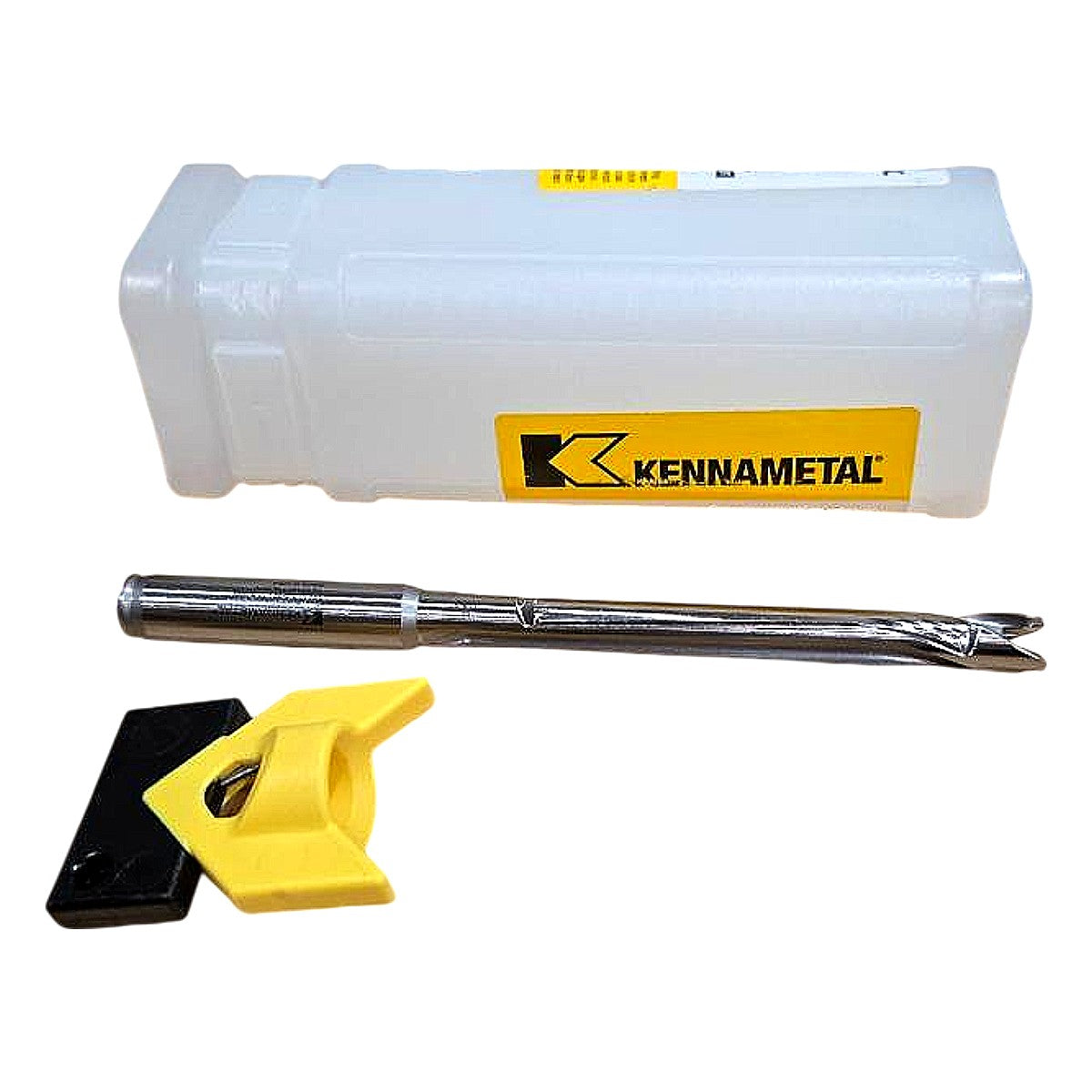

The Kennametal KTIP0335R8SS038 is a new KenTIP modular drill body designed for use with Kennametal KenTIP interchangeable carbide tip inserts, featuring a body diameter of 0.3346 in (8.50 mm) and an 8XD depth-of-cut capability — confirmed directly from the package label. The "SS" designation in the part number indicates a straight shank (smooth cylindrical shank with a reduced neck), and the "038" suffix denotes a 0.375 in (3/8 in) shank diameter; the body is manufactured in the USA as stated on the label. The R8 element encodes the 8XD flute/drill depth ratio, making this body suited for deep-hole drilling operations in steel, cast iron, and other ferrous materials on CNC machining centers and turning centers. The KenTIP system eliminates the need for regrinding by allowing tip replacement at the machine, reducing downtime; the drill body features through-coolant capability to support high-productivity drilling at depth. Sold new in original Kennametal plastic case with wrench key included.
Product Specifications
| Brand | Kennametal |
| MPN | KTIP0335R8SS038 |
| Item Number (Kennametal) | 2542069 |
| Product Line | KenTIP Modular Drill System |
| Drill Body Diameter | 0.3346 in (8.50 mm) |
| Shank Diameter | 0.375 in (3/8 in) |
| Shank Style | Straight shank (reduced neck) |
| Depth-of-Cut Ratio | 8XD |
| Through Coolant | Yes |
| Country of Origin | USA |
| Condition | New |
| Compatible Tip System | Kennametal KenTIP replaceable carbide tips |
| Quantity | 1 |
