Kennametal KTIP0453R3SS050 0.4528in 3XD KTIP Drill Body
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

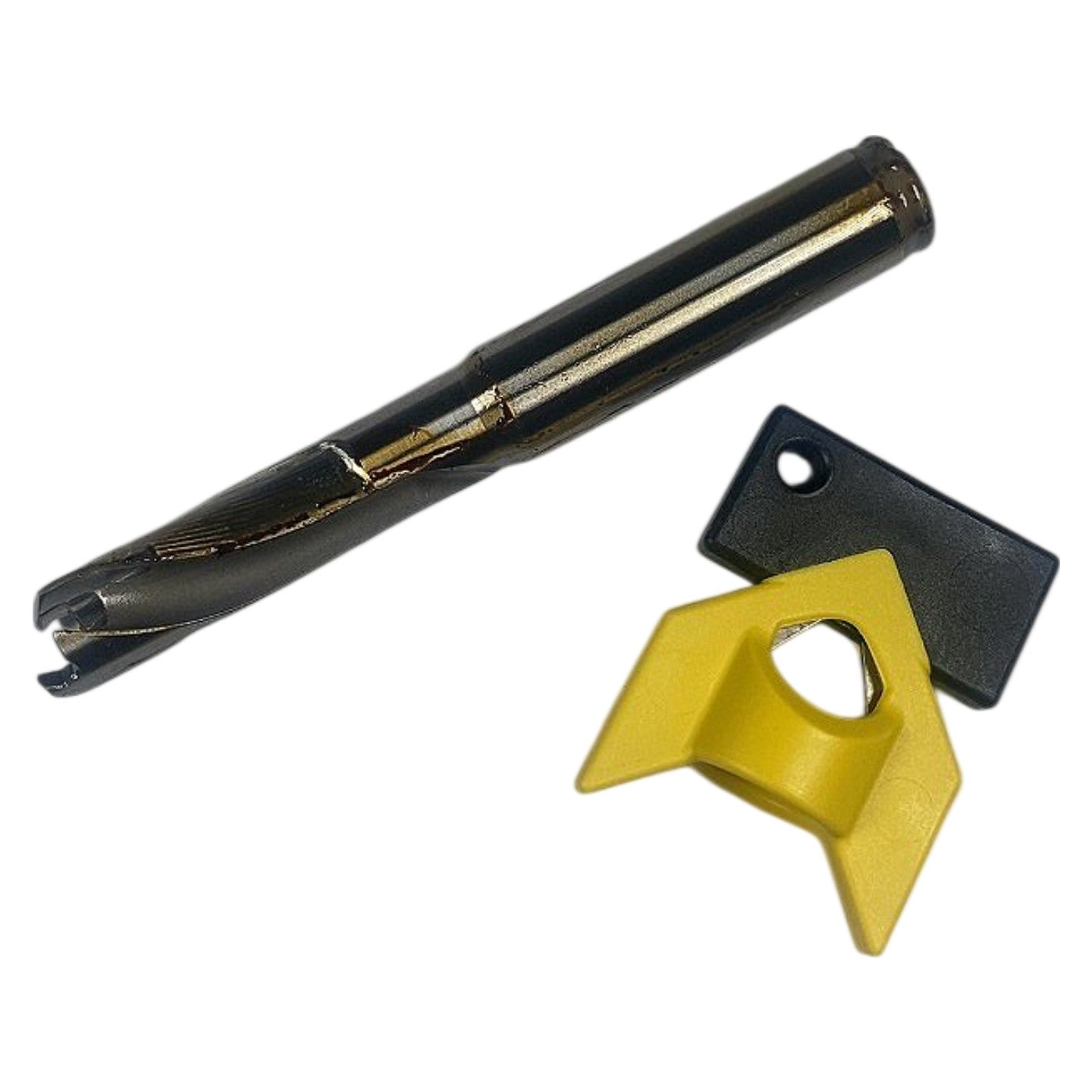

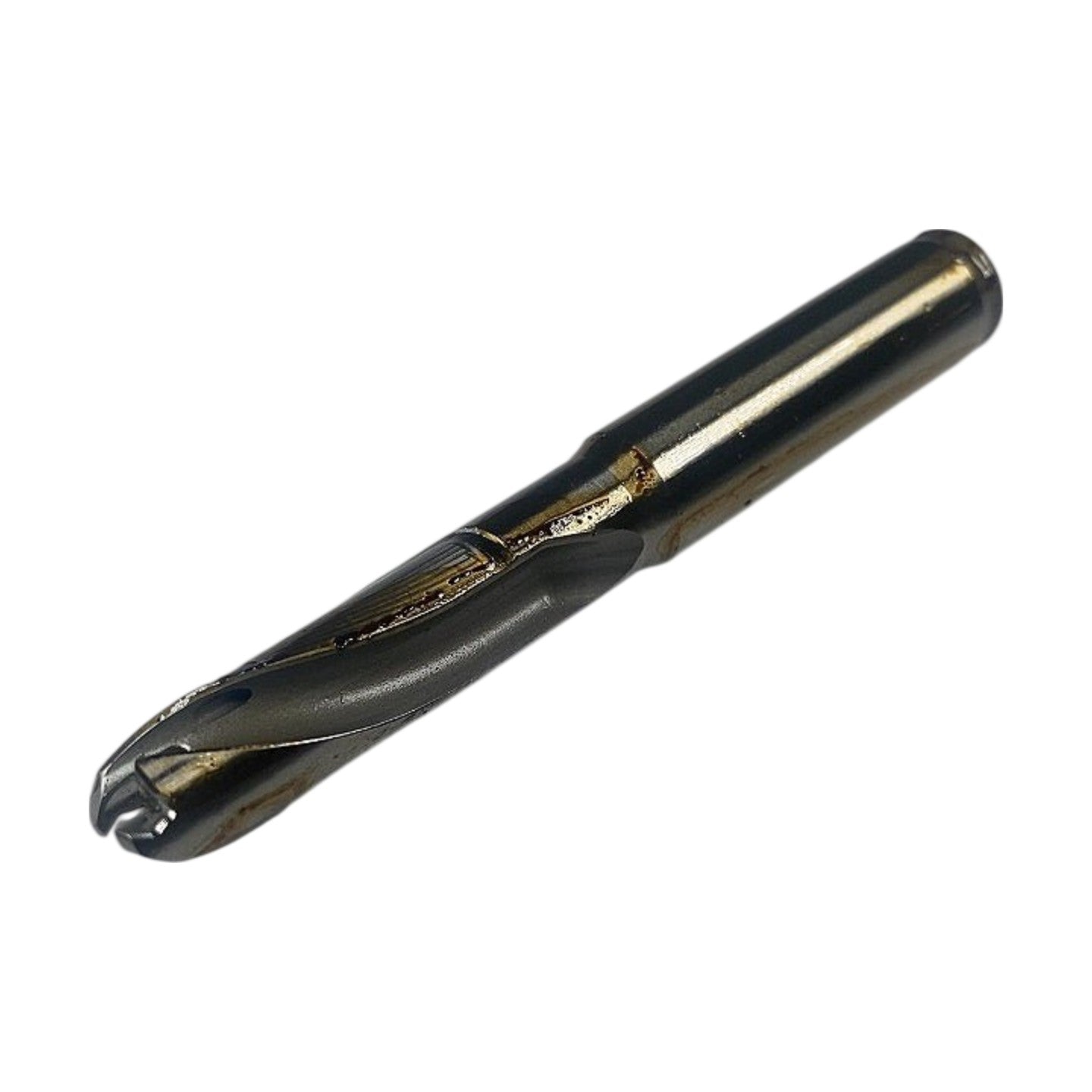

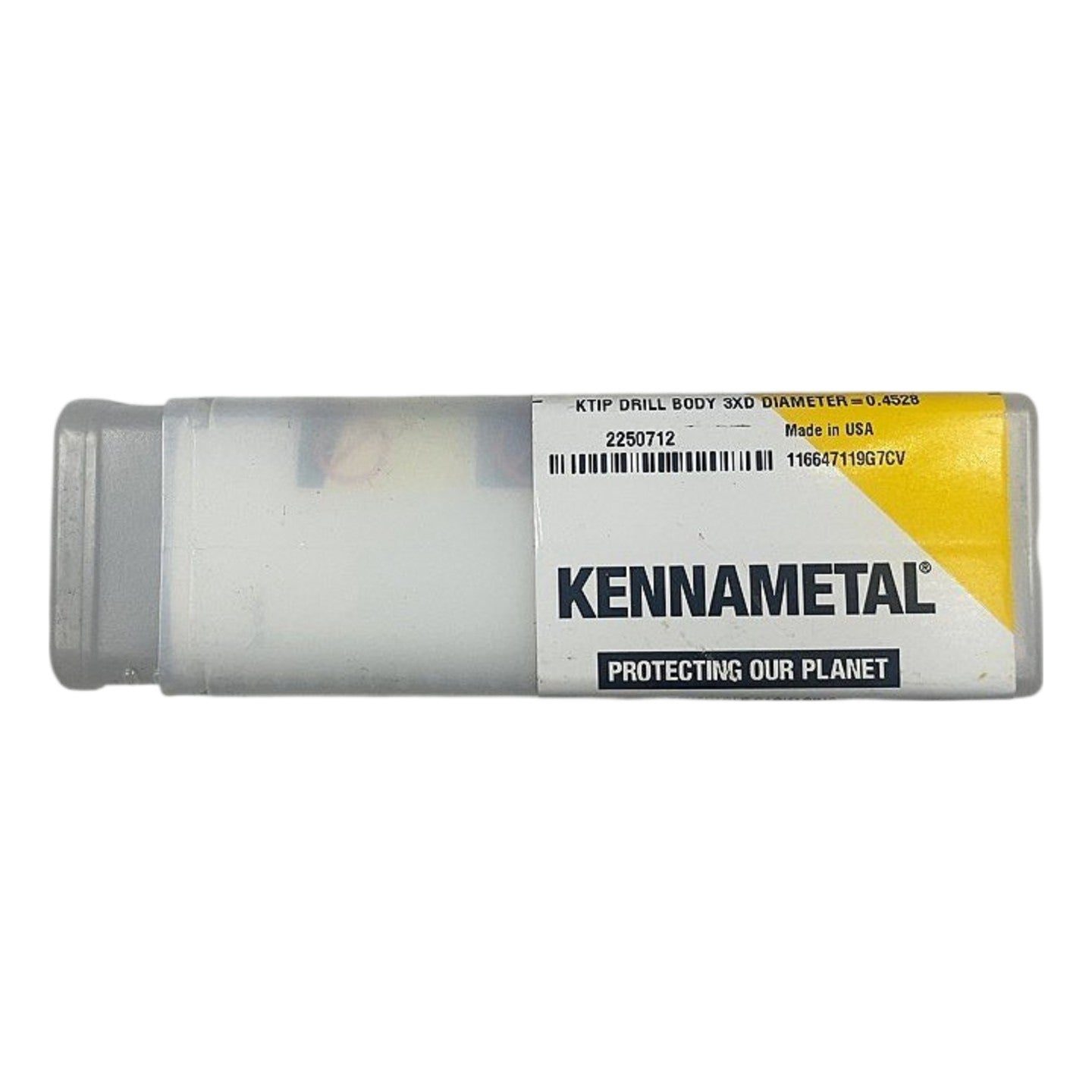

The Kennametal KTIP0453R3SS050 is a new KTIP-series indexable drill body with a cutting diameter of 0.4528 in (11.5 mm) and a 3XD depth-of-cut capability, meaning maximum drilling depth equals 3× the diameter (~1.358 in). Decoded from the part number: KTIP = KTIP drill body system; 0453 = 04.53 mm nominal pocket size / 0.4528 in drill diameter; R = right-hand cut; 3 = 3XD depth ratio; SS = straight shank (cylindrical); 050 = 0.500 in shank diameter. The body is manufactured in the USA (confirmed on label) from hardened alloy steel with through-coolant capability and helical flutes designed for the KTIP replaceable carbide tip system, accepting KTIP-series carbide tips secured by the Torx-style clamping screw included with the body. Compatible with standard ER or straight-shank toolholders at 0.500 in bore; suitable for machining steel, stainless, cast iron, and aluminum in CNC turning centers and machining centers requiring precise, repeatable hole quality without regrinding.
Product Specifications
| Brand | Kennametal |
| MPN | KTIP0453R3SS050 |
| Series | KTIP |
| Drill Diameter | 0.4528 in (11.5 mm) |
| Depth of Cut Ratio | 3XD (max ~1.358 in) |
| Shank Type | Straight Shank (SS) |
| Shank Diameter | 0.500 in |
| Hand of Cut | Right-Hand (R) |
| Coolant | Through-coolant |
| Country of Origin | USA |
| Tip Compatibility | Kennametal KTIP replaceable carbide tips |
| Condition | New |
| Quantity | 1 |
