Kennametal KTIP0532R3SS056 0.5315in 3xD KenTIP Drill Body
Regular price
$105.45
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

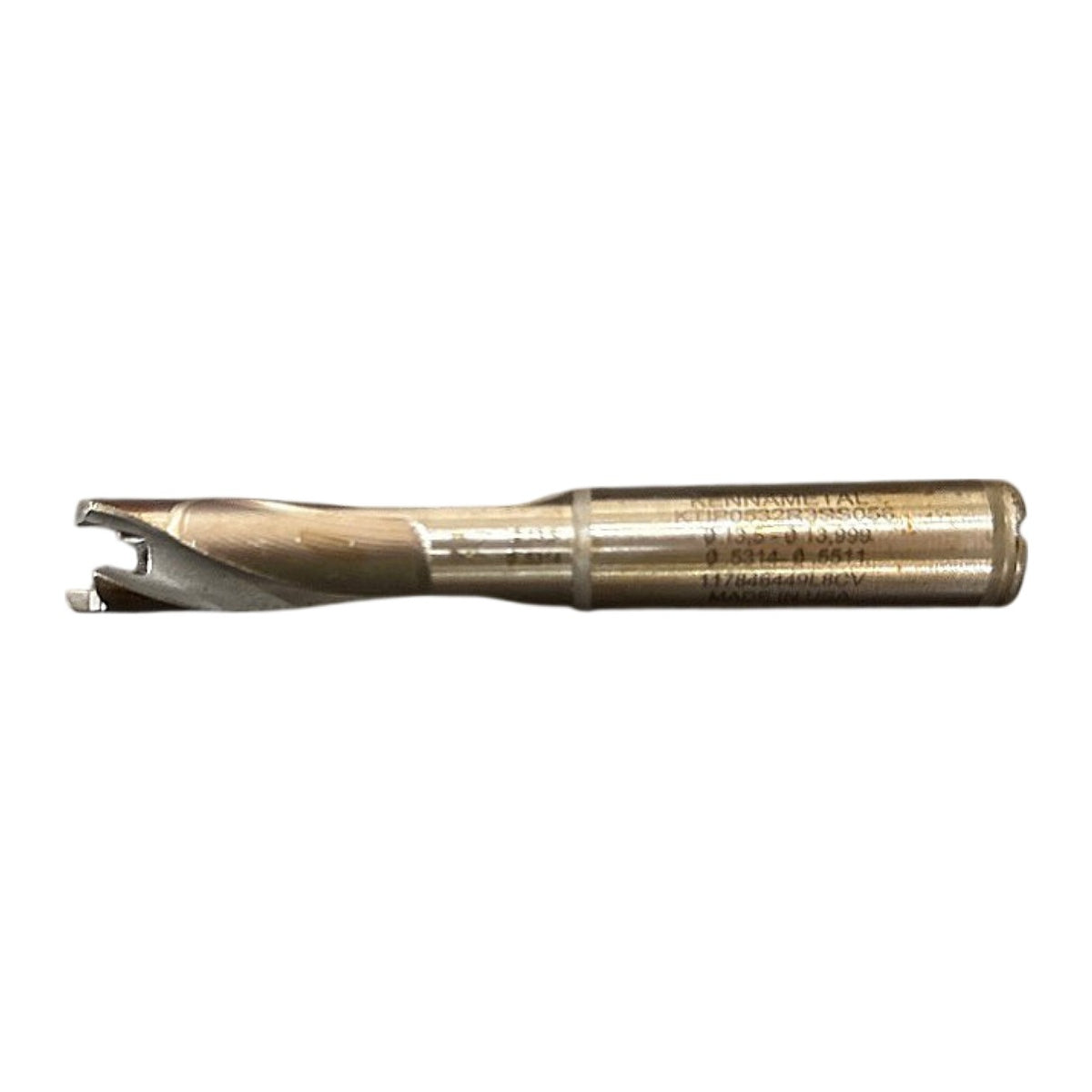

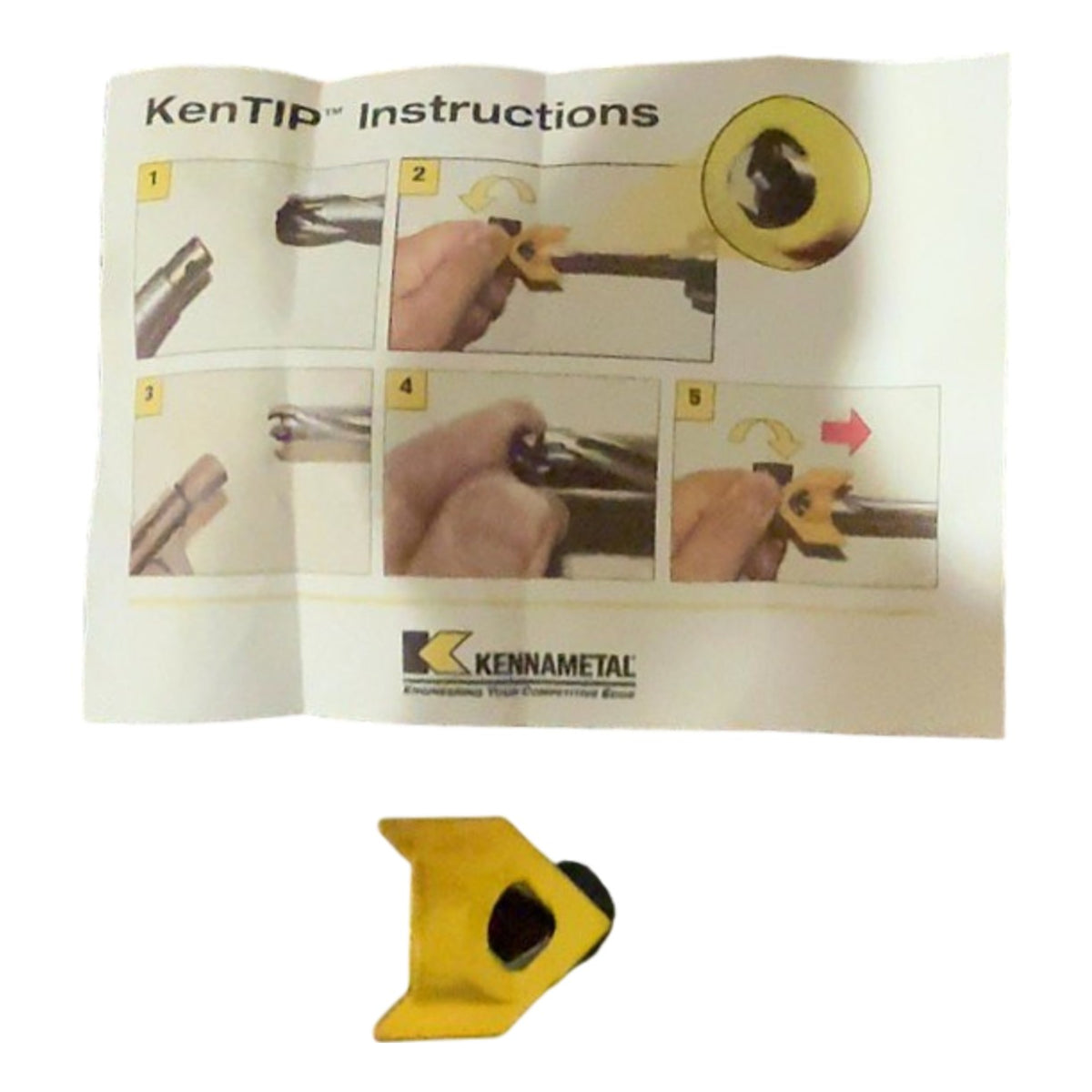

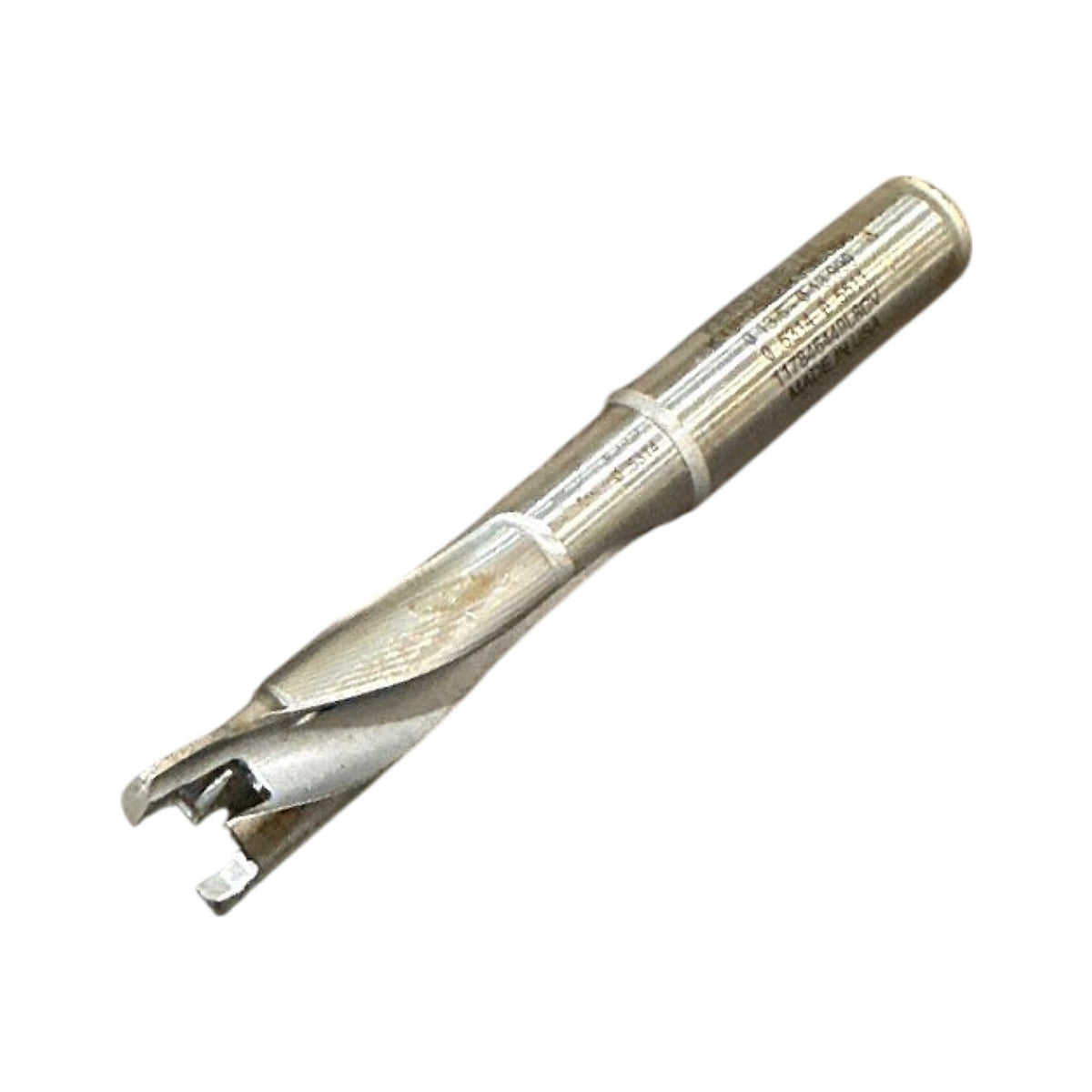

This Kennametal KTIP0532R3SS056 is a KenTIP indexable-tip drill body with a 0.5315 in (13.5 mm) nominal diameter and a 3xD depth rating, giving a drilling depth of roughly 1.59 in. The body is marked for a tip diameter range of 13.5-13.999 mm (0.5314-0.5511 in), is right-hand cut with a straight shank, and has two helical flutes. It is made in the USA under EDP number 2250727. The photos show a KenTIP instruction sheet and a yellow tip-change tool with the drill body, and this unit is new.
Product Specifications
| Brand | Kennametal |
| Manufacturer Part Number | KTIP0532R3SS056 |
| EDP Number | 2250727 |
| Series | KenTIP |
| Tool Type | KTIP Drill Body |
| Drill Diameter | 0.5315 in (13.5 mm) |
| Drill Diameter Range | 13.5-13.999 mm (0.5314-0.5511 in) |
| Depth Rating | 3xD |
| Hand of Cut | Right Hand |
| Shank Type | Straight Shank |
| Shank Diameter | 0.56 in |
| Number of Flutes | 2 |
| Operation | Drilling |
| Country of Origin | USA |
| Includes | KenTIP instruction sheet, yellow tip-change tool |
