Kennametal KTIP0591R5SCF075 0.591in 5XD SCF KenTIP Drill Body
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

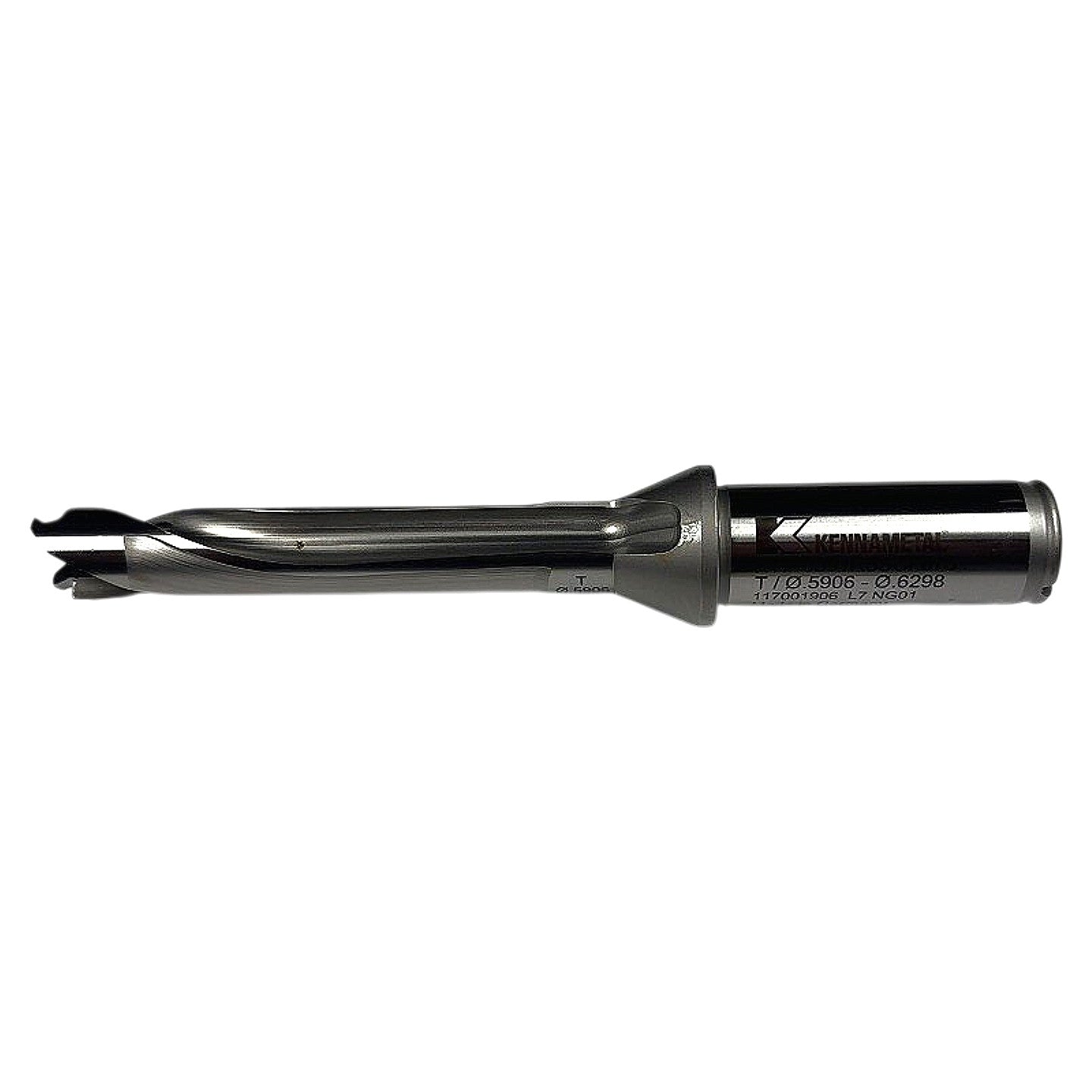

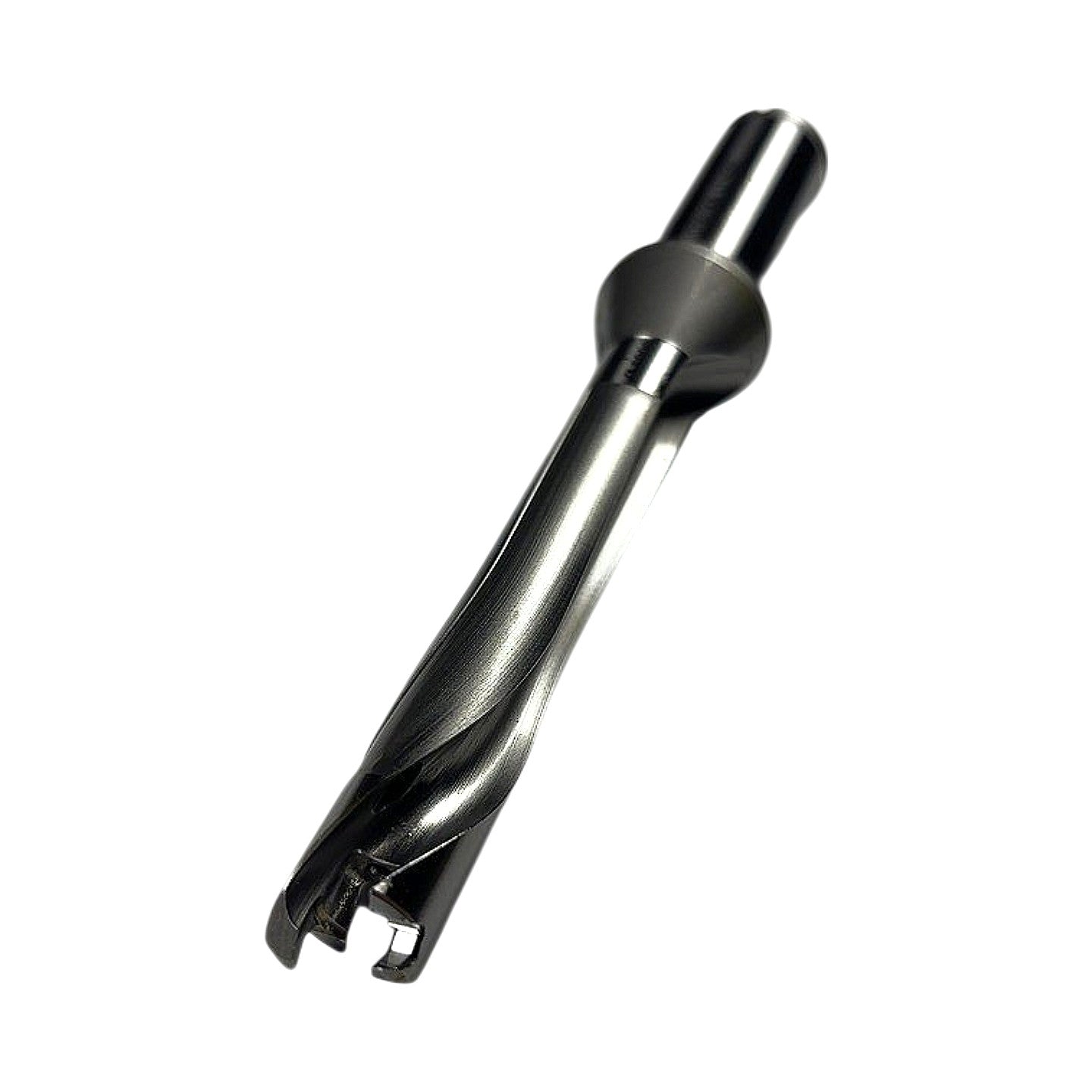

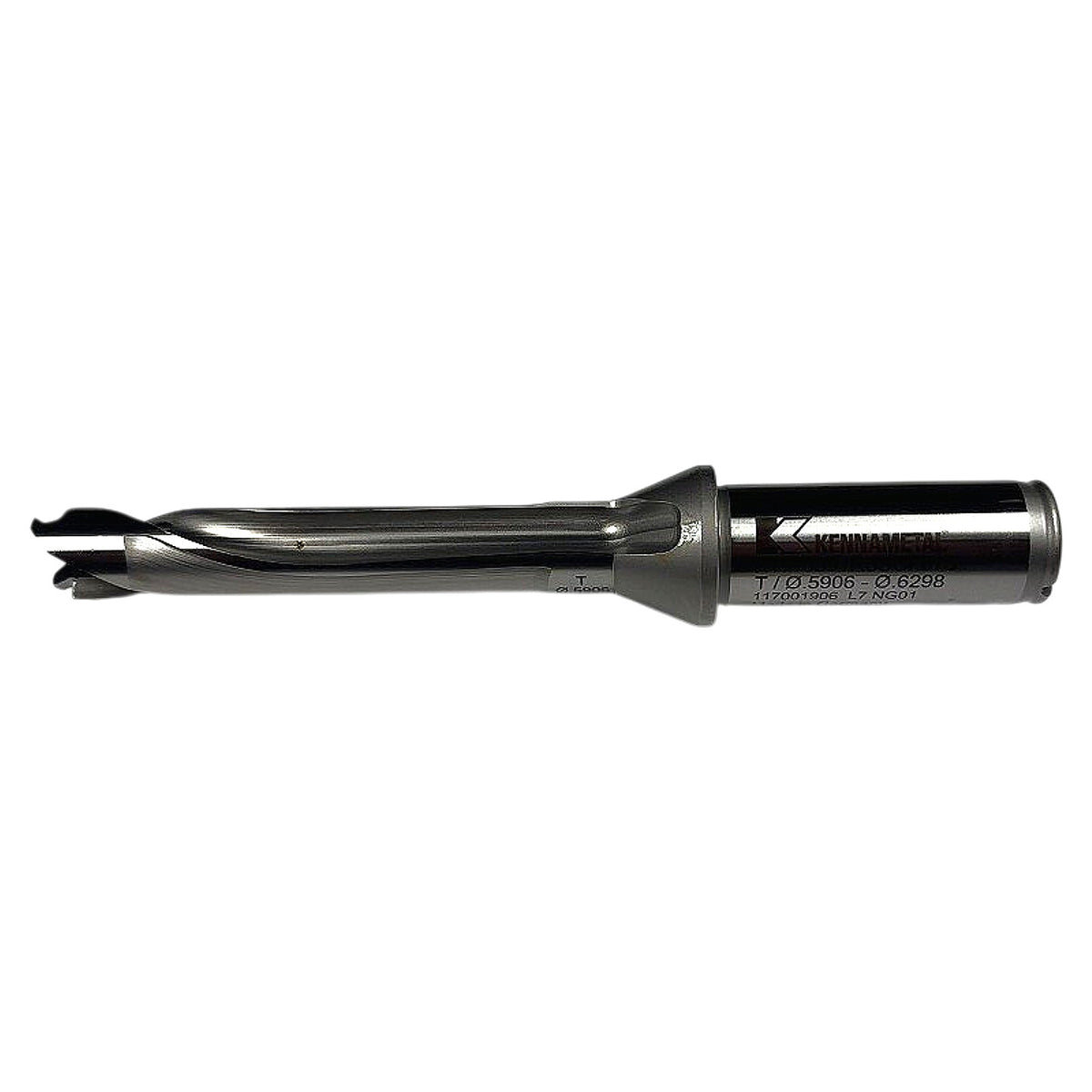

This is a new Kennametal KenTIP indexable drill body, part number KTIP0591R5SCF075, internal catalog reference 117001906NGL7, made in Germany. The KenTIP system uses a self-centering, replaceable carbide tip (sold separately) that seats into a precision-ground steel body via Kennametal's bayonet-style locking mechanism, delivering consistent hole location accuracy without regrinding. This body is sized for a 0.591 in (15.01 mm) cutting diameter, 5×D depth-of-cut ratio, with a straight cylindrical shank in SCF (straight shank with coolant-through flange) configuration and a 0.75 in (19.05 mm) shank diameter; internal coolant-through channels are machined into the body for high-pressure coolant delivery directly to the cutting zone. The drill body accepts KenTIP insert tips in the Ø 0.5906–0.6298 in diameter range (as confirmed on the body label in the photos), making it compatible with the full range of KenTIP-TS insert tips for that diameter band. Typical applications include deep-hole drilling in steel, cast iron, stainless, and aluminum on CNC machining centers and turning centers equipped with a 0.75 in straight-shank toolholder or collet chuck.
Product Specifications
| Brand | Kennametal |
| MPN | KTIP0591R5SCF075 |
| Internal Part Number | 117001906NGL7 |
| Series | KenTIP |
| Cutting Diameter | 0.591 in (15.01 mm) |
| Insert Tip Diameter Range | 0.5906–0.6298 in |
| Depth-of-Cut Ratio | 5XD |
| Shank Style | SCF – Straight Shank w/ Coolant Flange |
| Shank Diameter | 0.75 in (19.05 mm) |
| Coolant Through | Yes – internal coolant channels |
| Body Material | Alloy steel |
| Country of Origin | Germany |
| Condition | New |
| Insert Locking System | KenTIP bayonet self-centering tip seat |
| Compatible Insert Tips | KenTIP-TS tips, Ø 0.5906–0.6298 in range |
