Kennametal MDJNR163C KL Series 1x1in Shank RH Turning Toolholder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

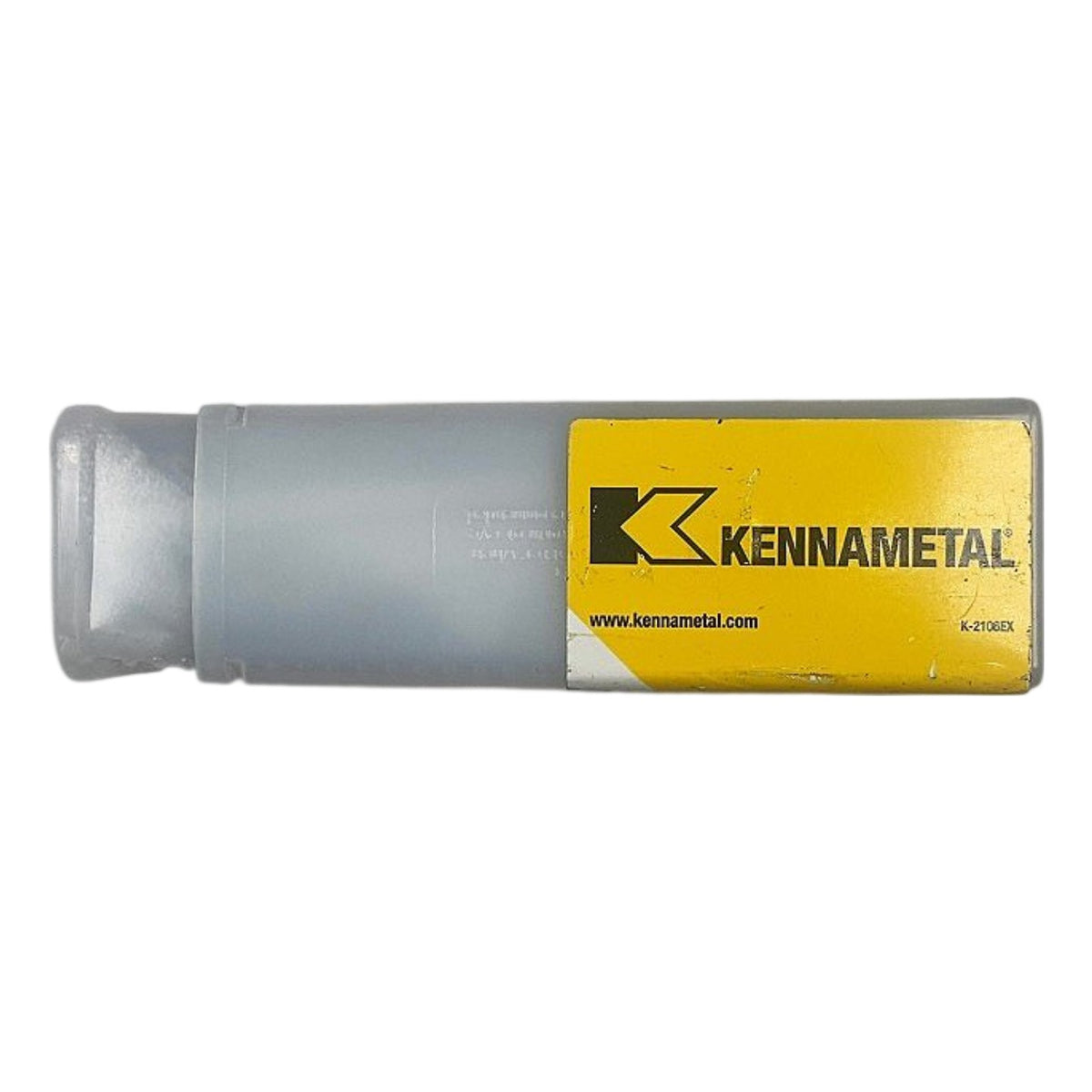

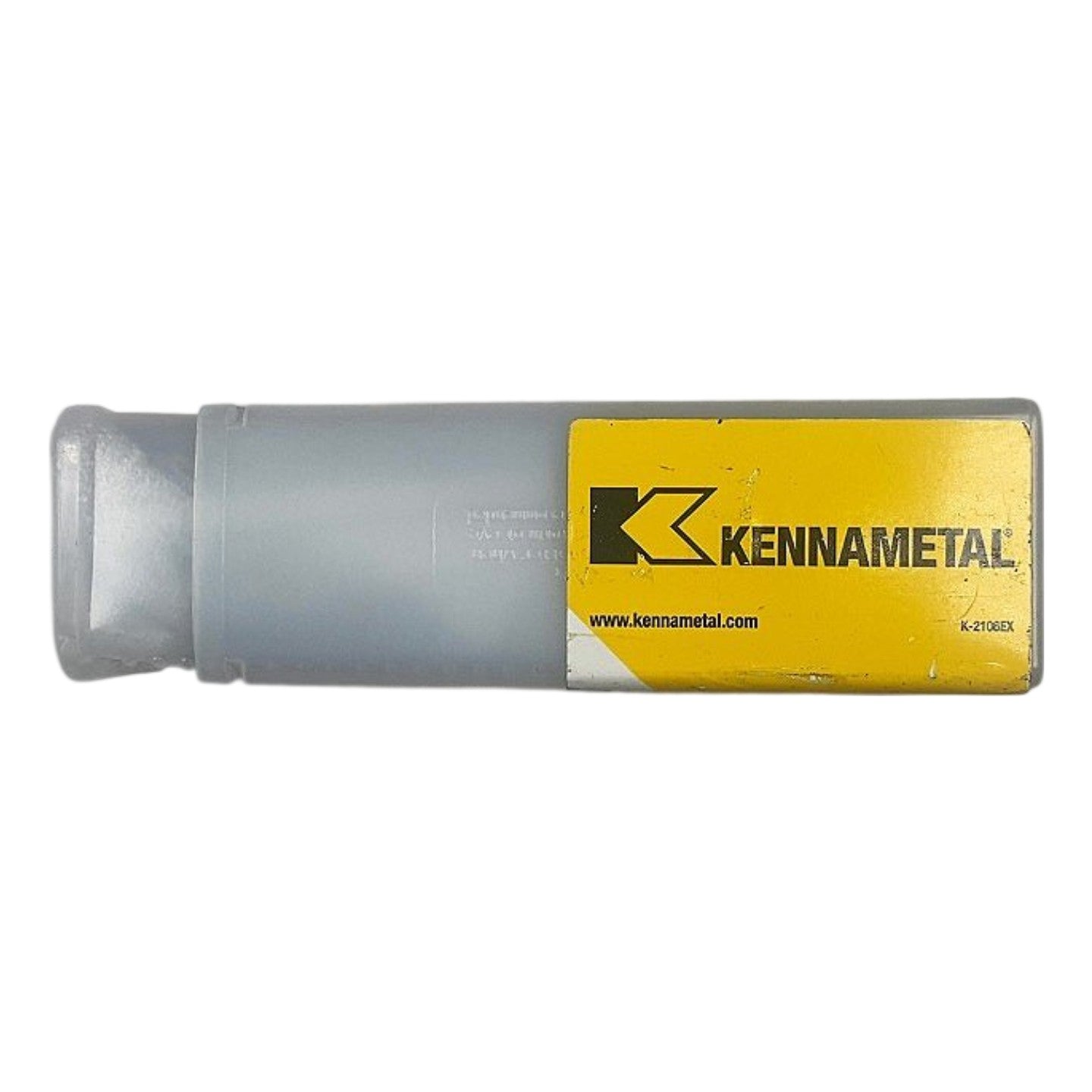

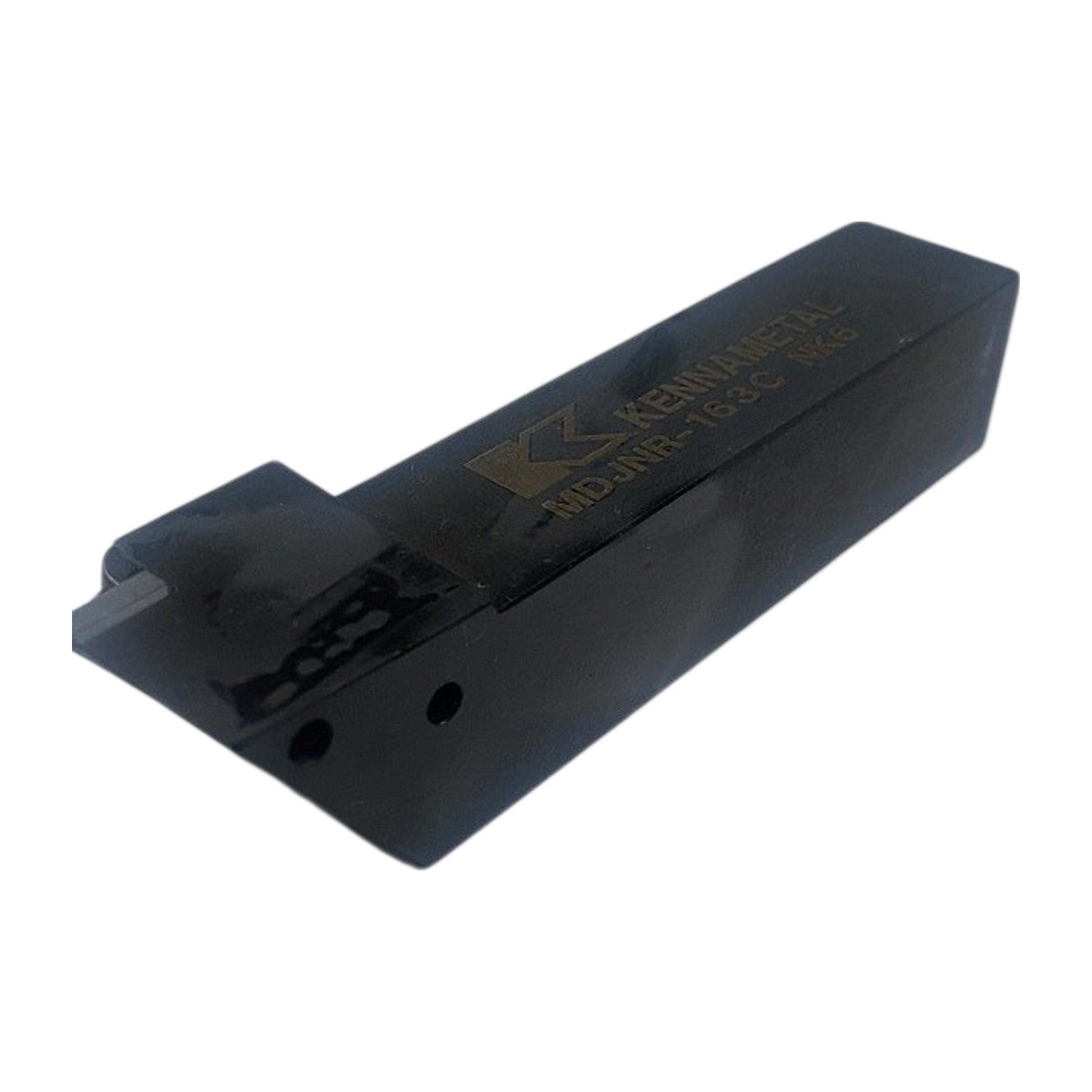

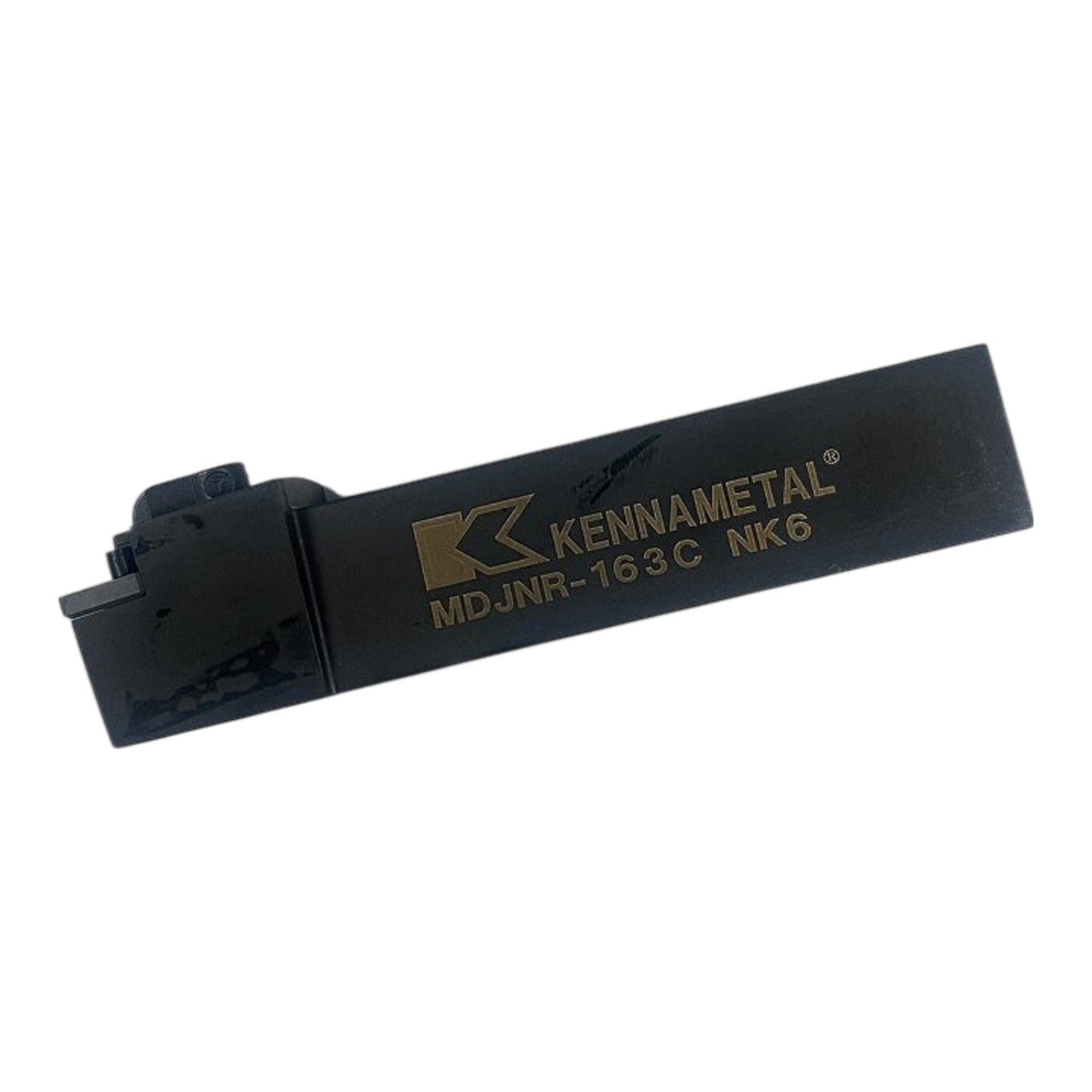

The Kennametal MDJNR163C is a new, right-hand external turning toolholder from the KL Series, designed to accept 55° diamond (DNMG) negative-rake inserts with a side-lock (pin-lock) clamping system. Decoding the ISO designation: M = side-lock clamping method, D = 55° diamond insert shape, J = 3° clearance angle (negative rake), N = negative rake, R = right-hand cutting direction, 163 = 1 in × 1 in (16/16) shank cross-section with 3 in overhang length (style C body), C = shank style. The holder is manufactured in the USA from alloy tool steel with a black oxide finish, providing corrosion resistance and a precision-ground insert pocket that ensures accurate, repeatable insert seating for OD turning, profiling, and chamfering operations on CNC lathes and manual engine lathes. The Kennametal catalog/internal part number is 1096242 as visible on the packaging label, and the holder is shipped in its original factory packaging.
Product Specifications
| Brand | Kennametal |
| MPN | MDJNR163C |

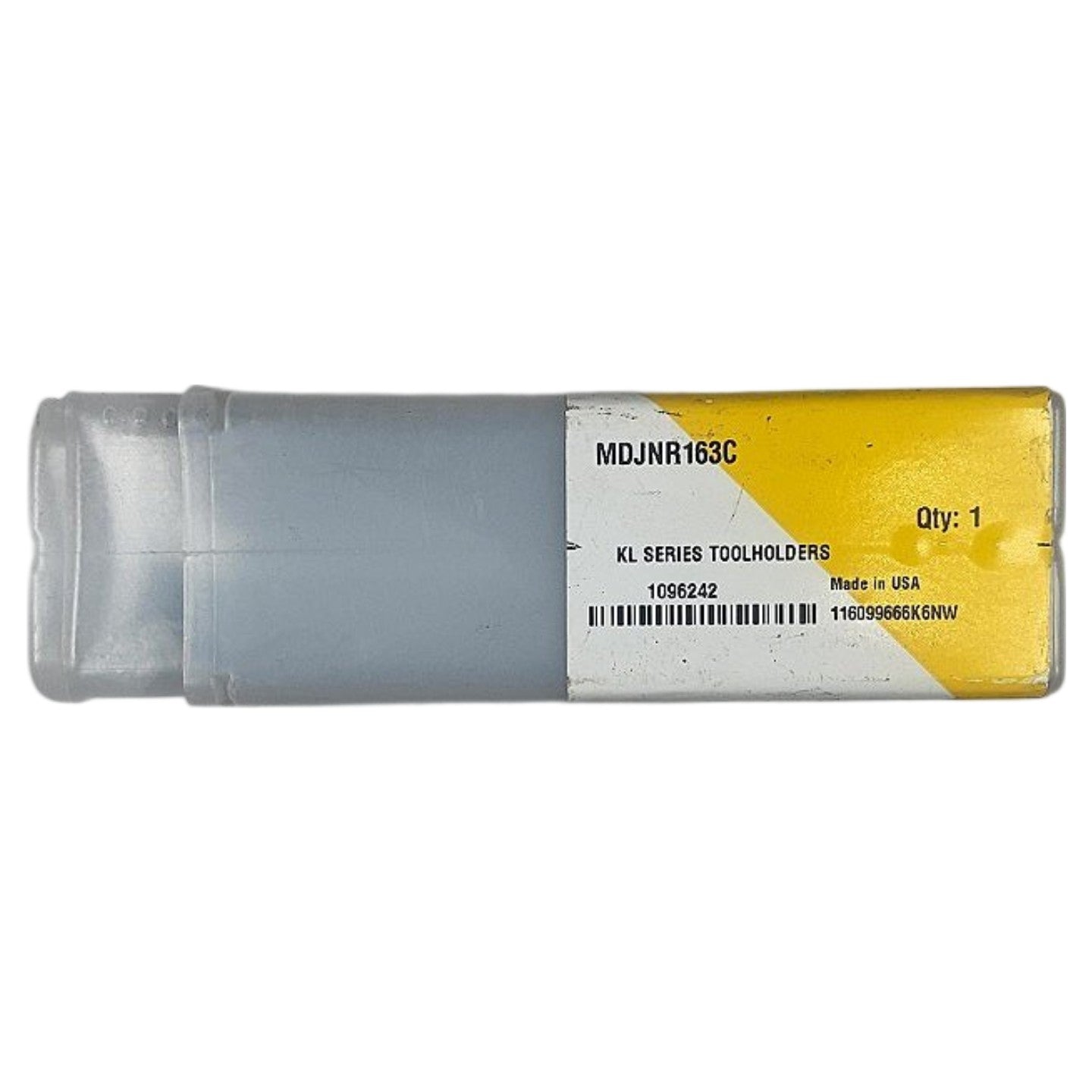

| Kennametal Internal Part # | 1096242 |
| Series | KL Series |
| Clamping Method | M — Side (pin) lock |
| Insert Shape | D — 55° diamond (DNMG) |
| Insert Clearance Angle | J — 3° (negative rake) |
| Rake Type | N — Negative rake |
| Cutting Direction | R — Right-hand |
| Shank Height | 1 in (25.4 mm) |
| Shank Width | 1 in (25.4 mm) |
| Overall Length | 6 in (152.4 mm) |
| Insert Size | DNMG 432 (3/8 in IC, style 3) |
| Lead Angle | 93° |
| Hand of Cut | Right-hand (back to front) |
| Shank Cross-Section | Square |
| Country of Origin | USA |
| Finish | Black oxide |
| Condition | New |
