Kennametal MVSN433 Negative Rake RH Turning Toolholder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

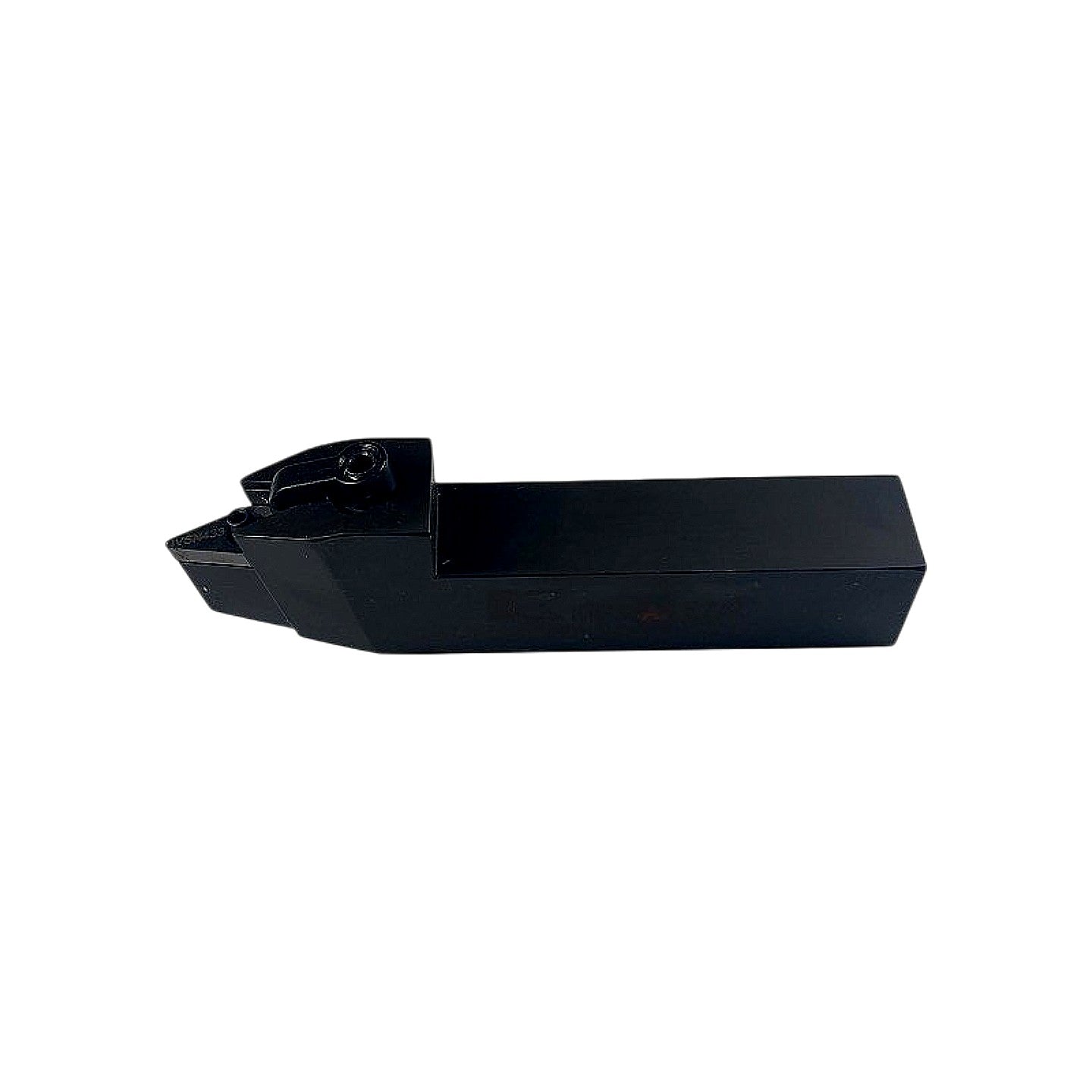

This is a new Kennametal MVSN433 right-hand external turning toolholder designed to accept VNMG (35° diamond, negative rake) inserts via a top-clamp (screw-on) clamping system, visible in the photos. The designation decodes as: M = top clamp style, V = VNMG insert shape (35° diamond), S = 0° clearance (negative rake), N = tolerance class, 4 = 1/2 in (approximately 25 mm) shank height, 3 = 3/4 in shank width, 3 = 6 in overall length. The black oxide finish on the steel shank body provides corrosion resistance, and the precision-ground insert pocket ensures repeatability at tool changes. This holder is suited for general-purpose OD turning, facing, and profiling operations on CNC or manual lathes, and is compatible with VNMG 160404/160408/332/431/432 style inserts per Kennametal's standard insert compatibility for this holder series.
Product Specifications
| Manufacturer | Kennametal |
| Part Number | MVSN433 |
| Clamping Style | M — Top Clamp (Screw-On) |
| Insert Shape | V — 35° Diamond (VNMG) |
| Insert Clearance | S — 0° (Negative Rake) |
| Hand of Cut | Right-Hand (RH) |
| Shank Height | 1/2 in (approx. 12.7 mm) |
| Shank Width | 3/4 in (approx. 19.05 mm) |
| Overall Length | 6 in (approx. 152 mm) |
| Compatible Insert | VNMG |
| Shank Style | Square Shank |
| Finish | Black Oxide |
| Condition | New |
