Kennametal MWLNL123B 3/4in Shank LH 95° Left Hand Indexable Turning Toolholder
Regular price
$86.92
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

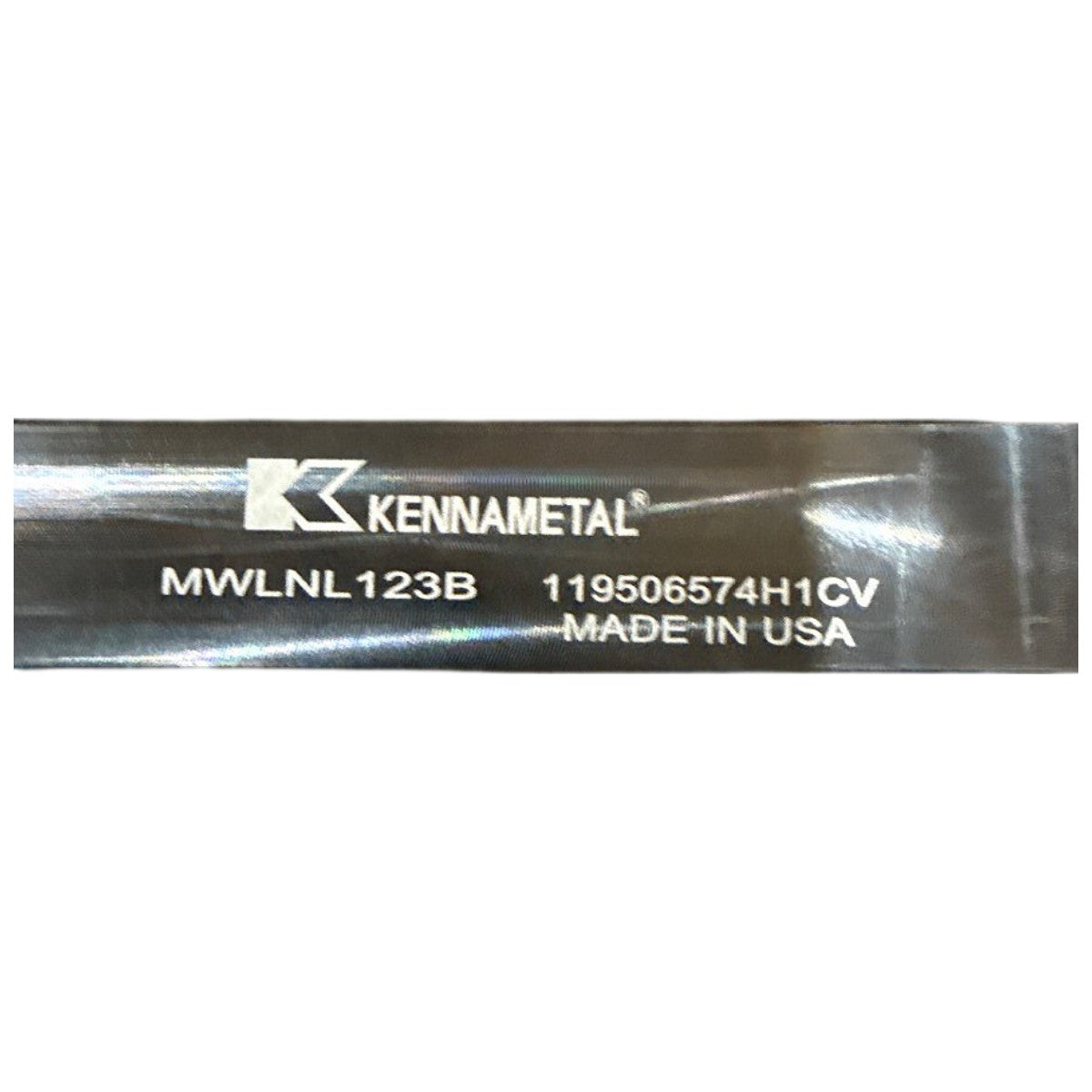

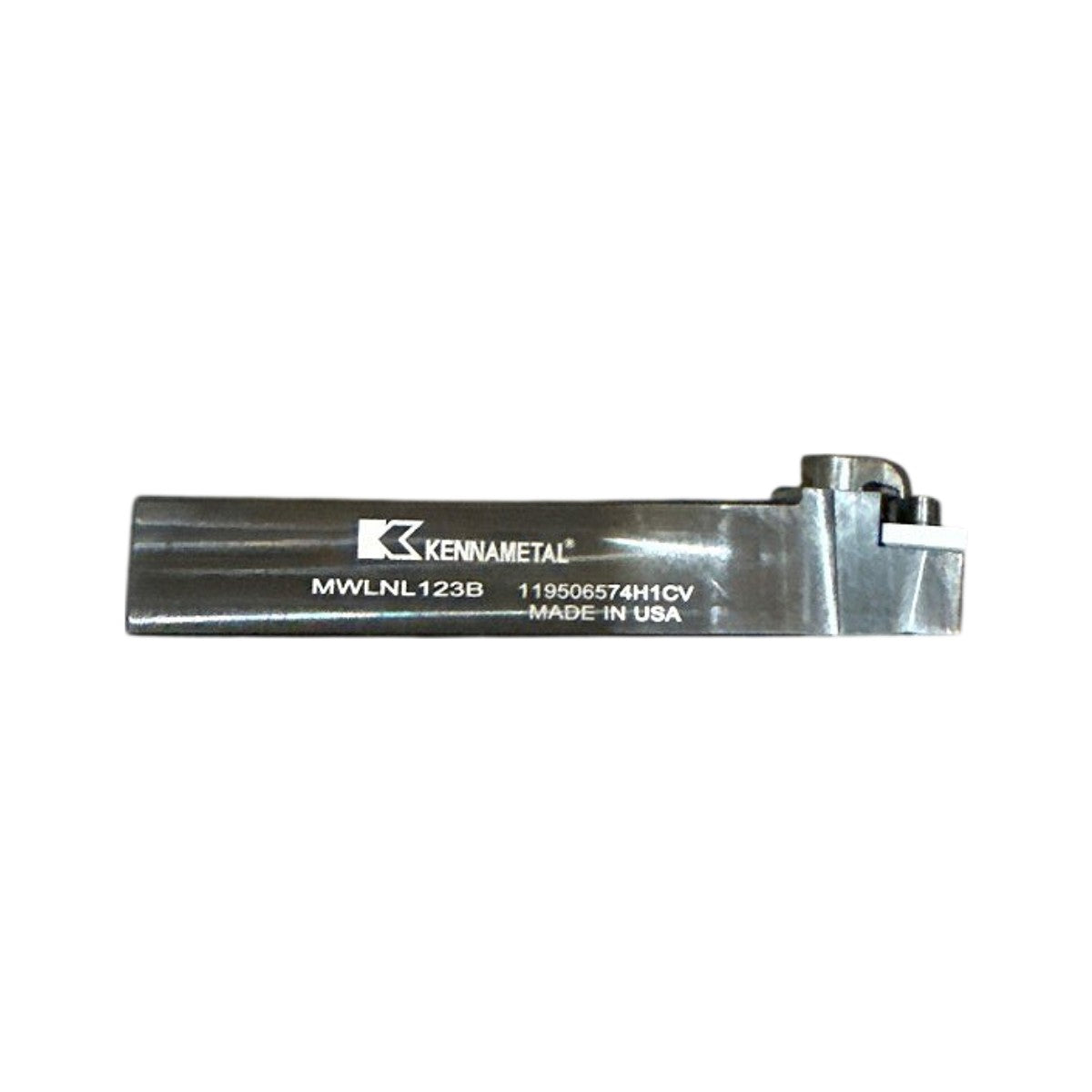

The Kennametal MWLNL123B is a left-hand external turning toolholder with a 95° lead angle, made in the USA and marked with Kennametal number 119506574H1CV. The designation decodes as M top clamp with pin lock, W trigon insert shape, L 95° lead angle, N 0° insert clearance, L left hand, 12 for a 3/4 in square shank, 3 for a 3/8 in inscribed circle insert size and B for a 4.5 in overall length. It uses a top clamp to secure W-shape (trigon) negative-rake inserts with a through hole for general-purpose turning and facing on lathes with a 3/4 in tool post. This holder is new.
Product Specifications
| Brand | Kennametal |
| MPN | MWLNL123B |
| Alternate Part Number | 119506574H1CV |
| Country of Origin | USA |
| Hand of Cut | Left Hand |
| Lead Angle | 95° |
| Insert Shape | W (Trigon) |
| Insert Clearance Angle | N (0°) |
| Clamping Style | M - Top Clamp w/ Pin Lock |
| Shank Height | 3/4 in |
| Shank Width | 3/4 in |
| Shank Style | Square |
| Insert Size | 3/8 in IC (size 3) |
| Overall Length | 4.5 in |
| Operation | External Turning, Facing |
| Tool Type | Indexable Toolholder |
