Kennametal NEL164D Top Notch 1in x 6in LH Grooving Toolholder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

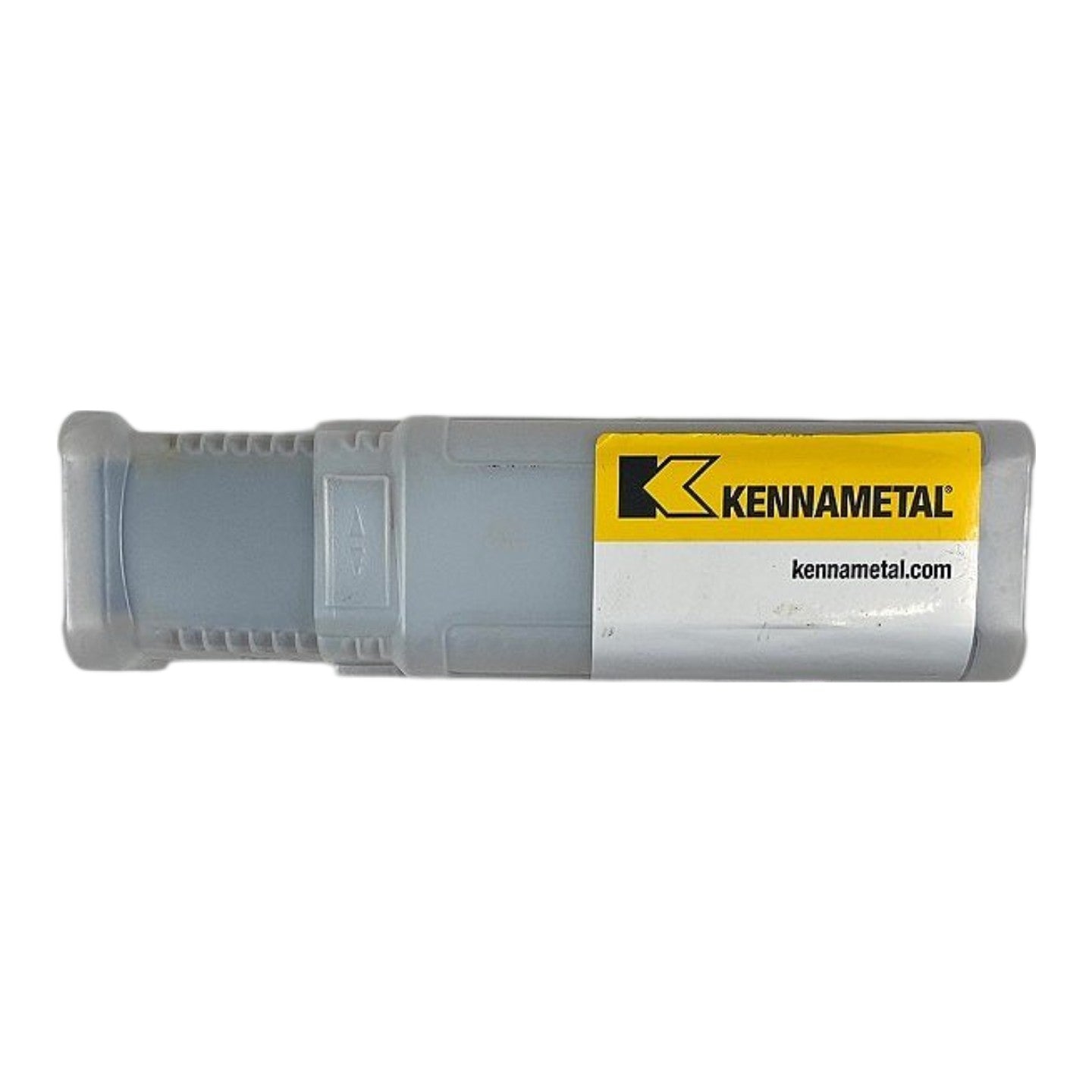

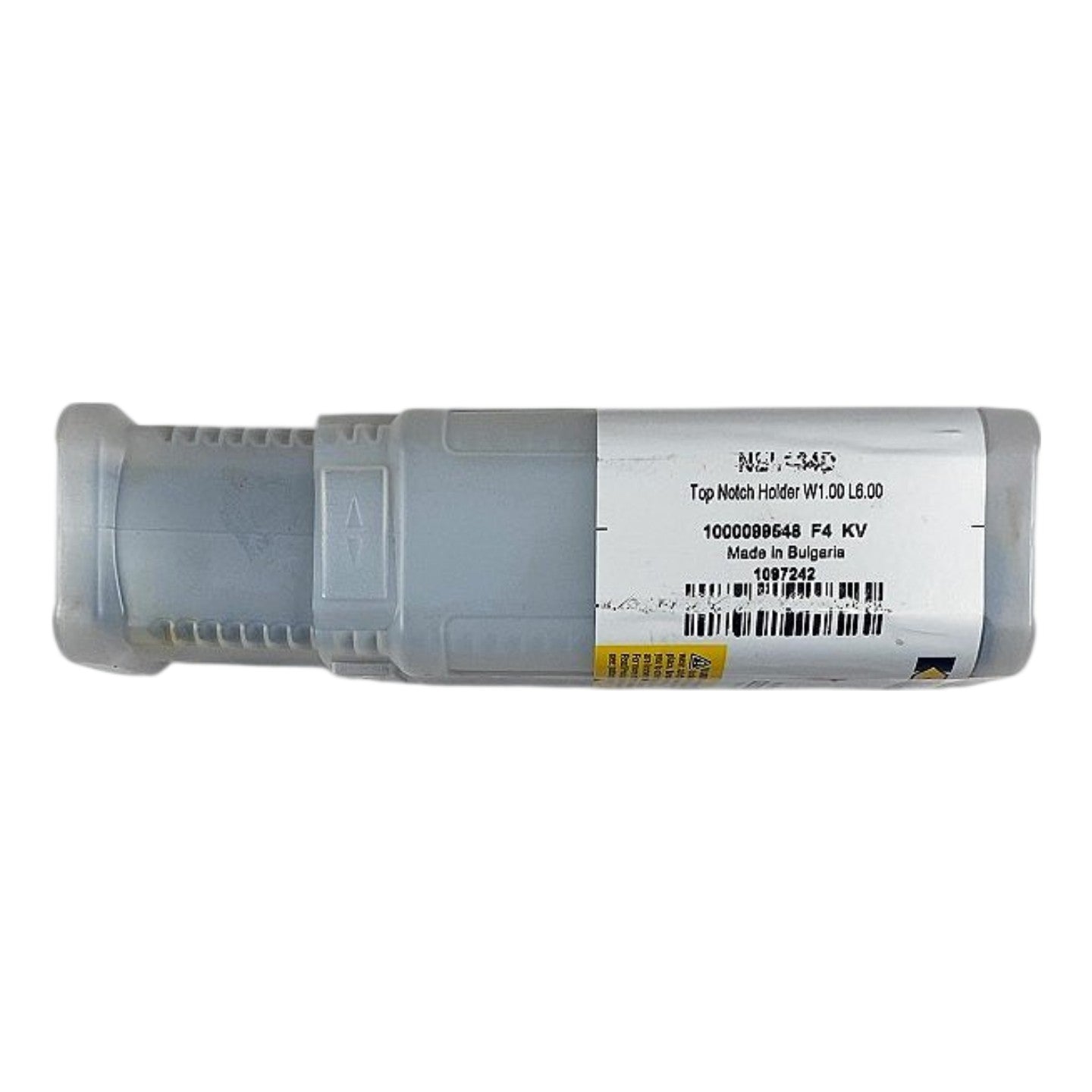

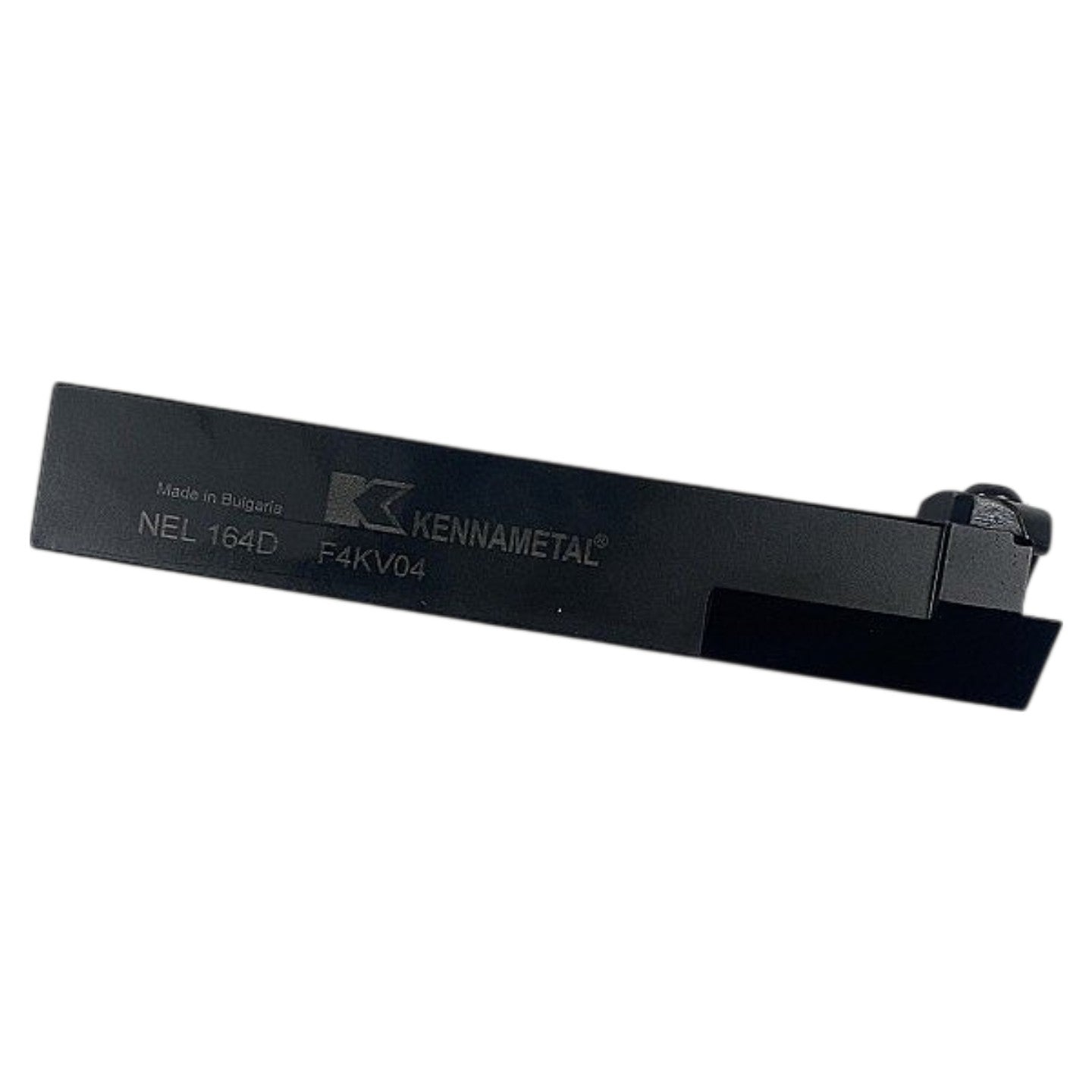

The Kennametal NEL164D (internal Kennametal order code F4KV04, item number 1000099548) is a new Top Notch external grooving and parting toolholder designed for use with Kennametal Top Notch insert system inserts. Per the label on the packaging, this holder accepts inserts with a 1.00 in (W1.00) groove width and has a shank length of 6.00 in (L6.00), with a left-hand (L) cutting direction as indicated by the 'L' in the designation. The holder is manufactured in Bulgaria to Kennametal's Top Notch system standards, features a black-oxide treated steel body for corrosion resistance, and uses a side-lock screw clamping mechanism secured with the included hex key. It is suited for OD grooving, undercutting, and parting operations on CNC and manual lathes, and accepts standard Top Notch N-style grooving inserts in the 1.00 in width class.
Product Specifications
| Brand | Kennametal |
| Model Number (MPN) | NEL164D |
| Internal Order Code | F4KV04 |
| Item Number | 1000099548 |
| Toolholder System | Top Notch |
| Cutting Direction | Left-Hand (L) |
| Insert Width (W) | 1.00 in |
| Shank Length (L) | 6.00 in |
| Shank Height | 1 in |
| Shank Width | 1 in |

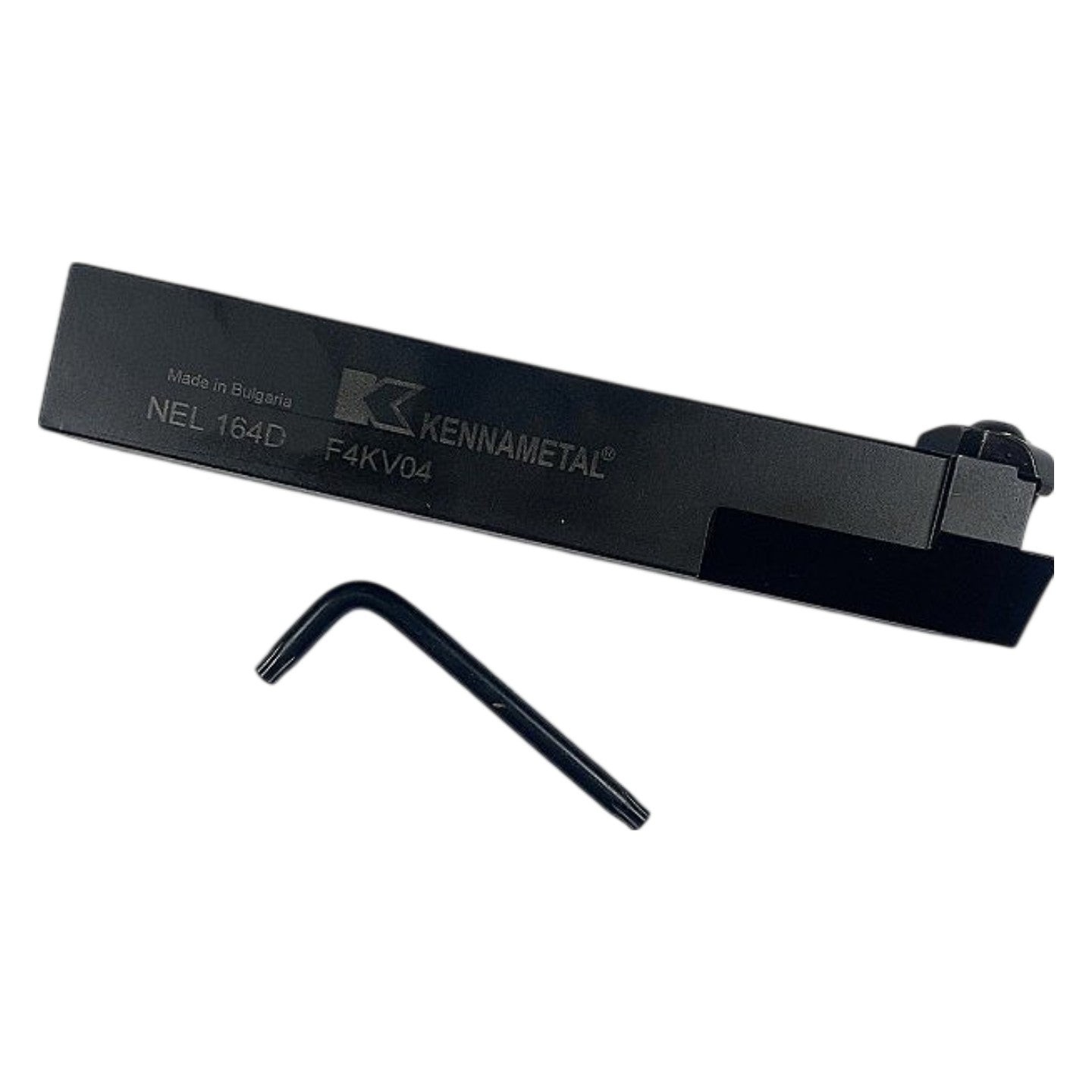

| Clamping Method | Side-lock screw (hex key included) |
| Body Material | Alloy steel, black-oxide finish |
| Country of Origin | Bulgaria |
| Operation Type | OD grooving, parting, undercutting |
| Compatible Insert System | Kennametal Top Notch N-style |
| Condition | New |
