Kennametal RCMT1204M0 KCPK30 Round Positive Carbide Milling Insert (5pc)

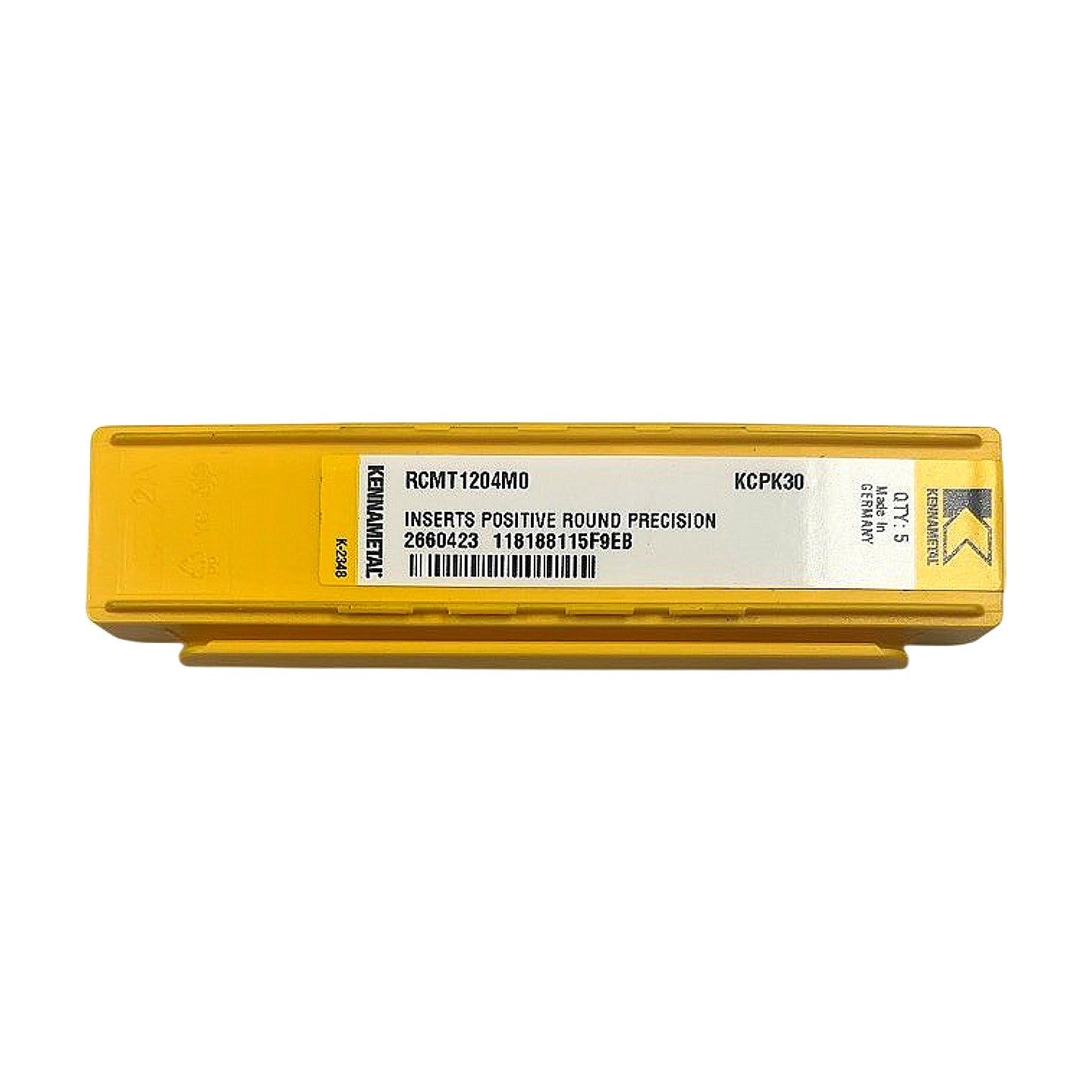

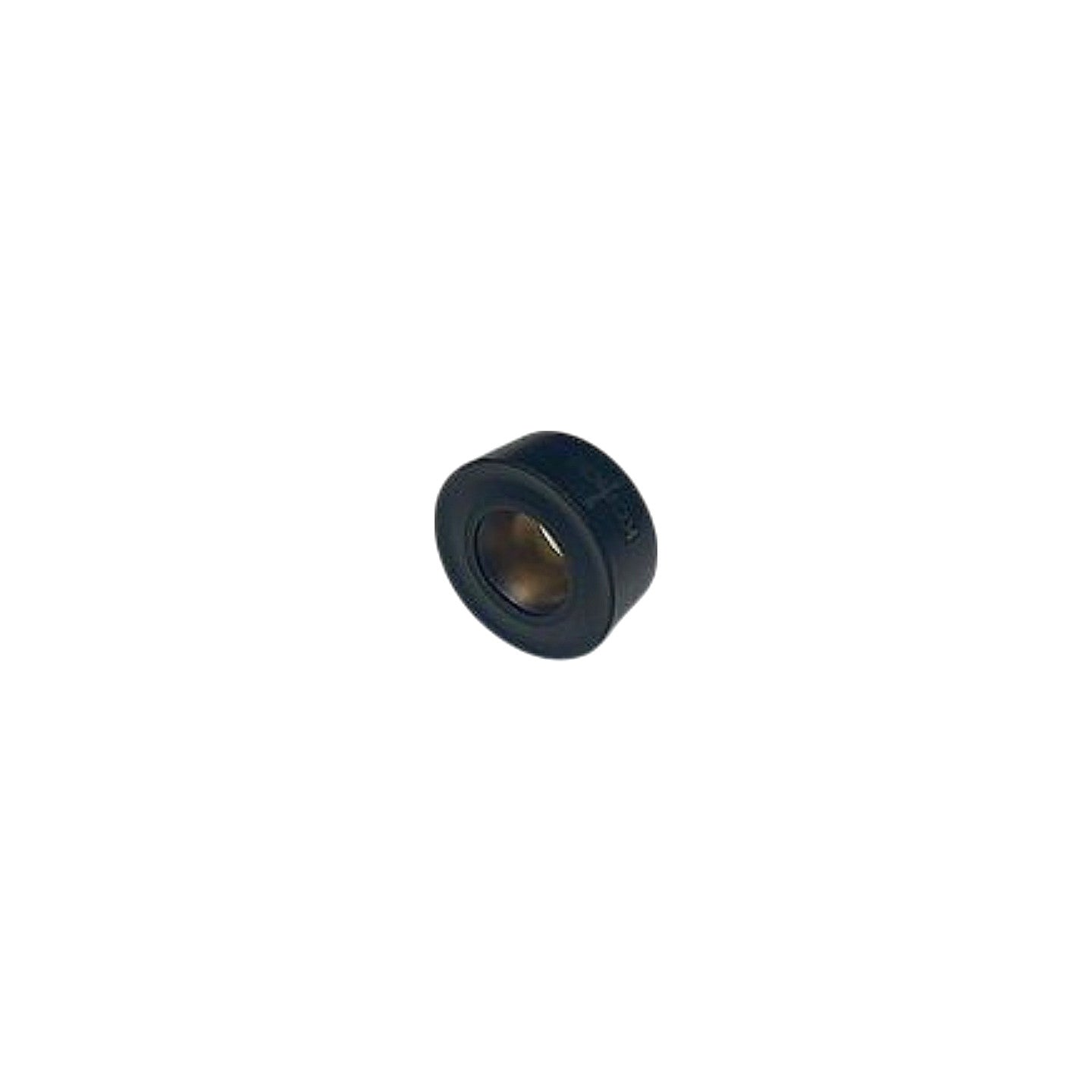

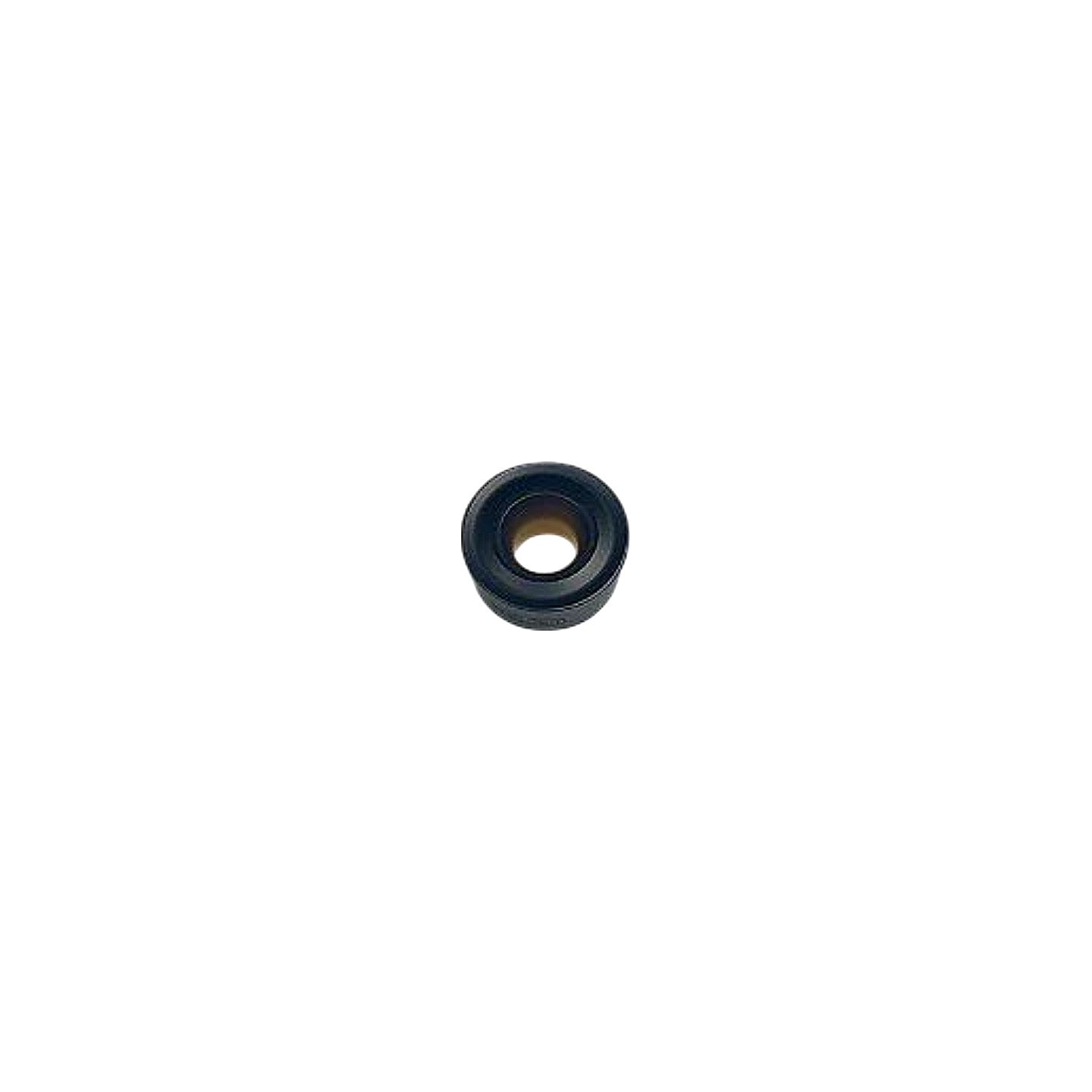

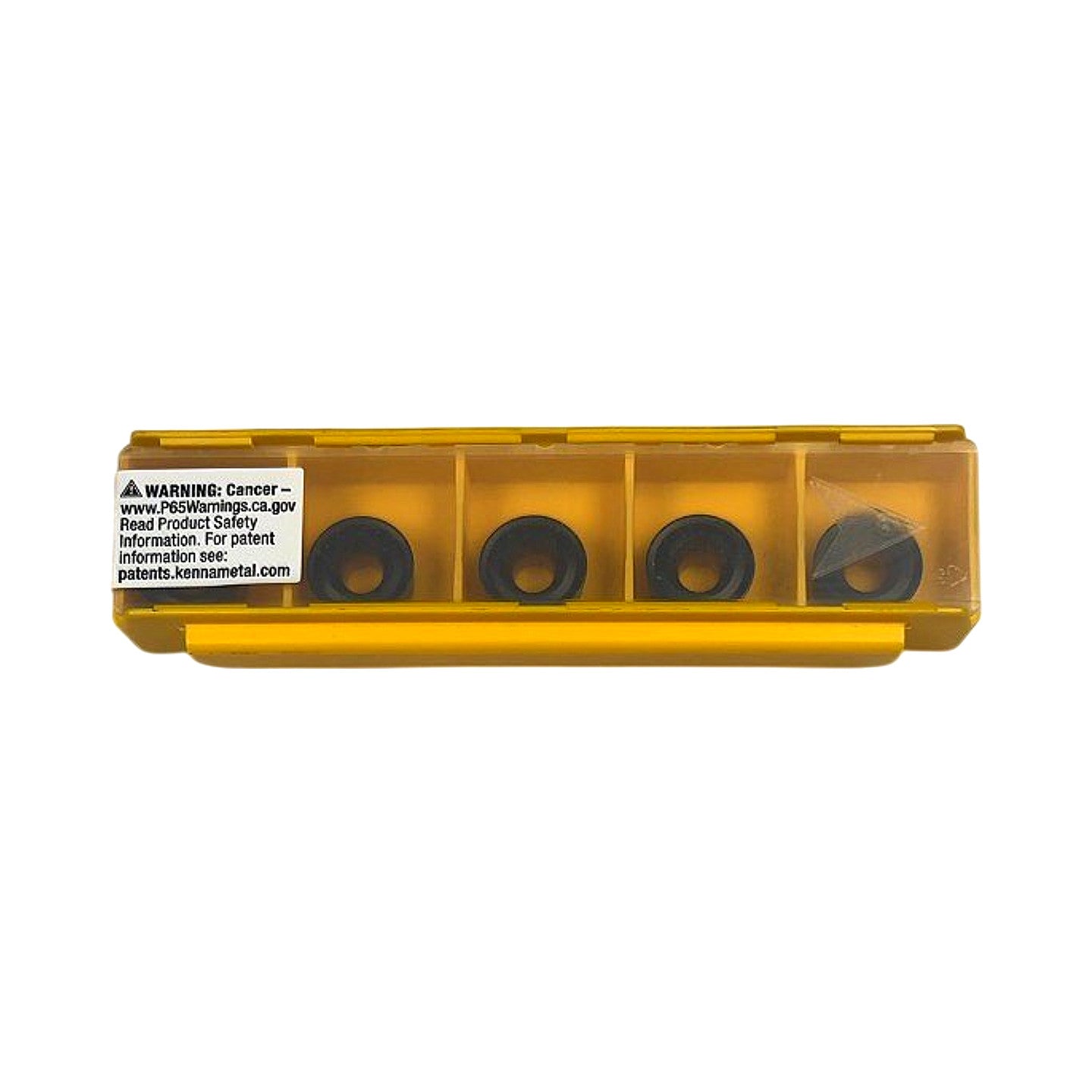

The Kennametal RCMT1204M0 is a round (R), positive-rake (C clearance = 7°), medium tolerance (M), with chip breaker (T = with hole + chipbreaker), precision ground carbide milling insert in the KCPK30 grade — a PVD-coated submicron carbide grade optimized for cast iron and hardened steel milling applications. The ISO designation decodes as: R = round shape, C = 7° clearance angle, M = medium tolerance class (±0.05–0.13 mm on IC, ±0.13 mm on thickness), T = with mounting hole and chipbreaker, 12 = 12 mm inscribed circle diameter, 04 = 4.76 mm thickness, M0 = Kennametal-specific chipbreaker designation for general milling. KCPK30 is a PVD TiAlN-based coated carbide grade well-suited for milling cast iron, hardened steel, and stainless at moderate to high cutting speeds. Each insert features a full 360° usable round cutting edge, maximizing the number of index positions and reducing per-edge cost; the positive rake geometry reduces cutting forces and generates less heat at the cutting zone. This factory-sealed box of 5 new inserts (QTY: 5 per label) is made in Germany and compatible with Kennametal round insert milling toolholders designed for RCMT12 inserts.

Product Specifications
