Kennametal RNPJ1204M0SGD KC725M Round Carbide Milling Insert (5pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

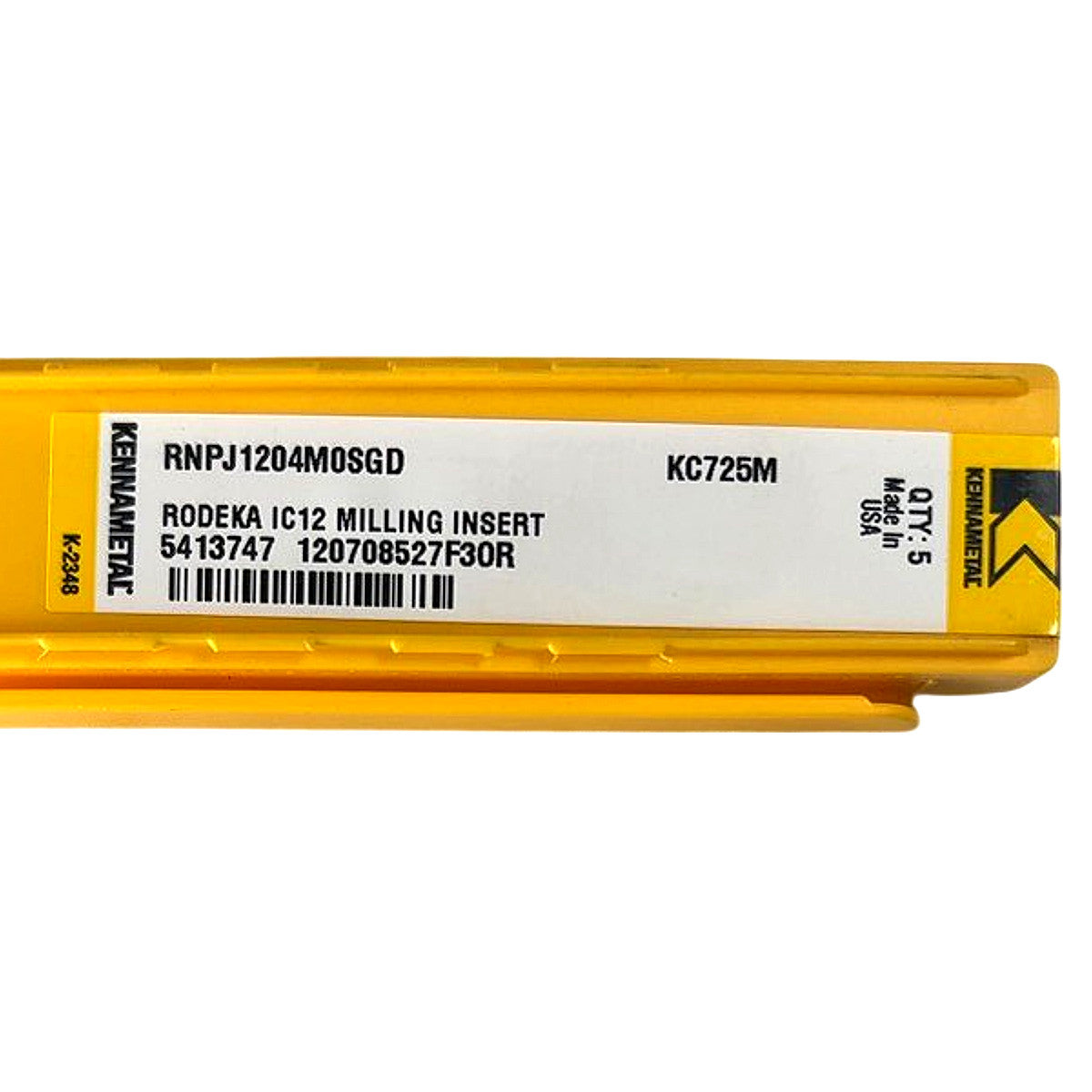

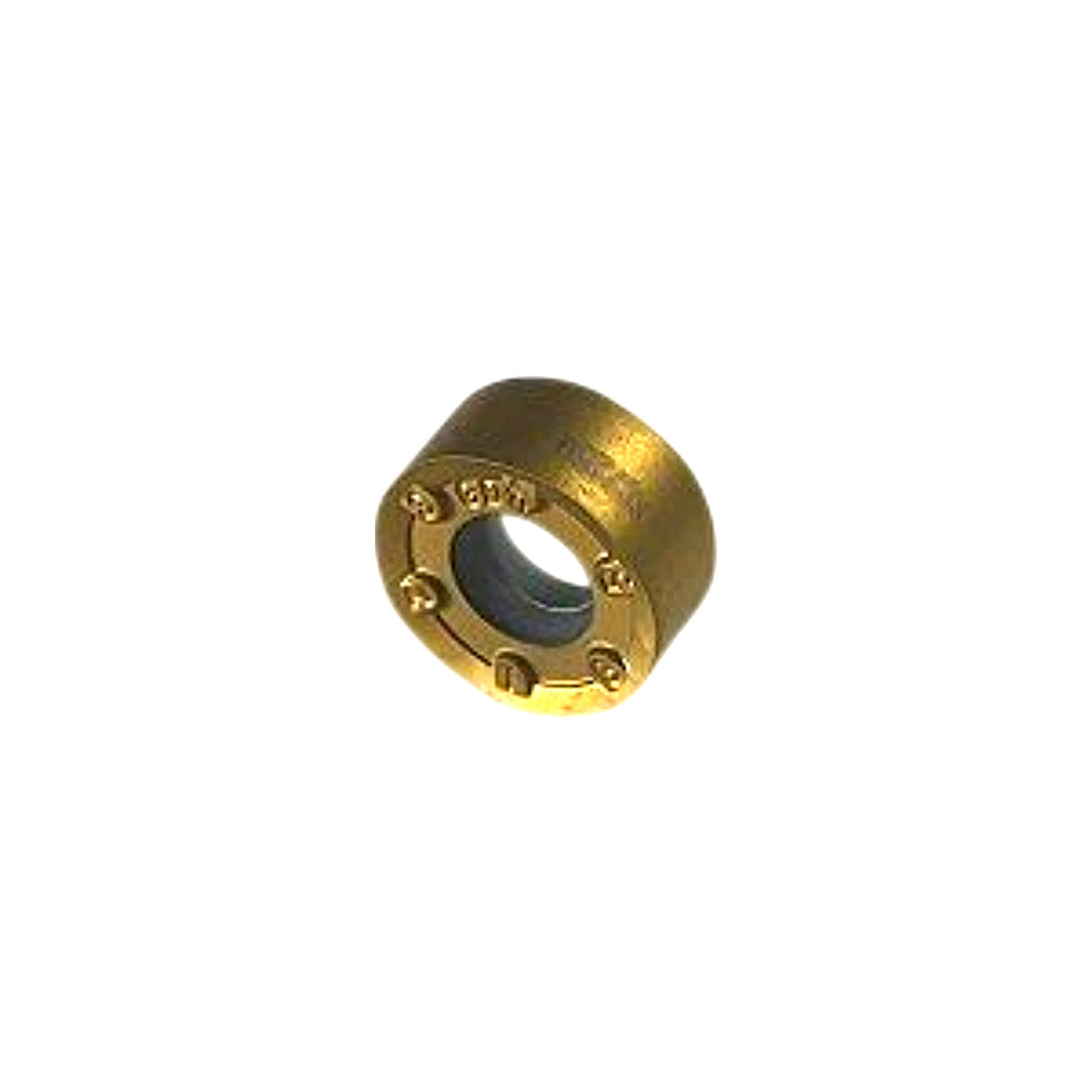

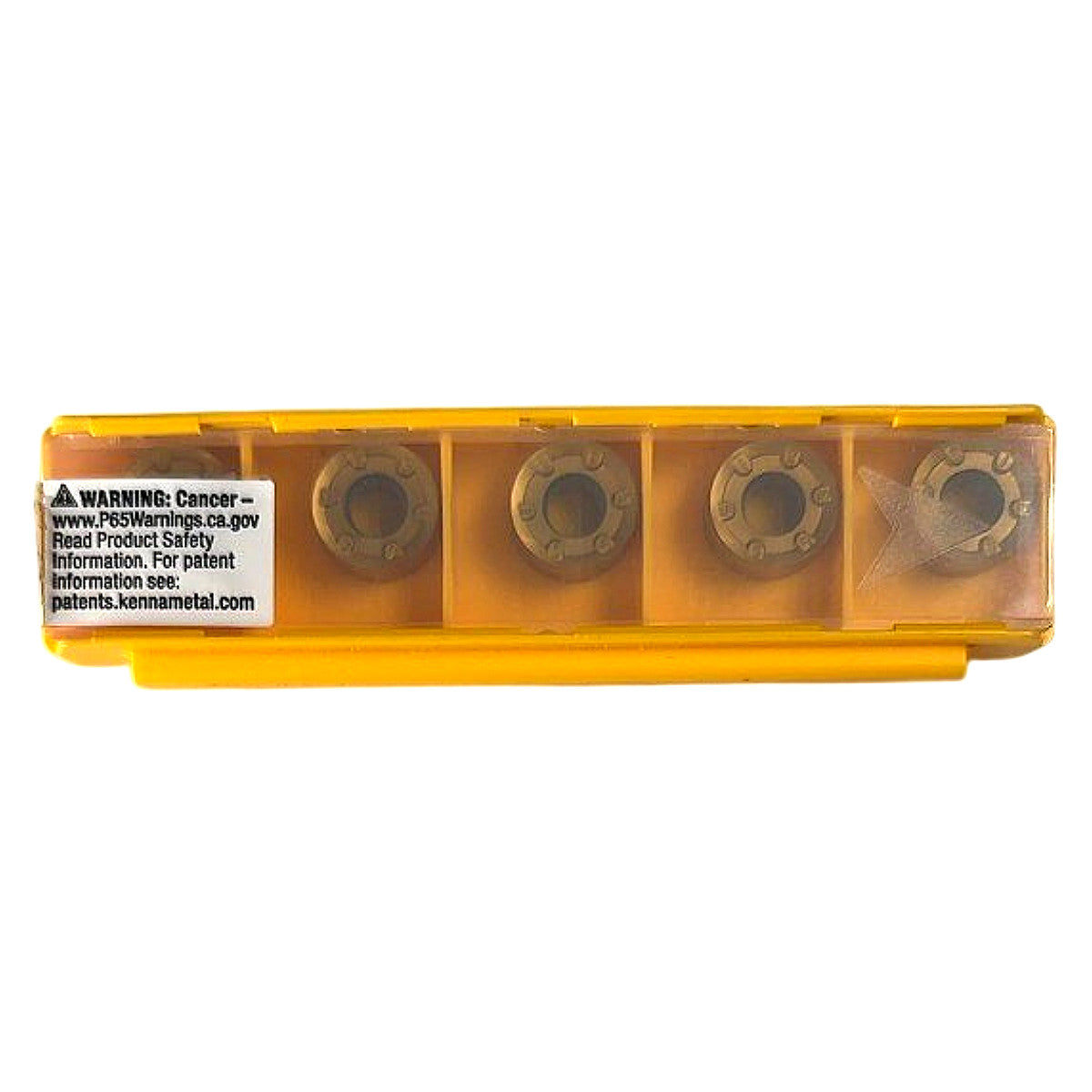

This is a factory-new pack of 5 Kennametal RNPJ1204M0SGD carbide milling inserts in KC725M grade, designed for use in the Kennametal RODEKA IC12 round insert milling system. Decoding the ISO designation: RN = round (circular) shape with 0° clearance; P = ±0.025mm / ±0.025mm tolerance class; J = screw-on with countersunk hole; 1204 = 12mm inscribed circle diameter, 4.76mm thickness; M0S = medium chipbreaker geometry (M0S); GD = KC725M PVD TiAlN-based coating designation. KC725M is a PVD-coated submicron carbide grade engineered for milling of steel, stainless steel, and cast iron, offering excellent toughness and wear resistance at moderate to high cutting speeds. These inserts carry Kennametal item number 5413747 and are made in the USA; they are compatible with Kennametal RODEKA face milling and high-feed milling cutters that accept IC12 round inserts with a screw-on J-style seating.
Product Specifications
| Brand | Kennametal |
| MPN | RNPJ1204M0SGD |
| Grade | KC725M |
| Item Number | 5413747 |
| Insert Shape | Round (R) |
| Clearance Angle | 0° (N) |
| Tolerance Class | P (±0.025mm IC, ±0.025mm thickness) |
| Fixing Method | Screw-on w/ countersunk hole (J) |
| Inscribed Circle (IC) | 12 mm |
| Insert Thickness | 4.76 mm |
| Chipbreaker | M0S |
| Coating | PVD TiAlN-based |
| Substrate | Submicron carbide |
| Application System | Kennametal RODEKA IC12 Milling |
| ISO Material Groups | P (Steel), M (Stainless), K (Cast Iron) |
| Country of Origin | USA |
| Quantity per Pack | 5 |
| Condition | New |
