Kennametal SNGA190612T02020 KY3500 Silicon Nitride Turning Insert
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

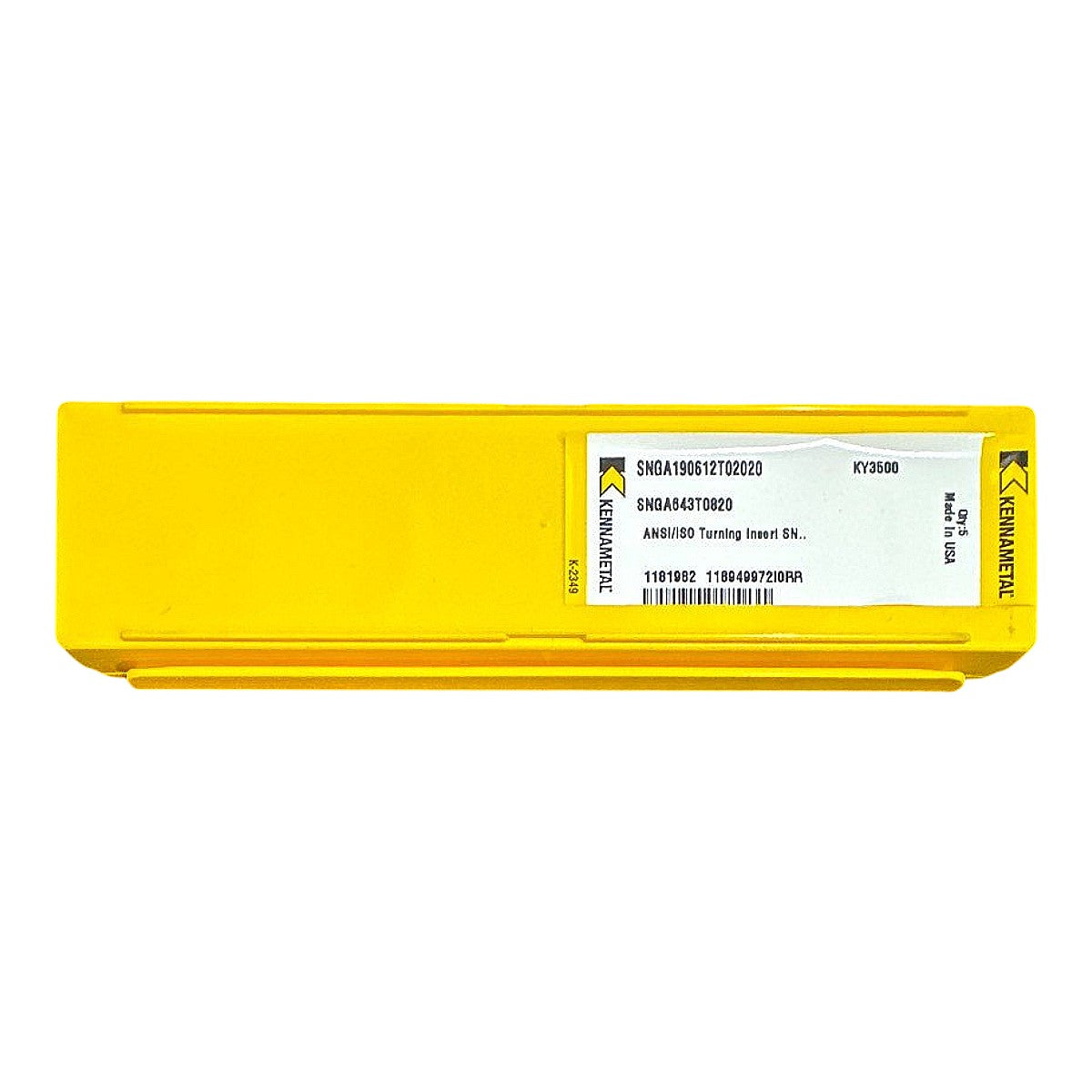

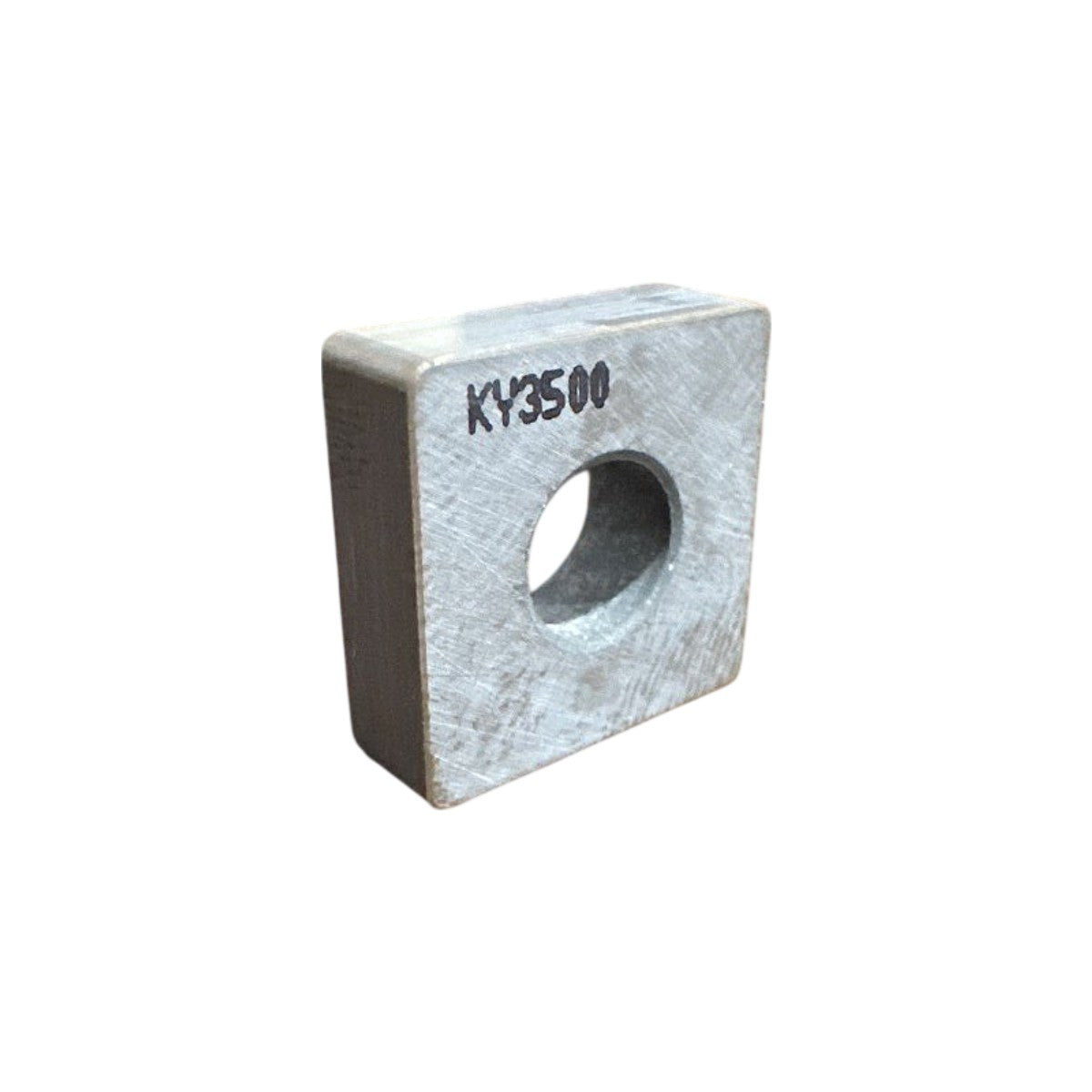

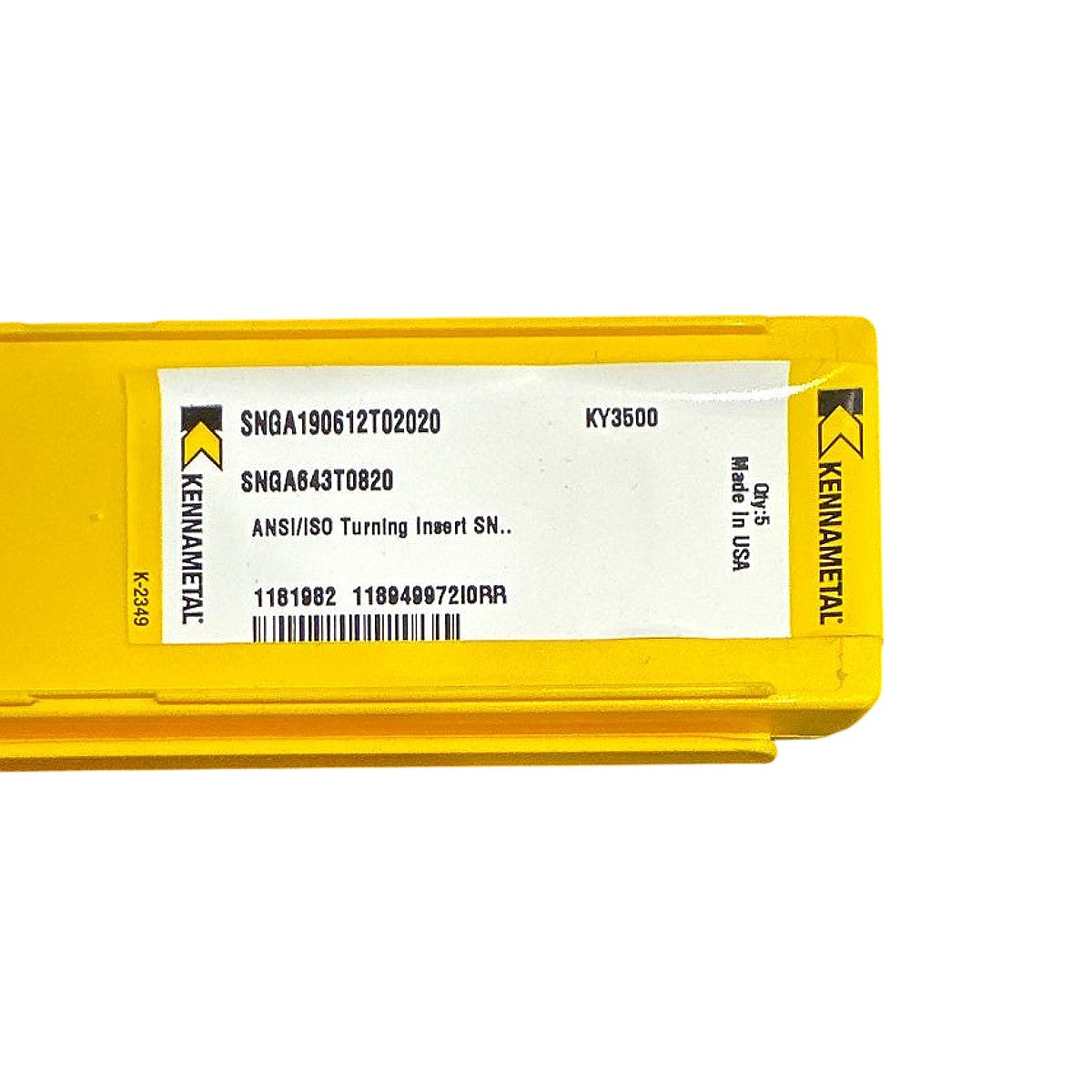

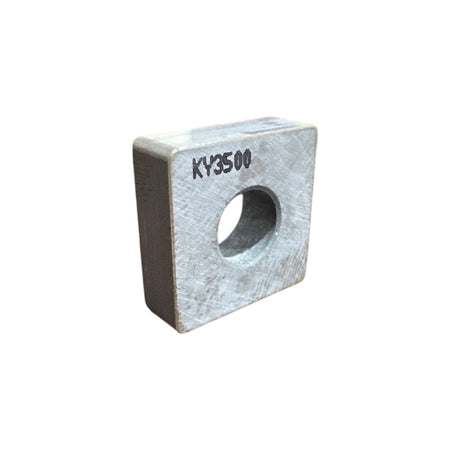

This Kennametal SNGA190612T02020 (ANSI SNGA643T0820) is a square, negative-rake ceramic turning insert in grade KY3500, a silicon nitride grade, supplied in a factory box of 5 and made in the USA. The ISO designation decodes to a square shape with 0° clearance, G tolerance, a cylindrical center hole with no chipbreaker, a 19.05 mm (3/4 in) inscribed circle, 6.35 mm (1/4 in) thickness, a 1.2 mm (3/64 in) nose radius and a T-land edge preparation (0.20 mm wide at 20°). The flat-top geometry with a 0° clearance angle gives eight usable cutting edges when mounted in a negative-rake SN-style toolholder. KY3500 is intended for high-speed turning of gray cast iron (ISO K). This item is new.
Product Specifications
| Brand | Kennametal |
| MPN | SNGA190612T02020 |
| Alternate Part Number | SNGA643T0820 |
| Catalog Number | 1161982 |
| Grade | KY3500 |
| Substrate | Silicon Nitride Ceramic |
| Coating | Uncoated |
| Insert Shape | Square (S) |
| Clearance Angle | 0° (N) |
| Tolerance Class | G |
| Insert Type | Cylindrical hole, no chipbreaker (A) |
| Inscribed Circle | 19.05 mm (3/4 in) |
| Thickness | 6.35 mm (1/4 in) |
| Nose Radius | 1.2 mm (3/64 in) |
| Edge Preparation | T-land, 0.20 mm x 20° |
| Cutting Edges | 8 |
| Chipbreaker | None |
| Operation | Turning |
| Workpiece Material | ISO K, Cast Iron |
| Holder Style | SN.. negative-rake square insert holder |
| Quantity per Pack | 5 |
| Country of Origin | USA |
