Kennametal SNMG150612RN KCP25B Carbide Turning Insert 4pc
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

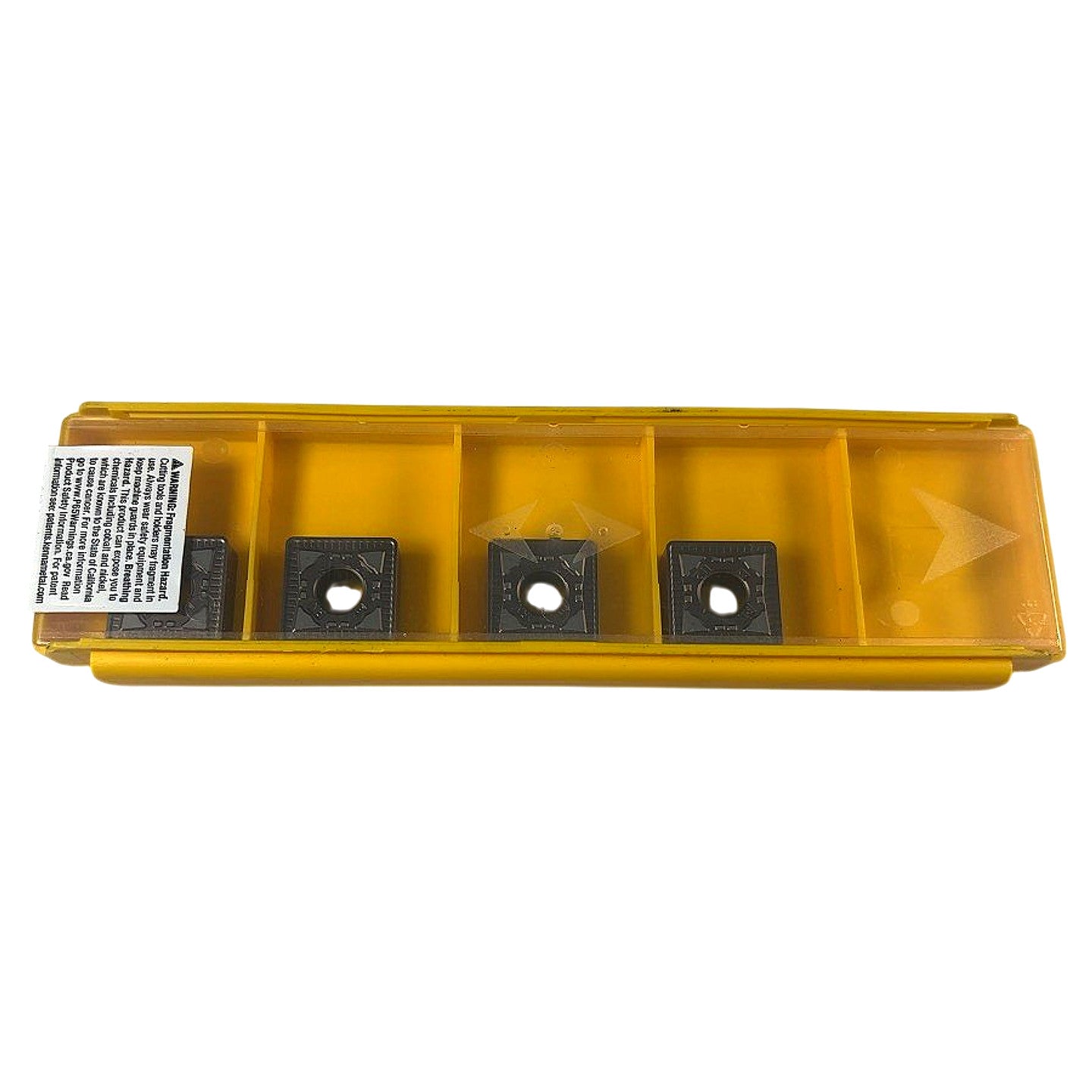

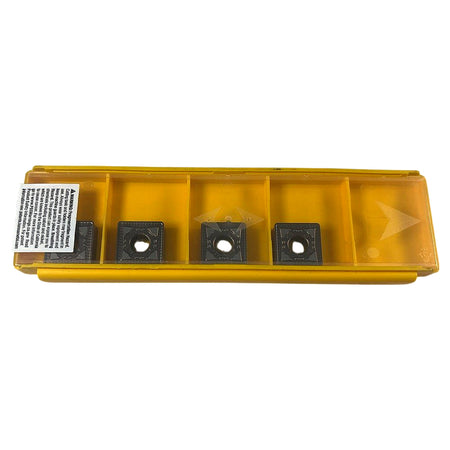

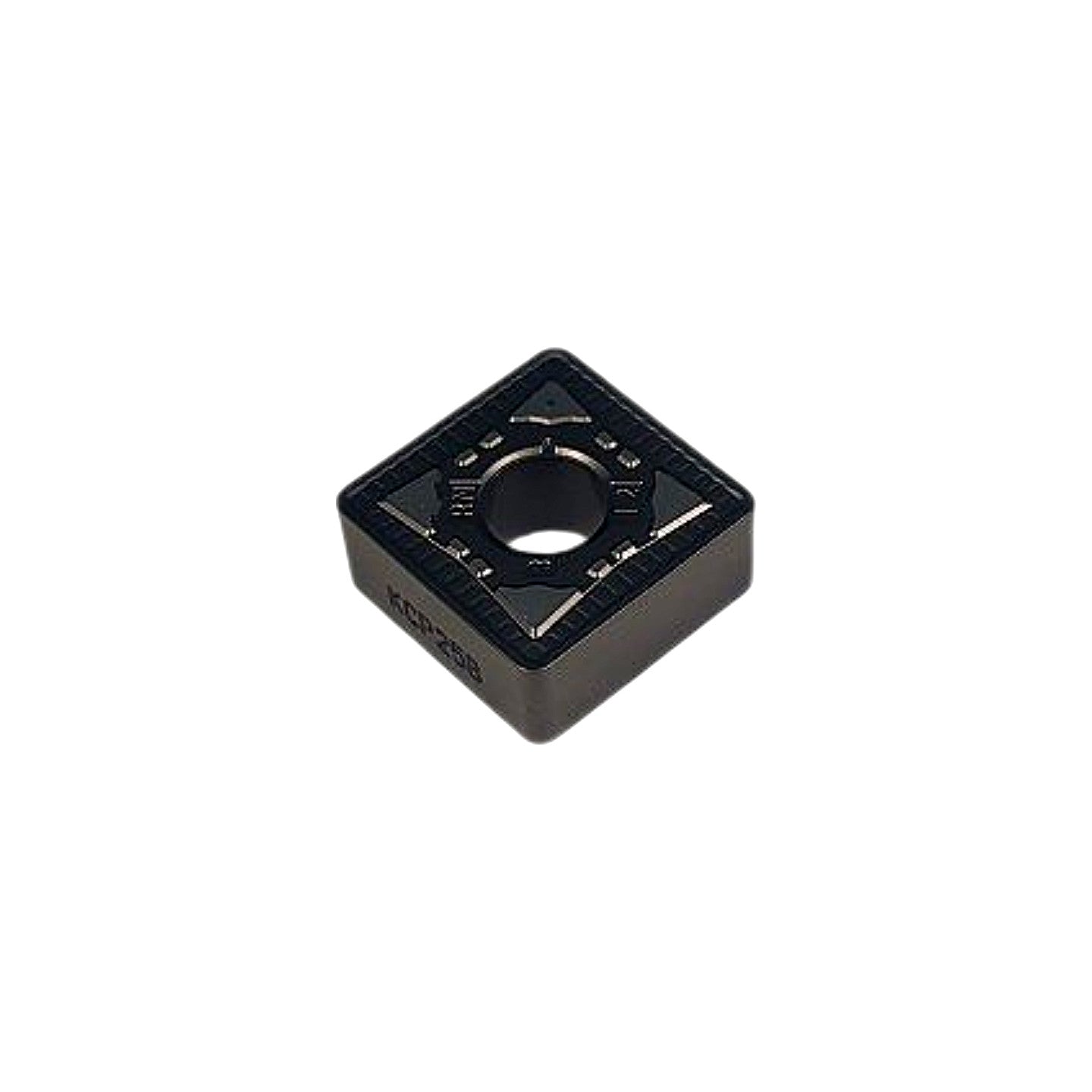

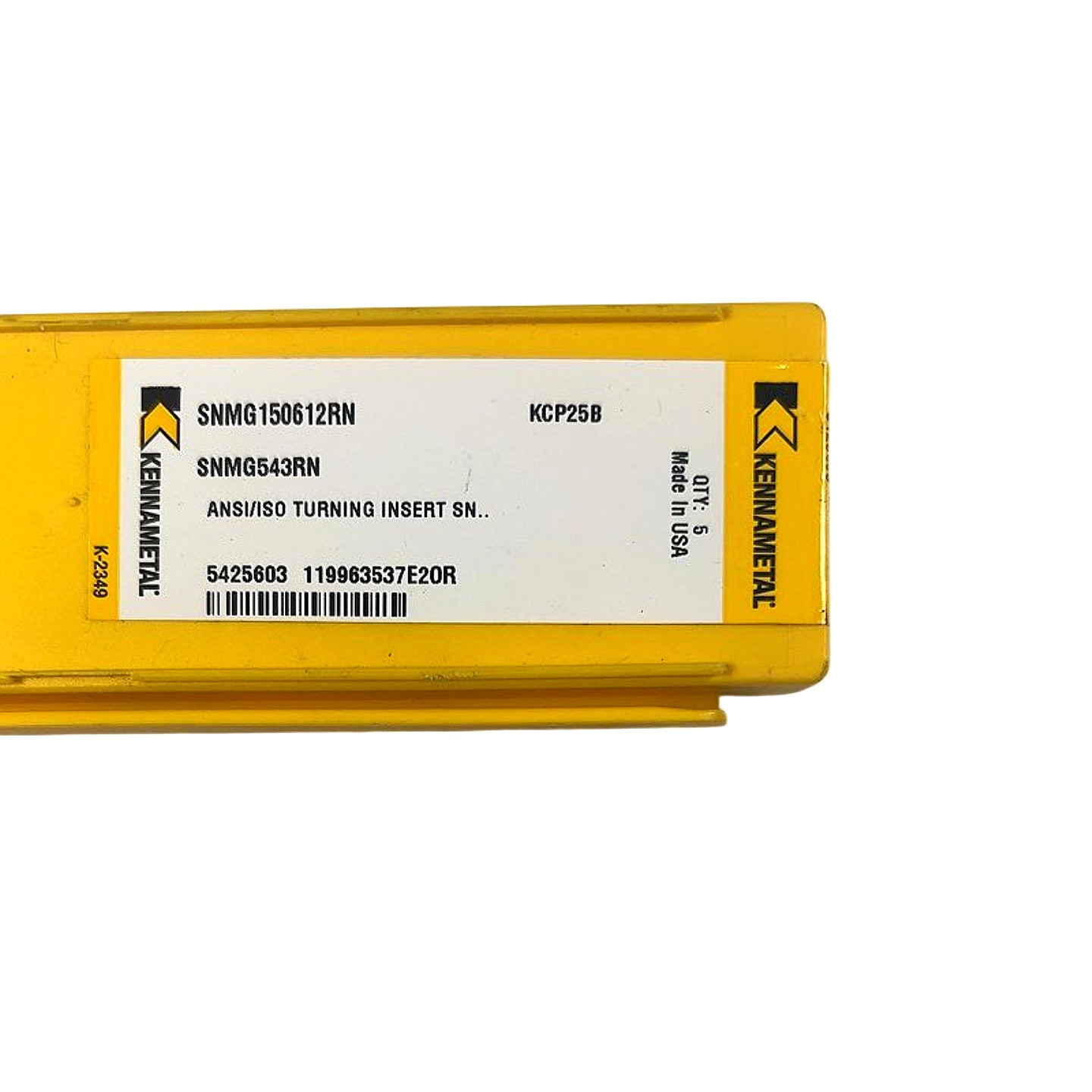

This is a new factory pack of 4 Kennametal SNMG150612RN (ANSI equivalent SNMG543RN) carbide turning inserts in grade KCP25B. Decoding the ISO designation: S = square 90° shape, N = 0° clearance angle (negative rake), M = tolerance class M, G = chipbreaker with central mounting hole, 15 = 15.875 mm inscribed circle, 06 = 6.35 mm thickness, 12 = 1.2 mm nose radius, RN = round-nose/full-radius chipbreaker geometry optimized for medium-to-rough turning. KCP25B is Kennametal's CVD multi-layer coated (TiCN/Al₂O₃/TiN) cemented carbide grade targeting ISO P25 steel turning applications, offering robust wear resistance and thermal barrier properties for interrupted and continuous cuts at medium-to-high feeds. These inserts are compatible with SNMG-style toolholders (e.g., Kennametal DSSNR/L, MSSNR/L series) and are manufactured in the USA, suitable for turning carbon steels, alloy steels, and ductile cast irons under wet or dry conditions.
Product Specifications
| Brand | Kennametal |
| ISO Part Number | SNMG150612RN |
| ANSI Part Number | SNMG543RN |
| Grade | KCP25B |
| Insert Shape | Square (S) — 90° |
| Clearance Angle | 0° (Negative Rake, N) |
| Tolerance Class | M |
| Chipbreaker | G (w/ hole), RN geometry |
| Inscribed Circle | 15.875 mm (5/8 in) |
| Insert Thickness | 6.35 mm (1/4 in) |
| Nose Radius | 1.2 mm (3/64 in) |
| Coating | CVD TiCN/Al₂O₃/TiN |
| ISO Grade Classification | P25 (Steel) |
| Country of Origin | USA |
| Quantity per Pack | 4 |
| Condition | New |
| Insert Material | Cemented Carbide |
| Compatible Toolholder Style | SNMG (DSSNR/L, MSSNR/L) |
