Kennametal SVABR103B S-Clamp 5/8in x 4.5in RH Turning Toolholder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

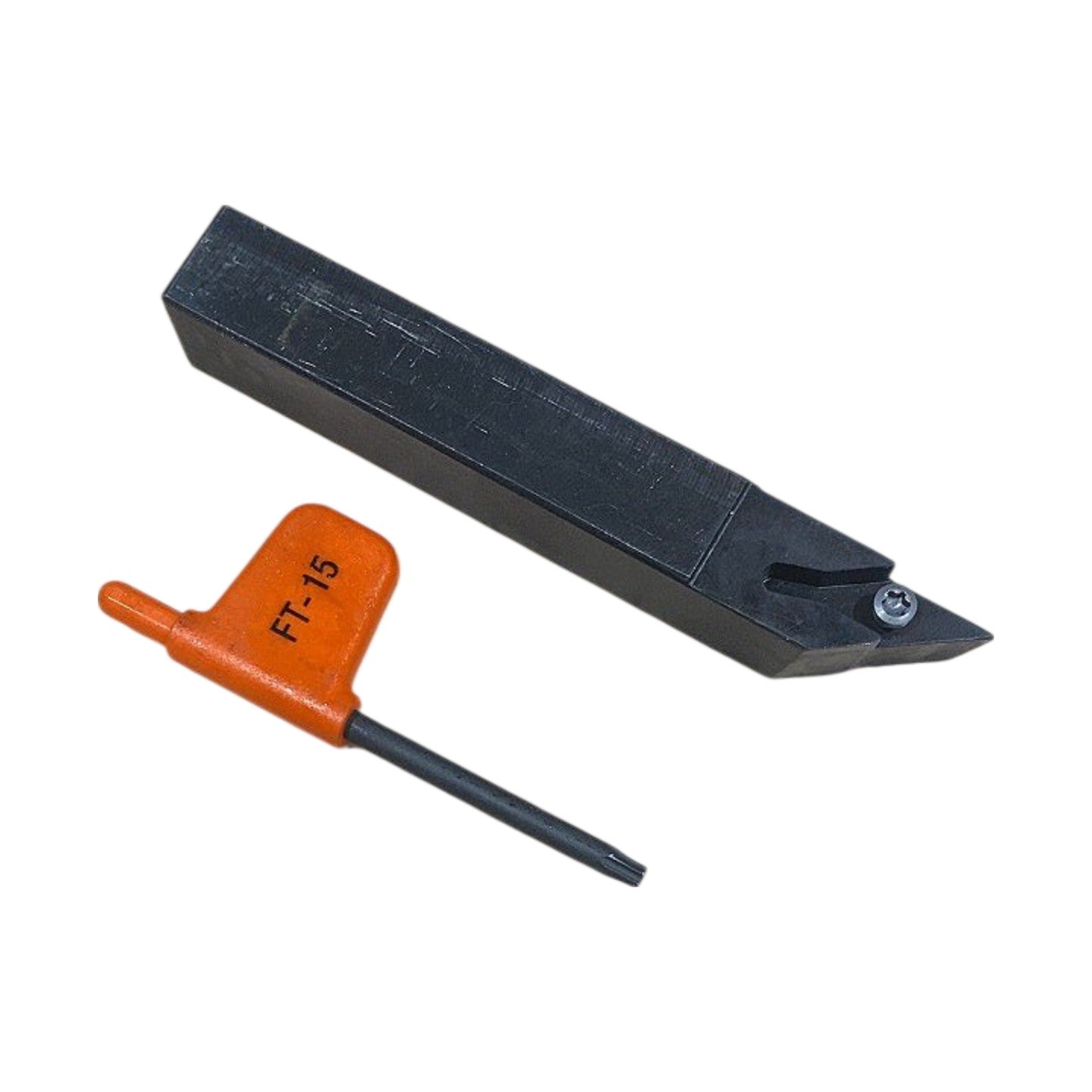

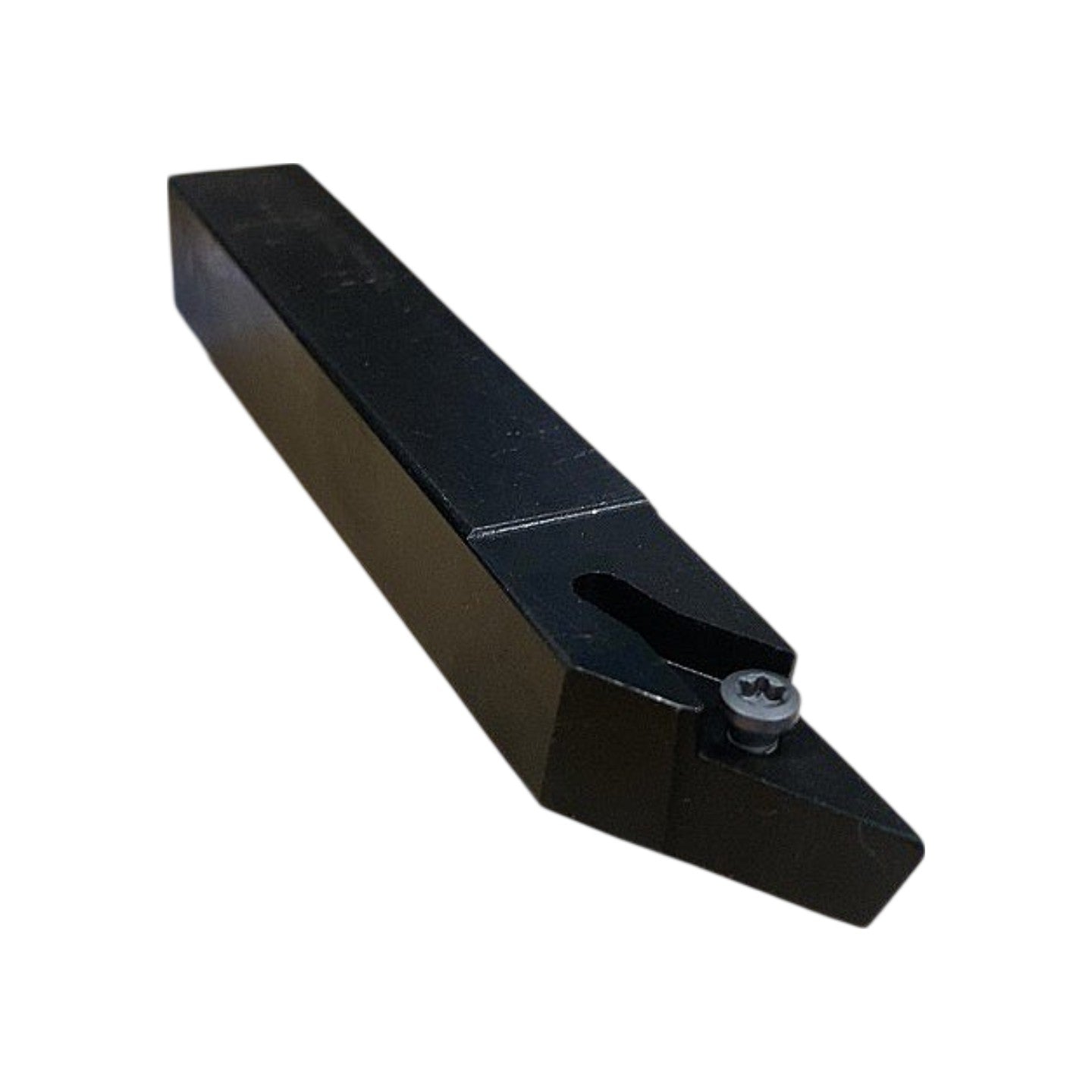

The Kennametal SVABR103B is a new, right-hand external turning toolholder using S-style (screw-on) clamping, designed to accept VBMT (35° diamond) inserts with a 3/8 in IC. Decoded from the ISO designation: S = screw clamping, V = 35° diamond insert shape, A = 3° clearance angle, B = shank style/approach angle (75° side cutting edge angle), R = right-hand cut, 10 = 5/8 in square shank (10/16 in), 3 = insert size IC 3/8 in, B = 4.5 in overall length. The holder body is manufactured from hardened alloy steel with a black oxide finish and features a precision-ground insert pocket for accurate, repeatable insert indexing. This toolholder is suited for OD turning, facing, and light profiling operations on CNC and manual lathes, accepting standard VBMT 16T3 (metric) / VBMT 332 (inch) inserts secured by a Torx-drive clamp screw; a T15 Torx wrench is included.
Product Specifications
| Brand | Kennametal |
| Part Number (MPN) | SVABR103B |
| Kennametal Item # | 1094511 |
| Clamping System | S (screw-on / pin-lock) |
| Insert Shape | V — 35° diamond (VBMT) |
| Insert Clearance Angle | A — 3° |
| Hand of Cut | Right (R) |
| Shank Width | 0.625 in (5/8 in) |
| Shank Height | 0.625 in (5/8 in) |
| Overall Length | 4.50 in |
| Compatible Insert (Inch) | VBMT 332 |
| Compatible Insert (Metric) | VBMT 16T3 |
| Insert IC Size | 3/8 in |
| Side Cutting Edge Angle | 75° |
| Approach Angle | 107.5° |
| Shank Cross-Section | Square |
| Body Material | Alloy steel, black oxide finish |
| Country of Origin | USA |
| Wrench Included | Yes — T15 Torx |
| Condition | New |
