Kennametal T623MF080X100R6HX M8x1 6HX TiN Spiral Flute Machine Tap
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

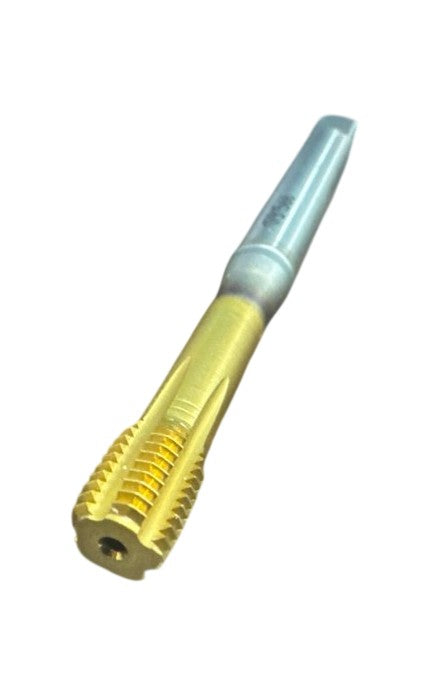

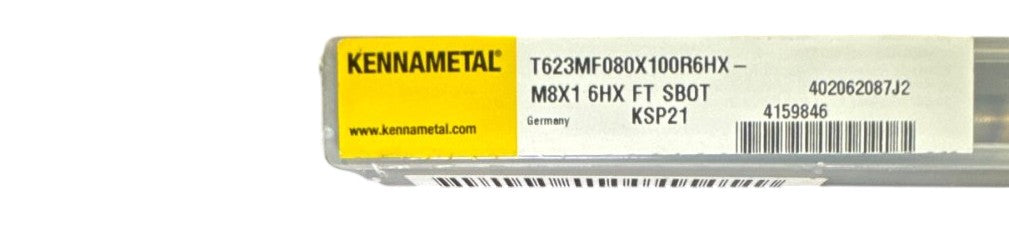

This is a new Kennametal T623MF080X100R6HX spiral flute machine tap in M8x1.0 thread form, tolerance class 6HX, manufactured in Germany to DIN/ISO standards. The tap features a spiral (helical) flute geometry designated 'FT' (Fast Tap / right-hand helix) designed to evacuate chips upward out of blind holes, making it suited for CNC machining centers and blind-hole threading operations in steel, stainless steel, and other ferrous materials. The 'SBOT' designation indicates a forming/cutting tap style with a bottoming chamfer for threading close to the bottom of blind holes, and the KSP21 grade substrate is a fine-grain HSS-E (cobalt high-speed steel) with a TiN (Titanium Nitride) coating — confirmed by the gold finish visible in the photos — which increases surface hardness and wear resistance. The shank is cylindrical with a protective plastic cap on the drive end, and the tap is suitable for use in standard tap holders or quick-change collet chucks accepting 8mm shank tooling. Overall length is 100mm as encoded in the part number.
Product Specifications
| Brand | Kennametal |
| MPN | T623MF080X100R6HX |
| Thread Size | M8 x 1.0 mm |
| Thread Standard | Metric Fine (M) |
| Thread Tolerance | 6HX |
| Tap Type | Spiral Flute Machine Tap |
| Flute Type | Spiral (Helical) Flute |
| Chamfer Style | Bottoming (SBOT) |
| Overall Length | 100 mm |
| Shank Diameter | 8 mm |
| Material/Grade | HSS-E (Cobalt High-Speed Steel) KSP21 |
| Coating | TiN (Titanium Nitride) |
| Country of Origin | Germany |
| Hand of Cut | Right Hand |
| Condition | New |
| Thread Direction | Right Hand |
| Application | Blind hole threading, CNC machining |
