Keo 63040 #304 HSS Woodruff Keyseat Cutter RH Straight Teeth
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

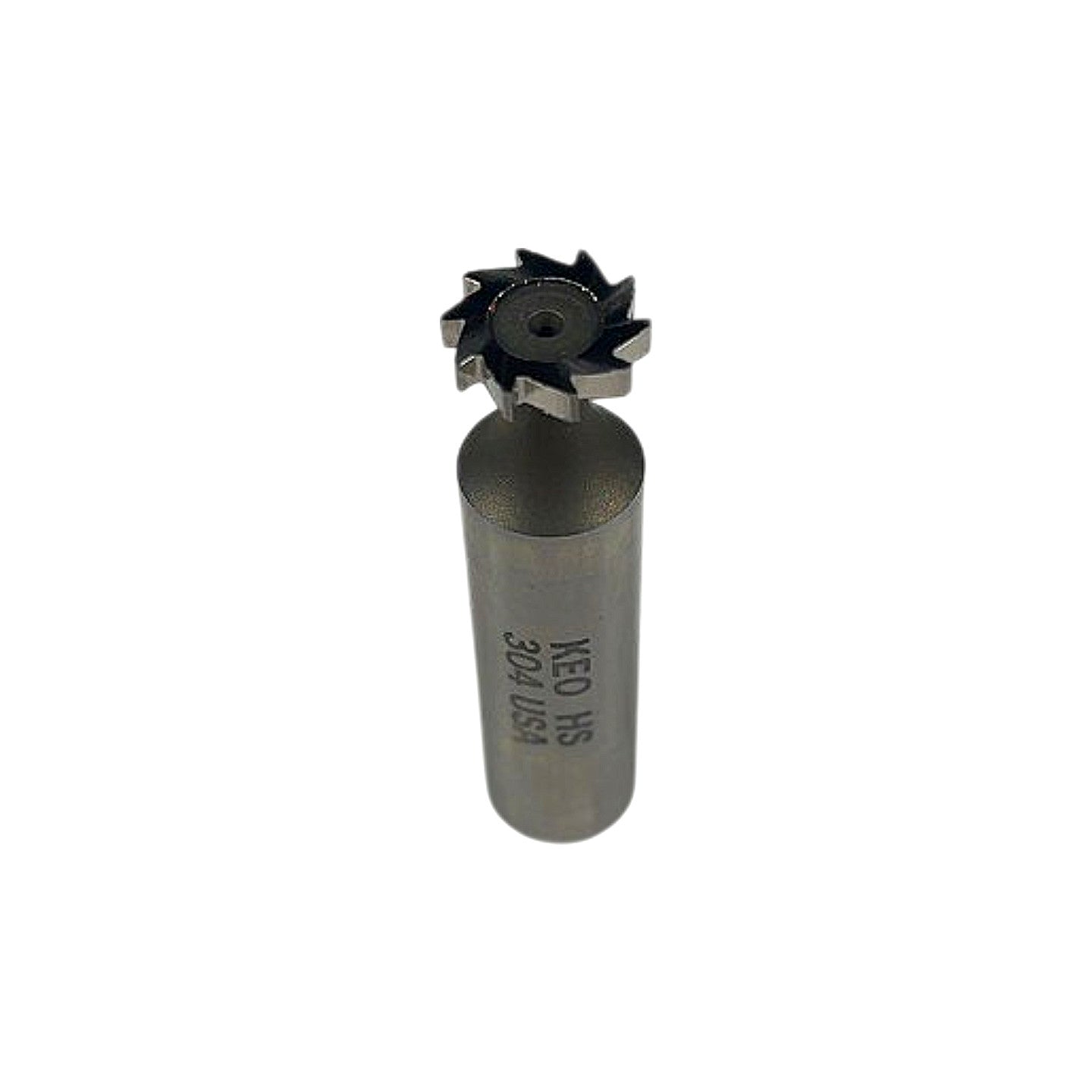

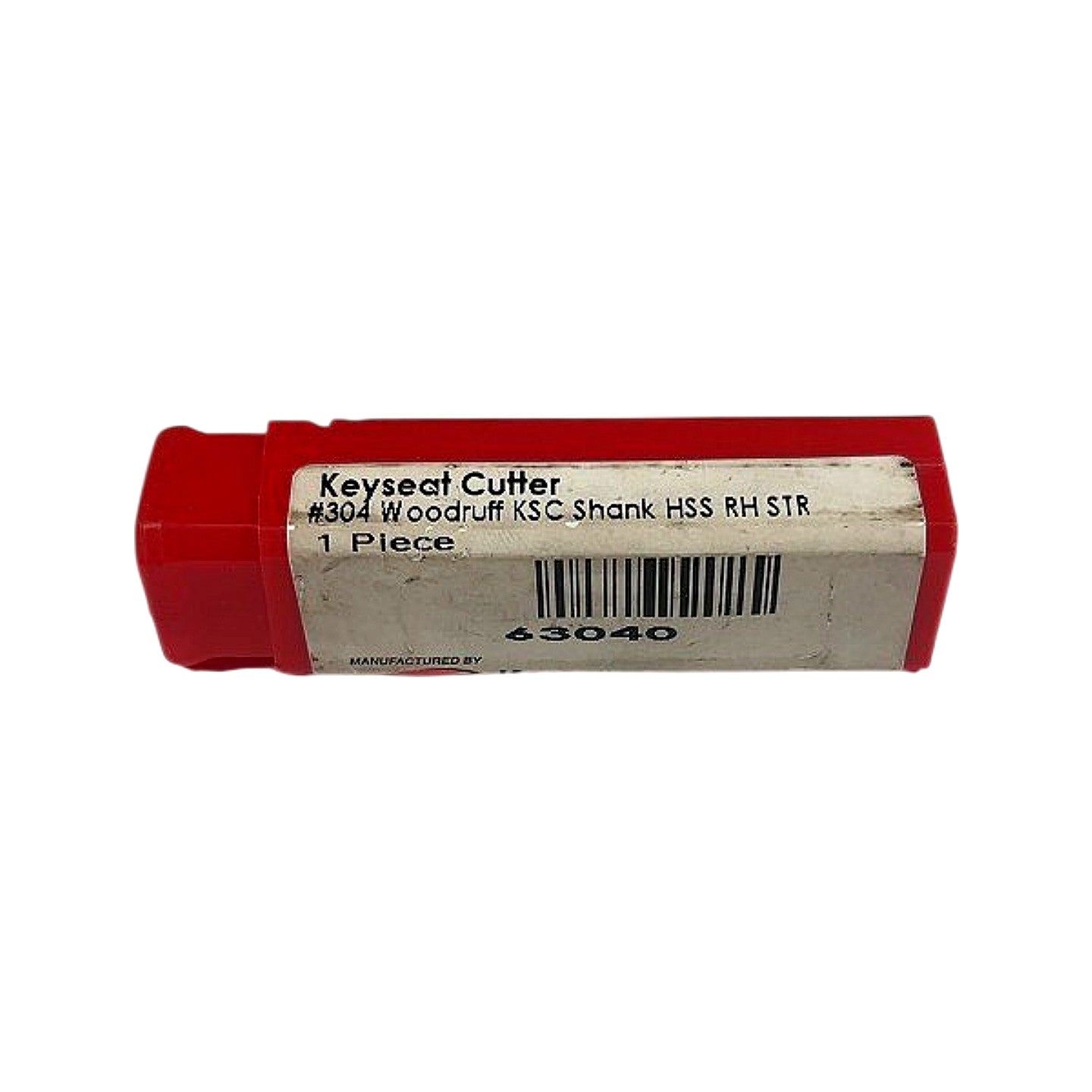

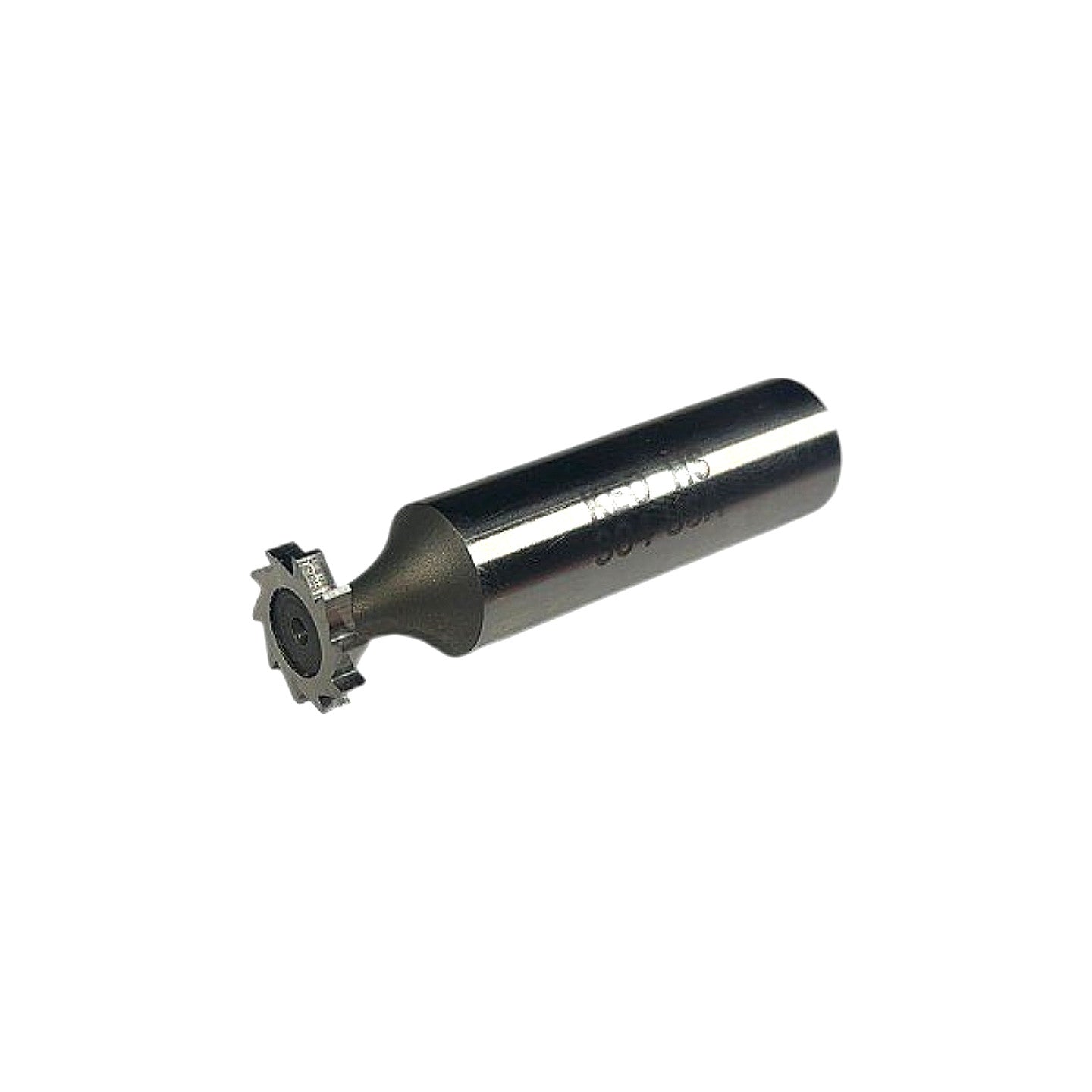

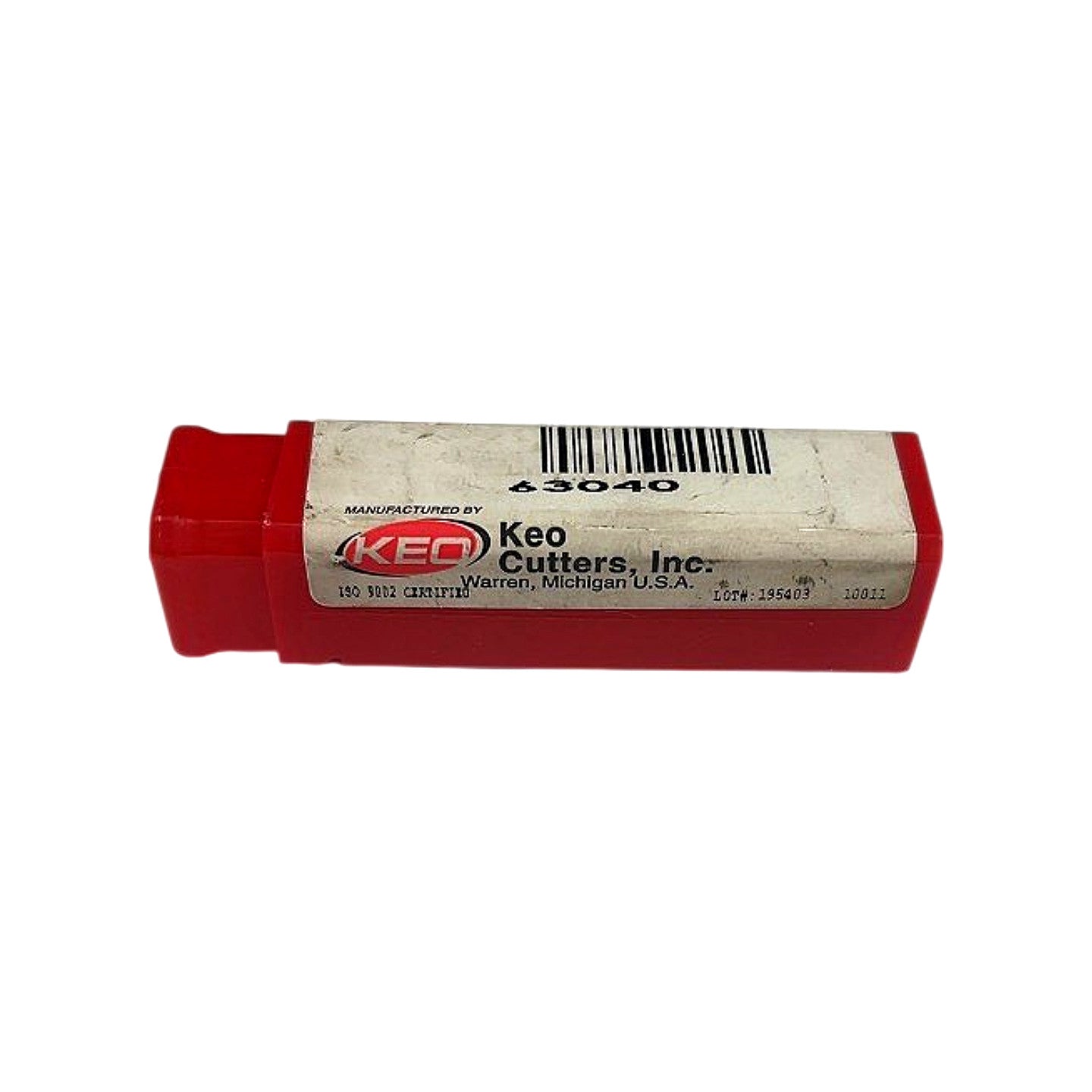

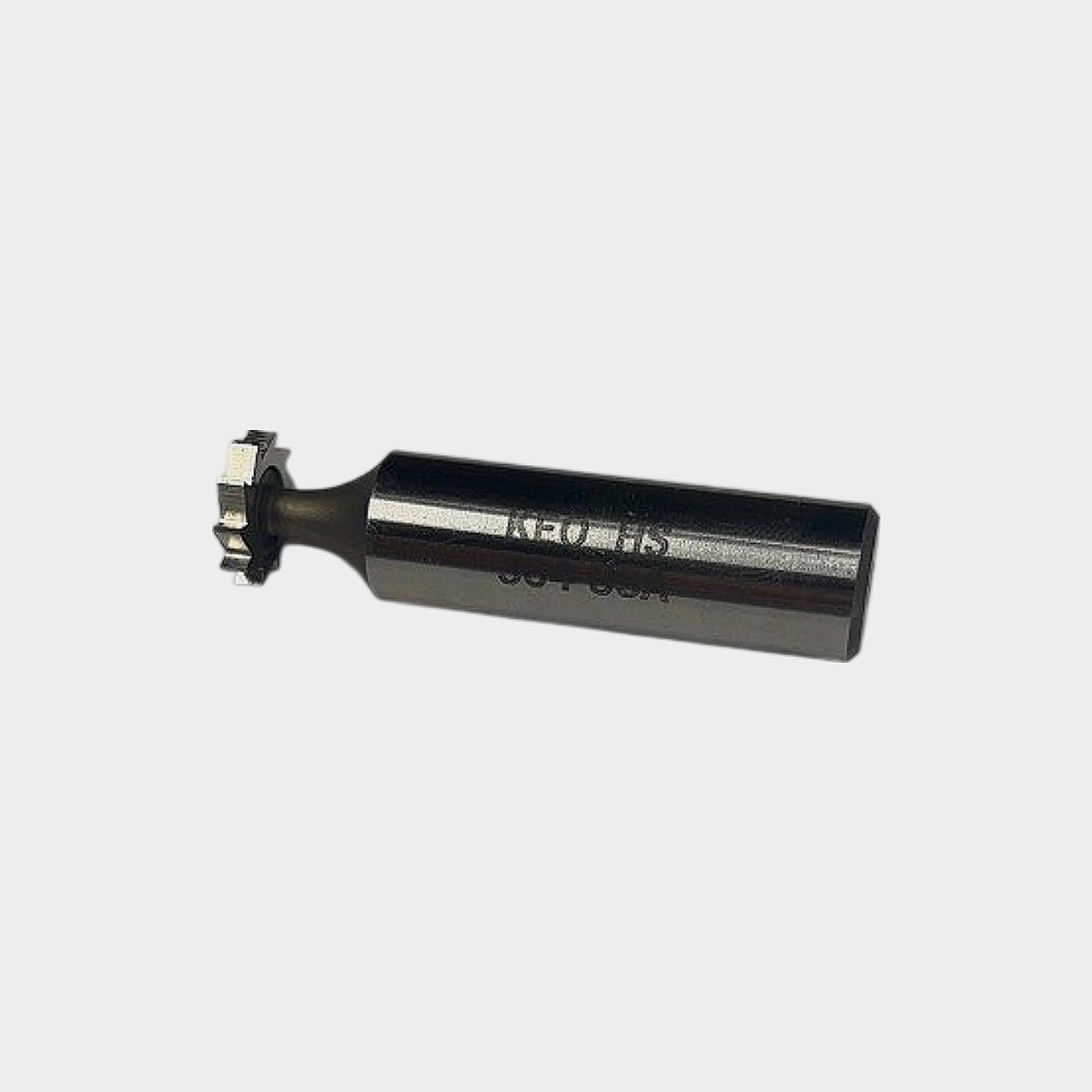

The Keo Cutters 63040 is a new #304 Woodruff keyseat cutter manufactured from high-speed steel (HSS) with a shank-type, right-hand cut, straight-tooth configuration — all confirmed from the label text "#304 Woodruff KSC Shank HSS RH STR." Per the ANSI B94.19 standard, the Woodruff #304 designation decodes to a cutter width of 4/32 in (1/8 in) and a cutter diameter of 3/8 in, with a 10-tooth configuration visible in the photos. The shank-type body features a reduced-diameter neck between the cutter head and the cylindrical shank, allowing the tool to reach into blind slots; the straight (non-staggered) teeth are suited for milling Woodruff keyseats in shafts on manual or CNC milling machines. Made in the USA by Keo Cutters, Inc. (Warren, Michigan), an ISO 9002-certified manufacturer, and shipped in the original red plastic protective case.
Product Specifications
| Brand | Keo Cutters |
| Catalog / Part Number | 63040 |
| Woodruff Key Number | #304 |
| Cutter Diameter | 3/8 in (0.375 in) |
| Cutter Width | 4/32 in (1/8 in, 0.125 in) |
| Material | High-Speed Steel (HSS) |
| Cut Direction | Right-Hand (RH) |
| Tooth Style | Straight (STR) |
| Cutter Type | Shank-Type Woodruff Keyseat Cutter |
| Number of Teeth | 10 |
| Country of Origin | USA |
| Shank Diameter | 1/2 in |
| Standard | ANSI B94.19 |
| Condition | New |
