KEO 950-000-828 09440 6x1/8x1 in 48T TiN HSS Concave Slitting & Slotting Saw
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

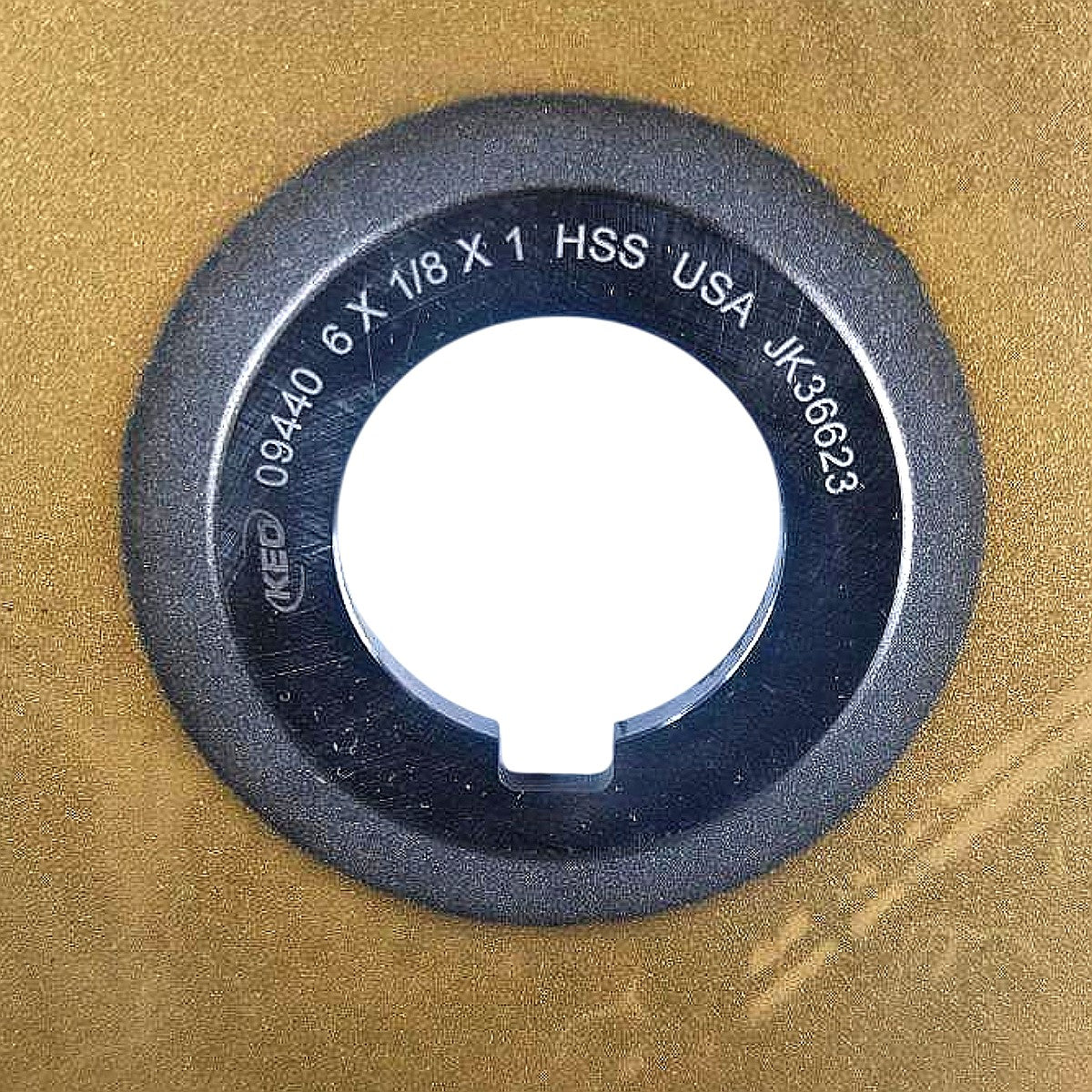

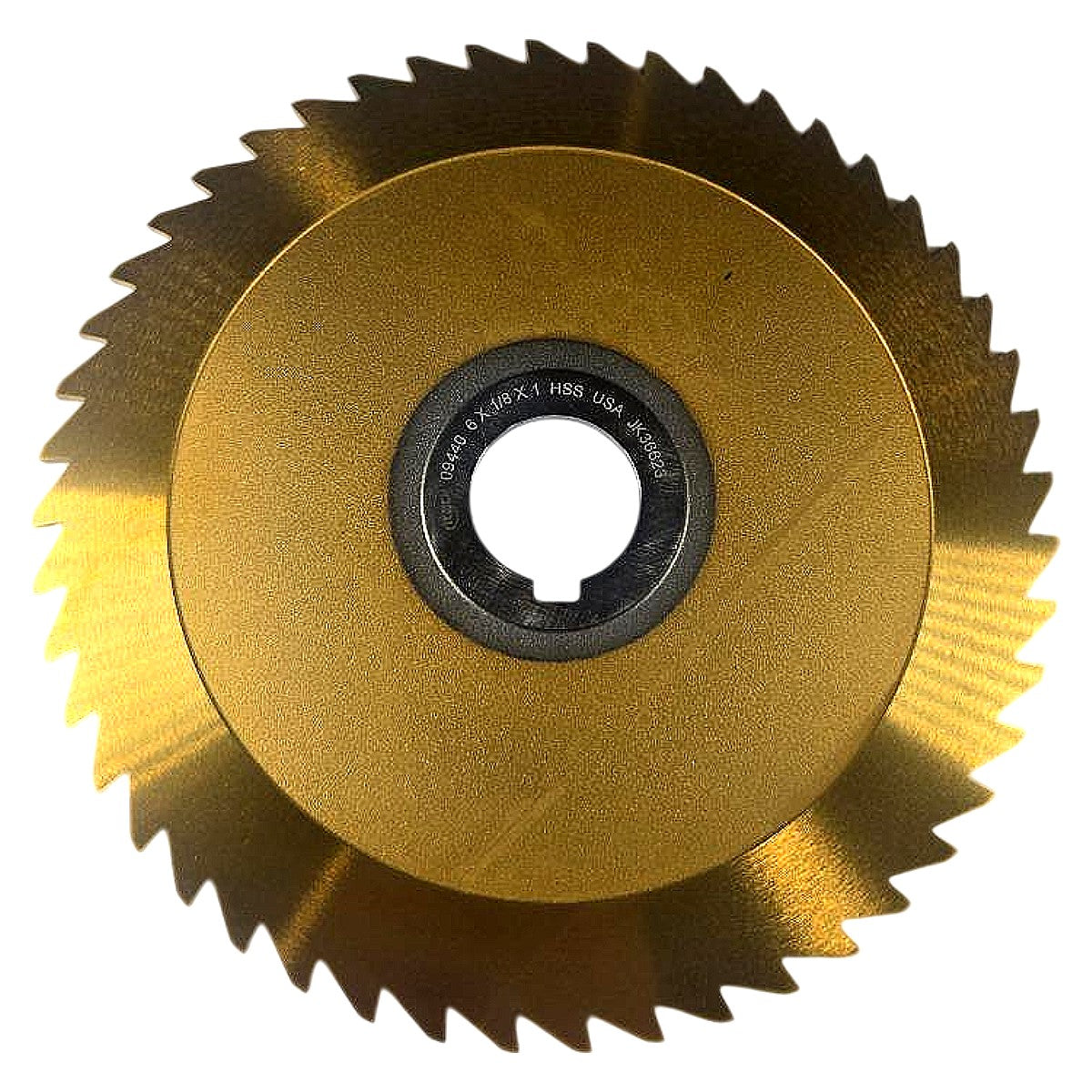

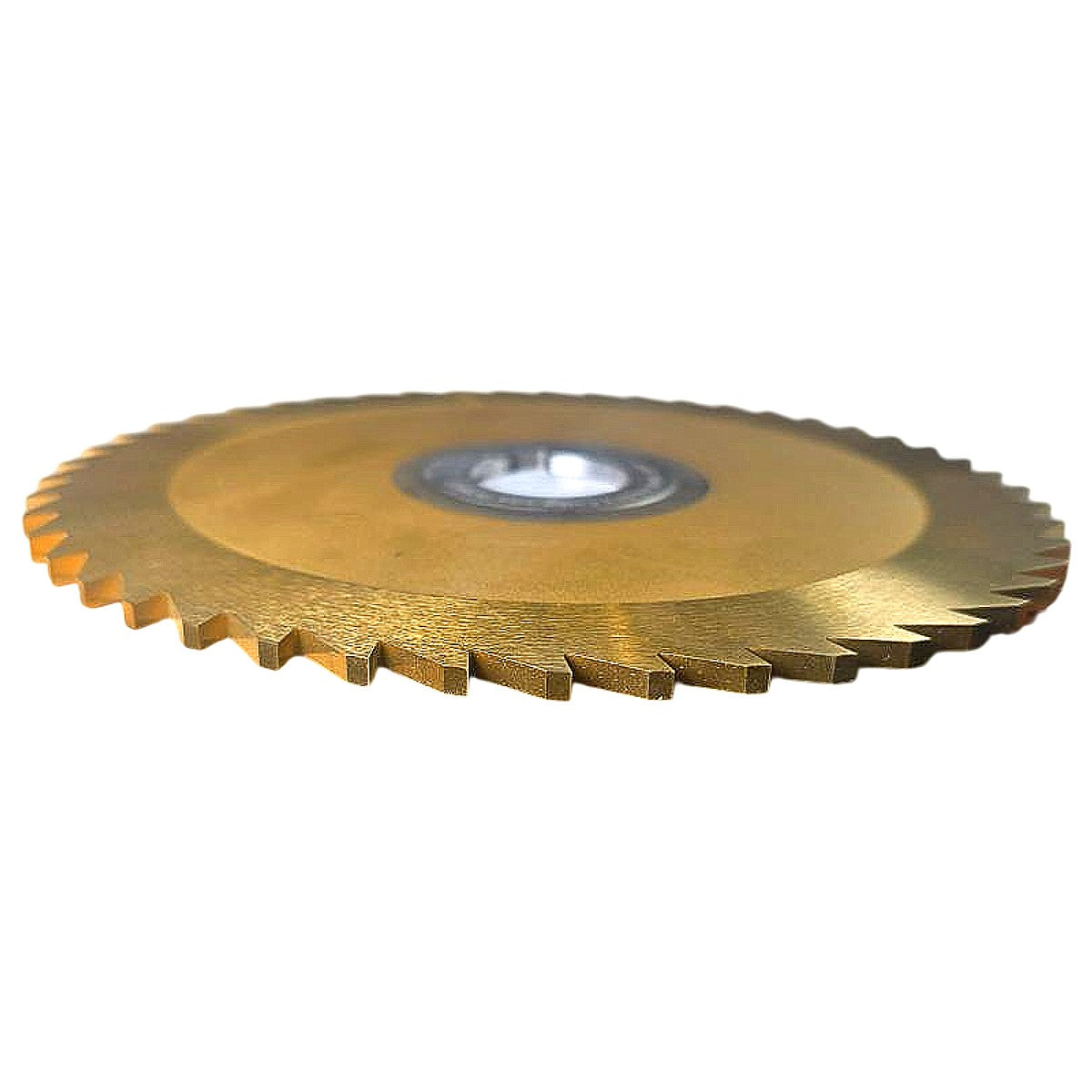

This is a new KEO Cutters 09440 (catalog no. 950-000-828, also stamped JK36623) high-speed steel slitting and slotting saw measuring 6 in. diameter × 1/8 in. width × 1 in. arbor hole with 48 straight teeth and a concave-ground body, USA manufactured. The tool is finish-coated with titanium nitride (TiN), which increases surface hardness and lubricity, extending tool life compared to uncoated HSS in steels, aluminum, and non-ferrous alloys. The 1 in. arbor bore features a Woodruff keyway (visible in photos) for positive drive on standard slitting-saw arbors. With 48 teeth and a 1/8 in. kerf, this cutter is suited for slotting, parting, and narrow groove work on milling machines where a fine, accurate slot width is required. Concave side-relief on the body reduces side friction and chip packing during deep slotting operations.
Product Specifications
| Brand | KEO Cutters |
| Catalog / Item No. | 09440 |
| Mfr Part No. (MPN) | 950-000-828 |
| Secondary Ref. No. | JK36623 |
| Outside Diameter | 6 in |
| Width (Kerf) | 1/8 in (0.125 in) |
| Arbor Hole Diameter | 1 in |
| Number of Teeth | 48 |
| Tooth Form | Straight (plain) |
| Body Style | Concave |
| Material | High Speed Steel (HSS) |
| Coating | TiN (Titanium Nitride) |
| Arbor Keyway | Yes – Woodruff keyway |
| Country of Origin | USA |
| Condition | New |
